KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47128 47131 47133 47264A 9165540825 9165540825 9165540825 9165540825 9411041000 9451201000 9538103020
Part # Description Qty Price
Common parts
91655-40825
94110-41000
94512-01000
95381-03020

(1312- )

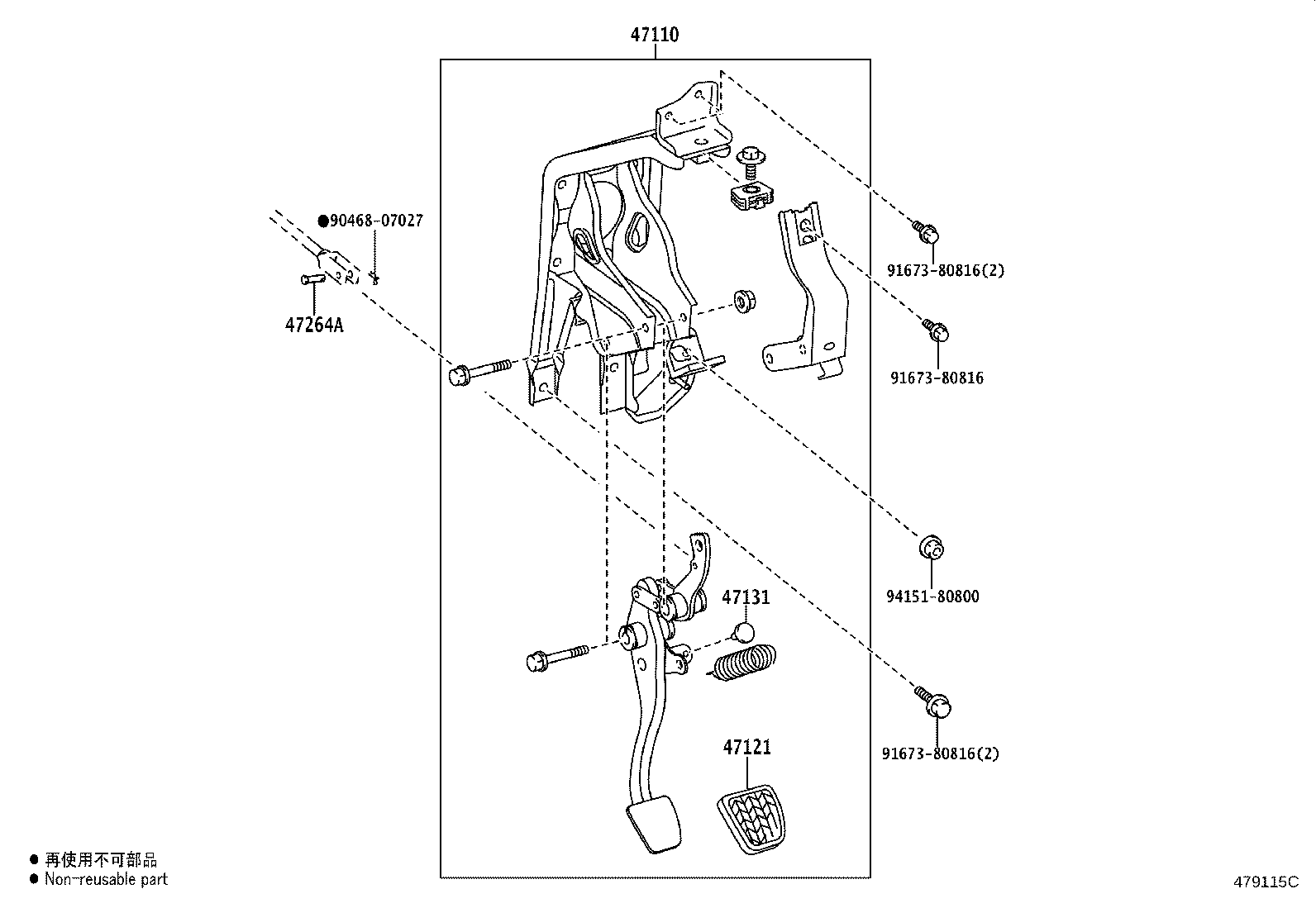

Click highlighted areas on diagram

diagram 47110 47121 47131 47264A 9046807027 9167380816 9167380816 9167380816 9415180800
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-26021

TRH201,221..RHD..5F;KDH222,TRH223..RHD..GL;TRH223..RHD..5F..(ARL,GEN);KDH222,223..RHD..STD..(ARL,GEN);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..RHD..(02S,03S,06S,10S,11S,15S,16S)..(ARL,GEN,SA,TH)

 1
47110-26040

KDH222..RHD..GEN;LH200,TRH223..RHD..4D..(03S,14S)..STD;KDH212,220,LH212,222,TRH221..RHD..(02S,06S,16S);GDH201,KDH201,202,203,221,223,LH202,TRH20#,213..RHD..(02S,03S,05S,06S,11S,14S,15S)

 1
47110-26021

KDH222,TRH223..STD..SA;TRH200,201,22#..RHD..4FC

 1
47110-V3010

KDH200..RHD..(GEN,MA);KDH201,202,203,212,222,223,LH20#,TRH203,213,22#..RHD..STD

 1
47121 - PAD, BRAKE PEDAL
31321-52010

TRH223..LHD..5F;TRH200,201,22#..4FC;KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,221..LHD

 1
31321-52010

TRH201,22#..RHD..5F;KDH20#,21#,22#,LH20#,212,222,TRH203,213..RHD

 1
31321-52010

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..RHD

 1
31321-52010

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..RHD

 2
31321-52020

KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..RHD

 2
90541-06036

TRH201,22#..RHD..5F;KDH20#,21#,22#,LH20#,212,222,TRH203,213..RHD

 1
90541-06036

LH200..RHD..4D;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH212,220,TRH221..RHD..(02S,06S,16S);KDH200,223,TRH213..(03S,11S,14S)..(ARL,MA,TH);KDH201,202,203,221,222,LH202,212,222,TRH201,203..RHD..(02S,03S,05S,06S,10S,12S,15S,16S)..(ARL,GEN,MA,SA,TH)

 1
90541-06036

GDH201,KDH222..03S,06S;TRH200,201,22#..RHD..4FC

 1
47264A - PIN(FOR PUSH ROD)
90240-06027

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
Common parts
90468-07027
91673-80816
94151-80800
