KDH201R-SRPDY (2013)
Toyota Hiace
(7702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91111-40814 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 2(0501- )KDH201,221,223..4FC ; (0501- )KDH200,202,212,220,222,LH20#,212,222,TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
ILLUST NO. 2 OF 2(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26270 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) S=17 & 12,L=37 |
6 | ||
| 90116-08406 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) S=14 & 24,L=52 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-26501 |
TRH200..4FC;TRH201..RHD;GDH201,KDH201,202,203,TRH203..02S,05S,06S,10S |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60120 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||

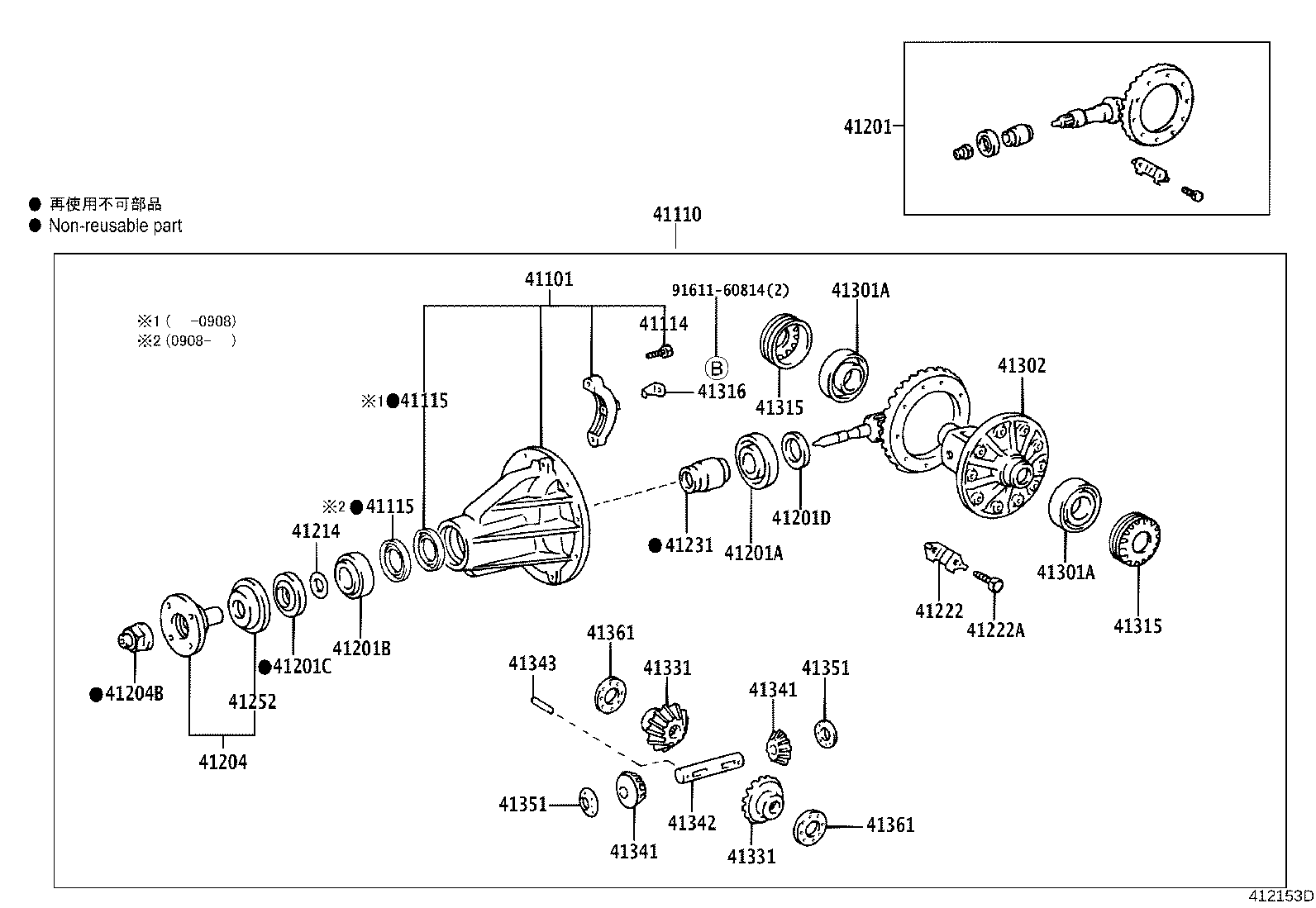

ILLUST NO. 1 OF 2(1312- )KDH201,203,223..SG..02S,06S,14S,15S,16S..GEN,TH ; (1312- )GDH201,KDH2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35171 |
KDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..4FC,5F |
1 | ||
| 41101-35171 |
KDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..4FC,5F |
1 | ||
| 41101-35172 |
KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA,VN);KDH220,TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| 41101-35172 |
KDH223..4FC..TH;TRH223..4FC..GL;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA,VN);KDH220,TRH22#..(02S,06S,14S,16S)..5F..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-26431 |
KDH200,202,212,220,222;KDH201,213,221,223..4FC *FGR=41:10=4.100 |
1 | ||
| 41110-26431 |
KDH200,202,212,220,222;KDH201,213,221,223..4FC *FGR=41:10=4.100 |
1 | ||
| 41110-26432 |
KDH200..GCC,MA;KDH200,220..LHD..5D..GEN;GDH201,KDH201,221,223..4FC,6FC;KDH213,222..(11S,13S,16S)..(GEN,SA);KDH202,212,220..(06S,10S,12S,13S,15S,16S)..STD *FGR=41:10=4.100 |
1 | ||
| 41110-26432 |
KDH200..GCC,MA;KDH200,220..LHD..5D..GEN;GDH201,KDH201,221,223..4FC,6FC;KDH213,222..(11S,13S,16S)..(GEN,SA);KDH202,212,220..(06S,10S,12S,13S,15S,16S)..STD *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 90105-12053 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41115-35010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80724 |
KDH200,202,212,220,222;KDH201,213,221,223..4FC *FGR=41:10=4.100 |
1 | ||
| 41201-80724 |
KDH200,202,212,220,222;KDH201,213,221,223..4FC *FGR=41:10=4.100 |
1 | ||
| 41201-80815 |
KDH201,213,221,223..4FC;GDH201,KDH200,202,212,220,222 *FGR=41:10=4.100 |
1 | ||
| 41201-80815 |
KDH201,213,221,223..4FC;GDH201,KDH200,202,212,220,222 *FGR=41:10=4.100 |
1 | ||
| 41201-80A04 |
KDH200..GCC,MA;KDH200,220..LHD..5D..GEN;GDH201,KDH201,221,223..4FC,6FC;KDH222..(03S,16S)..(GEN,KEN,SA);KDH202,21#,220..(06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA) *FGR=41:10=4.100 |
1 | ||
| 41201-80A04 |
KDH200..GCC,MA;KDH200,220..LHD..5D..GEN;GDH201,KDH201,221,223..4FC,6FC;KDH222..(03S,16S)..(GEN,KEN,SA);KDH202,21#,220..(06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA) *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
1 | ||
| 90366-35087 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30105 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
1 | ||
| 90366-30105 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F PNC 41204=TYPE A |
1 | ||
| 90311-41009 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F PNC 41204=TYPE A |
1 | ||
| 90311-41018 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH PNC 41204=TYPE B |
1 | ||
| 90311-41018 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH PNC 41204=TYPE B |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.70 |
1 | ||
| 90201-35497 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.70 |
1 | ||
| 90201-35499 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.76 |
1 | ||
| 90201-35499 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.76 |
1 | ||
| 90201-35498 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.73 |
1 | ||
| 90201-35498 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.73 |
1 | ||
| 90201-35500 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.79 |
1 | ||
| 90201-35500 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.79 |
1 | ||
| 90201-35502 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.85 |
1 | ||
| 90201-35502 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.85 |
1 | ||
| 90201-35506 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.97 |
1 | ||
| 90201-35506 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.97 |
1 | ||
| 90201-35508 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.03 |
1 | ||
| 90201-35508 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.03 |
1 | ||
| 90201-35510 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.09 |
1 | ||
| 90201-35510 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.09 |
1 | ||
| 90201-35511 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.12 |
1 | ||
| 90201-35511 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.12 |
1 | ||
| 90201-35501 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.82 |
1 | ||
| 90201-35501 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.82 |
1 | ||
| 90201-35512 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.15 |
1 | ||
| 90201-35512 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.15 |
1 | ||
| 90201-35503 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.88 |
1 | ||
| 90201-35503 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.88 |
1 | ||
| 90201-35513 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.18 |
1 | ||
| 90201-35513 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.18 |
1 | ||
| 90201-35505 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.94 |
1 | ||
| 90201-35505 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.94 |
1 | ||
| 90201-35509 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.06 |
1 | ||
| 90201-35509 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.06 |
1 | ||
| 90201-35515 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35515 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35514 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.21 |
1 | ||
| 90201-35514 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.21 |
1 | ||
| 90201-35507 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.00 |
1 | ||
| 90201-35507 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.00 |
1 | ||
| 90201-35518 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35518 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35516 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35516 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35504 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.91 |
1 | ||
| 90201-35504 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=1.91 |
1 | ||
| 90201-35517 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35517 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=47,T=2.30,MARK 03 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35083 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH TYPE B:REFER ILLUST. |
1 | ||
| 41204-35083 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH TYPE B:REFER ILLUST. |
1 | ||
| 41204-35082 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F TYPE A:REFER ILLUST. |
1 | ||
| 41204-35082 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F TYPE A:REFER ILLUST. |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=39.5 |
1 | ||
| 90177-22003 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41214-26011 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 41222-35020 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
10 | ||
| 90101-11353 |
GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
10 | ||
| 90105-11063 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S |
10 | ||
| 90105-11063 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41231-24010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41252-35041 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41252-71040 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH PNC 41204=TYPE B |
1 | ||
| 41252-71040 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;TRH223..(12S,16S)..(RUS,SA,TH);KDH213,223,TRH201..(4FC,5F)..(ARL,GCC,GEN,RUS,SA);KDH220,222,TRH221..(02S,06S,16S)..(4FC,5F)..(ARL,GEN,SA);KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH PNC 41204=TYPE B |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
2 | ||
| 90366-50007 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
2 | ||
| 90366-50007 |
KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222,TRH200..ARL,GCC,GEN,MA,TH |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-60060 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
1 | ||
| 41311-60060 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41315-35020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41315-35020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41316-35010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41331-35011 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41331-35011 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41341-35020 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41341-35020 |
TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;GDH201,KDH201,221,223,TRH200..4FC,6FC;KDH202,212,220,LH202,212,222..GCC,GEN,MA;KDH220,222,TRH221..(02S,06S,16S)..(ARL,GEN,SA);KDH213,TRH201..(02S,03S,05S,06S,11S,13S)..(ARL,GCC,GEN,SA) |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
1 | ||
| 41342-39610 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
1 | ||
| 90250-06085 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
2 | ||
| 41351-30052 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
2 | ||
| 41351-30052 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC REFER TO PNC 41302 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.6,REFER TO PNC 41302 |
2 | ||
| 41361-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.6,REFER TO PNC 41302 |
2 | ||
| 41362-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.7,REFER TO PNC 41302 |
2 | ||
| 41362-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.7,REFER TO PNC 41302 |
2 | ||
| 41363-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.8,REFER TO PNC 41302 |
2 | ||
| 41363-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.8,REFER TO PNC 41302 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.6,REFER TO PNC 41302 |
2 | ||
| 41361-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.6,REFER TO PNC 41302 |
2 | ||
| 41362-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.7,REFER TO PNC 41302 |
2 | ||
| 41362-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.7,REFER TO PNC 41302 |
2 | ||
| 41363-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.8,REFER TO PNC 41302 |
2 | ||
| 41363-40021 |
KDH200..GCC,MA;TRH223..4FC..GL;TRH223..4FC..ARL;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH220,222..(06S,16S)..(GEN,SA);KDH213,TRH201,221..4FC..(ARL,GEN);GDH201,KDH201,221,223,TRH213..4FC,6FC T=1.8,REFER TO PNC 41302 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
