KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )1KDFTV..KDH201..SG ; (1606- )1KDFTV..KDH201..ARL ; (1606- )1KDFTV.

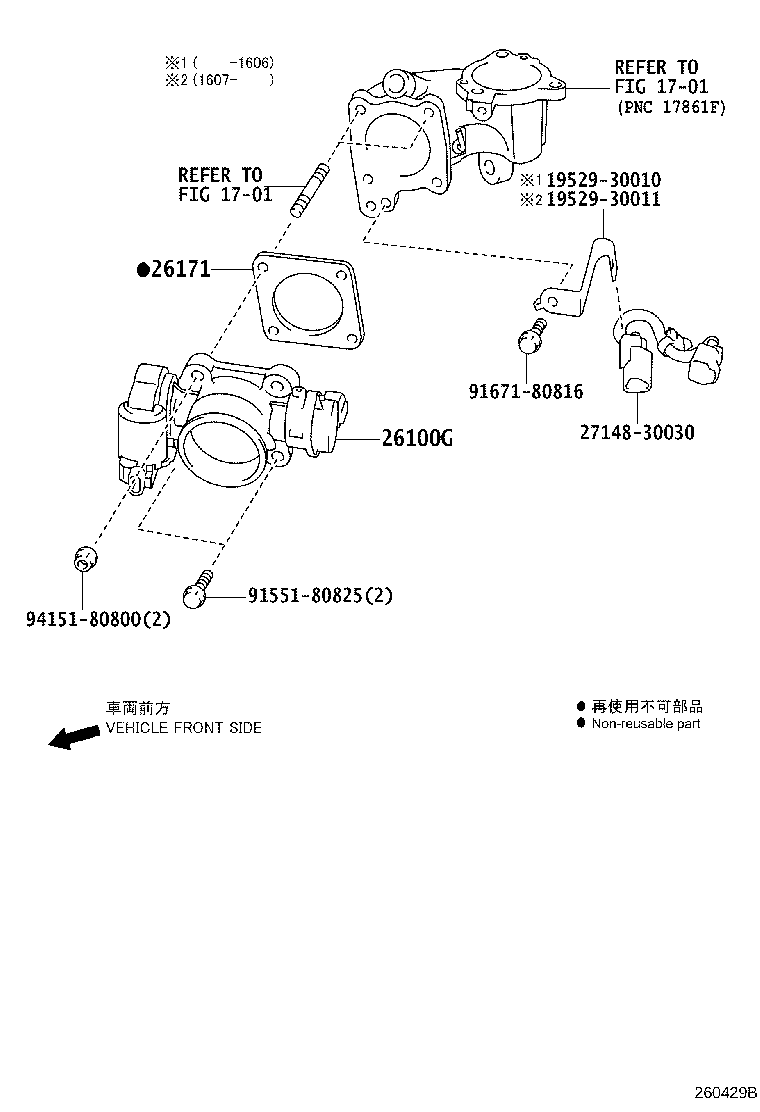

Click highlighted areas on diagram

diagram 1701 1701 1952930010 1952930011 26100G 26171 2714830030 9155180825 9167180816 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30060

2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
26100-30060

2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
26171 - GASKET, VENTURI
26171-30020

2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA)

 1
26171-30020

2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA)

 1
Common parts
19529-30010
19529-30011
27148-30030
91551-80825
91671-80816
94151-80800
Linked diagrams
1701
