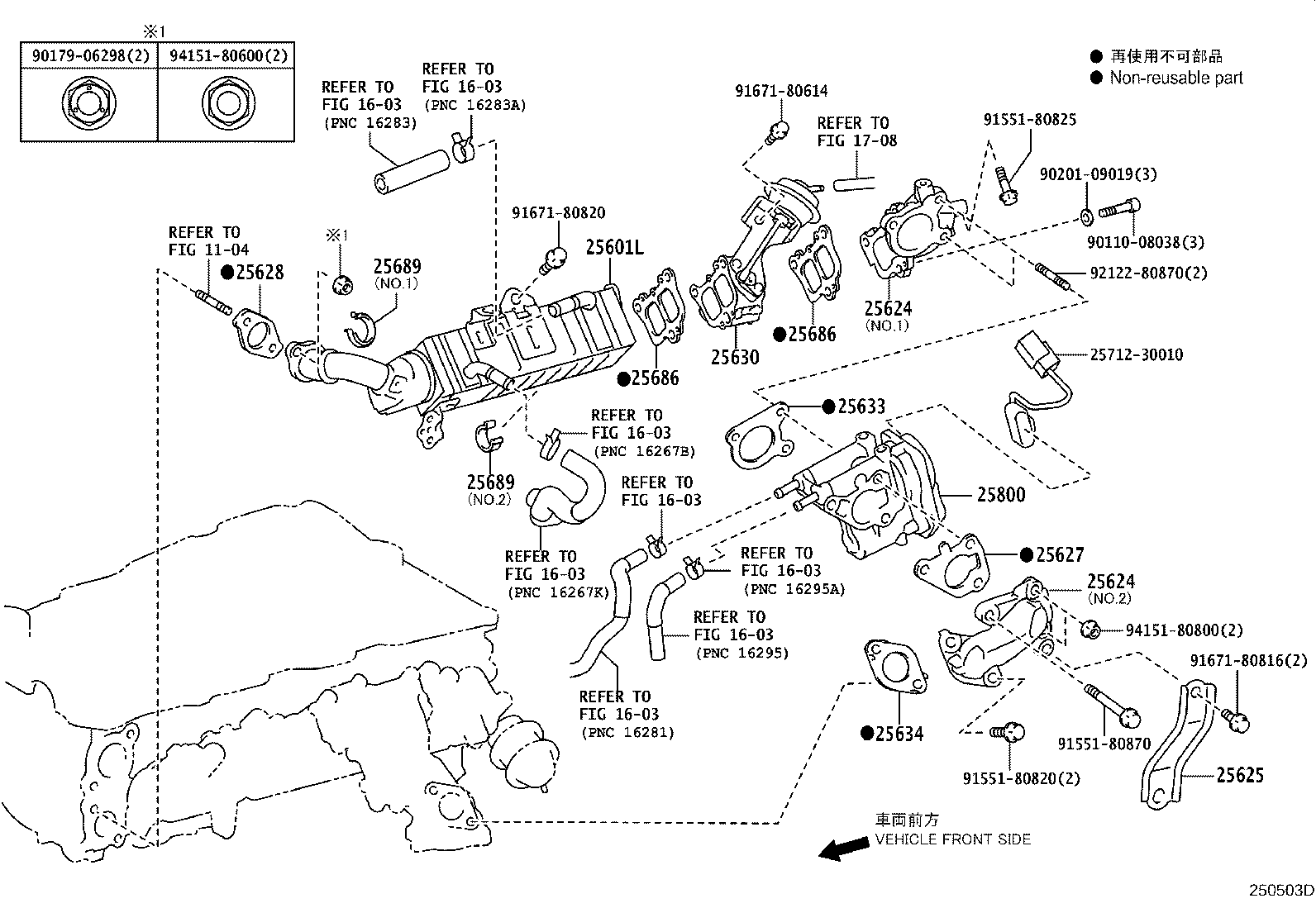

KDH201R-SRPDY (2013)
Toyota Hiace
(1606- )1KDFTV..KDH201..SG ; (1606- )1KDFTV..KDH201..ARL ; (1606- )1KDFTV.
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601L - PIPE SUB-ASSY, EGR W/COOLER | ||||
| 25601-30111 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25601-30111 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25601-30112 |
1KDFTV..KDH201..06S |
1 | ||
| 25601-30112 |
1KDFTV..KDH201..06S |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25611-30040 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25611-30040 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25612-30020 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25612-30020 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25611-30040 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25611-30040 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25612-30020 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25612-30020 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-30020 |
1KDFTV..KDH201..SG |
1 | ||
| 25625-30020 |
1KDFTV..KDH201..SG |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-30070 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25627-30070 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-30060 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.1:REFER ILLUST. |
2 | ||
| 25628-30060 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.1:REFER ILLUST. |
2 | ||
| 25628-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.2:REFER ILLUST. |
1 | ||
| 25628-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.2:REFER ILLUST. |
1 | ||
| 25628-30050 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.3:REFER ILLUST. |
1 | ||
| 25628-30050 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) NO.3:REFER ILLUST. |
1 | ||
| 25628-30060 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25628-30060 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25630-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25630-30030 |
1KDFTV..KDH201..SG |
1 | ||
| 25630-30030 |
1KDFTV..KDH201..SG |
1 | ||
| 25633 - GASKET, EGR VALVE | ||||
| 25633-26020 |
1KDFTV..KDH201..SG |
1 | ||
| 25633-26020 |
1KDFTV..KDH201..SG |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-30010 |
1KDFTV..KDH201..SG |
1 | ||
| 25634-30010 |
1KDFTV..KDH201..SG |
1 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30020 |
1KDFTV..KDH201..SG |
2 | ||
| 25686-30020 |
1KDFTV..KDH201..SG |
2 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30020 |
1KDFTV..KDH201..SG |
2 | ||
| 25686-30020 |
1KDFTV..KDH201..SG |
2 | ||
| 25689 - INSULATOR, EGR COOLER | ||||
| 25699-30010 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25699-30010 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25689-30010 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25689-30010 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25689 - INSULATOR, EGR COOLER | ||||
| 25699-30010 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25699-30010 |
1KDFTV..KDH201..SG NO.2:REFER ILLUST. |
1 | ||
| 25689-30010 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25689-30010 |
1KDFTV..KDH201..SG NO.1:REFER ILLUST. |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-30150 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25800-30150 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25800-30200 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 25800-30200 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 25712-30010 | ||||
| 90110-08038 | ||||
| 90179-06298 | ||||
| 90201-09019 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 1708 | ||||
