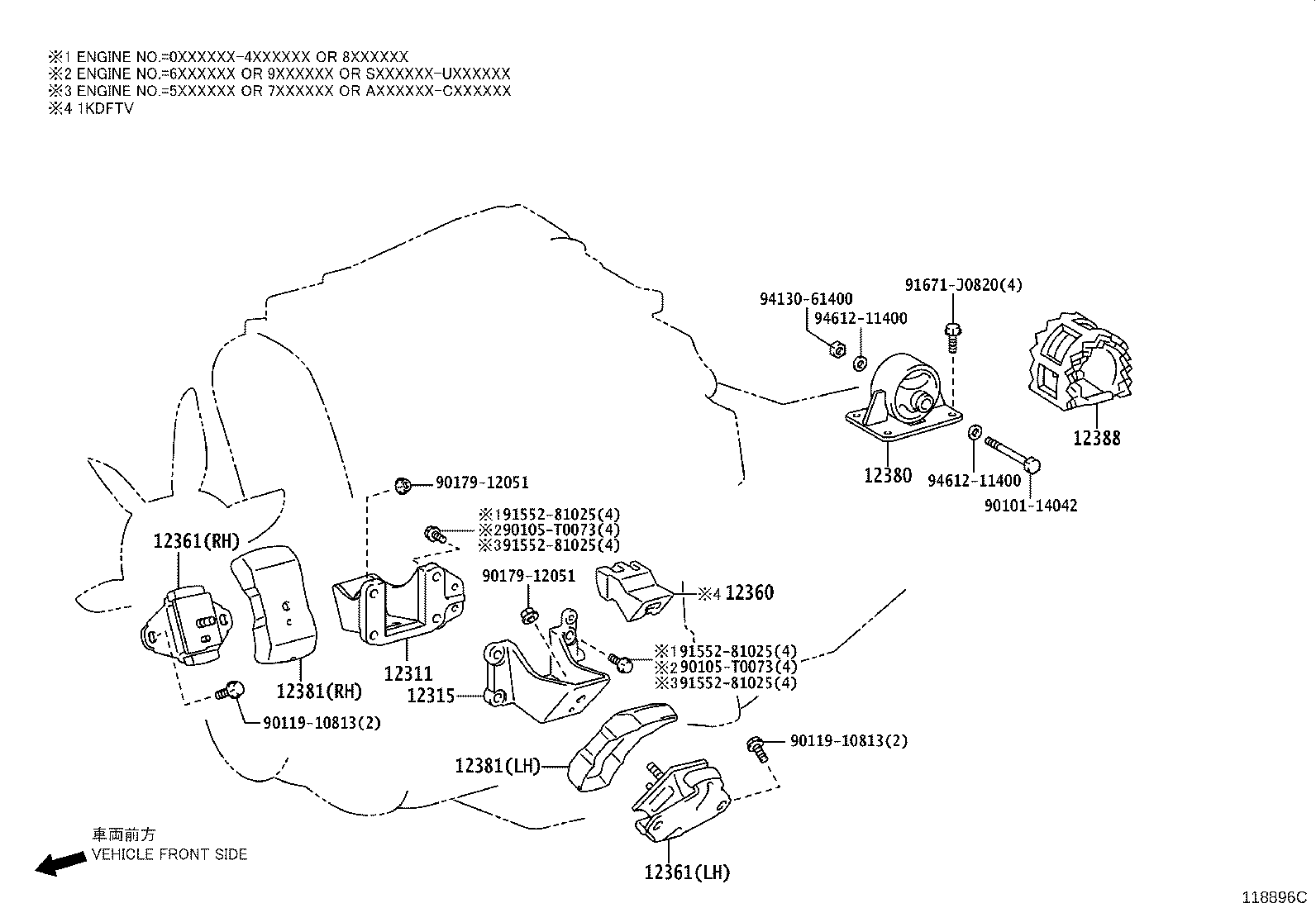

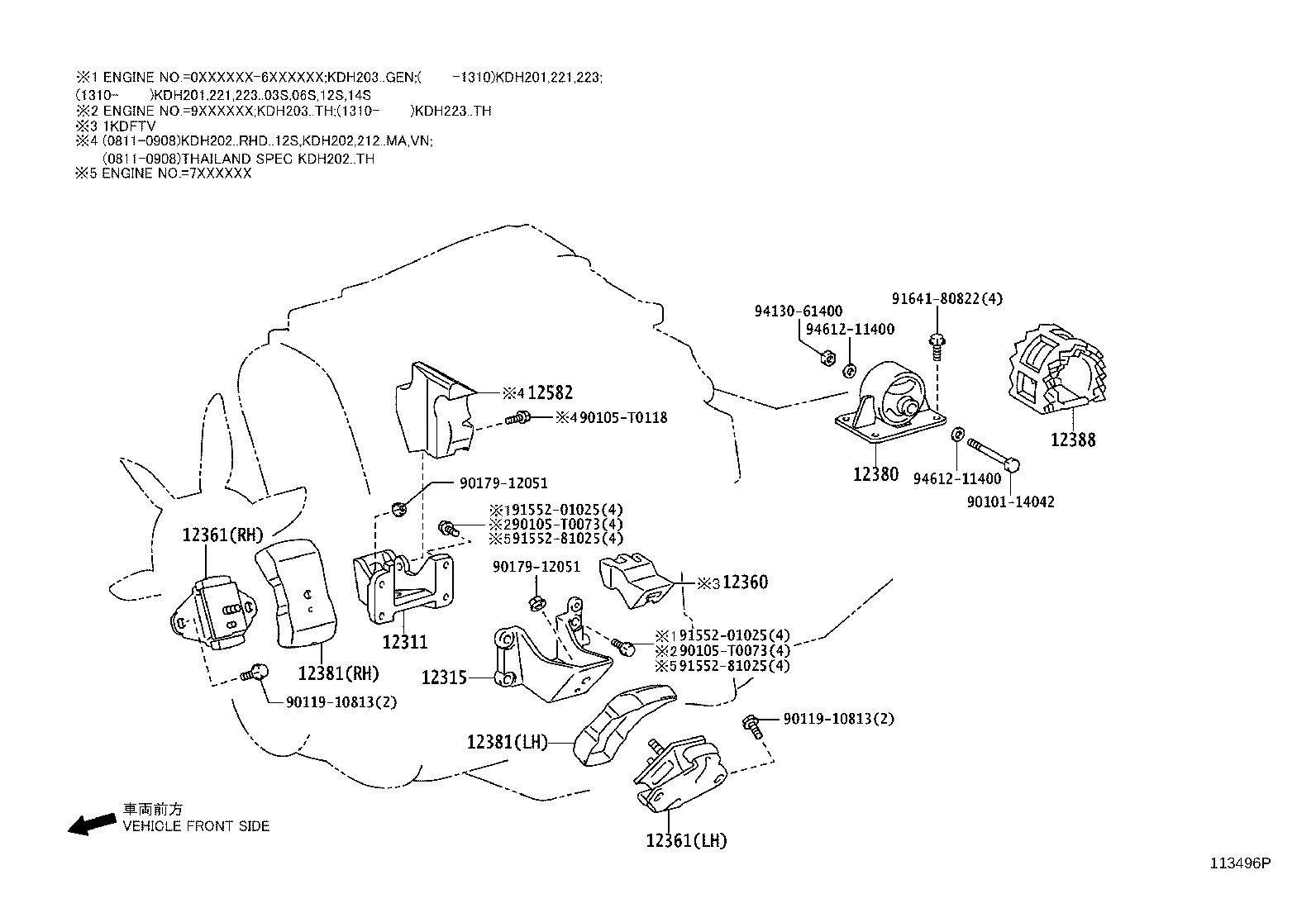

KDH201R-SRPDY (2013)
Toyota Hiace
(0501- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14042 | ||||
| 90105-T0073 | ||||
| 90105-T0118 | ||||
| 90119-10813 | ||||
| 90179-12051 | ||||
| 91552-01025 | ||||
| 91552-81025 | ||||
| 91641-80822 | ||||
| 94130-61400 | ||||
| 94612-11400 | ||||
(1312- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-30071 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-30061 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12361-30070 |
1KDFTV..KDH201..SG |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-30090 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) LH |
1 | ||
| 12361-30100 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) RH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-30090 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) LH |
1 | ||
| 12361-30100 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) RH |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-30010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-30040 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) RH |
1 | ||
| 12381-67010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) LH |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-30040 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) RH |
1 | ||
| 12381-67010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) LH |
1 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-67011 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| Common parts | ||||
| 90101-14042 | ||||
| 90105-T0073 | ||||
| 90119-10813 | ||||
| 90179-12051 | ||||
| 91552-81025 | ||||
| 91671-J0820 | ||||
| 94130-61400 | ||||
| 94612-11400 | ||||
