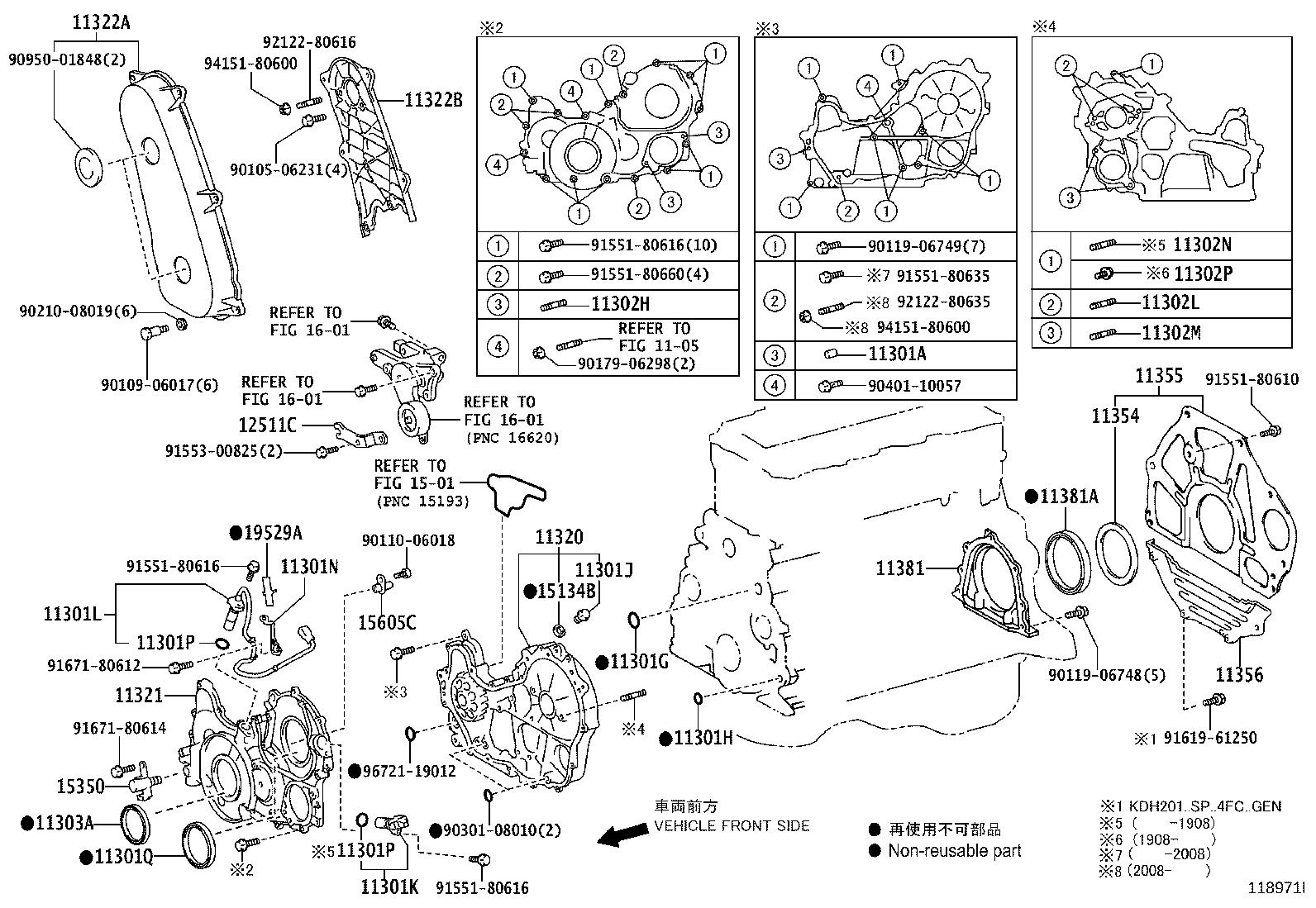

KDH201R-SRPDY (2013)
Toyota Hiace
(1606- )1KDFTV..KDH201..SG ; (1606- )1KDFTV..KDH201..ARL ; (1606- )1KDFTV.
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) L=18,OD=8 |
1 | ||
| 90250-08120 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) L=18,OD=8 |
1 | ||
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90301-22007 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 90301-22007 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11301H - RING, O(FOR TIMING GEAR CASE, LOWER) | ||||
| 90301-09018 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 90301-09018 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| 90341-18015 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 90341-18015 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05052 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
1 | ||
| 90919-05052 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
1 | ||
| 90919-05025 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 90919-05025 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 11301L - SENSOR, CRANK POSITION NO.2 | ||||
| 90919-05066 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 90919-05066 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 90919-05085 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 90919-05085 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11301N - CLAMP | ||||
| 19529-30060 |
1KDFTV..KDH201..SG |
1 | ||
| 19529-30060 |
1KDFTV..KDH201..SG |
1 | ||
| 11301P - O RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 90301-14016 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 90301-14016 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
2 | ||
| 90301-14016 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
2 | ||
| 11301P - O RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 90301-14016 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 90301-14016 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
2 | ||
| 90301-14016 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S |
2 | ||
| 11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP) | ||||
| 90311-65004 |
1KDFTV..KDH203,213..GEN;1KDFTV,2KDFTV..KDH201,221,222,223..(02S,03S,05S,06S,12S,14S)..(ARL,GEN,KEN,RUS,TH) |
1 | ||
| 90311-65004 |
1KDFTV..KDH203,213..GEN;1KDFTV,2KDFTV..KDH201,221,222,223..(02S,03S,05S,06S,12S,14S)..(ARL,GEN,KEN,RUS,TH) |
1 | ||
| 11302H - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-08377 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 90116-08377 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 11302L - BOLT, STUD(FOR INJECTION PUMP) | ||||
| 90116-08377 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 90116-08377 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP) | ||||
| 90116-10160 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 90116-10160 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 11302N - BOLT, STUD(FOR VACUUM TRANSMITTING PIPE) | ||||
| 90126-06029 |
1KDFTV..KDH223..4FC..ARL;1KDFTV..KDH201..RHD..03S..GEN;1KDFTV..KDH201,203..SG..(02S,06S,15S) |
1 | ||
| 90126-06029 |
1KDFTV..KDH223..4FC..ARL;1KDFTV..KDH201..RHD..03S..GEN;1KDFTV..KDH201,203..SG..(02S,06S,15S) |
1 | ||
| 11302P - BOLT(FOR VACUUM TRANSMITTING PIPE) | ||||
| 91551-80614 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 91551-80614 |
1KDFTV..KDH201,203,223;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN |
1 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 90311-50051 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 90311-50051 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11320 - CASE ASSY, TIMING GEAR | ||||
| 11320-30032 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11320-30032 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11320-30090 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11320-30090 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11321 - CASE, TIMING GEAR | ||||
| 11321-30020 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11321-30020 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11302-30030 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11302-30030 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11332-30011 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11332-30011 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11332-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11332-30040 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN) |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11322-30010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11322-30010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-30010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11354-30010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-67011 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11355-67011 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-30030 |
1KDFTV..KDH213..4FC..GEN;1KDFTV,2KDFTV..KDH201,212,221,222,223..4FC |
1 | ||
| 11356-30030 |
1KDFTV..KDH213..4FC..GEN;1KDFTV,2KDFTV..KDH201,212,221,222,223..4FC |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0K010 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S (L) |
1 | ||
| 11381-0K010 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S (L) |
1 | ||
| 11381-67020 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S (J) |
1 | ||
| 11381-67020 |
1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S (J) |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95015 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 90311-95015 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 12511C - BRACKET, ALTERNATOR | ||||
| 12511-30031 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 12511-30031 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 15134B - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-67010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 15134-67010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 15350 - VALVE ASSY, OIL PRESSURE SWITCHING | ||||
| 15350-30011 |
1KDFTV..KDH201..SG |
1 | ||
| 15350-30011 |
1KDFTV..KDH201..SG |
1 | ||
| 15605C - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-30040 |
1KDFTV..KDH201..SG |
1 | ||
| 15605-30040 |
1KDFTV..KDH201..SG |
1 | ||
| 19529A - CLAMP | ||||
| 19529-30050 |
1KDFTV..KDH201..SG |
1 | ||
| 19529-30050 |
1KDFTV..KDH201..SG |
1 | ||
| Common parts | ||||
| 90105-06231 | ||||
| 90109-06017 | ||||
| 90110-06018 | ||||
| 90119-06748 | ||||
| 90119-06749 | ||||
| 90179-06298 | ||||
| 90210-08019 | ||||
| 90301-08010 | ||||
| 90401-10057 | ||||
| 90950-01848 | ||||
| 91551-80610 | ||||
| 91551-80616 | ||||
| 91551-80635 | ||||
| 91551-80660 | ||||
| 91553-00825 | ||||
| 91619-61250 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 92122-80616 | ||||
| 92122-80635 | ||||
| 94151-80600 | ||||
| 96721-19012 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1501 | ||||
| 1601 | ||||
