KDH201R-SBMDY (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )1KDFTV..5F..ARL,GEN,TH

Click highlighted areas on diagram

12V 2.2KW

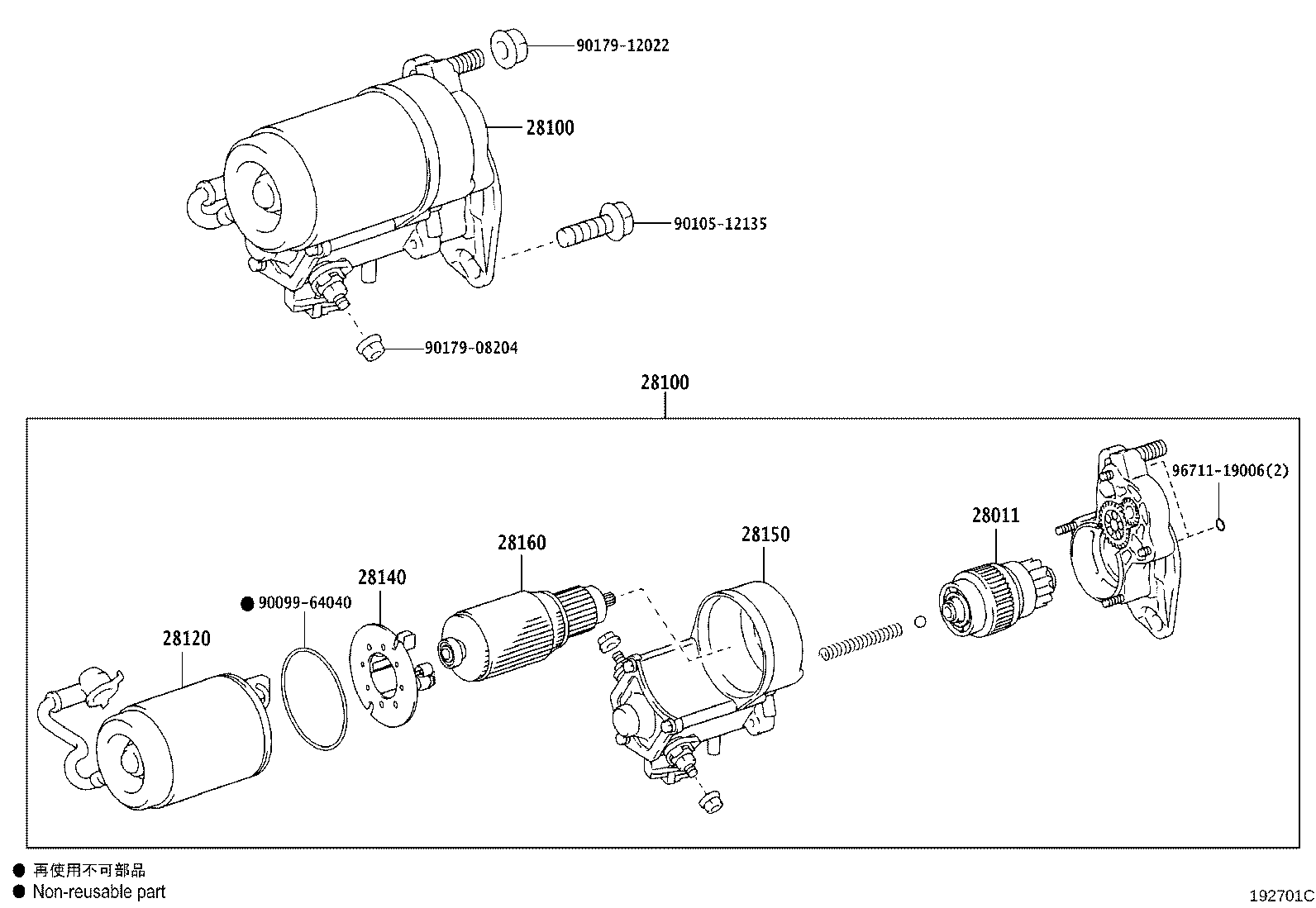

diagram 28011 28100 28100 28120 28140 28150 28160 9009964040 9010512135 9017908204 9017912022 9671119006
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-67030

1KDFTV..KDH201,203,221,223..5F..(ARL,GEN,TH)

 1
28100 - STARTER ASSY
28100-67050

1KDFTV..KDH201,203,221,223..5F

12V 2.2KW

 1
28100-67051

1KDFTV..KDH201,203,221,223..5F..(ARL,GEN,TH)

12V 2.2KW

 1
28100 - STARTER ASSY
28100-67050

1KDFTV..KDH201,203,221,223..5F

12V 2.2KW

 1
28100-67051

1KDFTV..KDH201,203,221,223..5F..(ARL,GEN,TH)

12V 2.2KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
28160 - ARMATURE ASSY, STARTER
28160-64041

1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..5F..(ARL,GEN,TH)

 1
Common parts
90099-64040
90105-12135
90179-08204
90179-12022
96711-19006
