KDH201R-RBPDY (2006)
Toyota Hiace
(7702- )RH11,20,30..RHD..03S,06S..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-10010 | ||||
| 88714-14020 | ||||
| 88714-20030 | ||||
| 88714-30290 | ||||
| 88718-26030 | ||||
| 88718-95A19 | ||||
| 88895-12030 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 90099-32095 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90179-18016 | ||||
| 90461-08104 | ||||
| 90461-08458 | ||||
| 90461-10222 | ||||
| 90461-10952 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-40816 | ||||
| 93590-16020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94118-40800 | ||||
(7702- )
| Part # | Description | Qty | Price |
|---|

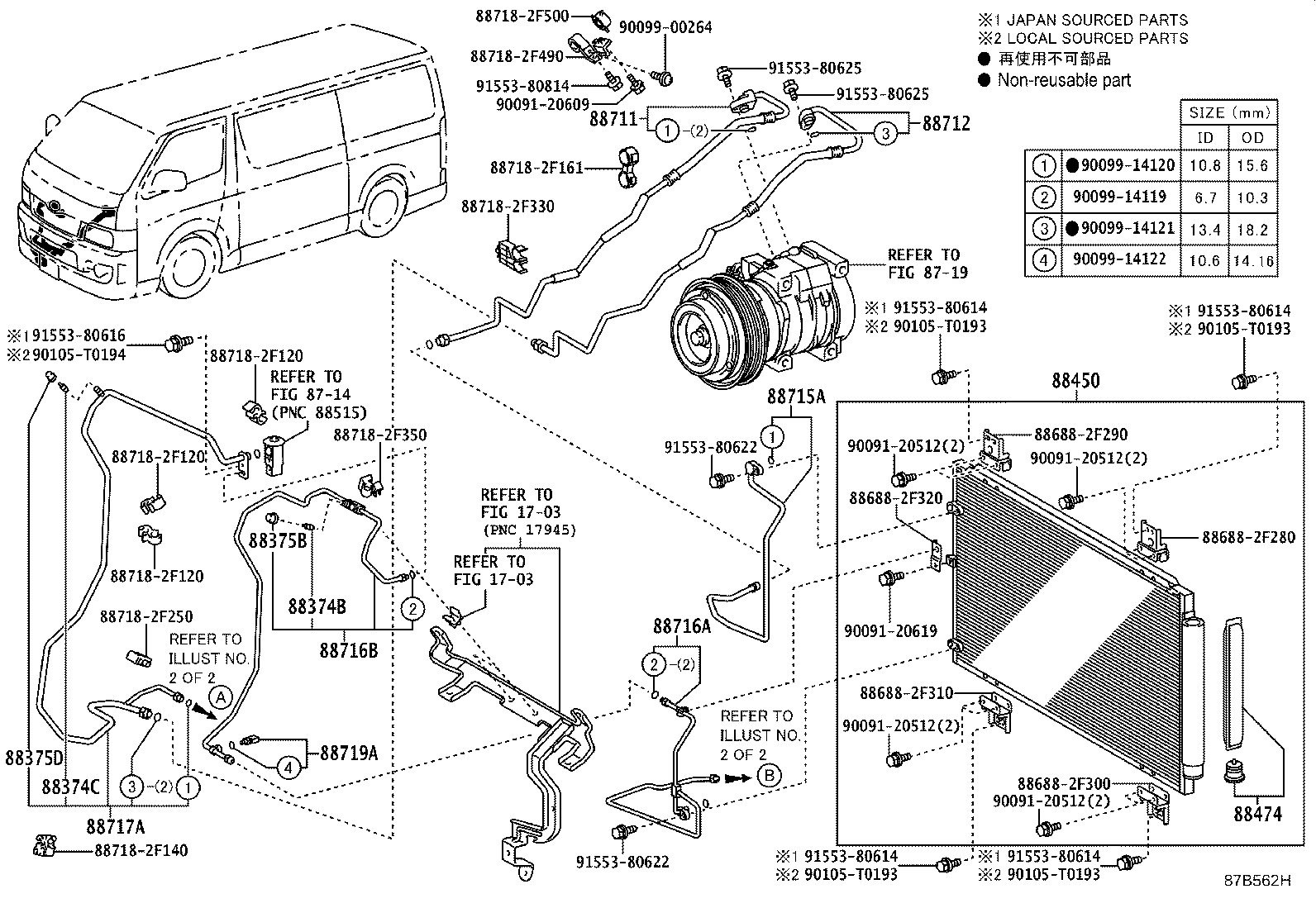

ILLUST NO. 1 OF 2(0610-1008)KDH201,203
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH220,221;TRH221..SG;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375-30290 |
KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F151 |
KDH200,201..SG..GEN;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F151 |
KDH200,201..SG..GEN;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-2F310 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F310 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH201..SG;KDH201..03S;KDH200..03S..5F..(GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH201..SG;KDH201..03S;KDH200..03S..5F..(GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-2F360 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-2F360 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-2F631 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N120 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N120 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH201,TRH201..RHD..03S;KDH201,TRH201..SG..06S..GEN;KDH200..RHD..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717-2F680 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH201,221,TRH221..03S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719-33020 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-33020 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH200,201,220,221,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH201,221..03S;TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||

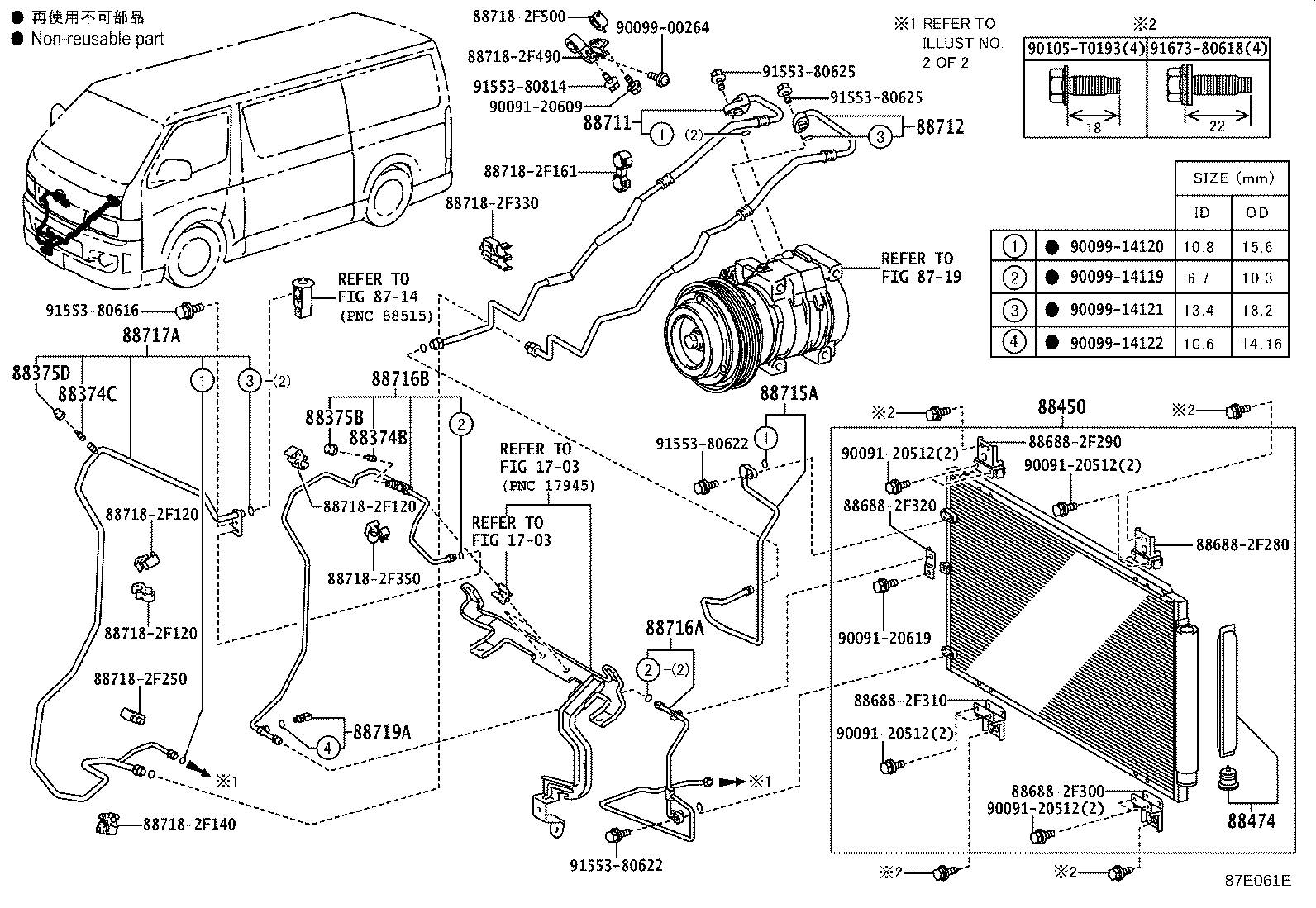

ILLUST NO. 1 OF 2(1008- )KDH201,203..RHD
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH220,221;TRH221..SG;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375-30290 |
KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F151 |
KDH200,201..SG..GEN;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F151 |
KDH200,201..SG..GEN;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-2F310 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F310 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH201..SG;KDH201..03S;KDH200..03S..5F..(GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH201..SG;KDH201..03S;KDH200..03S..5F..(GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-2F360 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-2F360 |
KDH201..SG;KDH200,201..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-2F631 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N120 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N120 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH201,TRH201..RHD..03S;KDH201,TRH201..SG..06S..GEN;KDH200..RHD..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717-2F680 |
KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH201,221,TRH221..03S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719-33020 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-33020 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH200,201,220,221,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH201,221..03S;TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||

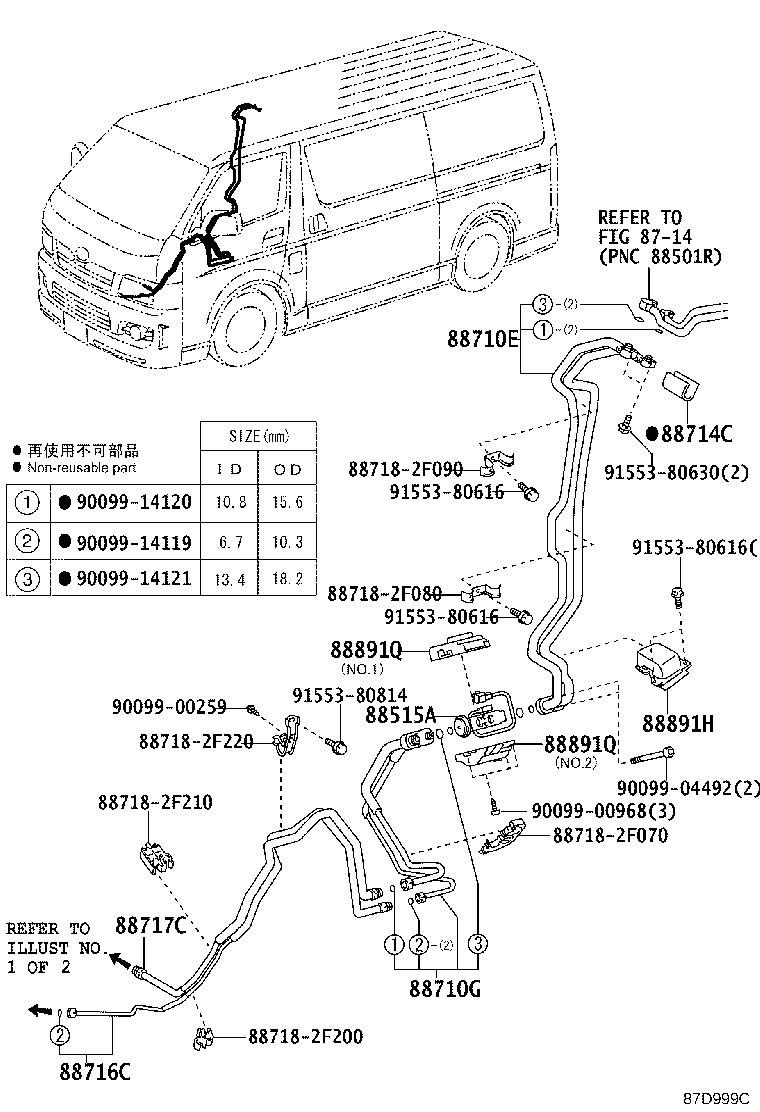

(1312- )KDH201..02S,03S,06S ; (1312- )KDH203..02S,12S..GEN ; (1501- )KDH20
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00259 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80616 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
(1312-2005)KDH201,203..RHD..02S,03S,06S,12S ; (1501-2005)KDH201..05S
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 88718-2F490 | ||||
| 88718-2F500 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
