KDH201R-RBPDY (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-1008)1KDFTV

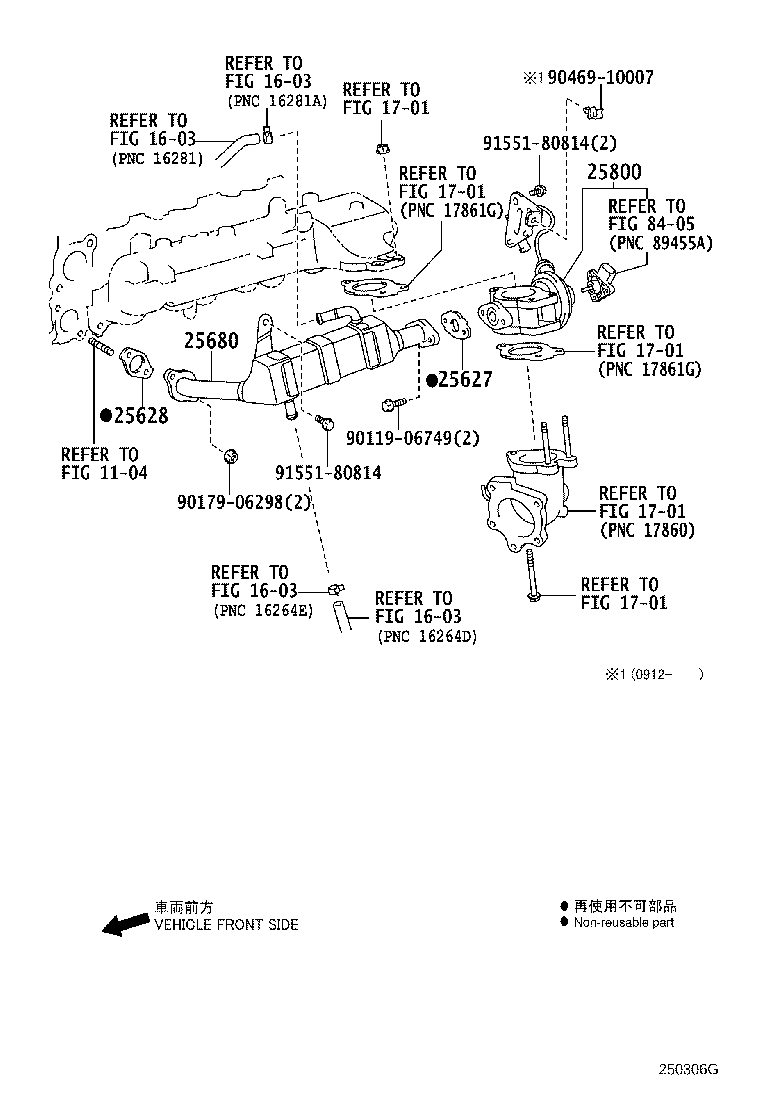

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 1701 1701 1701 1701 1701 25627 25628 25680 25800 8405 9011906749 9017906298 9046910007 9155180814 9155180814
Part # Description Qty Price
25627 - GASKET, EGR VALVE
25627-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
25628 - GASKET, EGR INLET
25628-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
25680 - COOLER ASSY, EGR
25680-30010

1KDFTV..KDH201,203,221,223

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30140

1KDFTV..KDH201,203,221,223

 1
Common parts
90119-06749
90179-06298
90469-10007
91551-80814
Linked diagrams
1104
1603
1701
8405

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,
