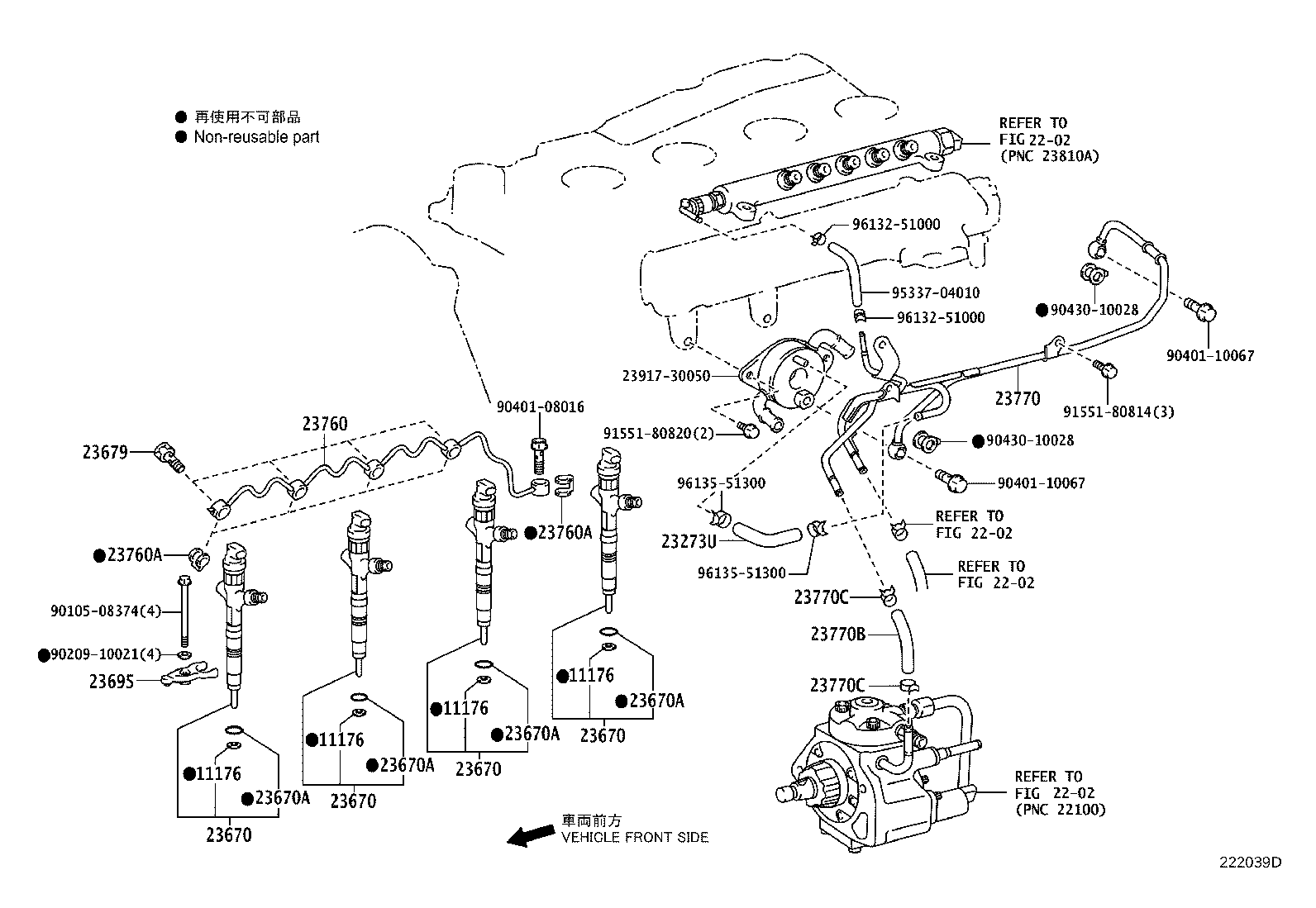

KDH201R-RBPDY (2006)
Toyota Hiace
(0610-1008)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23273U - HOSE, FUEL, NO.2 | ||||
| 23271-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695-30011 |
2KDFTV..KDH202..GCC,GEN;1KDFTV,2KDFTV..KDH200,201,203,212,22#..ARL,GCC,GEN,SA,TH |
4 | ||
| 23695-0L010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| Common parts | ||||
| 23917-30050 | ||||
| 90105-08374 | ||||
| 90209-10021 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90430-10028 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 95337-04010 | ||||
| 96132-51000 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39165 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39265 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39166 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 23670-39385 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH222..14S..STD;2KDFTV..KDH220..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH200,223..06S,12S,14S,16S;1KDFTV,2KDFTV..KDH201,203,212,221..03S,12S,14S,15S;1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695-30011 |
2KDFTV..KDH202..GCC,GEN;1KDFTV,2KDFTV..KDH200,201,203,212,22#..ARL,GCC,GEN,SA,TH |
4 | ||
| 23695-0L010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| Common parts | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 95337-04010 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1312- )1KDFTV..KDH201..SP..03S,06S..GEN ; (1312- )1KDFTV..KDH203,213..02S,10
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23273-30320 | ||||
| 90105-08374 | ||||
| 90148-60053 | ||||
| 90209-10021 | ||||
| 90301-06020 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-12097 | ||||
| 90430-10028 | ||||
| 90430-10030 | ||||
| 90430-13005 | ||||
| 90523-05007 | ||||
| 90904-30012 | ||||
| 91551-80630 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91631-G0614 | ||||
| 91671-80612 | ||||
| 91671-80814 | ||||
| 95337-04010 | ||||
| 96132-51000 | ||||
| 96221-10910 | ||||
| Linked diagrams | ||||
| 2202 | ||||
