KDH201R-RBPDY (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

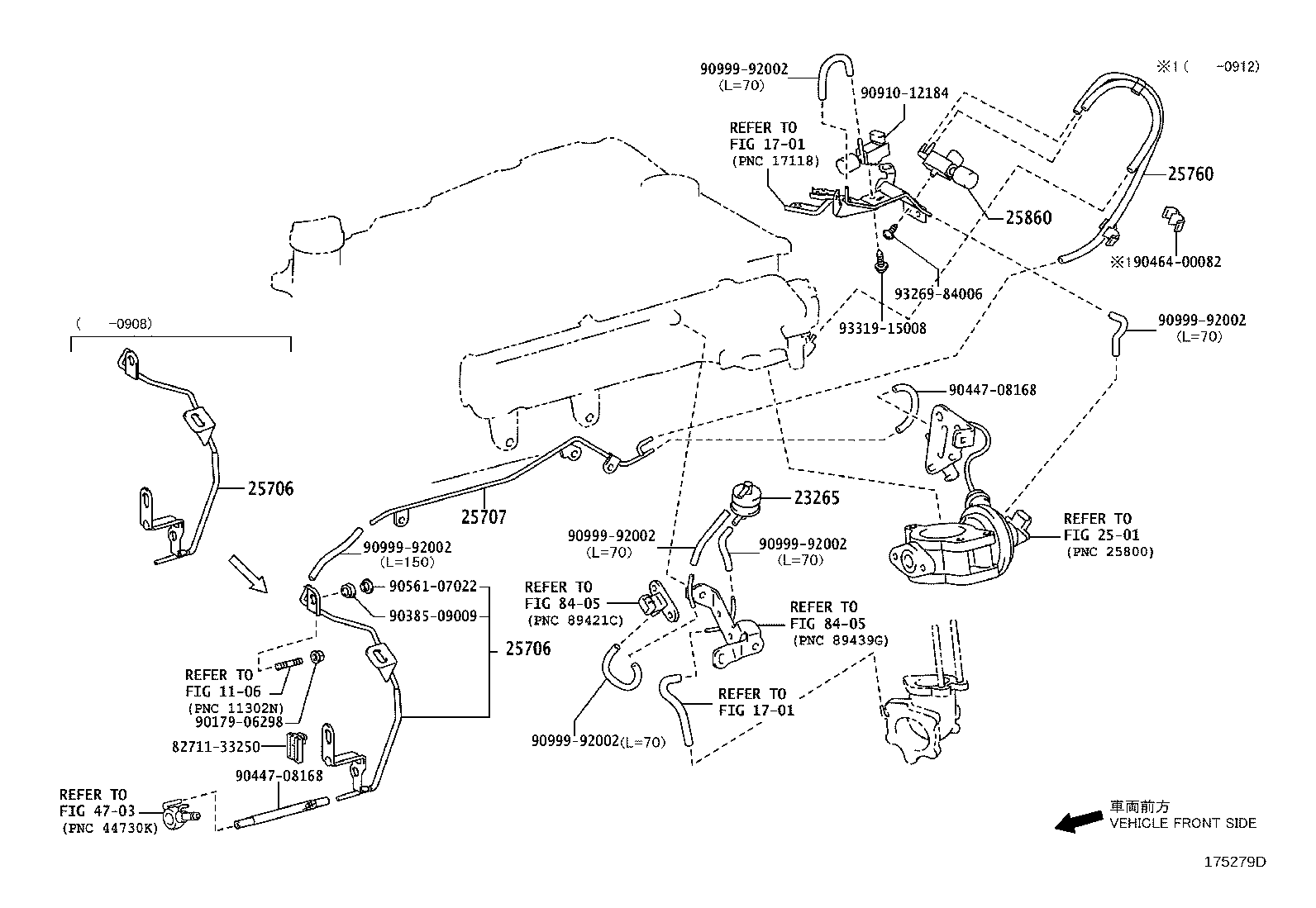

(0610-1008)1KDFTV

Click highlighted areas on diagram

diagram 1106 1701 1701 23265 2501 25706 25706 25707 25760 25860 4703 8271133250 8405 8405 9017906298 9038509009 9044708168 9044708168 9046400082 9056107022 9091012184 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9326984006 9331915008
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KDFTV..KDH201,203,221,223

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30040

1KDFTV..KDH201,203,221,223

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30040

1KDFTV..KDH201,203,221,223

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30030

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-30130

1KDFTV..KDH201,203,221,223

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30070

1KDFTV..KDH201,203,221,223

 1
Common parts
82711-33250
90179-06298
90385-09009
90447-08168
90464-00082
90561-07022
90910-12184
90999-92002
93269-84006
93319-15008
Linked diagrams
1106
1701
2501
4703
8405

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

Click highlighted areas on diagram

diagram 1106 17650 23265 2501 2501 25706 25707 25760C 25760D 25770 25860D 25860E 25861 4703 8271133250 8405 8405 90105T0053 90105T0118 90119T0136 9017906298 9033903005 90339T0001 9038509009 9044708168 90447T0001 9056107022 9091012184 9092901372 9155180812 9155180814 9167180614 9326984006 9326984006
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1KDFTV..KDH201,203,221,223

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30040

1KDFTV..KDH201,203,221,223

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30030

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25760-30140

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-30050

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
Common parts
82711-33250
90105-T0053
90105-T0118
90119-T0136
90179-06298
90339-03005
90339-T0001
90385-09009
90447-08168
90447-T0001
90561-07022
90910-12184
90929-01372
91551-80812
91551-80814
91671-80614
93269-84006
Linked diagrams
1106
2501
4703
8405

(1312- )1KDFTV..KDH201..SP..03S,06S..GEN ; (1312- )1KDFTV..KDH203,213..02S,10

Click highlighted areas on diagram

EURO 5 REGULATION

diagram 1106 1106 1106 1502 1502 1502 17696 23265 25706 25707 25708 25804 25804 25860 25860 25860D 25894 4703 8271133250 8405 8405 9017906298 9038509009 9041304005 9044708168 9056107022 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9167180612 9167180614 9167180816 9167180816
Part # Description Qty Price
Common parts
82711-33250
90179-06298
90385-09009
90413-04005
90447-08168
90561-07022
90999-92002
91671-80612
91671-80614
91671-80816
Linked diagrams
1106
1502
4703
8405
