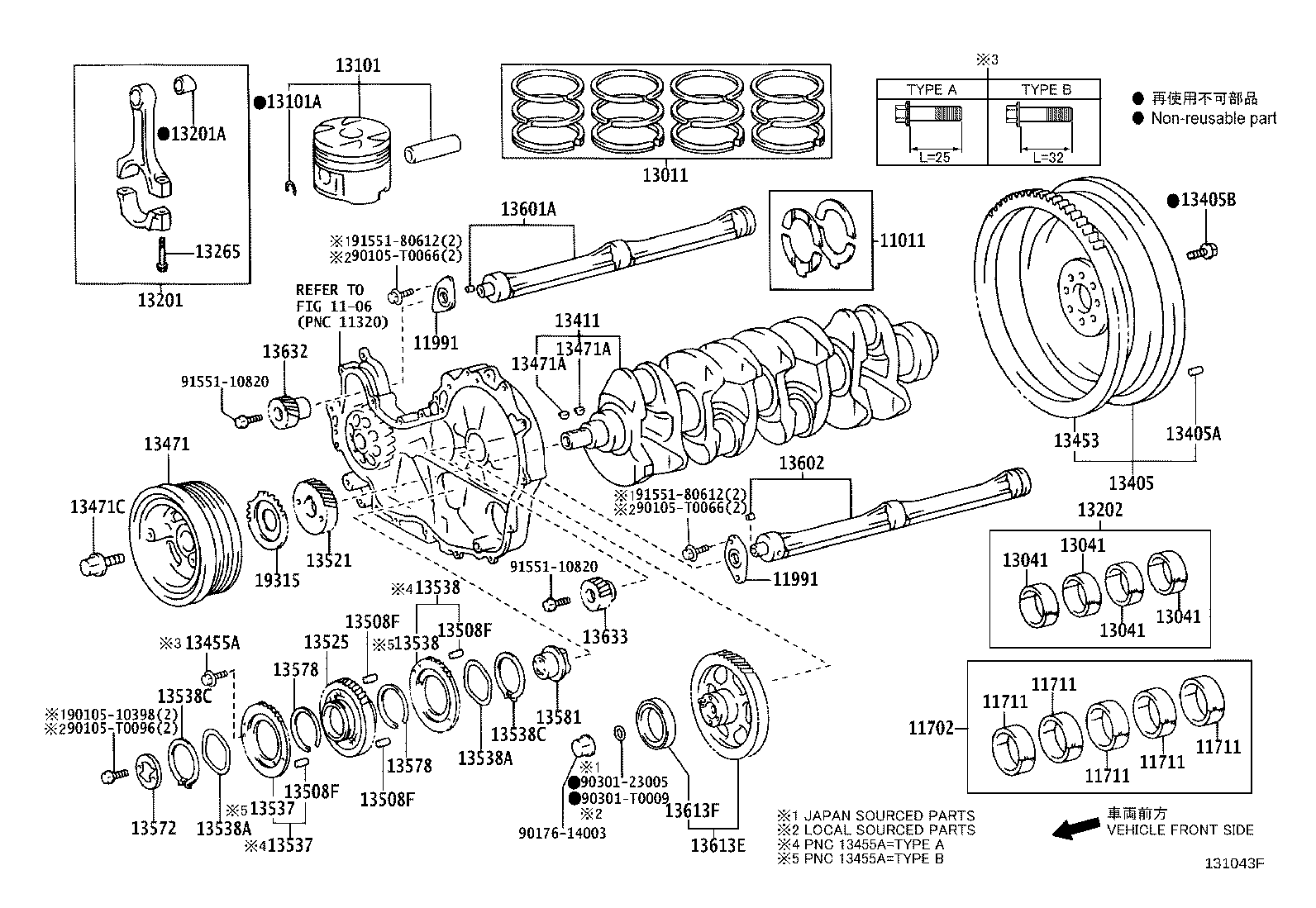

KDH201R-RBPDY (2006)
Toyota Hiace
(0610- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-30010 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.250 |
1 | ||
| 11012-30010 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.125 |
1 | ||
| 11011-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA) U/S 0.25 |
1 | ||
| 11705-30020 |
2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA) U/S 0.50 |
1 | ||
| 11705-30030 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) U/S 0.50 |
1 | ||
| 11704-30030 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003003 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3003004 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3003005 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003006 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3003002 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003003 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3003004 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3003005 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003006 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3003002 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003003 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3003004 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3003005 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003006 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3003002 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003003 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3003004 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3003005 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003006 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3003002 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003003 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-3003004 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3003005 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3003006 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3003002 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-30090 |
1KDFTV..KDH201,203,221,223 O/S 0.75 |
1 | ||
| 13015-30090 |
1KDFTV..KDH201,203,221,223 O/S 1.00 |
1 | ||
| 13013-30090 |
1KDFTV..KDH201,203,221,223 O/S 0.50 |
1 | ||
| 13011-30090 |
1KDFTV..KDH201,203,221,223 STD |
1 | ||
| 13013-30150 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 0.50 |
1 | ||
| 13011-30150 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) STD |
1 | ||
| 13015-30150 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 1.00 |
1 | ||
| 13014-30150 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003002 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3003006 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003003 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3003005 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3003004 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003002 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3003006 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003003 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3003005 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3003004 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003002 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3003006 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003003 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3003005 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3003004 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002003 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3002002 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,212..SG..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,203,212,221,223..03S,06S,10S,11S,14S,15S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003002 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3003006 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3003003 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-3003005 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3003004 |
2KDFTV..KDH202..4FC;1KDFTV..KDH201,221..03S;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,201,203,212,223..SG..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) MARK4,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13105-30110 |
1KDFTV..KDH201,203,221,223 O/S 1.00 |
4 | ||
| 13101-3011002 |
1KDFTV..KDH201,203,221,223 STD,MARK2,REFER REPAIR MANUAL |
4 | ||
| 13101-3011003 |
1KDFTV..KDH201,203,221,223 STD,MARK3,REFER REPAIR MANUAL |
4 | ||
| 13101-3011001 |
1KDFTV..KDH201,203,221,223 STD,MARK1,REFER REPAIR MANUAL |
4 | ||
| 13103-30110 |
1KDFTV..KDH201,203,221,223 O/S 0.50 |
4 | ||
| 13104-30110 |
1KDFTV..KDH201,203,221,223 O/S 0.75 |
4 | ||
| 13103-30130 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 0.50 |
4 | ||
| 13105-30130 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 1.00 |
4 | ||
| 13104-30130 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) O/S 0.75 |
4 | ||
| 13101-3013001 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) STD,MARK1,REFER REPAIR MANUAL |
4 | ||
| 13101-3013003 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) STD,MARK3,REFER REPAIR MANUAL |
4 | ||
| 13101-3013002 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) STD,MARK2,REFER REPAIR MANUAL |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-30020 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 13201-30021 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73143 |
1KDFTV..KDH201,203,221,223 |
4 | ||
| 90999-73156 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA) U/S 0.50 |
1 | ||
| 13204-30020 |
2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA) U/S 0.25 |
1 | ||
| 13204-30030 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) U/S 0.25 |
1 | ||
| 13205-30030 |
1KDFTV..KDH201,221;2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH200,203,212,223..(06S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA) U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(HRF,SMRF)..(GCC,MA,VN);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA,TH) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-67030 |
1KDFTV,2KDFTV..KDH200,201,202,212,22#..4FC |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
1KDFTV,2KDFTV..KDH200,201,202,212,22#..4FC L=15,OD=5 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-30010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-67030 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH |
1 | ||
| 13455A - BOLT, HEXAGON | ||||
| 91611-60628 |
1KDFTV..KDH201,203,221,223..03S,06S,12S,14S |
1 | ||
| 91611-60628 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
2KDFTV..KDH200..5F..ARL;2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
2KDFTV..KDH200..5F..ARL;2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-18003 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-67020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,221,223..03S,06S,10S,11S,14S,15S |
1 | ||
| 13521-30020 |
1KDFTV..KDH203..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-67011 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13537 - GEAR, IDLE SUB, NO.1 | ||||
| 13537-67900 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13537 - GEAR, IDLE SUB, NO.1 | ||||
| 13537-67900 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-67900 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-67900 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-67041 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-67041 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13601A - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-67020 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13602 - BALANCESHAFT SUB-ASSY, NO.2 | ||||
| 13602-67020 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13613F - BEARING, RADIAL BALL | ||||
| 90363-67001 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-67010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,212..RHD..(03S,16S);1KDFTV,2KDFTV..KDH201,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,203,212,220,221..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 90105-10398 | ||||
| 90105-T0066 | ||||
| 90105-T0096 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 90301-T0009 | ||||
| 91551-10820 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(1312- )1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10398 | ||||
| 90105-T0066 | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 90301-T0009 | ||||
| 91551-10820 | ||||
| 91551-80612 | ||||
| 91611-60628 | ||||
| Linked diagrams | ||||
| 1106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
