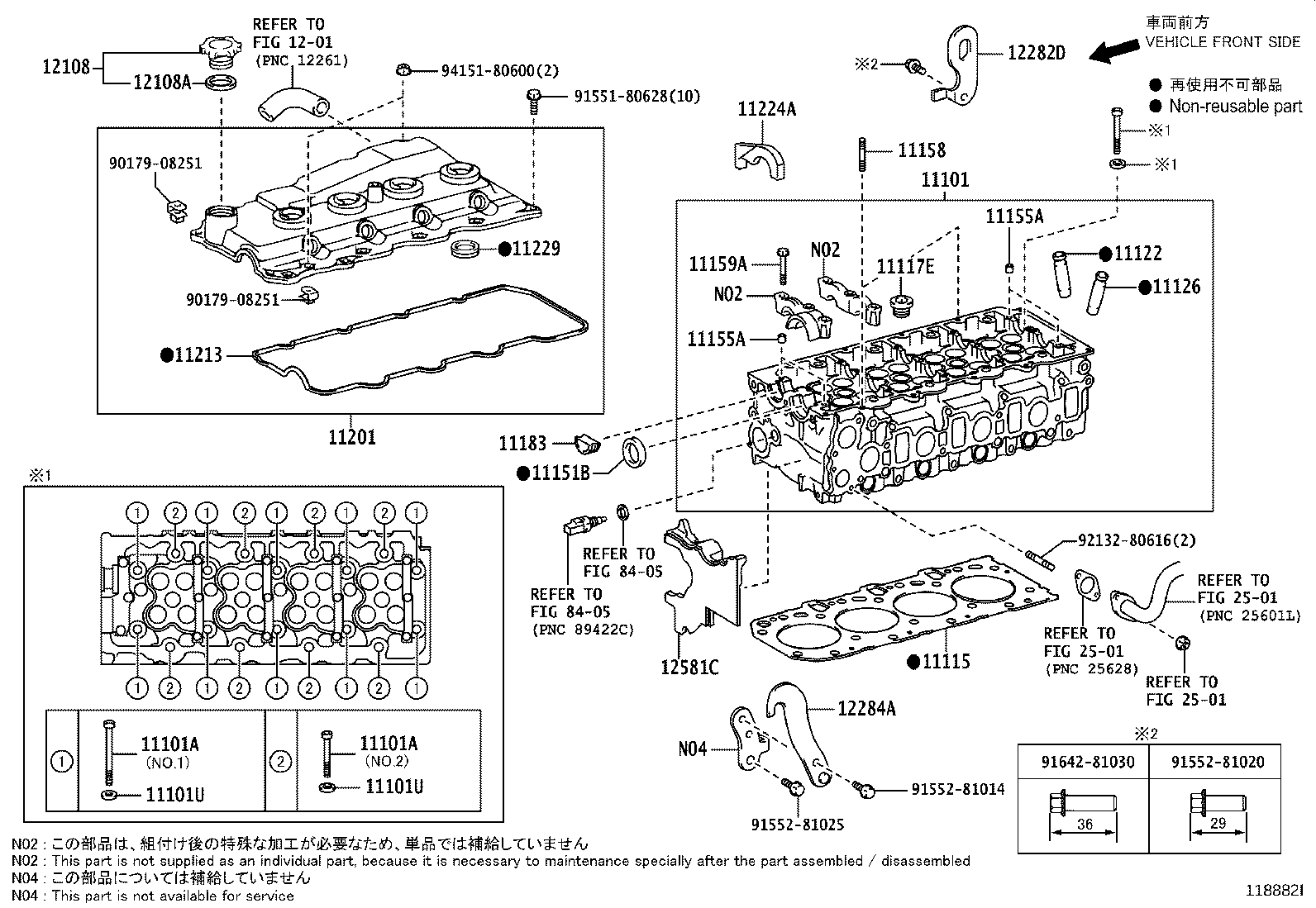

KDH201R-RBPDY (2006)
Toyota Hiace
(0501-1110)1KDFTV,2KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-30090 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11101-30090 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11101-30091 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11101-30091 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11101-30101 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
1 | ||
| 11101-30101 |
1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02145 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.2 |
10 | ||
| 90910-02146 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.1 |
8 | ||
| 90910-02146 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.1 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02145 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.2 |
10 | ||
| 90910-02145 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.2 |
10 | ||
| 90910-02146 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.1 |
8 | ||
| 90910-02146 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) NO.1 |
8 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
18 | ||
| 90560-13023 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
18 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
18 | ||
| 90560-13023 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-30031A0 |
1KDFTV..KDH201,203,221,223 MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-30031A0 |
1KDFTV..KDH201,203,221,223 MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-30031C0 |
1KDFTV..KDH201,203,221,223 MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-30031C0 |
1KDFTV..KDH201,203,221,223 MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-30031B0 |
1KDFTV..KDH201,203,221,223 MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-30031B0 |
1KDFTV..KDH201,203,221,223 MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-30031D0 |
1KDFTV..KDH201,203,221,223 MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-30031D0 |
1KDFTV..KDH201,203,221,223 MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-30031E0 |
1KDFTV..KDH201,203,221,223 MARK E,REFER REPAIR MANUAL |
1 | ||
| 11115-30031E0 |
1KDFTV..KDH201,203,221,223 MARK E,REFER REPAIR MANUAL |
1 | ||
| 11115-30032A0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-30032A0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-30032B0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-30032B0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-30032C0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-30032C0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-30032D0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-30032D0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-30032E0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK E,REFER REPAIR MANUAL |
1 | ||
| 11115-30032E0 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S MARK E,REFER REPAIR MANUAL |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 90341-14015 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 STD |
8 | ||
| 11123-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 STD |
8 | ||
| 11122-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.05 |
8 | ||
| 11122-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.05 |
8 | ||
| 11122-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 O/S 0.05 |
8 | ||
| 11123-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 STD |
8 | ||
| 11123-30020 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 STD |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-32019 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 90311-32019 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 90311-32025 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 90311-32025 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 90253-10004 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06149 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 S=9 & 16,L=37 |
2 | ||
| 90116-06149 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 S=9 & 16,L=37 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07011 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
15 | ||
| 90119-07011 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
15 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-67020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 11183-67020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-30081 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 11210-30081 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-30020 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 11213-30020 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 11224A - SILENCER, CYLINDER HEAD COVER, NO.1 | ||||
| 11224-30020 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 11224-30020 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 11224-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11224-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 23682-30020 |
1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223 |
4 | ||
| 23682-30020 |
1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 12180-55010 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37004 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 90430-37004 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-67030 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH |
1 | ||
| 12282-67030 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-30020 |
2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH |
1 | ||
| 12284-30020 |
2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH |
1 | ||
| 12581C - INSULATOR, CYLINDER BLOCK | ||||
| 12581-30010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 12581-30010 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| Common parts | ||||
| 90105-T0073 | ||||
| 90105-T0148 | ||||
| 90105-T0164 | ||||
| 90119-T0065 | ||||
| 90178-T0018 | ||||
| 90179-06110 | ||||
| 90179-06299 | ||||
| 90179-08251 | ||||
| 91551-80628 | ||||
| 91552-81014 | ||||
| 91552-81025 | ||||
| 91642-81030 | ||||
| 92122-80616 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||
(1312- )1KDFTV..KDH201..SP..03S,06S..GEN ; (1312- )1KDFTV..KDH203,213..02S,10
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08251 | ||||
| 91551-80628 | ||||
| 91552-81014 | ||||
| 91552-81025 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2501 | ||||
| 8405 | ||||
