KDH201R-RBPDY (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

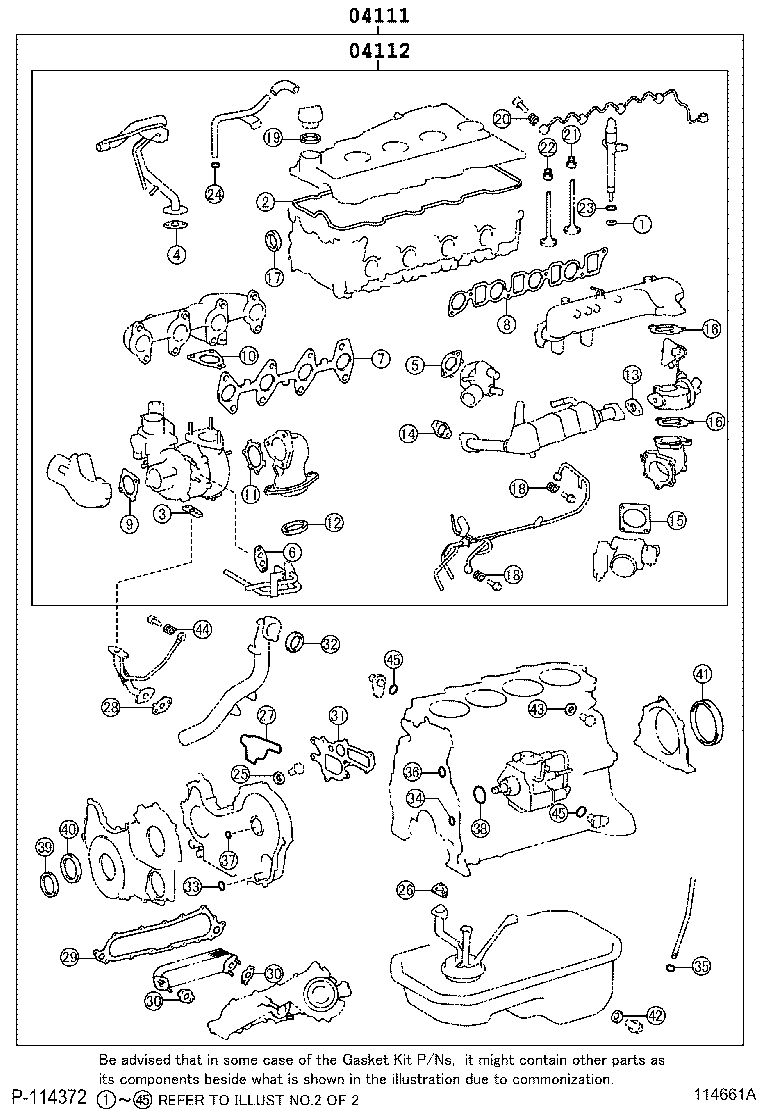

ILLUST NO. 1 OF 2(0610-1008)1KDFTV

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-30661

1KDFTV..KDH201,203,221,223

 1
04111-30660

1KDFTV..KDH201,203,221,223

 1
04111-30663

1KDFTV..KDH201,203,221,223

 1
04111-30662

1KDFTV..KDH201,203,221,223

 1
04111-30760

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
04111-30762

1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30763

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30761

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S,16S

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-30280

1KDFTV..KDH201,203,221,223

 1
04112-30281

1KDFTV..KDH201,203,221,223

 1
04112-30282

1KDFTV..KDH201,203,221,223

 1
04112-30380

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1

ILLUST NO. 1 OF 2(1008-1111)1KDFTV ; (1111-1212)1KDFTV..KDH201,203..LHD ; (1111- )1KDFTV..KDH201,

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-30661

1KDFTV..KDH201,203,221,223

 1
04111-30660

1KDFTV..KDH201,203,221,223

 1
04111-30663

1KDFTV..KDH201,203,221,223

 1
04111-30662

1KDFTV..KDH201,203,221,223

 1
04111-30760

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
04111-30762

1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30763

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30761

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S,16S

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-30280

1KDFTV..KDH201,203,221,223

 1
04112-30281

1KDFTV..KDH201,203,221,223

 1
04112-30282

1KDFTV..KDH201,203,221,223

 1
04112-30380

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1

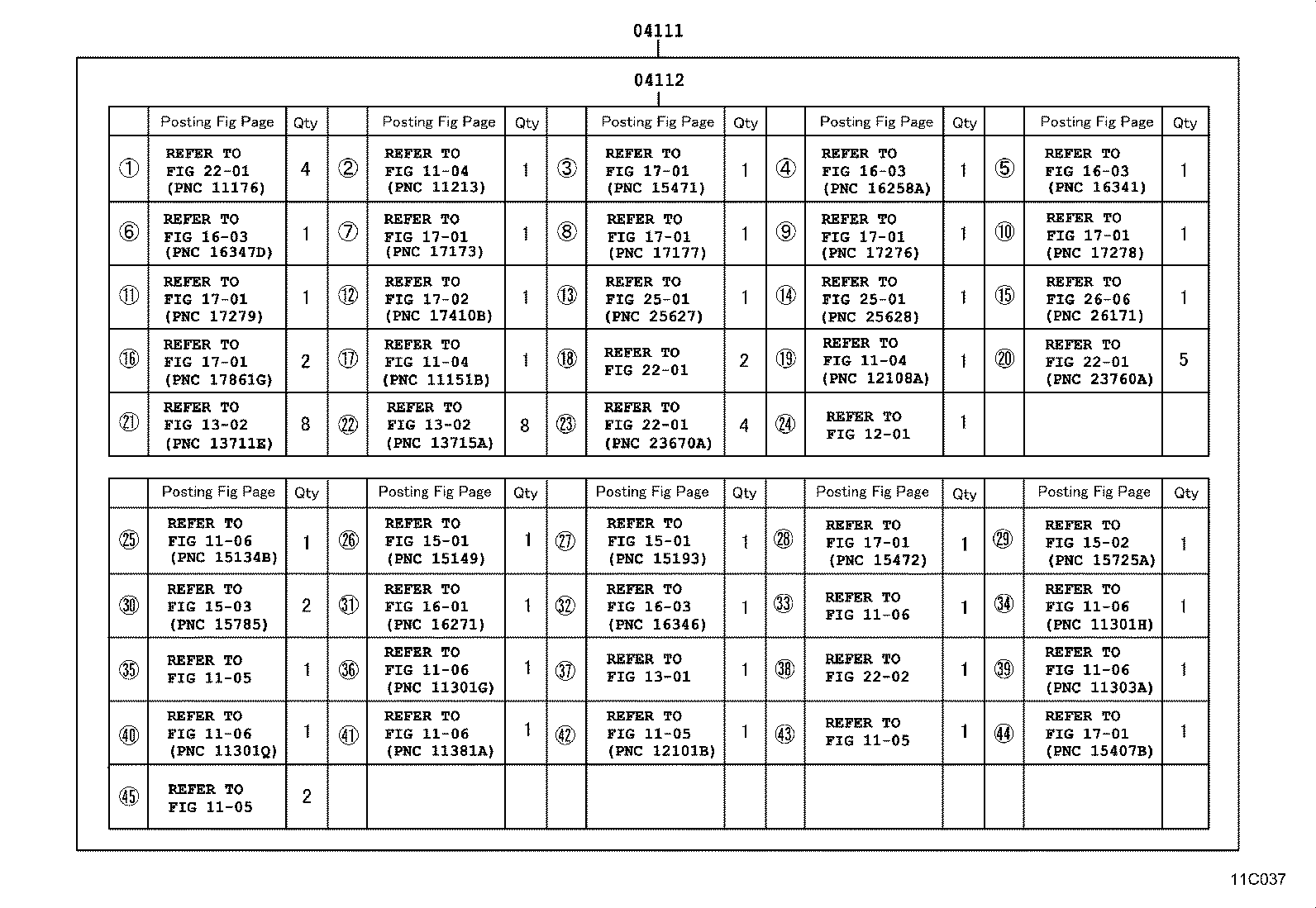

ILLUST NO. 2 OF 2(0610-1008)1KDFTV

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1106 1106 1201 1301 1302 1302 1501 1501 1502 1503 1601 1603 1603 1603 1603 1701 1701 1701 1701 1701 1701 1701 1701 1701 1702 2201 2201 2201 2201 2202 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-30661

1KDFTV..KDH201,203,221,223

 1
04111-30660

1KDFTV..KDH201,203,221,223

 1
04111-30663

1KDFTV..KDH201,203,221,223

 1
04111-30662

1KDFTV..KDH201,203,221,223

 1
04111-30760

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
04111-30762

1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30763

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30761

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S,16S

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-30280

1KDFTV..KDH201,203,221,223

 1
04112-30281

1KDFTV..KDH201,203,221,223

 1
04112-30282

1KDFTV..KDH201,203,221,223

 1
04112-30380

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
Linked diagrams
1104
1105
1106
1201
1301
1302
1501
1502
1503
1601
1603
1701
1702
2201
2202
2501
2606

ILLUST NO. 2 OF 2(1008-1111)1KDFTV ; (1111-1212)1KDFTV..KDH201,203..LHD ; (1111- )1KDFTV..KDH201,

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1106 1106 1301 1302 1302 1501 1501 1502 1503 1601 1603 1603 1603 1603 1701 1701 1701 1701 1701 1701 1701 1701 1701 1701 2201 2201 2201 2201 2202 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-30661

1KDFTV..KDH201,203,221,223

 1
04111-30660

1KDFTV..KDH201,203,221,223

 1
04111-30663

1KDFTV..KDH201,203,221,223

 1
04111-30662

1KDFTV..KDH201,203,221,223

 1
04111-30760

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
04111-30762

1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30763

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
04111-30761

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S,16S

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-30280

1KDFTV..KDH201,203,221,223

 1
04112-30281

1KDFTV..KDH201,203,221,223

 1
04112-30282

1KDFTV..KDH201,203,221,223

 1
04112-30380

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
Linked diagrams
1104
1105
1106
1301
1302
1501
1502
1503
1601
1603
1701
2201
2202
2501
2606
