Toyota Hiace KDH201 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
HIACE
KDH201R-RBMDYT (2013)
4708 - BRAKE TUBE & CLAMP

KDH201R-RBMDYT (2013)

Toyota Hiace

Production Dec 2013 - May 2019

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26090	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26510	KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);KDH222,223,LH200..4D..(03S,14S,16S)..(GEN,KEN,VN);GDH201,KDH202,203,LH202,222,TRH203..(5F,6FC)..(GCC,GEN,TH)	12/2013 - 12/2999	1
47910B - PLUG, BLEEDER
47547-27030	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47920 - SPRING ASSY, LOAD SENSING
47920-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47931 - BRACKET, LOAD SENSING VALVE
47931-26510	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35050	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26020	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET
47938-26010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 2 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26092	KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102	12/2013 - 01/2015	1
44050-26190	KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH200,TRH201..SA;KDH201..SP..(02S,06S)..GEN;KDH203,213,TRH200,213..02S,06S,10S,11S,13S MARK=44510-26180	01/2015 - 11/2016	1
44050-26590	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC),MARK=44540-26160	09/2018 - 05/2019	1
44050-26191	KDH200..MA;KDH213..GEN;GDH201,KDH203..RHD;KDH201..RHD..03S..5F..GEN;KDH201,TRH201..4D..(GEN,SA,TH) MARK=44510-26181	12/2016 - 12/2999	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44590-26050	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
44590-26040	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
44598A - COVER, BRAKE ACTUATOR
44598-26010	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44598-26010	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
Common parts
90099-05278
91673-80820

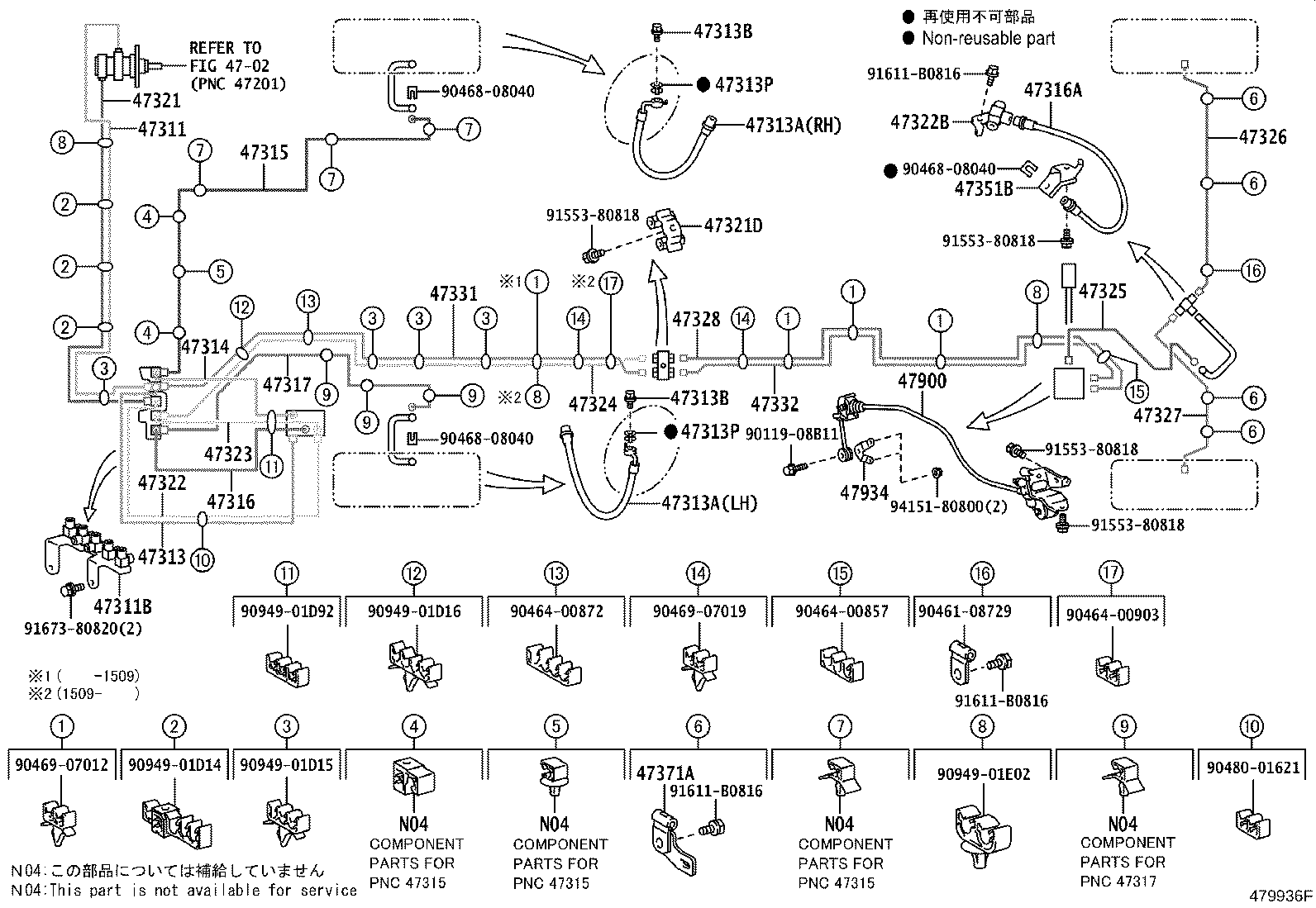

ILLUST NO. 1 OF 3(1312- )KDH20#,21#,22#,LH20#,222,TRH20#,213,22#..RHD..02S,03S,06S,10S,11S,12S,14

Click highlighted areas on diagram

RHD WITH ABS

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26B60	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47311-26A00	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47311-26A30	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47311-26B30	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90412-12070	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26400	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47313-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26410	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47315-26330	KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26510	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-26280	KDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);KDH203,223,TRH223..ARL,GCC,GEN,RUS;KDH200,201,202,21#,220,221,LH20#,212,222,TRH20#,213,221..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-26350	KDH203..GEN;KDH200,201,202,21#,LH20#,212,TRH20#,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26750	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47321-26780	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47321-26880	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47321-26850	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26460	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47322-26430	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47323-26430	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47325-26420	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47326-26530	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47326-26500	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47327-26380	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47327-26350	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150	KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47328-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47328-26170	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26220	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,222,LH20#,TRH203,213,223..RHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	4
47371-26200	KDH201..RHD..03S;KDH212..13S..4FC	01/2015 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90469-07020
90480-01621
90949-01A25
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1312- )KDH20#,212,222,LH20#,212,222,TRH203,213,223..RHD..03S,12S,15S,16S..GEN,M

Click highlighted areas on diagram

RHD WITHOUT ABS

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26B60	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47311-26A00	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47311-26A30	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47311-26B30	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90412-12070	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26410	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47315-26330	KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26510	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-26280	KDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);KDH203,223,TRH223..ARL,GCC,GEN,RUS;KDH200,201,202,21#,220,221,LH20#,212,222,TRH20#,213,221..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-26350	KDH203..GEN;KDH200,201,202,21#,LH20#,212,TRH20#,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26750	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47321-26780	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47321-26880	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47321-26850	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47325-26420	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47326-26530	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47326-26500	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47327-26380	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47327-26350	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150	KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47328-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47328-26170	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26220	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90469-07020
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH201..ARL ; (1501- )TRH201..RHD..ARL,GEN ; (1501- )KDH201,202,TR

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A00	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47311-26A30	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47311-26B60	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47311-26B30	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90412-12070	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26400	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47313-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26410	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47315-26330	KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26510	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26750	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47321-26780	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47321-26880	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47321-26850	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26460	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47322-26430	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47323-26430	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47326-26530	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47326-26500	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47327-26380	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47327-26350	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150	KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47328-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47328-26170	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-26480	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26250	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47331-26251	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26180	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47332-26160	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26220	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,222,LH20#,TRH203,213,223..RHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	4
47371-26200	KDH201..RHD..03S;KDH212..13S..4FC	01/2015 - 12/2999	4
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90461-08729
90464-00872
90464-00903
90464-00904
90468-08040
90469-07012
90469-07019
90949-01540
90949-01D15
90949-01D16
90949-01E02
90949-01E12
90949-01E13
90949-01E14
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH201,TRH201..RHD..SP..03S,06S ; (1501- )GDH201,KDH200,202,203,LH20#

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A00	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47311-26A30	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47311-26B60	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47311-26B30	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90412-12070	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26400	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47313-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26410	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47315-26330	KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26510	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26750	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47321-26780	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47321-26880	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47321-26850	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26460	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47322-26430	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47323-26430	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47325-26420	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47326-26530	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47326-26500	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47327-26380	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47327-26350	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150	KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47328-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47328-26170	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26250	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47331-26251	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26180	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47332-26160	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26220	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,222,LH20#,TRH203,213,223..RHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	4
47371-26200	KDH201..RHD..03S;KDH212..13S..4FC	01/2015 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH223..4FC..ARL ; (1501- )KDH222,LH222,TRH22#..RHD..GEN,KEN,SA,TH ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A00	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47311-26A30	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47311-26B60	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47311-26B30	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90412-12070	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
90413-10338	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26400	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47313-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26410	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47314-26390	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47315-26330	KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26510	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47316-26490	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H58	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	2
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26750	TRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)	12/2013 - 01/2015	1
47321-26780	KDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)	01/2015 - 01/2017	1
47321-26880	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47321-26850	LH200..RHD..4D;KDH201,TRH201..RHD..03S;GDH201,KDH202,203,LH202,TRH203..RHD..GEN	01/2017 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26460	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47322-26430	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)	01/2015 - 12/2999	1
47323-26430	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47324-26571	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47325-26420	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47326-26530	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47326-26500	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320	KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47327-26380	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47327-26350	LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150	KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47328-26190	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47328-26170	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26250	TRH201..RHD;KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH201,223,TRH223..02S,05S,06S,10S,12S,13S,14S;KDH203,213,221,TRH200,213..02S,03S,06S,10S,11S,13S;KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA)	01/2015 - 01/2016	1
47331-26251	KDH223..4FC..TH;KDH201..RHD..03S;TRH223..ARL,RUS,TH;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201,213..RHD..(02S,03S,05S,06S,11S);GDH201,KDH201,203,213,220,TRH22#..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA)	01/2016 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26180	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47332-26160	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26220	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,222,LH20#,TRH203,213,223..RHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	4
47371-26200	KDH201..RHD..03S;KDH212..13S..4FC	01/2015 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510	LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 2 OF 3(1501- )KDH201..SG ; (1501- )KDH201,223,TRH223..ARL,RUS ; (1501- )KDH202,2

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26092	KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102	12/2013 - 01/2015	1
44050-26092	KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102	12/2013 - 01/2015	1
44050-26190	KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH200,TRH201..SA;KDH201..SP..(02S,06S)..GEN;KDH203,213,TRH200,213..02S,06S,10S,11S,13S MARK=44510-26180	01/2015 - 11/2016	1
44050-26190	KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH200,TRH201..SA;KDH201..SP..(02S,06S)..GEN;KDH203,213,TRH200,213..02S,06S,10S,11S,13S MARK=44510-26180	01/2015 - 11/2016	1
44050-26590	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC),MARK=44540-26160	09/2018 - 05/2019	1
44050-26590	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC),MARK=44540-26160	09/2018 - 05/2019	1
44050-26191	KDH200..MA;KDH213..GEN;GDH201,KDH203..RHD;KDH201..RHD..03S..5F..GEN;KDH201,TRH201..4D..(GEN,SA,TH) MARK=44510-26181	12/2016 - 12/2999	1
44050-26191	KDH200..MA;KDH213..GEN;GDH201,KDH203..RHD;KDH201..RHD..03S..5F..GEN;KDH201,TRH201..4D..(GEN,SA,TH) MARK=44510-26181	12/2016 - 12/2999	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44590-26040	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44590-26050	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
44590-26050	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
44590-26040	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
44590-26040	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
Common parts
44521-12050
90119-06844
91673-80820

ILLUST NO. 2 OF 3(1809- )TH

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26092	KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102	12/2013 - 01/2015	1
44050-26092	KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102	12/2013 - 01/2015	1
44050-26190	KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH200,TRH201..SA;KDH201..SP..(02S,06S)..GEN;KDH203,213,TRH200,213..02S,06S,10S,11S,13S MARK=44510-26180	01/2015 - 11/2016	1
44050-26190	KDH212..10S,11S;KDH201..RHD..03S;KDH212..13S..4FC;KDH200,TRH201..SA;KDH201..SP..(02S,06S)..GEN;KDH203,213,TRH200,213..02S,06S,10S,11S,13S MARK=44510-26180	01/2015 - 11/2016	1
44050-26590	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC),MARK=44540-26160	09/2018 - 05/2019	1
44050-26590	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC),MARK=44540-26160	09/2018 - 05/2019	1
44050-26191	KDH200..MA;KDH213..GEN;GDH201,KDH203..RHD;KDH201..RHD..03S..5F..GEN;KDH201,TRH201..4D..(GEN,SA,TH) MARK=44510-26181	12/2016 - 12/2999	1
44050-26191	KDH200..MA;KDH213..GEN;GDH201,KDH203..RHD;KDH201..RHD..03S..5F..GEN;KDH201,TRH201..4D..(GEN,SA,TH) MARK=44510-26181	12/2016 - 12/2999	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-60060	KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,LH20#,TRH203,213..RHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-52020	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44546-60060	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44590-26040	KDH212..13S..4FC;TRH223..RHD..GEN;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,203,222,LH20#,TRH203,213..RHD..(03S,12S,15S,16S)..5F..(GEN,MA,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
44590-26050	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
44590-26050	KDH201,203..TH ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(VSC)	09/2018 - 05/2019	1
44590-26040	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
44590-26040	KDH201..RHD..03S;KDH212..13S..4FC;KDH223..STD..GEN	01/2015 - 12/2999	1
Common parts
44521-12050
90119-06844
91673-80820

KDH201R-RBMDYT (2013)

ILLUST NO. 3 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

ILLUST NO. 2 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

ILLUST NO. 1 OF 3(1312- )KDH20#,21#,22#,LH20#,222,TRH20#,213,22#..RHD..02S,03S,06S,10S,11S,12S,14

ILLUST NO. 1 OF 3(1312- )KDH20#,212,222,LH20#,212,222,TRH203,213,223..RHD..03S,12S,15S,16S..GEN,M

ILLUST NO. 1 OF 3(1501- )KDH201..ARL ; (1501- )TRH201..RHD..ARL,GEN ; (1501- )KDH201,202,TR

ILLUST NO. 1 OF 3(1501- )KDH201,TRH201..RHD..SP..03S,06S ; (1501- )GDH201,KDH200,202,203,LH20#

ILLUST NO. 1 OF 3(1501- )KDH223..4FC..ARL ; (1501- )KDH222,LH222,TRH22#..RHD..GEN,KEN,SA,TH ;

ILLUST NO. 2 OF 3(1501- )KDH201..SG ; (1501- )KDH201,223,TRH223..ARL,RUS ; (1501- )KDH202,2

ILLUST NO. 2 OF 3(1809- )TH

Part Price Details
