Toyota Hiace KDH200 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
HIACE
KDH200R-SRPDY (2005)
7151 - SEAT & SEAT TRACK

KDH200R-SRPDY (2005)

Toyota Hiace

Production Jan 2005 - Oct 2006

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT RH(SPLIT TYPE HEADREST)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A00B4	KDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,06S,15S,16S)..(GEN,TH) GRAY,TRIM1#	01/2005 - 08/2010	1
71071-26A50B2	KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#	01/2005 - 08/2010	1
71071-26A50B2	KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#	01/2005 - 08/2010	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3	KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010	KDH200..ARL;TRH201..SP..4FC..GEN;KDH220..RHD..(ARL,GEN);KDH212,222,TRH213..STD..(ARL,SA);KDH200,202..RHD..SRF..(06S,12S)..GEN	01/2005 - 10/2008	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 02/2006	2
90467-08186	KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)	02/2006 - 10/2006	2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170	TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)	01/2005 - 02/2014	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270	KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)	01/2005 - 02/2014	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0	KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0	KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1#	01/2005 - 08/2010	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0	KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1#	01/2005 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501- )

Click highlighted areas on diagram

FRONT RH(INTEGRATED TYPE HEADREST)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A00B4	KDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,06S,15S,16S)..(GEN,TH) GRAY,TRIM1#	01/2005 - 08/2010	1
71071-26A50B2	KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#	01/2005 - 08/2010	1
71071-26A50B2	KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#	01/2005 - 08/2010	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3	KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010	KDH200..ARL;TRH201..SP..4FC..GEN;KDH220..RHD..(ARL,GEN);KDH212,222,TRH213..STD..(ARL,SA);KDH200,202..RHD..SRF..(06S,12S)..GEN	01/2005 - 10/2008	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 02/2006	2
90467-08186	KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)	02/2006 - 10/2006	2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170	TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)	01/2005 - 02/2014	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270	KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)	01/2005 - 02/2014	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0	KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0	KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1#	01/2005 - 08/2010	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1#	01/2005 - 08/2010	1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0	KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1#	01/2005 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501-0610)RHD..03S,06S,12S,15S,16S

Click highlighted areas on diagram

FRONT LH(2 PERSONS)

Part #	Description	Period	Qty
58801D - BOX ASSY, CONSOLE
58801-26100B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1	01/2005 - 08/2010	1
58839-26050B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2	01/2005 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1	01/2005 - 08/2010	1
58839-26050B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2	01/2005 - 08/2010	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)	01/2005 - 01/2014	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3	KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1#	01/2005 - 08/2010	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030	KDH200,201,202,LH20#,TRH20#..RHD	01/2005 - 05/2012	1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010	KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
71365S - PAD, CENTER SEAT BACK
71033-26020	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 05/2012	1
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	2
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)	01/2005 - 05/2012	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN	01/2005 - 09/2007	1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010	KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 04/2005	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090	KDH200..5F..ARL;KDH202..STD..TH;KDH200..03S..4FC;TRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;KDH221,TRH221..RHD..(GEN,SA);KDH200,202..RHD..SRF..(06S,12S)..(GEN,MA);KDH202,212,220,222,LH212,222,TRH203,213,223..RHD..(HRF,SMRF)..(03S,12S,16S)..(ARL,GEN,SA)	01/2005 - 12/2013	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0	KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) GRAY,TRIM1#,FRONT SEAT	01/2005 - 08/2010	1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020	KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010	KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0	KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
C9916-40001

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT LH(INTEGRATED TYPE HEADREST)

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 02/2006	2
90467-08186	KDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)	02/2006 - 10/2006	2
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)	01/2005 - 05/2012	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN	01/2005 - 09/2007	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0	KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH200,202..RHD..SRF..(06S,12S)..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)	01/2005 - 01/2014	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0	KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA) GRAY,TRIM1#	01/2005 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

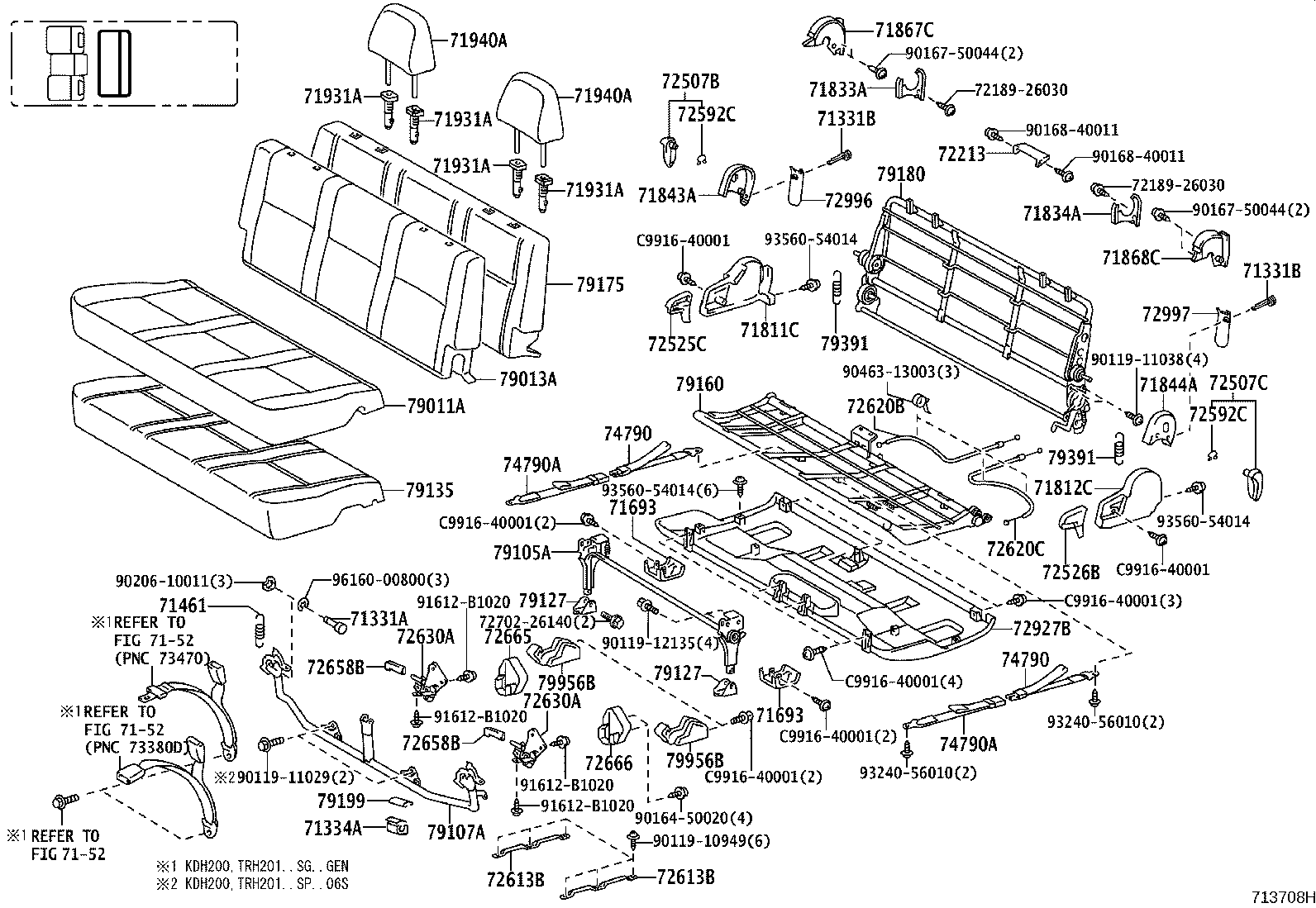

ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

Click highlighted areas on diagram

RHD REAR(1 & 2 PERSONS)

Part #	Description	Period	Qty
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71940-26370B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71940-26370B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71940-26370B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
Common parts
90159-60604

ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

Click highlighted areas on diagram

RHD REAR(2 PERSONS)

Part #	Description	Period	Qty
71811C - COVER, RECLINING ADJUSTER, RH
71811-26170B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71811-26170B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-26160B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71812-26160B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26050B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71867-26050B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH
71868-26020B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71868-26020B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
72525-26110B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72525-26110B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72526-26050B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72526-26050B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
79105A - LEG SUB-ASSY, NO.1 SEAT
79105-26480	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2013	1
79105-26480	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2013	1
79956B - COVER, REAR SEAT LEG SIDE, RH
79956-26240B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 08/2010	2
79956-26240B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 08/2010	2
Common parts
90105-11058
90119-10948
90176-10008
91515-81020
93560-54010
C9916-40001
Linked diagrams
7152

(0501-0709)KDH201..SG ; (0501-0709)KDH201..GL ;(0501-0709)KDH200,TRH201..06S..GEN

Click highlighted areas on diagram

REAR(3 PERSONS & HEADREST)

Part #	Description	Period	Qty
71331A - PIN, REAR SEAT HINGE
71331-26110	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	3
71331-26110	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	3
71331B - PIN, REAR SEAT HINGE, RH
71331-26120B0	KDH200,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 06/2005	2
71331-26120B0	KDH200..GL;KDH200,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 06/2005	2
71331B - PIN, REAR SEAT HINGE, RH
71331-26120B0	KDH200,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 06/2005	2
71331-26120B0	KDH200..GL;KDH200,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 06/2005	2
71334A - STOPPER, REAR SEAT LEG
71334-26080	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
71334-26080	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
71461 - SPRING, REAR SEAT CUSHION
71461-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
71461-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH
71693-26010B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
71693-26010B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH
71693-26010B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
71693-26010B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71811C - COVER, RECLINING ADJUSTER, RH
71811-26170B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71811-26170B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-26160B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71812-26160B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-26030B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71833-26030B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-26040B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71834-26040B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-26010B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71843-26010B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-26010B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71844-26010B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26050B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71867-26050B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH
71868-26020B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
71868-26020B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),GRAY,TRIM1#	01/2005 - 09/2007	2
71930-42020B8	KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W(BUTTON),REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	2
71931-42020B8	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	01/2005 - 08/2010	2
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71940-26370B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	2
71940-26370B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	2
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-26010B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72213-26010B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-58010B1	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
72507-58010B1	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	1
72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH
72507-58020B1	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 09/2007	1
72507-58020B1	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 09/2007	1
72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
72525-26110B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72525-26110B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72526-26050B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72526-26050B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72613B - STRIKER, REAR SEAT LOCK
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72613B - STRIKER, REAR SEAT LOCK
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72620B - CABLE ASSY, REAR NO.1 SEAT LOCK
72620-26020	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	1
72620-26020	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	1
72620C - CABLE ASSY, REAR NO.1 SEAT LOCK
72620-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	1
72620-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	1
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26050	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 09/2007	2
72630-26050	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 09/2007	2
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26050	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 09/2007	2
72630-26050	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 09/2007	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658-95701B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658-95701B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-26010B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	1
72665-26010B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	1
72666 - COVER, REAR SEAT BACK LOCK, LH
72665-26010B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	1
72665-26010B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	1
72927B - COVER, REAR SEAT CUSHION UNDER
72927-26030B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72927-26030B0	KDH201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72996 - COVER, REAR SEAT BACK, RH
72996-26080B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72996-26080B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72997 - COVER, REAR SEAT BACK, LH
72997-26050B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72997-26050B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
74790 - HOLDER ASSY, WARNING REFLECTOR
74790-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
74790-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
74790 - HOLDER ASSY, WARNING REFLECTOR
74790-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
74790-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
74790A - HOLDER ASSY, WARNING REFLECTOR
74790-26040	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
74790-26040	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
74790A - HOLDER ASSY, WARNING REFLECTOR
74790-26040	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	2
74790-26040	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26A10B2	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
79011-26A10B2	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26A10B2	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
79013-26A10B2	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
79105A - LEG SUB-ASSY, NO.1 SEAT
79105-26480	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2013	1
79105-26480	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2013	1
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26180	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 09/2007	1
79107-26180	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 09/2007	1
79127 - BRACKET, NO.1 SEAT LEG, LOWER
79127-26180	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN LH	01/2005 - 12/2999	1
79127-26170	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,RH	01/2005 - 12/2999	1
79127-26170	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN RH	01/2005 - 12/2999	1
79127 - BRACKET, NO.1 SEAT LEG, LOWER
79127-26180	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN LH	01/2005 - 12/2999	1
79127-26170	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,RH	01/2005 - 12/2999	1
79127-26170	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN RH	01/2005 - 12/2999	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26300	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 05/2012	1
79135-26300	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 05/2012	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26240	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	1
79160-26240	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	1
79175 - PAD, NO.1 SEAT BACK
79175-26270	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 09/2007	1
79175-26270	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 09/2007	1
79180 - SPRING ASSY, NO.1 SEAT BACK
79180-26310	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 12/2999	1
79180-26310	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	1
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	KDH200,201,TRH200,201..06S	01/2005 - 12/2999	2
79199-95J00	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 12/2999	2
79391 - SPRING, REAR SEAT CUSHION
79195-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	04/2005 - 12/2999	2
79195-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	04/2005 - 12/2999	2
79391 - SPRING, REAR SEAT CUSHION
79195-26030	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	04/2005 - 12/2999	2
79195-26030	TRH200;KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	04/2005 - 12/2999	2
79956B - COVER, REAR SEAT LEG SIDE, RH
79956-26240B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 08/2010	2
79956-26240B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 08/2010	2
79956B - COVER, REAR SEAT LEG SIDE, RH
79956-26240B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 08/2010	2
79956-26240B0	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 08/2010	2
Common parts
72189-26030
72702-26140
90119-10949
90119-11029
90119-11038
90119-12135
90164-50020
90167-50044
90168-40011
90206-10011
90463-13003
91612-B1020
93240-56010
93560-54014
96160-00800
C9916-40001
Linked diagrams
7152

ILLUST NO. 2 OF 2(0501- )TRH223..TH ; (0501- )16S..5F..GL ;(0501- )KDH222,223..RHD..16S ;

Click highlighted areas on diagram

RR(SPACE UP SEAT)

Part #	Description	Period	Qty
72613B - STRIKER, REAR SEAT LOCK
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72613B - STRIKER, REAR SEAT LOCK
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201..GL;KDH200,201,TRH201..SG..06S..GEN	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72613-26100	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT	01/2005 - 03/2012	2
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658-95701B1	KDH201..SP..06S..4FC..STD;KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658-95701B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72658-95701B1	KDH200..GL;KDH201..06S;KDH200,TRH201..SG..06S..GEN MD.GRAY,TRIM1#	01/2005 - 09/2007	2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-26030B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72927-26030B0	KDH200,201,TRH201..SG..06S..GEN REAR SEAT-WITHOUT,GRAY,TRIM1#	01/2005 - 08/2010	1
72927-26030B0	KDH201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
72927-26030B0	KDH201..GL;KDH200,201,TRH201..SG..06S..GEN GRAY,TRIM1#	01/2005 - 08/2010	1
Common parts
78899-26010
78899-28040
90105-11058
90109-08137
90119-10948
90119-10949
90176-10008
90206-12050
90386-12035
93210-56016
93240-56018
93240-56025
93385-26020
93560-54012
C9916-40001
Linked diagrams
7152

KDH200R-SRPDY (2005)

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

(0501- )

(0501-0610)RHD..03S,06S,12S,15S,16S

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071

(0501-0709)KDH201..SG ; (0501-0709)KDH201..GL ;(0501-0709)KDH200,TRH201..06S..GEN

ILLUST NO. 2 OF 2(0501- )TRH223..TH ; (0501- )16S..5F..GL ;(0501- )KDH222,223..RHD..16S ;

Part Price Details
