KDH200R-RBPDY (2005)

Toyota Hiace

Production Jan 2005 - Aug 2010
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )RHD

Click highlighted areas on diagram

diagram 55041B 55301 55309D 55312A 55317C 55318E 55330B 55355 55394B 55394C 55412D 55425D 55436A 55441E 55449C 55539 61181B 61182B 61183B 61184B 6418958010 73970A 7456 7456 8401 8401 8401 8715 8715 8715 8715 8715 9011908C61 9015950311 9015950327 9017906274 9018905005 9167380816 9415080600 9415180600
Part # Description Qty Price
55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1
55041-26030B0

KDH201,222,TRH223..RHD..STD..(ARL,GEN);KDH200,203,212,LH212,222,TRH213..RHD..STD;KDH202,220,221,223,LH20#,TRH20#,221..RHD..(03S,06S,12S,14S,15S)

DK.GRAY,TRIM1#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-26120B0

KDH201,203..RHD..(ARL,GEN);KDH200,202,LH20#,TRH20#..RHD

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#

 1
55300-26110B0

KDH201,203..RHD..(ARL,GEN);KDH200,202,LH20#,TRH20#..RHD

DK.GRAY,TRIM1#

 1
55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR
55309-26030

KDH20#,LH20#,TRH20#..RHD

 1
55312A - CLIP, INSTRUMENT PANEL
90467-07164

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
55317C - PATCH, INSTRUMENT SIDE, LOWER RH
55317-26070B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
55318E - PATCH, INSTRUMENT SIDE, LOWER LH
55318-26060B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-26270

KDH20#,LH20#,TRH20#..RHD

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-26080

KDH20#,LH20#,TRH20#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-26020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 2
55394C - BOLT, INSTRUMENT PANEL
55394-26030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 2
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55413-26090B0

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

DK.GRAY,TRIM1#

 1
55425D - BASE, AIR BAG PASSENGER MOUNTING
55425-26030

KDH202..STD..TH;KDH212,TRH213..RHD..STD;KDH201,202,220,222,LH222,TRH203,22#..RHD..(ARL,GEN,MA);KDH200,203,221,223,LH20#,TRH200,201..RHD..(03S,06S,14S,15S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
55441E - BOX, INSTRUMENT PANEL
55441-26070

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

 1
55539 - COVER, SPARE SWITCH HOLE
55539-26090

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,12S,14S,15S,16S)

 1
61181B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 RH
61181-26020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61182-26020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
61183B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61183-26020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
61184-26020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-26010B0

KDH200,212,TRH213..RHD..STD;KDH201,203,220,222,LH222,TRH22#..RHD..STD..(ARL,GEN);KDH202,221,223,LH20#,TRH20#..RHD..(03S,06S,12S,14S,15S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#

 1
Common parts
64189-58010
90119-08C61
90159-50311
90159-50327
90179-06274
90189-05005
91673-80816
94150-80600
94151-80600
Linked diagrams
7456
8401
8715

ILLUST NO. 2 OF 2(0501- )RHD

Click highlighted areas on diagram

diagram 55381A 55404C 55405B 55405B 55410C 55432B 55434B 55441 55441C 55448A 55474C 55475A 55521C 55521C 55539B 55539B 55539B 55539B 55539B 55539B 55539B 55539P 55539P 55547 55550 55606 55620 55650 55650 55650 55650 55650 55650 55650C 58840Q 58941C 5895960060 9015950327 9017906274 9046707201 9046710201
Part # Description Qty Price
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-26390C0

KDH200,201,TRH223..RHD..STD;KDH222..RHD..STD..(ARL,GEN,SA);KDH202,203,212,220,221,223,LH20#,212,222,TRH20#,213,221..RHD..(03S,06S,12S,14S,15S,16S)

BLACK,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-26120B0

KDH200,201..RHD..STD;KDH202,203,LH20#,TRH20#..RHD

GRAY,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-26120B0

KDH200,201..RHD..STD;KDH202,203,LH20#,TRH20#..RHD

GRAY,TRIM1#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-26100B0

KDH200,201,TRH223..RHD..STD;KDH222..RHD..STD..(ARL,GEN,SA);KDH202,203,212,220,221,223,LH20#,212,222,TRH20#,213,221..RHD..(03S,06S,12S,14S,15S,16S)

GRAY,TRIM1#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-26100B0

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

DK.GRAY,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-26130B0

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

DK.GRAY,TRIM1#

 1
55441 - BOX, INSTRUMENT PANEL
55440-26060B0

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

DK.GRAY,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-26090

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-26010B0

KDH202,203,223;KDH222,TRH223..(12S,16S)..GL;KDH222..STD..(ARL,GCC,GEN,SA);KDH200,201,212,220,221,LH20#,212,222,TRH20#,213,22#..STD

GRAY,TRIM1#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-26010B0

KDH202,203,223;KDH222,TRH223..(12S,16S)..GL;KDH222..STD..(ARL,GCC,GEN,SA);KDH200,201,212,220,221,LH20#,212,222,TRH20#,213,22#..STD

GRAY,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

KDH202..15S;KDH220..SP..5F;KDH222..LHD..GEN;TRH223..STD..GEN;TRH221..SP..(GCC,GEN,SA);KDH212,TRH213..RHD..STD..GEN;KDH200,202,TRH201..LHD..(06S,12S);KDH200,212,TRH213..4D..5F..(ARL,GCC);TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA);KDH200,LH20#,212,222..(03S,10S,12S,15S,16S)..(GCC,GEN,SA)

AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER

 1
55521-16030

KDH202..15S..GEN;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,220,LH200..SP..03S..GEN;KDH202,222..LHD..(12S,16S)..GEN;LH202,212,222,TRH201,22#..(03S,10S,12S,15S,16S)..STD..GEN

AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER

 1
55521-16030

TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH20#,212,22#,LH20#,212,222,TRH20#,22#..03S,06S,10S,11S,12S,14S,15S,16S

 2
55521-16030

KDH201..SP..06S;TRH201..SP..4FC..GEN;KDH220,TRH201..SP..5F;KDH200,TRH223..5F..ARL;KDH200..SP..(GCC,GEN,SA);KDH202,222,TRH221..(03S,14S,15S)..5F..STD;KDH200,202,TRH201..LHD..SG..(03S,06S,12S);KDH212,LH20#,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER

 2
55521-16030

KDH202..15S..GEN;KDH202..LHD..12S;TRH203..SRF..GEN;KDH200,220,LH200..SP..03S..GEN;KDH212,LH202,212,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..GEN

AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 2SPEAKER

 2
55521C - COVER, STEREO OPENING
55521-16030

KDH202..15S;KDH220..SP..5F;KDH222..LHD..GEN;TRH223..STD..GEN;TRH221..SP..(GCC,GEN,SA);KDH212,TRH213..RHD..STD..GEN;KDH200,202,TRH201..LHD..(06S,12S);KDH200,212,TRH213..4D..5F..(ARL,GCC);TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA);KDH200,LH20#,212,222..(03S,10S,12S,15S,16S)..(GCC,GEN,SA)

AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER

 1
55521-16030

KDH202..15S..GEN;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,220,LH200..SP..03S..GEN;KDH202,222..LHD..(12S,16S)..GEN;LH202,212,222,TRH201,22#..(03S,10S,12S,15S,16S)..STD..GEN

AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER

 1
55521-16030

TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH20#,212,22#,LH20#,212,222,TRH20#,22#..03S,06S,10S,11S,12S,14S,15S,16S

 2
55521-16030

KDH201..SP..06S;TRH201..SP..4FC..GEN;KDH220,TRH201..SP..5F;KDH200,TRH223..5F..ARL;KDH200..SP..(GCC,GEN,SA);KDH202,222,TRH221..(03S,14S,15S)..5F..STD;KDH200,202,TRH201..LHD..SG..(03S,06S,12S);KDH212,LH20#,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN)

AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER

 2
55521-16030

KDH202..15S..GEN;KDH202..LHD..12S;TRH203..SRF..GEN;KDH200,220,LH200..SP..03S..GEN;KDH212,LH202,212,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..GEN

AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 2SPEAKER

 2
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55539P - COVER, SPARE SWITCH HOLE
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 2
55539P - COVER, SPARE SWITCH HOLE
55539-58040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 2
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-28010B1

TRH223..CIS,GCC;TRH223..LHD..STD..GEN;KDH222,223..GCC,GEN,RUS,SA;TRH213,223..RHD..5F..(GEN,SA);KDH200,TRH201,213..LHD..SG..(03S,06S,09S,16S);KDH200,201,220,TRH201..SP..(GCC,GEN,MA,SA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,221..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH,VN)

DK.GRAY,TRIM1#

 1
55547-28010B1

KDH201..RHD..SP..(GEN,TH);TRH201..RHD..SP..5F..(GEN,SA);KDH212,222,TRH213,223..RHD..STD..GEN;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH202,203,LH20#,212,222,TRH200,203,221..RHD..(03S,06S,14S,15S,16S)..(GEN,SA)

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE DOOR,DK.GRAY,TRIM1#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-26010B0

KDH20#,LH20#,TRH20#..RHD

DK.GRAY,TRIM1#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55641-26060B0

KDH20#,LH20#,TRH20#..RHD

DK.GRAY,TRIM1#

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-26020B1

KDH200,201,TRH223..RHD..STD;KDH222..RHD..STD..(ARL,GEN,SA);KDH202,203,212,220,221,223,LH20#,212,222,TRH20#,213,221..RHD..(03S,06S,12S,14S,15S,16S)

GRAY,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 3
55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-26050B0

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
58941C - COVER, PARKING BRAKE HOLE
58941-26060B0

KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD

DK.GRAY,TRIM1#

 1
Common parts
58959-60060
90159-50327
90179-06274
90467-07201
90467-10201

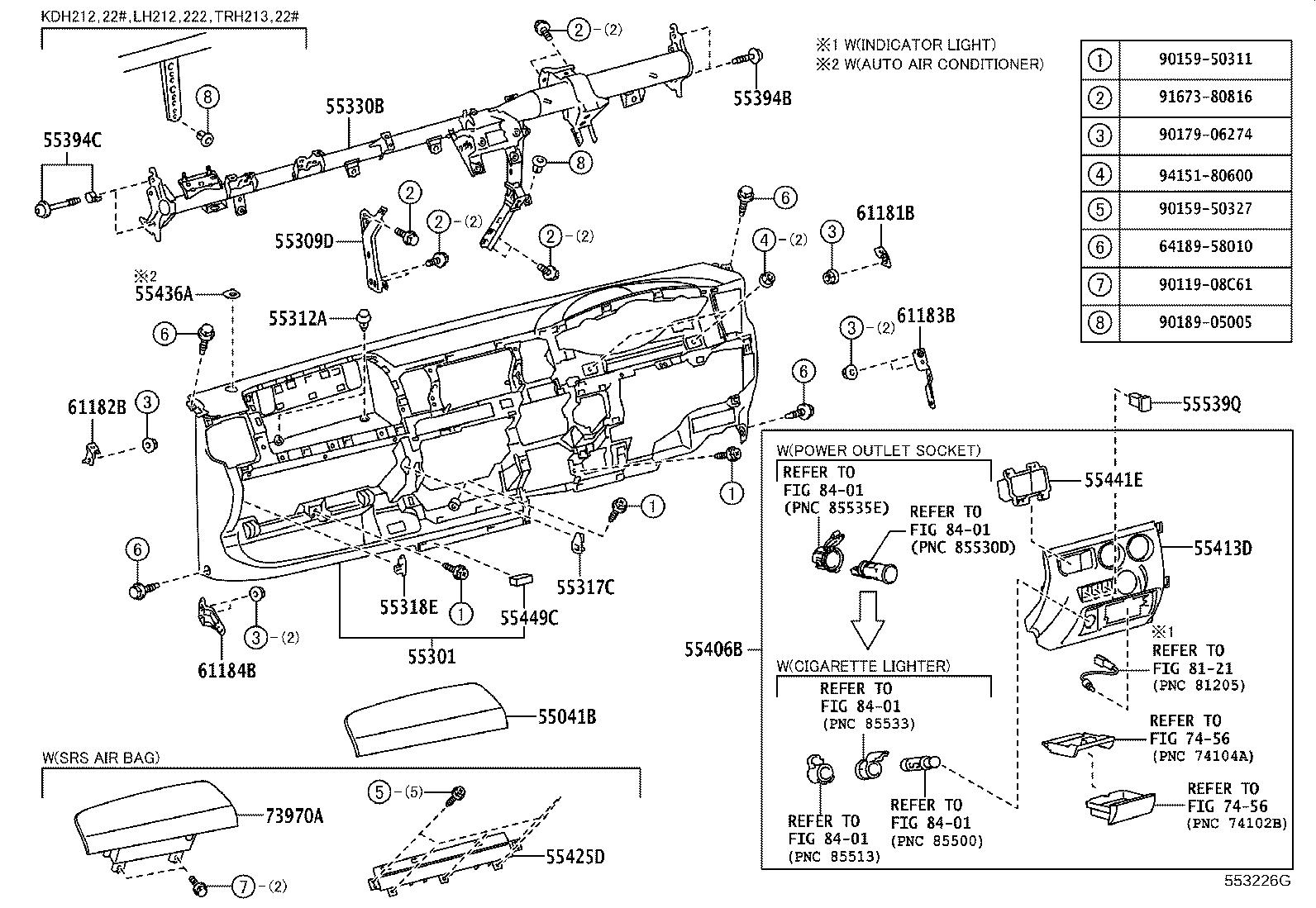

ILLUST NO. 1 OF 2(1312- )RHD

Click highlighted areas on diagram

diagram 55041B 55301 55309D 55312A 55317C 55318E 55330B 55394B 55394C 55406B 55413D 55425D 55436A 55441E 55449C 55539Q 61181B 61182B 61183B 61184B 6418958010 73970A 7456 7456 8121 8401 8401 8401 8401 8401 9011908C61 9015950311 9015950327 9017906274 9018905005 9167380816 9415180600
Part # Description Qty Price
Common parts
64189-58010
90119-08C61
90159-50311
90159-50327
90179-06274
90189-05005
91673-80816
94151-80600
Linked diagrams
7456
8121
8401

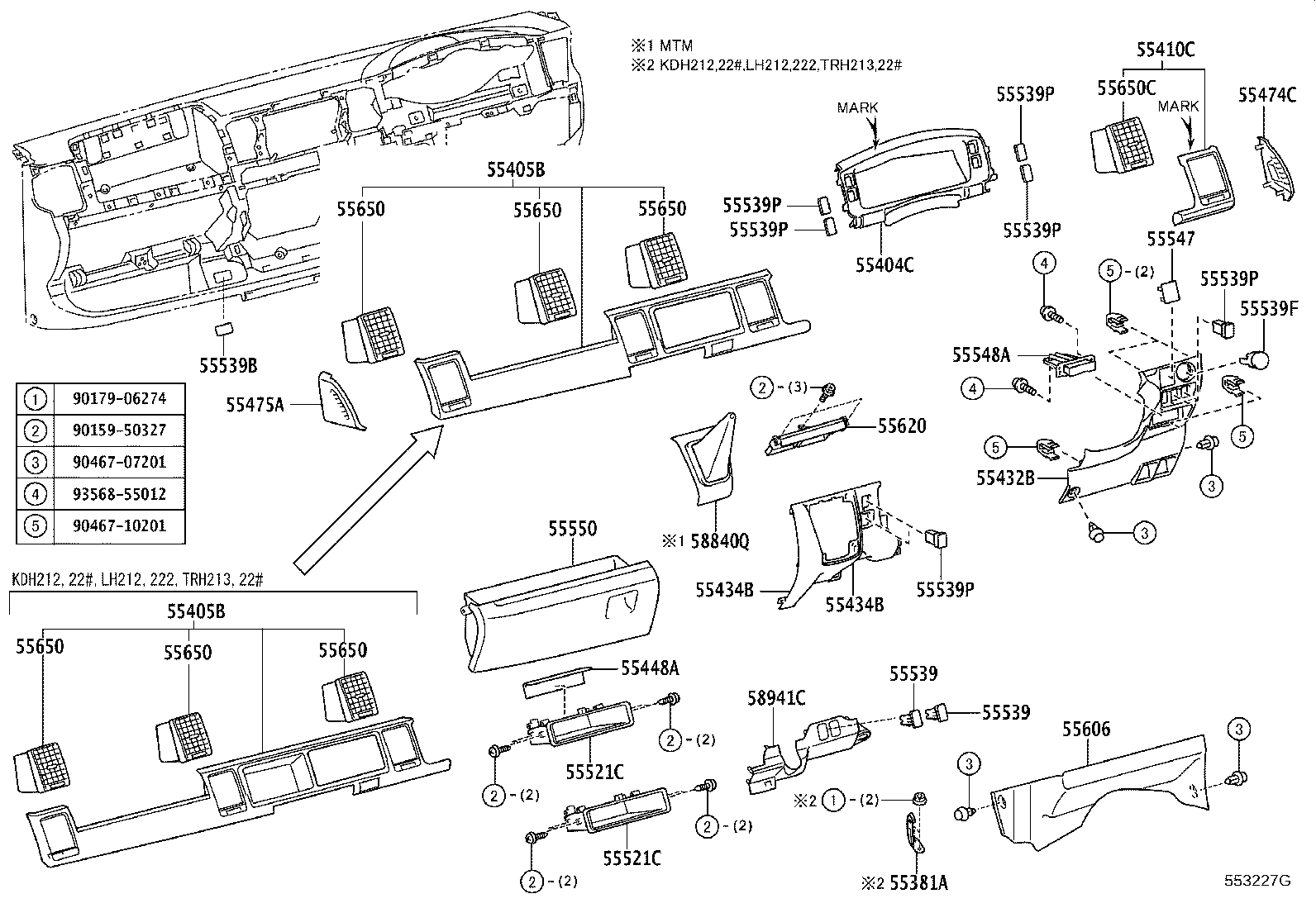

ILLUST NO. 2 OF 2(1312- )RHD

Click highlighted areas on diagram

diagram 55381A 55404C 55405B 55405B 55410C 55432B 55434B 55434B 55448A 55474C 55475A 55521C 55521C 55539 55539 55539B 55539F 55539P 55539P 55539P 55539P 55539P 55539P 55547 55548A 55550 55606 55620 55650 55650 55650 55650 55650 55650 55650C 58840Q 58941C 9015950327 9017906274 9046707201 9046710201 9356855012
Part # Description Qty Price
Common parts
90159-50327
90179-06274
90467-07201
90467-10201
93568-55012
