KDH200R-RBMDYN (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RHD

Click highlighted areas on diagram

diagram 71012 71012A 71110S 71140S 71150S 71155 71190S 71210S 71240S 71250S 71283 71283A 71283A 71284 71290S 71294 71299 71301 71306A 71306B 71306C 71310S 71340S 71350S 71390S 71903 71921 72110S 72510 9011908060 9011908339 9011908339 9011908339 9011908339 9011908339 9011908339 9011908340 9011908340 9011908341 9011908341 9011908341 9046818071 9046818071 9046818071 9046818071 9046818071 9046818071 9054006001 9054006003 9054112001 9152160816 9161660820 9165660820 9331915012 9351015016 9351015020 9418040800 9461210500 9461210500 9461410800
Part # Description Qty Price
Common parts
90119-08060
90119-08339
90119-08340
90119-08341
90468-18071
90540-06001
90540-06003
90541-12001
91521-60816
91616-60820
91656-60820
93319-15012
93510-15016
93510-15020
94180-40800
94612-10500
94614-10800

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT RH(SPLIT TYPE HEADREST)

diagram 71071S 71073S 71110A 71410C 71511S 7152 7152 71551S 71848A 71861 71867A 71875A 71875B 71876 71876A 71910A 71931 71931 72249 72525A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A50B2

KDH201..SG;KDH221,TRH223..(03S,14S)..(ARL,GEN);KDH200,201,220,222,223,TRH201,221..STD..(ARL,SA)

GRAY,TRIM1#

 1
71071-26A00B4

KDH200,220,TRH201,221..SA

SRS AIR BAG-WITHOUT,GRAY,TRIM1#

 1
71071-26A01B6

KDH200,220,TRH201,221..SA

SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#

 1
71071-26A51B4

KDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3

KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN

GRAY,TRIM1#

 1
71027-26041B4

KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA)

BLUISH GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010

TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S)

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170

TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270

KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-26010

TRH213..TH,VN;KDH220..SP..(GEN,SA);TRH203,213,223..4FC..GCC;KDH222,TRH223..(14S,15S)..STD;KDH201,203,221,223,TRH200..03S,06S,12S,14S;KDH200,212,TRH201,221..(03S,16S)..(SA,TH,VN)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0

KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501- )

Click highlighted areas on diagram

FRONT RH(INTEGRATED TYPE HEADREST)

diagram 71071S 71073S 71110A 71130 71410C 71511S 7152 7152 71551S 71848A 71861 71867A 71875A 71875B 71876 71876A 72249 72525A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A50B2

KDH201..SG;KDH221,TRH223..(03S,14S)..(ARL,GEN);KDH200,201,220,222,223,TRH201,221..STD..(ARL,SA)

GRAY,TRIM1#

 1
71071-26A00B4

KDH200,220,TRH201,221..SA

SRS AIR BAG-WITHOUT,GRAY,TRIM1#

 1
71071-26A01B6

KDH200,220,TRH201,221..SA

SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#

 1
71071-26A51B4

KDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3

KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN

GRAY,TRIM1#

 1
71027-26041B4

KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA)

BLUISH GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010

TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S)

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170

TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270

KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-26010

TRH213..TH,VN;KDH220..SP..(GEN,SA);TRH203,213,223..4FC..GCC;KDH222,TRH223..(14S,15S)..STD;KDH201,203,221,223,TRH200..03S,06S,12S,14S;KDH200,212,TRH201,221..(03S,16S)..(SA,TH,VN)

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0

KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0

KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

FRONT LH(INTEGRATED TYPE HEADREST)

diagram 71072S 71074S 71120B 71410C 71512S 7152 7152 71552S 71849 71862 71868A 71875C 71875E 71876B 71876C 72249 72526A 9011910949 9011910949 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26880B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71072-26881B1

TRH201..RHD;KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,15S,16S)..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71072-26882B1

KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26110B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
70169-26111B1

KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)

 2
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26110

KDH202..TH;KDH212,221,TRH213,221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,220,222,LH20#,212,222,TRH20#,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26020B0

TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S

GRAY,TRIM1#

 1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0610- )RHD..03S,06S,12S,15S,16S..ARL,GEN,SA,TH

Click highlighted areas on diagram

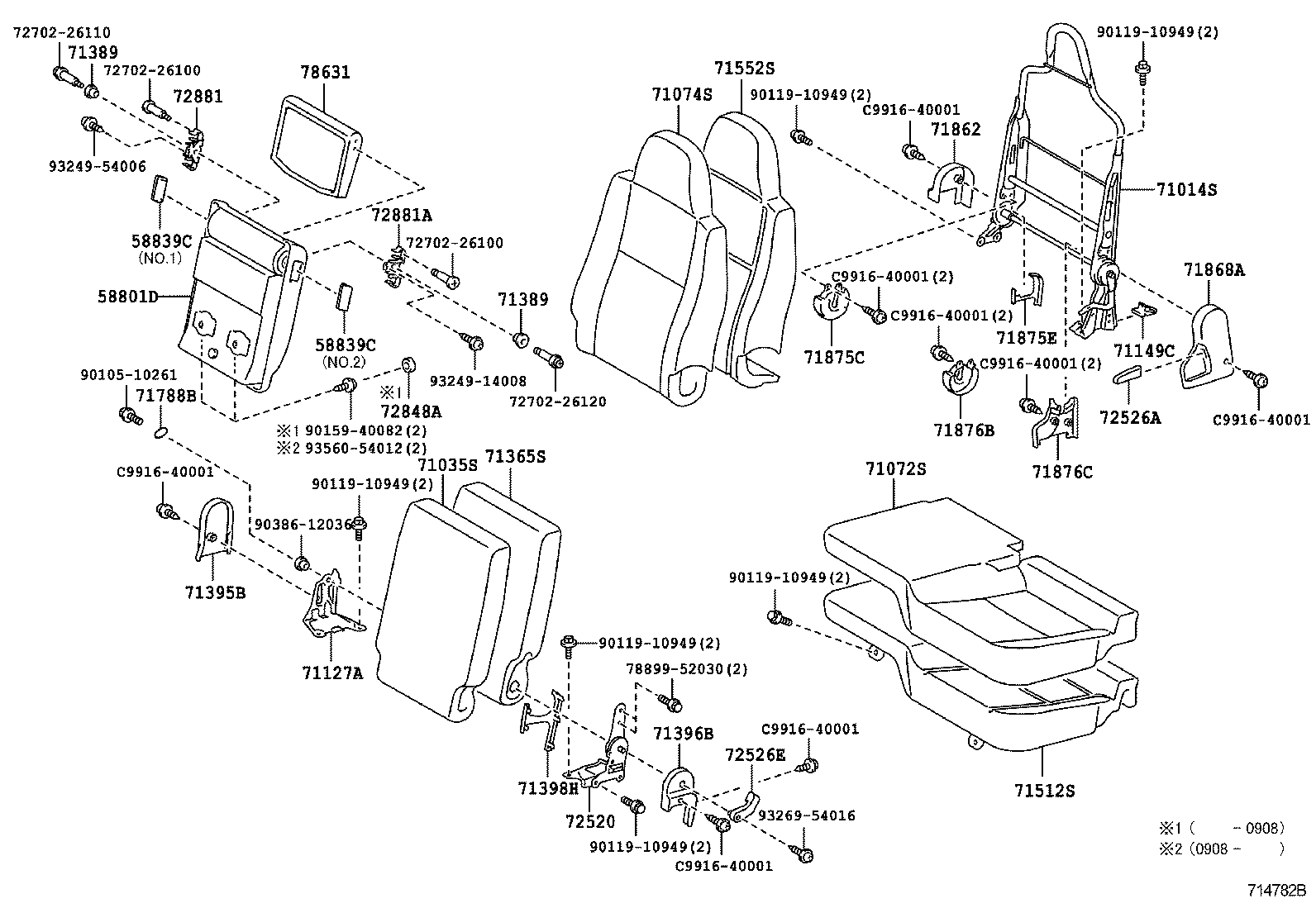

FRONT LH(2 PERSONS)

diagram 58801D 58839C 58839C 71014S 71035S 71072S 71074S 71127A 71149C 71365S 71389 71389 71395B 71396B 71398H 71512S 71552S 71788B 71862 71868A 71875C 71875E 71876B 71876C 72520 72526A 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010510261 9011910949 9011910949 9011910949 9011910949 9011910949 9011910949 9015940082 9038612036 9324914008 9324954006 9326954016 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3

KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71095-26201B5

KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71095-26202B5

KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26880B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71072-26881B1

TRH201..RHD;KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,15S,16S)..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71072-26882B1

KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26110B0

KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
70169-26111B1

KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH)

BLUISH GRAY,TRIM1#

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030

KDH200,201,202,LH20#,TRH20#..RHD

 1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396-26010B1

KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD

DK.GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398-26010B1

KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26110

KDH202..TH;KDH212,221,TRH213,221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,220,222,LH20#,212,222,TRH20#,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

 1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010

KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26050B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26040B0

KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)

GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH202..GL..TH;TRH201..ARL,SA;TRH201..SG..4FC;TRH201..06S..5F..GEN;KDH202,222,TRH203..HRF..(MA,TH);KDH200..RHD..03S..5F..(GEN,MA,SA,TH);KDH201,202,LH20#,TRH203..RHD..(03S,06S,15S)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26020B0

TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S

GRAY,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001
