KDH200R-RBMDYN (2006)
Toyota Hiace

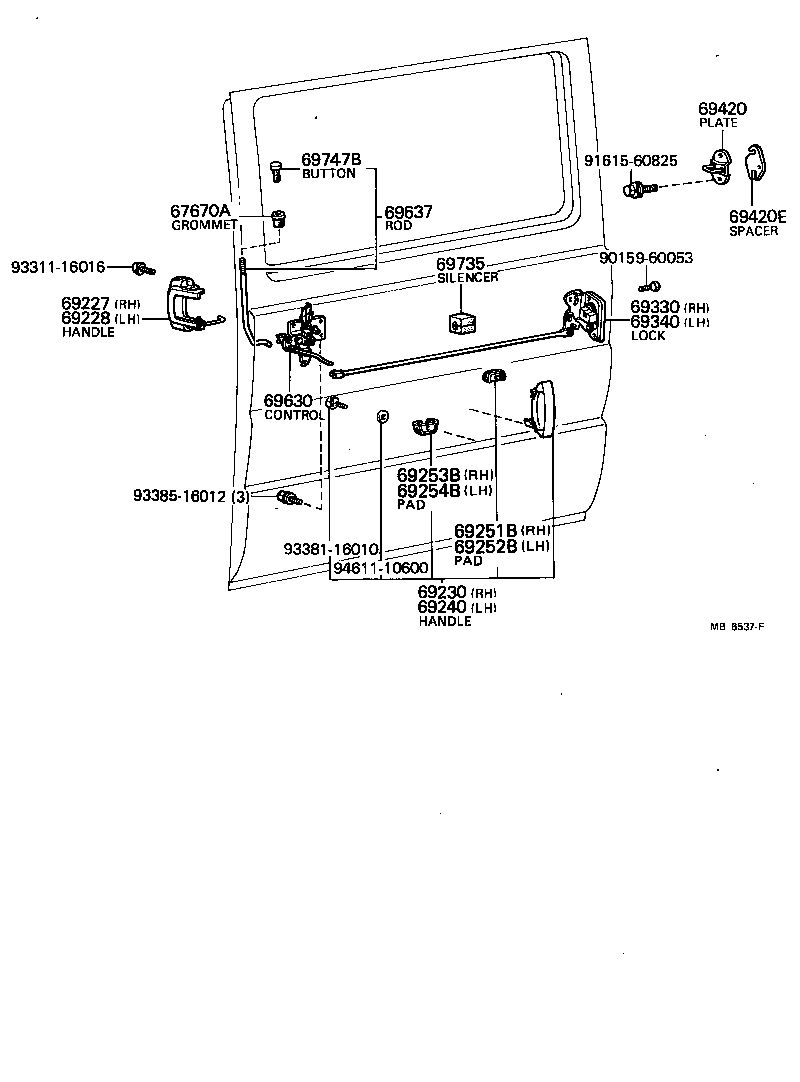

(7702- )LH20,30,RH20,22,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60053 | ||||
| 91615-60825 | ||||
| 93311-16016 | ||||
| 93381-16010 | ||||
| 93385-16012 | ||||
| 94611-10600 | ||||
(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836F - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-26010 |
KDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 67836F - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-26010 |
KDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-26010 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-26010 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-26010 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-26010B0 |
KDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD GRAY,TRIM1# |
1 | ||
| 69224 - CASE, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69242-26030 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-26080 |
TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH200,222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..STD;KDH202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,14S,15S,16S) NO PAINT REQ. |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-26040 |
TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,203,220,221,223..03S,06S,14S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,16S) |
1 | ||
| 69394 - COVER, REAR DOOR LOCK, OUTER LH | ||||
| 69394-26010 |
LH200..RHD;KDH200,221..5D..03S;KDH201,TRH221..SP..03S;TRH201..03S..(ARL,GCC,SA);KDH220,TRH201..5D..03S..(GEN,SA);KDH200..RHD..4D..5F..(GEN,MA,SA) |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28100 |
TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,16S) |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-26020 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-26350 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 69640-26340 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-26350 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 69640-26340 |
TRH201..06S..GCC;KDH200,201..LHD..5D;KDH220,TRH201,221..SP..03S..(GCC,GEN,SA);KDH201,TRH223..RHD..4D..(03S,16S)..5F..(GEN,TH);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH) |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-26020 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-26010B0 |
KDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH20#,212,221,223,LH20#,212,222,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06871 | ||||
| 90148-60022 | ||||
| 90148-60073 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 90166-50004 | ||||
| 90467-05136 | ||||
| 90467-08006 | ||||
| 90469-06006 | ||||
| 90959-01619 | ||||
| 91511-60612 | ||||
| 91511-G0614 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0069 | ||||
| 90119-06871 | ||||
| 90148-60073 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 90166-50004 | ||||
| 90467-08006 | ||||
| 90469-06006 | ||||
| 90959-01619 | ||||
| 91511-60612 | ||||
| 91511-G0614 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
