KDH200R-RBMDYE (2014)
Toyota Hiace
(1312-2005)KDH203..02S,12S ; (1312-2005)KDH200,201,202,LH20#,TRH20#..02S,03S,06S,12
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

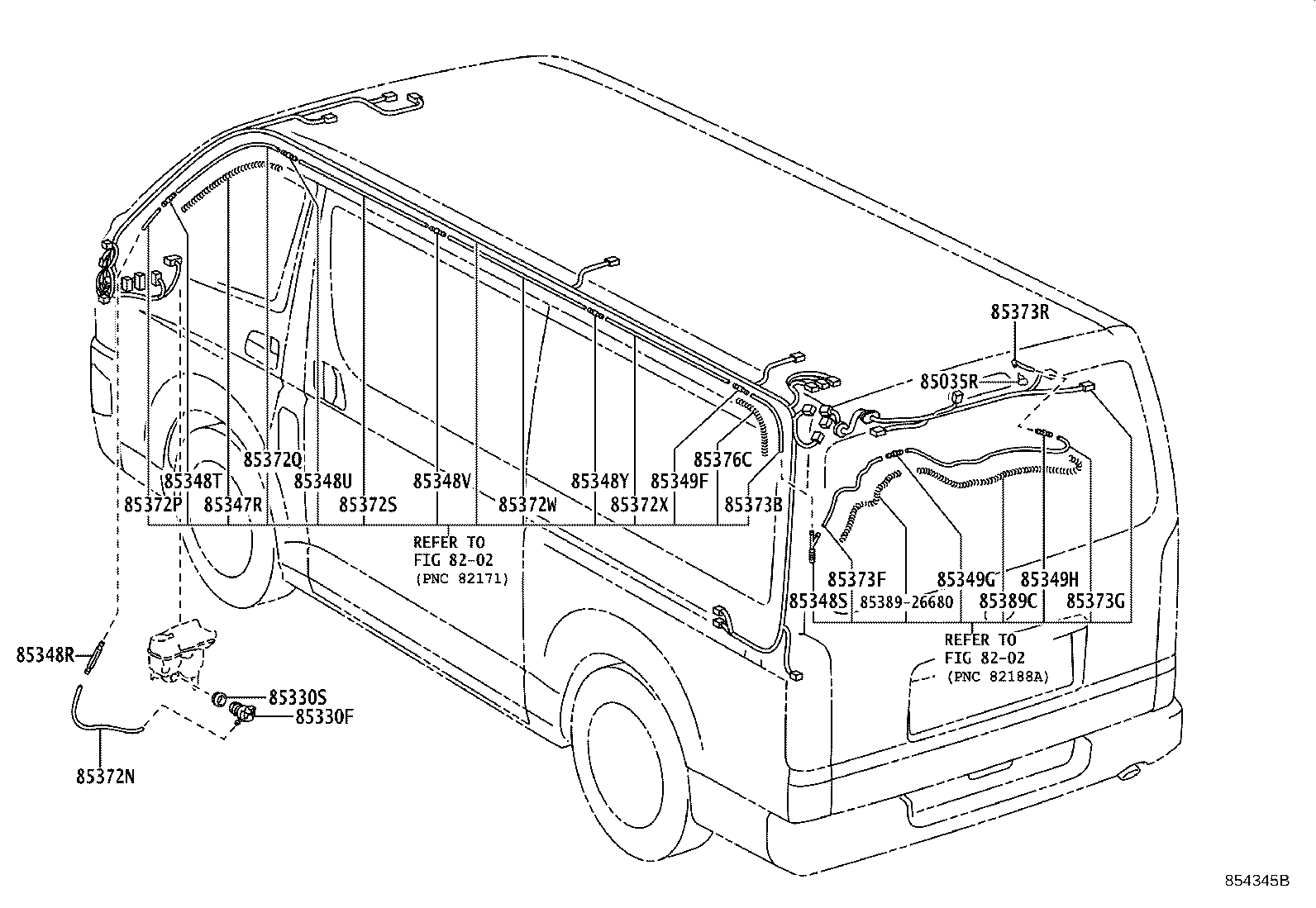

| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373H - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33080 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373J - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=630,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=630,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
(1312-2005)KDH202,212,220,221,222,LH212,222,TRH203,213,22#..HRF,SMRF..4FC,5F ; (150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349-89122 |
TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH223..ARL,MA,RUS;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH200,201,220..LHD..5D..GEN;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH201,223,TRH203..4D..(03S,10S,12S,14S,15S)..5F;KDH201,213,221,222..(02S,05S,13S,16S)..(ARL,GEN);KDH202,203,212,LH20#,212,222..4D..(03S,10S,12S,13S,15S,16S)..(GCC,GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373G - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9 | ||||
| 90099-62228 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) L=800,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62228 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) L=800,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62228 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) L=800,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373H - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33080 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373J - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=630,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=630,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=630,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
(2005- )KDH202,TRH203..GEN ; (2005- )KDH200,201,203,LH20#,TRH200,201
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85347R - SPRING | ||||
| 85389-26270 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373G - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9 | ||||
| 90099-62228 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) L=800,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85376C - SPRING, WASHER HOSE | ||||
| 85389-26300 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-26630 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| Common parts | ||||
| 85389-26680 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(2005- )KDH222,TRH223..03S,14S ; (2005- )KDH220,223,LH222,TRH221 ; (2005-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
KDH200,202,TRH203..SRF..4D..5F..(GCC,MA);KDH202,212,222,LH20#,TRH203..RHD..4D..STD..GEN REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330-26030 |
KDH222..GL..SA;KDH200,222,TRH223..RHD..(GEN,MA);KDH202,212,LH20#,TRH203,213,221..RHD..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85347R - SPRING | ||||
| 85389-26270 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
TRH223..GL..SA;TRH213..RHD..5F;TRH221..ARL,GEN,SA;KDH222..GL..(GEN,SA);TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,TRH213..LHD..(03S,16S);TRH223..(12S,14S,16S)..(ARL,GEN,RUS);KDH201,222..4D..(03S,16S)..5F..(GEN,TH);KDH201,202,212,221,TRH203..02S,05S,10S,12S,13S,15S,16S;KDH200,203,213,220,223,LH20#,212,222..(03S,06S,12S,13S,14S,15S,16S)..(ARL,GEN,MA,RUS,SA) L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH201..02S,05S;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH212,220,221,TRH221..02S,06S,13S,16S;KDH200,201,TRH223..(03S,14S)..(ARL,MA,TH);KDH201,220,223,TRH213..LHD..(03S,14S,16S)..GEN;KDH223,TRH201..(02S,03S,12S,14S)..(5F,6FC)..(ARL,GEN,RUS,SA);KDH202,203,213,222,LH20#,212,222,TRH203..4D..(03S,12S,13S,15S,16S)..GEN *H,L=260,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62104 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,222,LH20#,222,TRH201,203,223..(03S,12S,15S,16S)..(GEN,MA) L=1040,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD *H,L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-62232 |
KDH222,TRH221..(03S,14S)..(GEN,SA);KDH200,202,203,212,222,LH20#,222,TRH201,203,213,223..(03S,12S,15S,16S)..(GEN,MA) L=1020,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
KDH200..MA;KDH201..02S,05S;KDH200,201..LHD..5D..GEN;TRH201..(02S,06S)..(4FC,6FC);TRH201..SP..5F..(ARL,GEN,SA);KDH201,202,203,LH20#,TRH203..4D..(03S,12S,15S)..5F..STD L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 90099-33299 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) *H,L=400,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) *H,L=430,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373G - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9 | ||||
| 90099-62228 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) L=800,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
KDH201..02S,05S;TRH223..LHD..STD..GEN;TRH201..(02S,06S)..(4FC,6FC);KDH200,201,220..LHD..5D..GEN;KDH21#,220,221,TRH221..02S,06S,13S,16S;KDH223,TRH213..LHD..(14S,16S)..(GCC,GEN);KDH200,201,TRH223..(03S,12S,14S)..(ARL,MA,RUS,TH);KDH223,TRH201..(02S,03S,12S,14S)..5F..(ARL,GEN,RUS,SA);KDH202,203,222,LH20#,212,222,TRH203..4D..(03S,10S,12S,15S,16S)..(GEN,MA) *H,L=90,REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85376C - SPRING, WASHER HOSE | ||||
| 85389-26300 |
KDH200,202,203,212,LH20#,TRH201,203,213..(03S,12S,15S,16S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-26630 |
KDH200,202,203,LH20#,TRH201,203..(03S,12S,15S)..(GEN,MA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| Common parts | ||||
| 85389-26660 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
