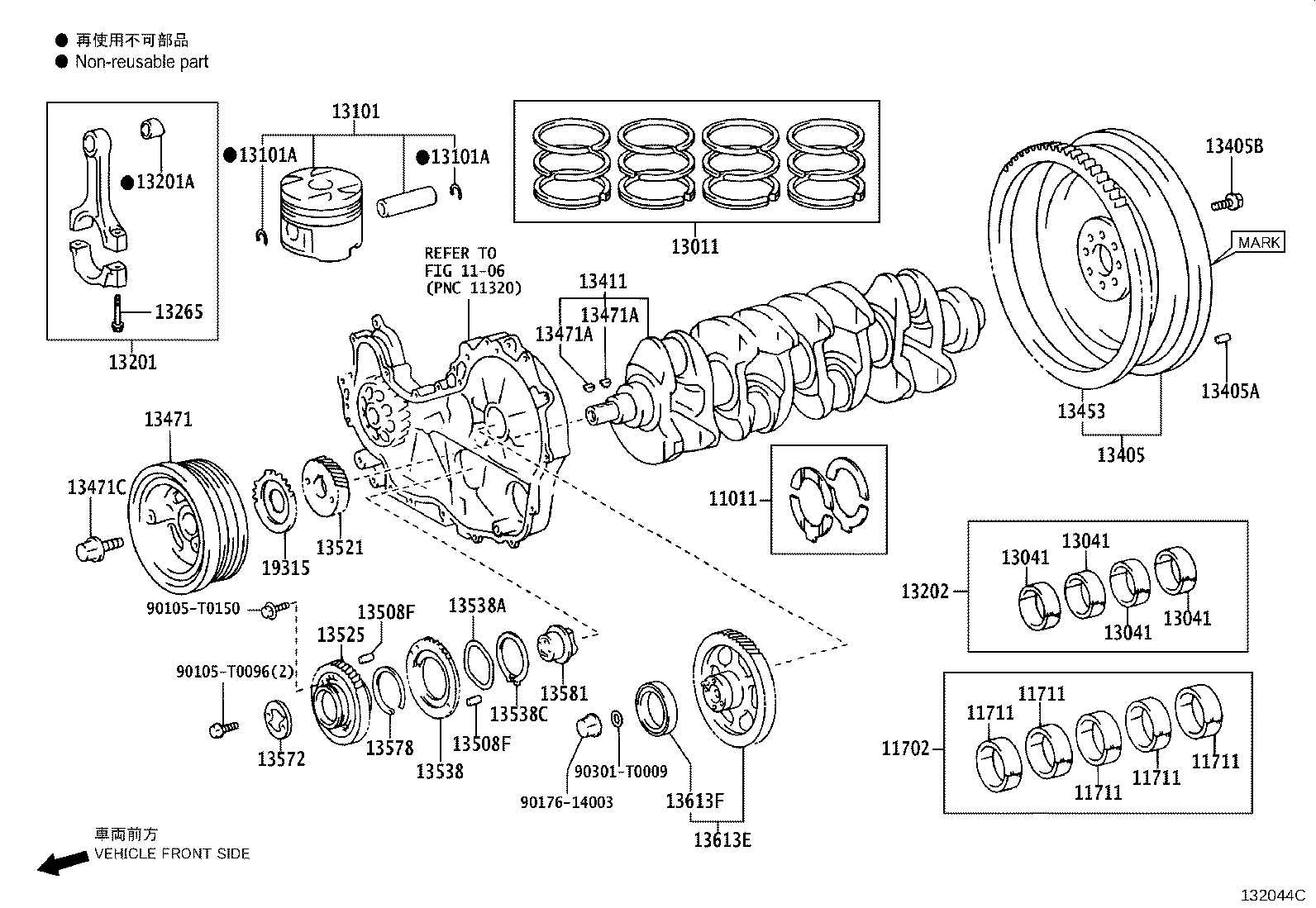

KDH200R-RBMDYE (2014)
Toyota Hiace
(1401- )2KDFTV..KDH200,202..MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-30010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) O/S 0.125 |
1 | ||
| 11013-30010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) O/S 0.250 |
1 | ||
| 11011-0L020 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0L020 |
2KDFTV..KDH200,202..MA STD |
1 | ||
| 13013-30030 |
2KDFTV..KDH200,202..MA O/S 0.50 |
1 | ||
| 13013-30080 |
2KDFTV..KDH200..MA O/S 0.50 |
1 | ||
| 13011-0L021 |
2KDFTV..KDH200..MA STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02005 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02003 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02004 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-0L02006 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH MARK6,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0L05102 |
2KDFTV..KDH200,202..MA STD,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13101-0L05103 |
2KDFTV..KDH200,202..MA STD,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13101-0L05101 |
2KDFTV..KDH200,202..MA STD,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13103-0L051 |
2KDFTV..KDH200,202..MA O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0L011 |
2KDFTV..KDH200,202..MA (L) |
4 | ||
| 13201-30041 |
2KDFTV..KDH200,202..MA (J) |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73157 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0L021 |
2KDFTV..KDH200,202..MA MARK=0L021 |
1 | ||
| 13405-0L110 |
2KDFTV..KDH200,202..MA MARK=30031 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0008 |
1KDFTV..KDH223..VN;1KDFTV,2KDFTV..KDH200,202,203..MA,TH L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
1KDFTV..KDH223..VN;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-30060 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
1 | ||
| 13401-0L100 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
2KDFTV..KDH200,202..MA;1KDFTV..KDH223..4FC..TH |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
2 | ||
| 95161-30516 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
2 | ||
| 95161-30516 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KDH200,202..MA |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KDH200,202..MA |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-0L010 |
2KDFTV..KDH200,202..MA |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-T0001 |
2KDFTV..KDH200,202..MA |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-T0032 |
2KDFTV..KDH200,202..MA |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-0L010 |
2KDFTV..KDH200,202..MA |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 13613F - BEARING, RADIAL BALL | ||||
| 90363-T0013 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH |
1 | ||
| Common parts | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| Linked diagrams | ||||
| 1106 | ||||
