KDH200L-SRMDYV (2005)
Toyota Hiace
ILLUST NO. 2 OF 2(0501-0610)KDH202..SRF ; (0501-0610)KDH200..ARL,GCC,GEN ; (0501-0709)TRH201..SP..4F
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||

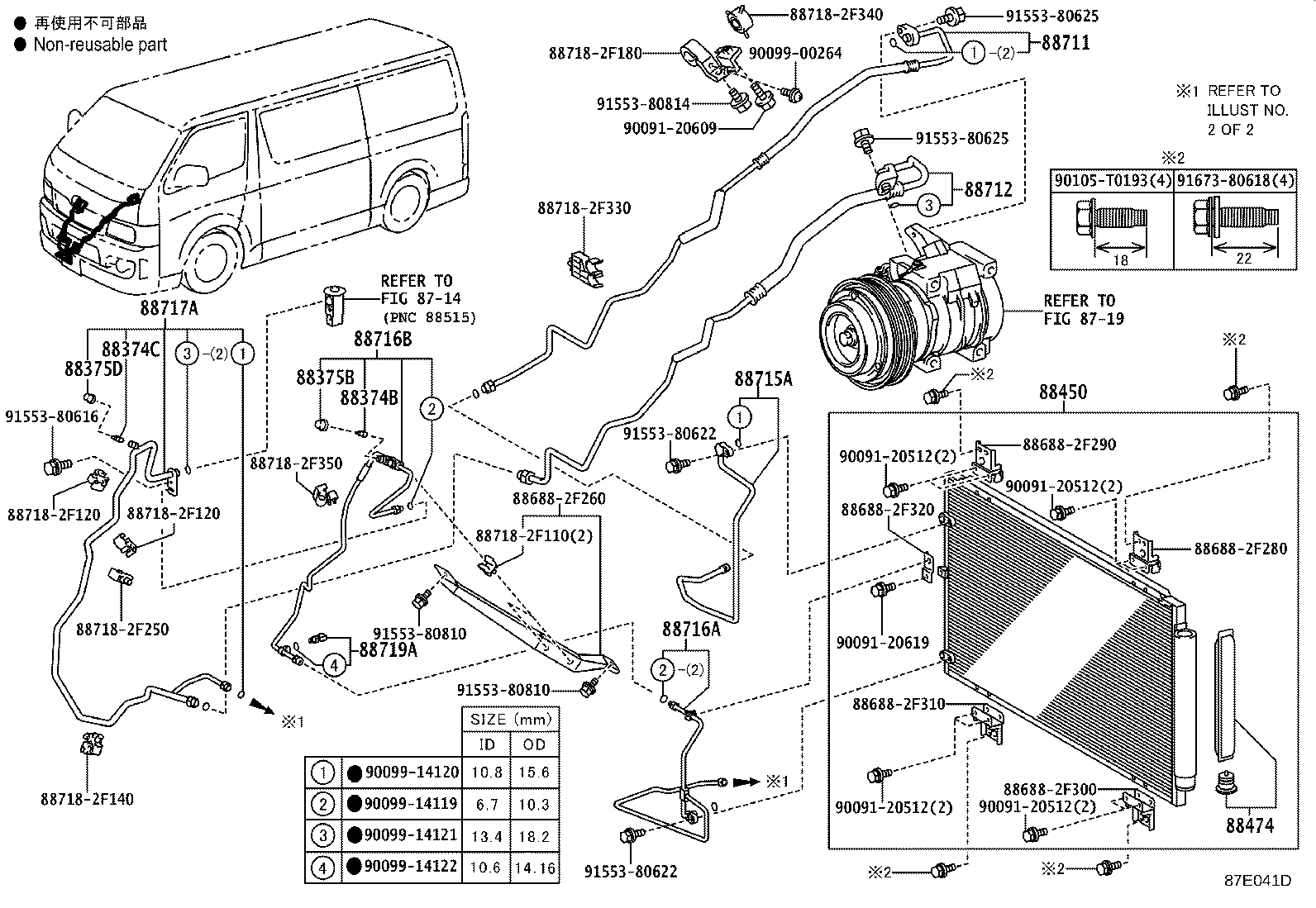

ILLUST NO. 1 OF 2(0501- )KDH200..GCC
FRONT:SINGLE A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH200,LH200,TRH201..SRF..(ARL,GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N130 |
TRH201..LHD;KDH200..06S..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N130 |
TRH201..LHD..5D;KDH200..06S..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F690 |
KDH200..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F190 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

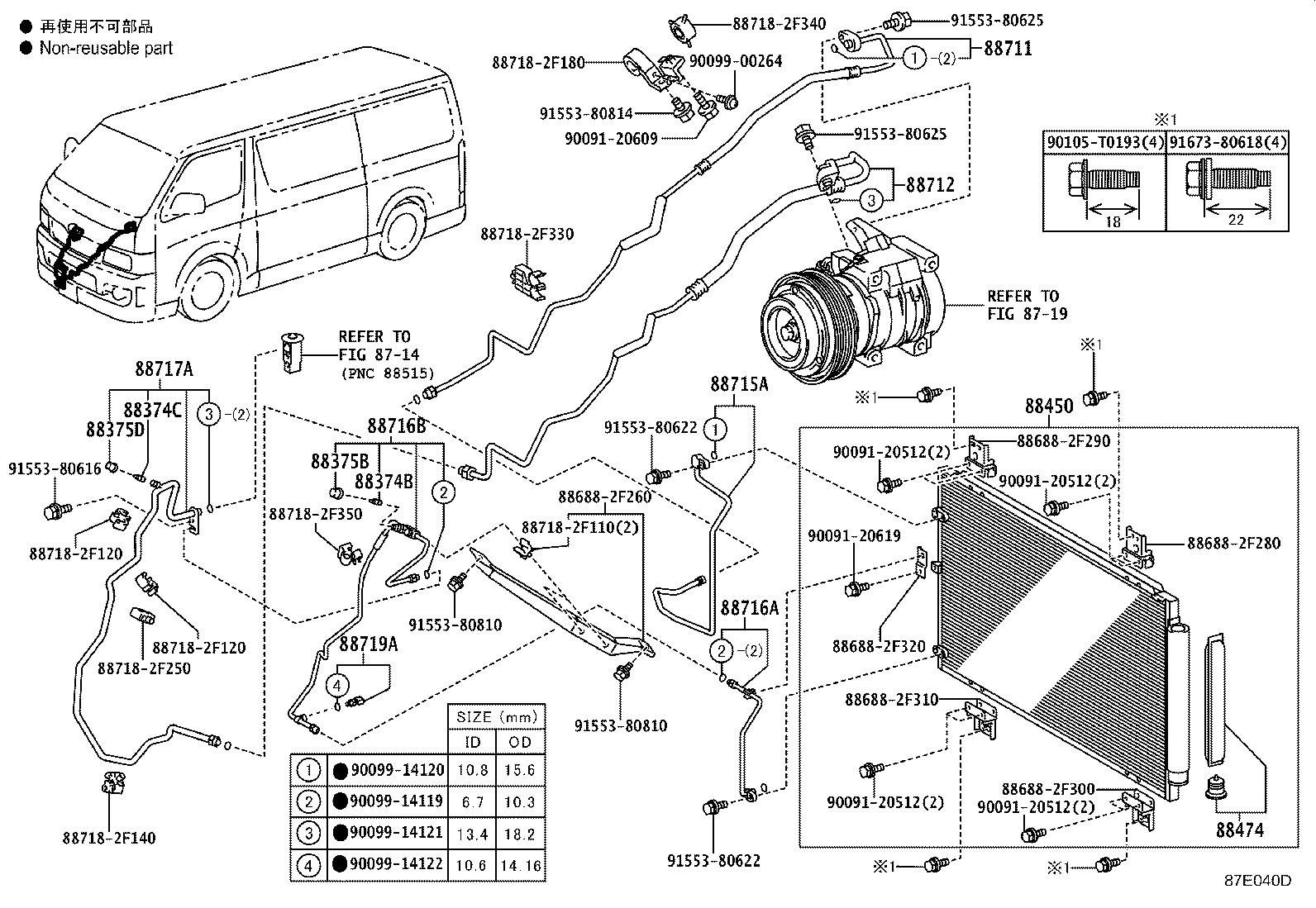

ILLUST NO. 1 OF 2(0501-1008)KDH202..GCC ; (0501- )KDH200..GCC
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH200,LH200,TRH201..SRF..(ARL,GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N130 |
TRH201..LHD;KDH200..06S..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N130 |
TRH201..LHD..5D;KDH200..06S..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-2F660 |
KDH200..06S..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F190 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

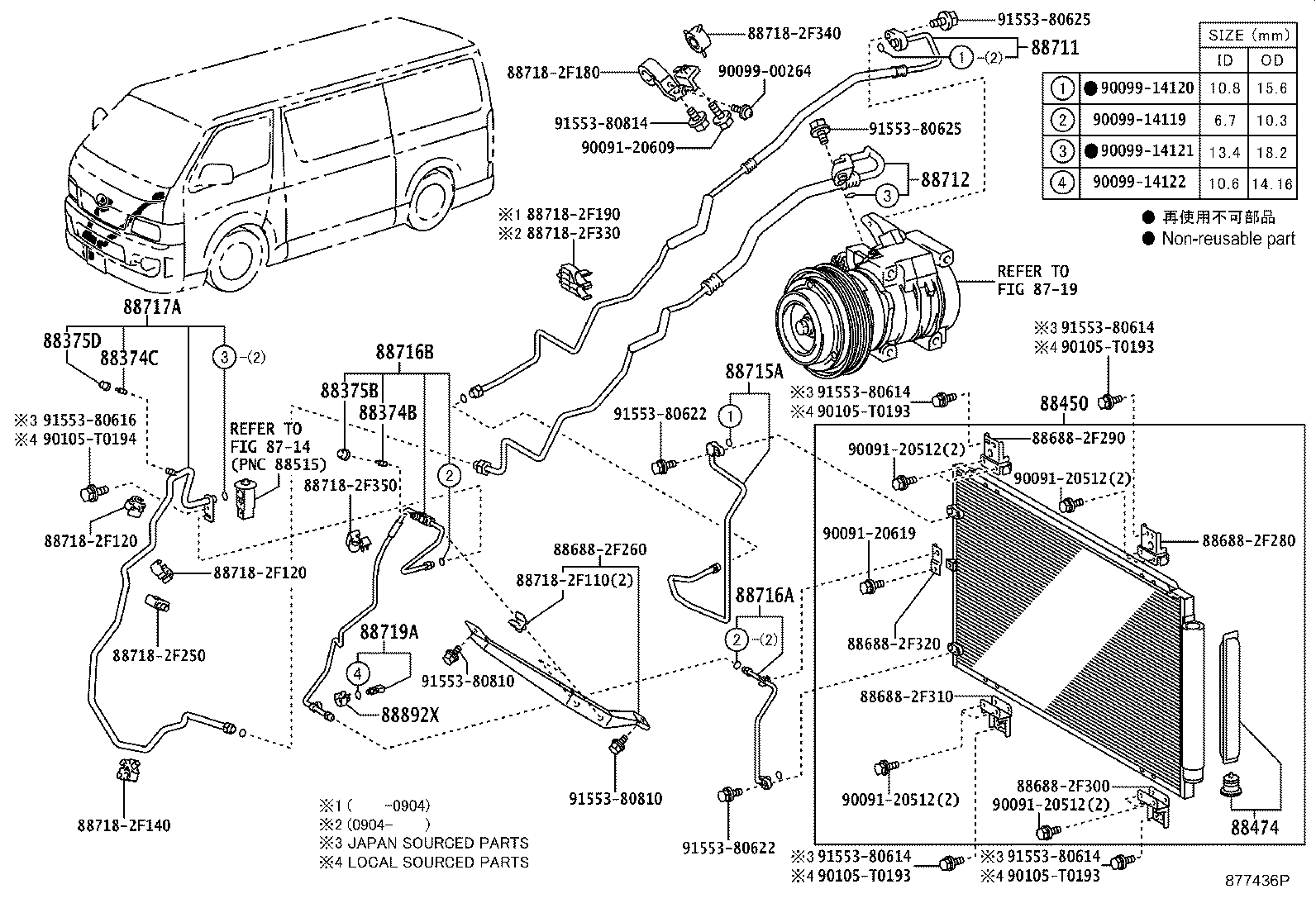

ILLUST NO. 1 OF 2(0501-1008)KDH200..RHD..03S..5F..GEN,MA,SA,TH ;(0501- )KDH200..5F..ARL ; (0501-
FRONT:SINGLE A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH200,LH200,TRH201..SRF..(ARL,GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N130 |
TRH201..LHD;KDH200..06S..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N130 |
TRH201..LHD..5D;KDH200..06S..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F690 |
KDH200..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0501-0512)TRH213..10S ; (0501- )TRH22#..LHD..CIS,GEN ; (0508-0512)TRH213..STD ;
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88711-2F240 |
KDH200..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712-2F171 |
KDH200..SG;KDH200..03S..4FC;KDH200..03S..5F..(ARL,GCC) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
KDH200,201,TRH201..SG..06S;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26390 |
KDH200,201,TRH201..SG;KDH200,201,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F630 |
KDH200,LH200,TRH201..SRF..(ARL,GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N130 |
TRH201..LHD;KDH200..06S..GCC AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N130 |
TRH201..LHD..5D;KDH200..06S..GCC AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F690 |
KDH200..LHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-40020 |
KDH200..SG;KDH200..ARL,TH;KDH220..RHD..(ARL,GEN) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88688-2F391 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F190 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 88718-2F430 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0610-0709)KDH200..06S ; (0610- )KDH201..RHD; (0610- )KDH202..SRF ; (0610-
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00259 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0611-0709)TRH223..GL..GCC ; (0611- )LH222,TRH221 ; (0611- )TRH223..GL..SA ;
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88515-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F780 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88710-2F840 |
KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88714-26050 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716-2N170 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26451 |
TRH201..SP..06S;KDH200..06S..GCC;KDH200..03S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891-26250 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26280 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88891-26270 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER,NO.1 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80814 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
(1312-2005)KDH213,221..V ; (1312-2005)KDH222,223..STD..ARL,GEN,TH ; (1506-2005)KDH2
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)KDH200..GCC
FRONT:SINGLE A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)KDH200..GCC
FRONT:DUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
