GRH320R-HBFDHQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

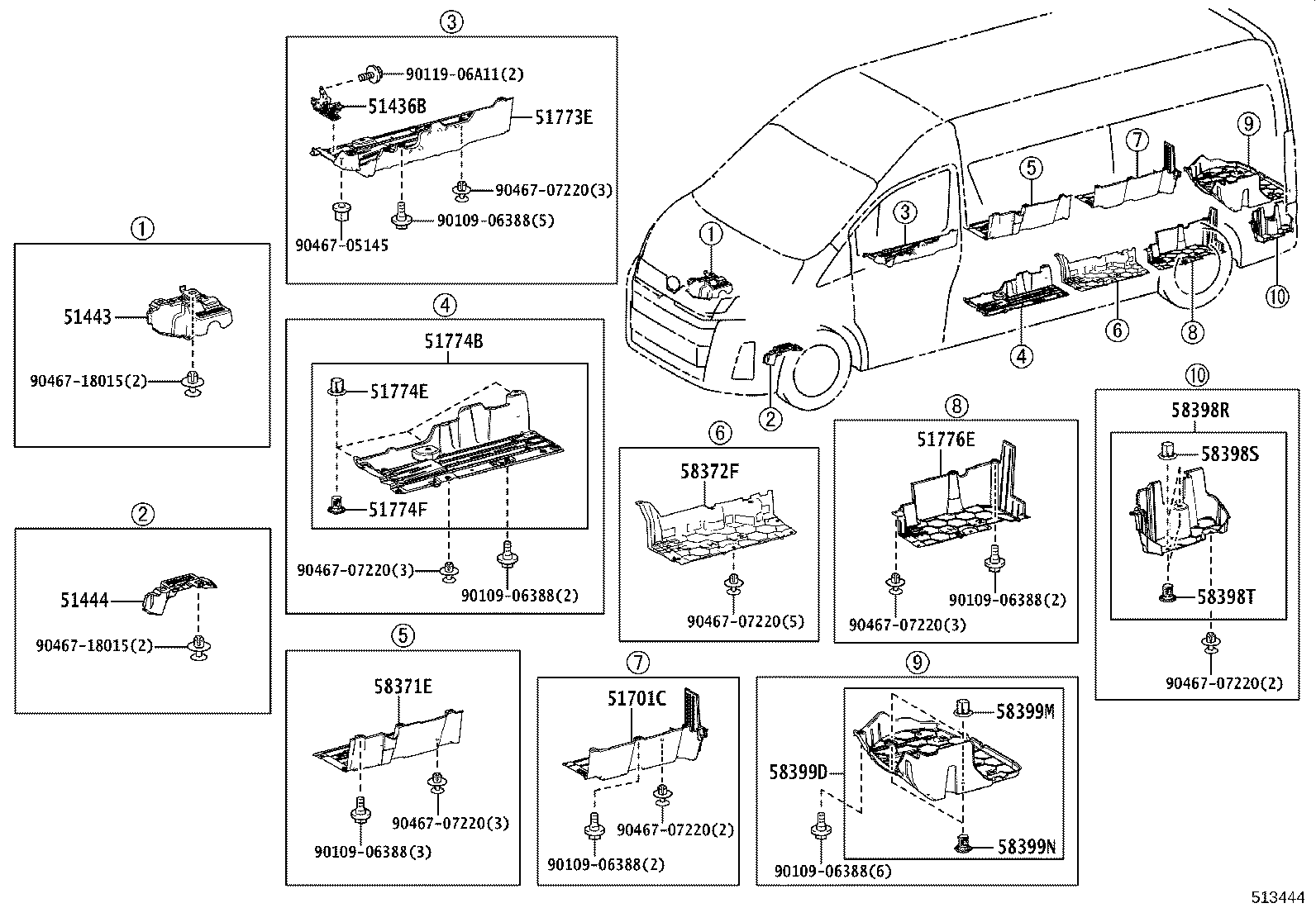

ILLUST NO. 2 OF 2(1903- )GRH320,321..D,Q..ARL

Click highlighted areas on diagram

diagram 51436B 51443 51444 51701C 51773E 51774B 51774E 51774F 51776E 58371E 58372F 58398R 58398S 58398T 58399D 58399M 58399N 9010906388 9010906388 9010906388 9010906388 9010906388 9010906388 9011906A11 9046705145 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046718015 9046718015
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-26090

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-26140

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-26100

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
51701C - COVER SUB-ASSY, STEP PLATE, RH
51701-26140

GRH320..ARL;GDH320..SP..6F..ARL

 1
51773E - COVER, STEP PLATE, RH
51773-26060

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

 1
51774B - COVER, STEP PLATE, LH
51774-26080

GRH303..LHD..G;GRH303,320,321..(D,G,J,Q)..ARL

 1
51774E - CLIP, STEP PLATE COVER
90467-17026A0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

SUPER WHITE 2

 3
51774F - CLIP, STEP PLATE COVER
90467-17027C0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

BLACK

 3
51776E - COVER, REAR STEP, NO.2
51776-26020

GDH320..6F..ARL;GRH320,321..(D,Q)..ARL

 1
58371E - COVER, REAR FLOOR STEP, NO.1
58371-26070

GDH320..6F..ARL;GRH320,321..(D,Q)..ARL

 1
58372F - COVER, REAR FLOOR STEP, NO.2
58372-26050

GDH320..6F..ARL;GRH320,321..(D,Q)..ARL

 1
58398R - COVER, BODY LOWER BACK, LH
58398-26020

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

 1
58398S - CLIP, BODY LOWER BACK COVER
90467-17026A0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

SUPER WHITE 2

 2
58398T - CLIP, BODY LOWER BACK COVER
90467-17027C0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

BLACK

 2
58399D - COVER, FLOOR UNDER, NO.2
58399-26010

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

 1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

SUPER WHITE 2

 2
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q)

BLACK

 2
Common parts
90109-06388
90119-06A11
90467-05145
90467-07220
90467-18015
