Toyota Hiace GRH320 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
GR
HIACE
GRH320L-EDFDH (2019)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )ARL,EUR,GEN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
55465-95A00
55933-14010
93510-14014
93510-54012
93510-55012

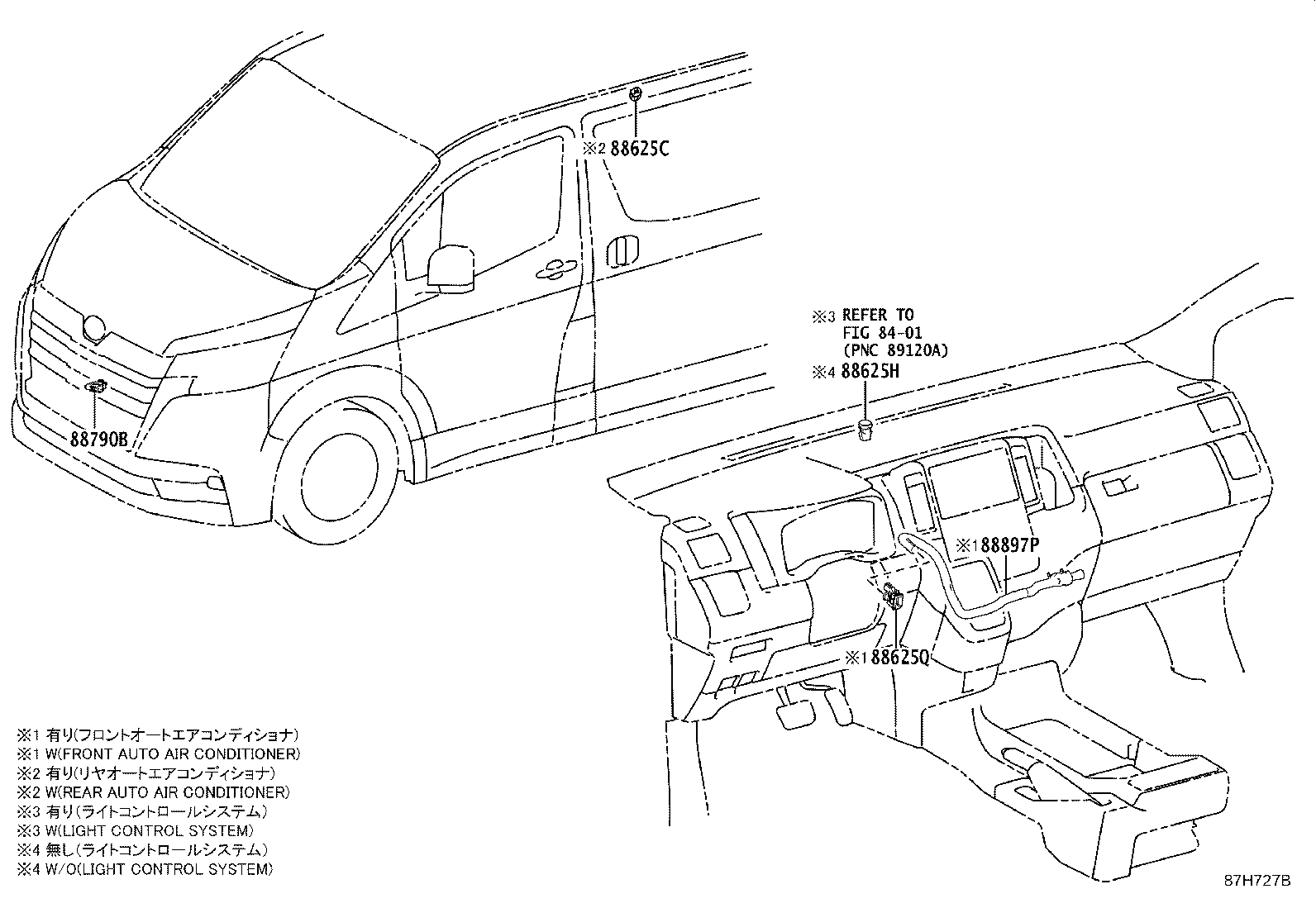

ILLUST NO. 4 OF 4(1902- )LHD

Click highlighted areas on diagram

SENSOR

Part #	Description	Period	Qty
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130	GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..(GEN,IDN) LIGHT CONTROL SYSTEM-WITH(LIGHT SENSOR ONLY)	02/2019 - 12/2999	1
88790B - THERMISTOR ASSY
88790-28100	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) (J)	02/2019 - 12/2999	1
88790-0K010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) (L)	02/2019 - 12/2999	1
Linked diagrams
8401

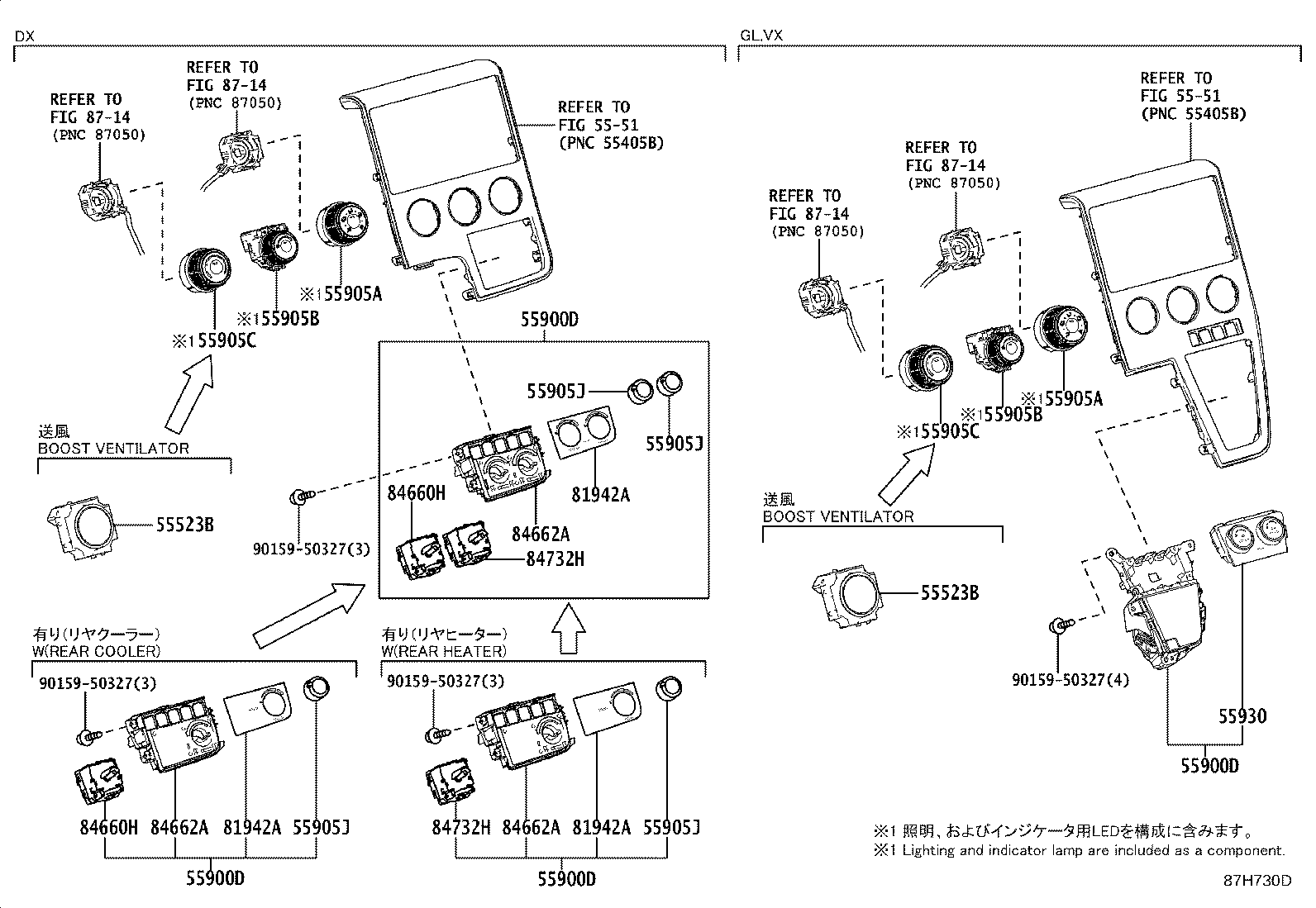

ILLUST NO. 1 OF 4(1902- )GDH300,301,303,306,32#,GRH300,301,303,32#..LHD

Click highlighted areas on diagram

FRONT CONTROL---MANUAL

Part #	Description	Period	Qty
55523B - COVER, HEATER CONTROL OPENING
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55523-26090	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55523B - COVER, HEATER CONTROL OPENING
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55523-26090	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55523-26090	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55905A - KNOB, HEATER CONTROL
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55901-26220	GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH) REAR WINDOW DEFOGGER-WITH	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH	02/2019 - 12/2999	1
55901-26230	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55905A - KNOB, HEATER CONTROL
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55901-26220	GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH)	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55901-26220	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..D..(GEN,IDN,TH) REAR WINDOW DEFOGGER-WITH	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55901-26230	GRH300..4D..GEN;GDH300,301,320,321,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH	02/2019 - 12/2999	1
55901-26230	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55905B - KNOB, HEATER CONTROL, NO.2
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55902-26150	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55905B - KNOB, HEATER CONTROL, NO.2
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN REAR WINDOW WIPER-WITH&FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55902-26150	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)	02/2019 - 12/2999	1
55902-26150	GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55905C - KNOB, HEATER CONTROL, NO.3
55903-26080	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26090	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
55903-26100	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26130	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
55903-26140	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26080	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26090	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH	02/2019 - 12/2999	1
55903-26100	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26140	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26130	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
55905C - KNOB, HEATER CONTROL, NO.3
55903-26080	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26090	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH	02/2019 - 12/2999	1
55903-26100	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26130	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
55903-26140	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26080	GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26090	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN REAR WINDOW DEFOGGER-WITH&FRONT HEATER-WITH	02/2019 - 12/2999	1
55903-26100	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26140	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER	02/2019 - 12/2999	1
55903-26130	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)	02/2019 - 12/2999	1
Common parts
90159-50327
Linked diagrams
5551
8714

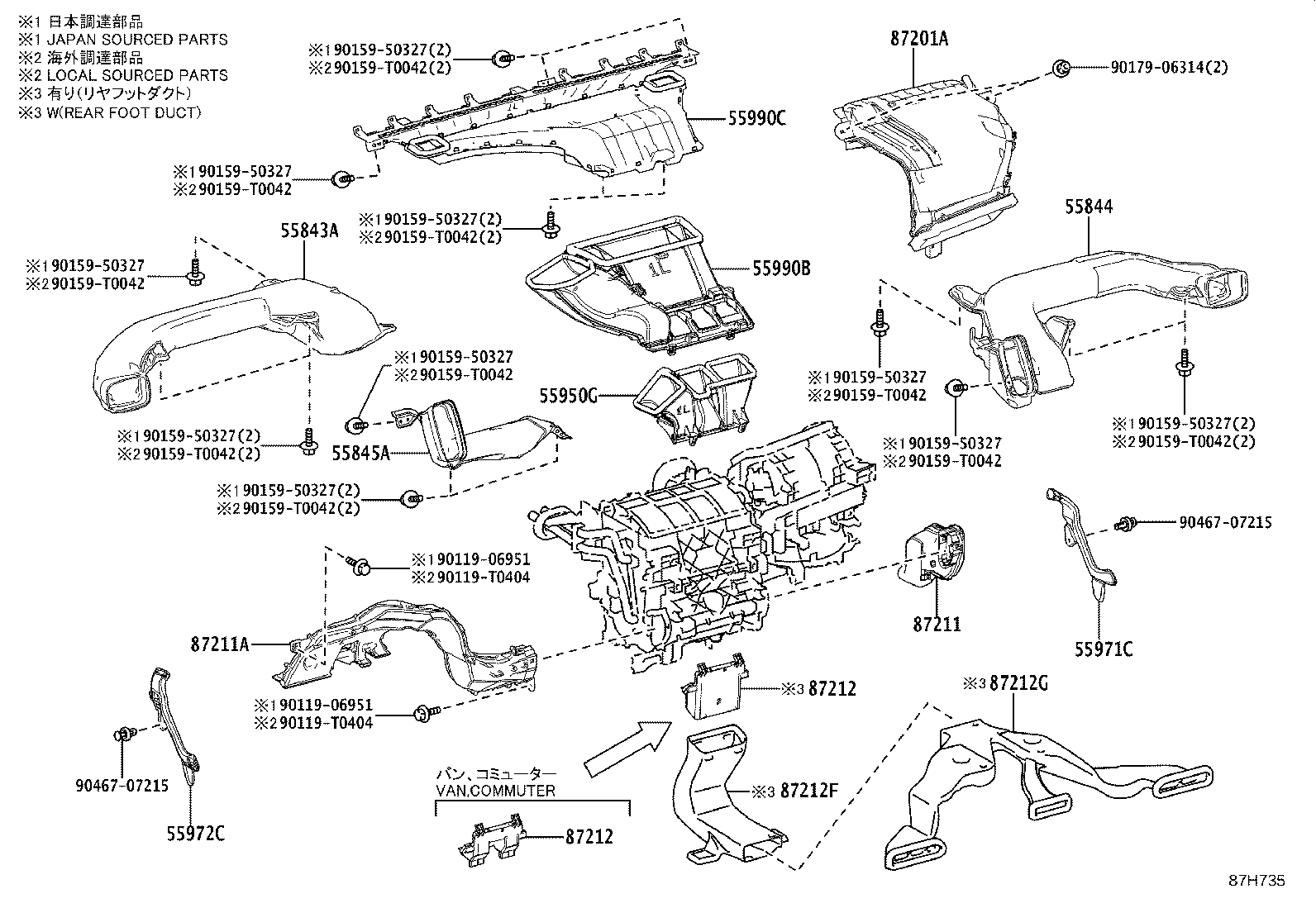

ILLUST NO. 3 OF 4(1902- )LHD

Click highlighted areas on diagram

AIR DUCT---FRONT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-26100	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55085-26020	GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55844-26060	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55960-26020	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-26070	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-26070	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-26020	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
55990C - NOZZLE ASSY, CENTER DEFROSTER
55950-26070	GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD	02/2019 - 12/2999	1
87201A - DUCT SUB-ASSY, AIR
87201-26080	GDH322..P..GCC;GDH322..6FC..P..GEN;GDH320,GRH300..6F..GCC;GRH300,322..LHD..4D..(D,P);GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,322,GRH301..LHD..D..GEN	02/2019 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-26240	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)	02/2019 - 12/2999	1
87211A - DUCT, AIR, NO.2
87211-26230	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH)	02/2019 - 12/2999	1
87212 - DUCT, AIR, REAR NO.1
87211-26260	GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)	02/2019 - 12/2999	1
87212 - DUCT, AIR, REAR NO.1
87211-26260	GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)	02/2019 - 12/2999	1
Common parts
90119-06951
90119-T0404
90159-50327
90159-T0042
90179-06314
90467-07215
