GRH320L-EDFDH (2019)
Toyota Hiace

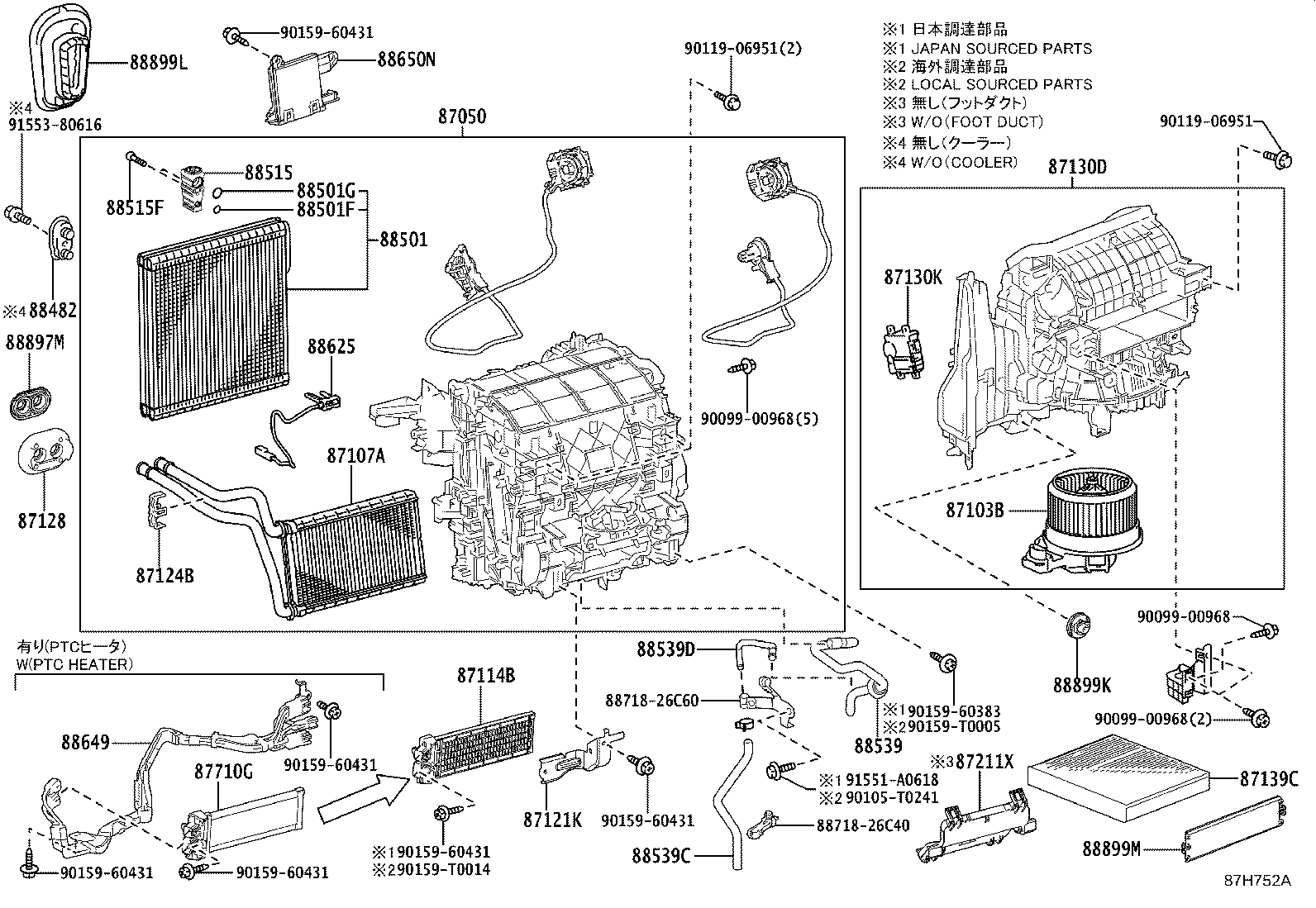

ILLUST NO. 1 OF 2(1902- )GDH300,301,32#,GRH300,301,32#..LHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-26450 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN |
1 | ||
| 87050-26460 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87050-26460 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH |
1 | ||
| 87050-26620 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87050-26620 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87050-26640 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-26201 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87103-26201 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87103-26191 |
GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) |
1 | ||
| 87103-26201 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87103-26201 |
GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-47080 |
GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH |
1 | ||
| 87107-47080 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87107-47080 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87107-47080 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-48110 |
GDH322..D,N;GRH300..GCC;GRH303..RHD..GEN;GDH321,GRH303..LHD..(J,N);GDH304,322..(H,P,Q)..(GCC,TH);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-26230 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 87121-26230 |
GDH300,301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
GRH300..4D..GEN;GDH300,301,32#,GRH301,320,322..(D,N)..(GEN,PH) FRONT HEATER-WITH |
1 | ||
| 87124-33070 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87124-33070 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87124-33070 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-26320 |
GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) |
1 | ||
| 87130-26330 |
GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,320,322..LHD..(D,N)..(GEN,PH) FRONT HEATER-WITH |
1 | ||
| 87130-26330 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87130-26330 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87130-26330 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-26110 |
GDH321..N..GEN;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GDH320..6FC..ARL;GDH322..(D,N)..GEN;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,328,GRH300,301,321,322..4D..(GCC,GEN,NZ,PH,TH) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) DEODORANT FILTER |
1 | ||
| 87139-28020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-48020 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-26040 |
GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88482-26040 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10170 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88501-28420 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN |
1 | ||
| 88501-10170 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88501-10170 |
GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26110 |
GDH321..D..IDN;GDH322..LHD..6F..P..GEN;GDH301,322,GRH300..4D..D..GEN;GDH300,320,GRH301,320,322..D..(GEN,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-26700 |
GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26830 |
GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD |
1 | ||
| 88539D - PIPE, COOLER UNIT DRAIN | ||||
| 88899-26200 |
GRH303..LHD..J;GDH320..LHD..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH322,GRH300..LHD..4D..(GCC,GEN);GDH301,303,304,306,321,328,GRH301,321,322..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH306,321..LHD..(G,J,N);GDH320,GRH300,320..6F..GCC;GDH322,GRH303..LHD..(J,P,Q);GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN);GDH301,303,304,328,GRH301,304,321,322..GCC,GEN,PH,TH |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88649-26050 |
GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-26700 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88650-26750 |
GDH321..D..IDN;GDH300..4D..6FC;GDH300..RHD..5D;GRH300..4D..GEN;GDH320..6FC..ARL;GDH300..4D..6F..GEN;GDH301,320,322,GRH301,320,322..D..GEN |
1 | ||
| 88650-26700 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN COLD AREA SPEC(-10C AREA)&FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88650-26710 |
GDH321..D..IDN;GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-28010 |
GDH322,GRH300..4D..(D,N)..GEN;GDH300,301,320,321,328,GRH301,320,322..GEN,PH,VN FRONT HEATER-WITH |
1 | ||
| 87128-28010 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH(PTC HEATER)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87128-28010 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN FRONT HEATER-WITH&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 87128-28010 |
GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..(D,N)..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-52160 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 88899-52160 |
GDH300..4D..GEN;GDH320..LHD..SP..GEN;GDH300,301,320,322..(SG,SHP)..D..GEN FRONT HEATER-WITH(PTC & VISCOUS & 2LAYER TYPE)&FRONT AIR CONDITIONER-MANUAL COOLER |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-26170 |
GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD..(GCC,GEN,PH) |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| Common parts | ||||
| 88718-26C40 | ||||
| 88718-26C60 | ||||
| 90099-00968 | ||||
| 90105-T0241 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 91551-A0618 | ||||
| 91553-80616 | ||||
