GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH32#,GRH32#

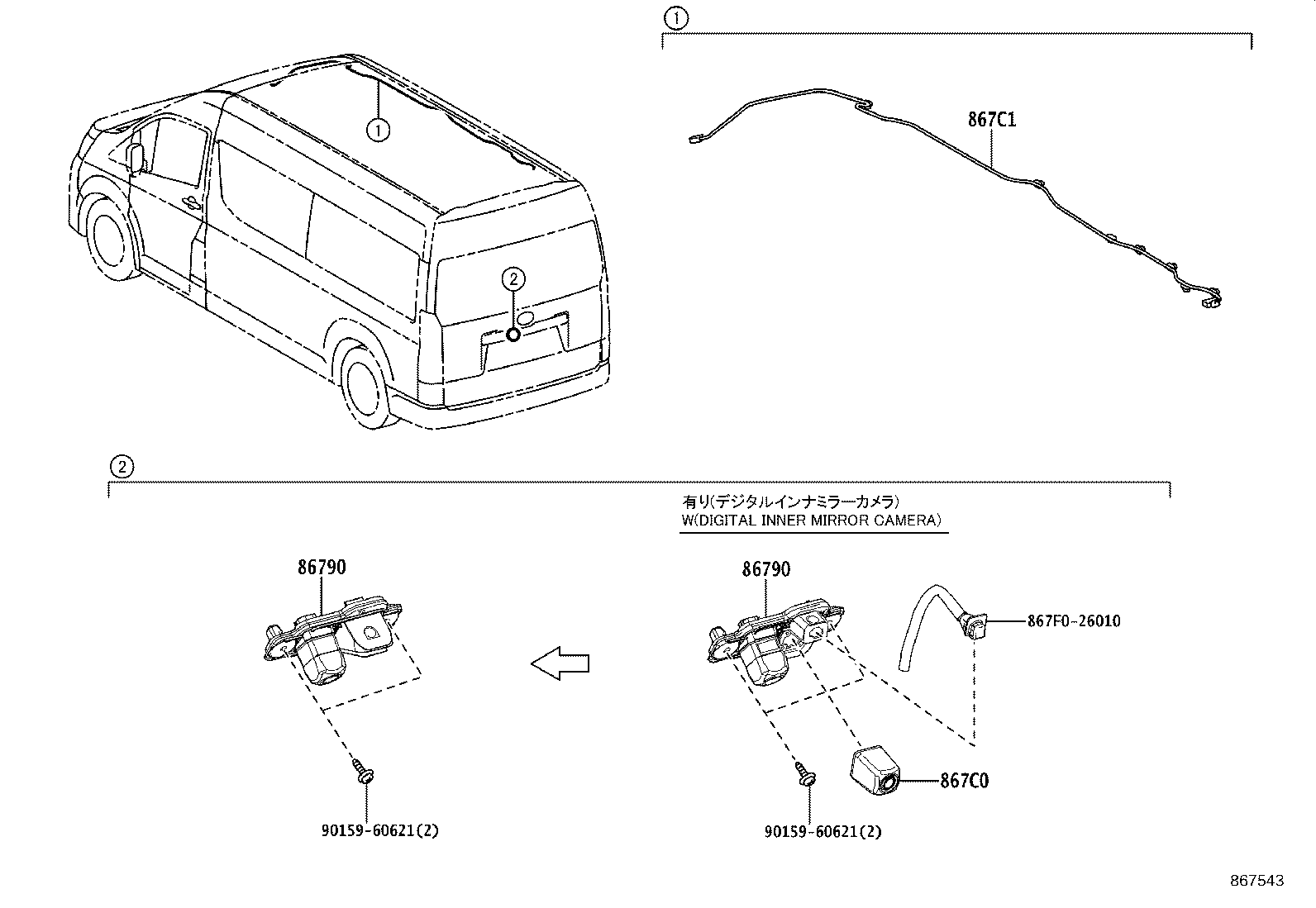

Click highlighted areas on diagram

diagram 86790 86790 867C0 867C1 867F026010 9015960621 9015960621
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-26100

GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR)

 1
86790 - CAMERA ASSY, TELEVISION
86790-26100

GDH322..D,N;GDH321..N..GEN;GDH322,GRH300..GCC;GDH322..6FC..(P,Q)..GEN;GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,320,328,GRH301,32#..GCC,GEN,PH,TH,VN

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BACK MONITOR-WITH & WITH(FIXED LINE)(INNER MIRROR)

 1
867C0 - CAMERA ASSY, INNER MIRROR
867C0-26020

GDH322..D,N;GDH322..GCC;GDH322..6FC..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32#..GCC,GEN,IDN,PH,TH,VN

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
867C1 - WIRE, MIRROR CAMERA
867C1-26090

GDH322..D;GDH322..6FC..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH32#..D,P

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

 1
Common parts
867F0-26010
90159-60621
