Toyota Hiace GRH320 SEAT BELT - JDM Part Detective

GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
61335-95A00
67795-95700
90105-11003
90204-11025
90950-01030
90950-01059
90950-01126
90950-06002

(1902- )LHD

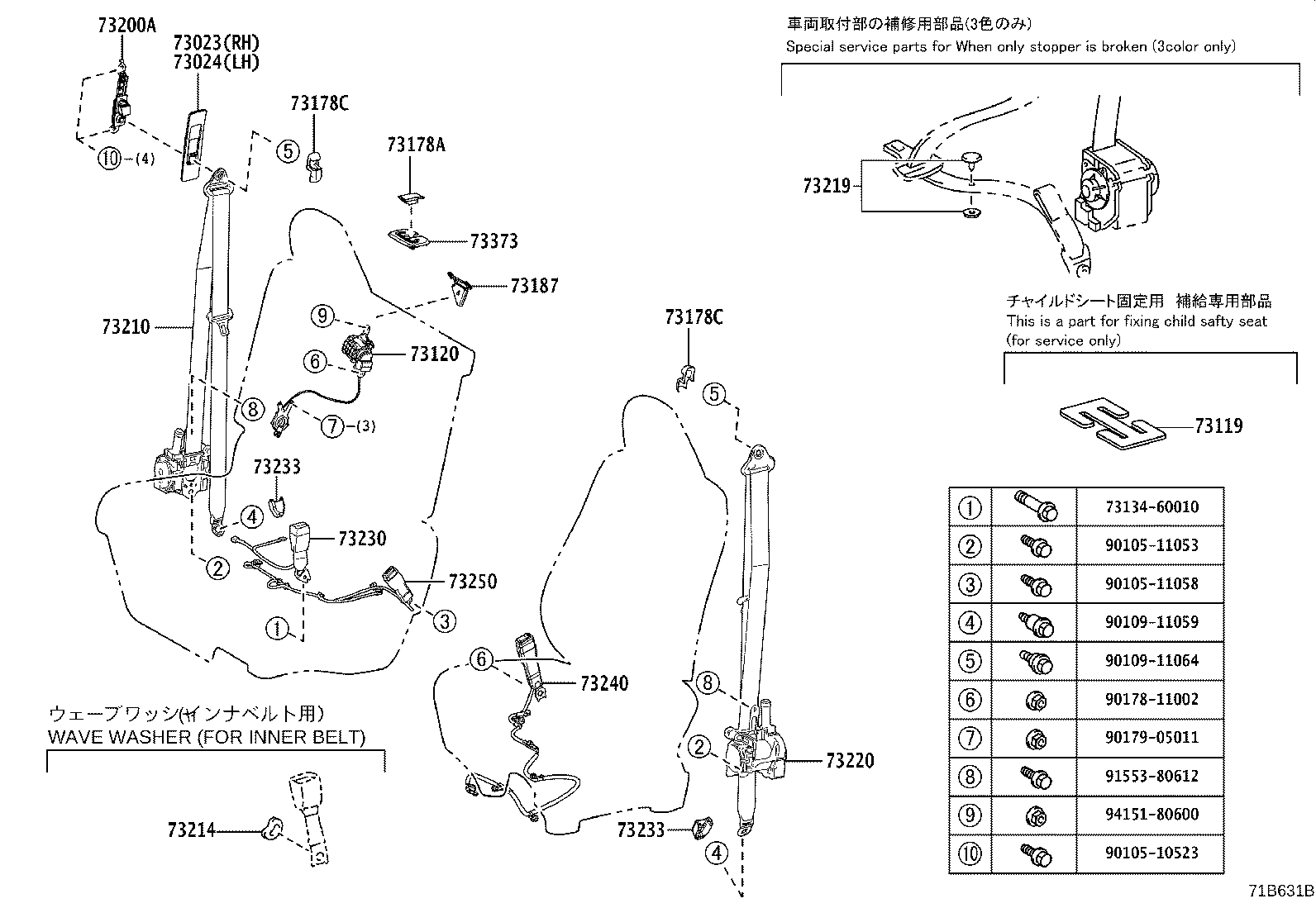

Click highlighted areas on diagram

BENCH SEAT(DRIVER & PASSENGER)

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
73120-26040C0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73120-26040C0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73120-26040C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73120-26040C0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73120-26040C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73120-26040C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73120-26040C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73178-48010C1	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73178-48010C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73178-48010C1	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73178-48010C1	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73178-48010C1	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73178-48010C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73178-26010B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73178-26010B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-60030	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)	02/2019 - 06/2020	1
73187-60030	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)	02/2019 - 07/2021	1
73187-60030	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)	02/2019 - 12/2999	1
73187-60030	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)	02/2019 - 12/2999	1
73187-60030	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)	03/2019 - 12/2999	1
73187-60030	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)	02/2019 - 12/2999	1
73187-60030	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)	06/2020 - 12/2999	1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73200-26030A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26790B0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 11/2019	1
73210-26780B0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 06/2020	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..6F..GEN;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26790B0	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	03/2019 - 12/2999	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	06/2020 - 12/2999	1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010	GDH300..GEN,TH;GDH303..RHD..H;GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,304,320,322,GRH301,304,320,322..(D,H)..GEN	02/2019 - 12/2999	1
73219 - STOPPER, TONGUE PLATE
73219-33010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK	02/2019 - 12/2999	1
73219-33030	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE	02/2019 - 12/2999	1
73219-33020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY	02/2019 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26590B0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 11/2019	1
73220-26540B0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 06/2020	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH320..SG..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26590B0	GRH300,301,320,322..LHD..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..SG..6FC..GEN;GRH300,320..LHD..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GRH320..LHD..SG MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	03/2019 - 07/2021	1
73220-26540B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73220-26590B0	GDH300,301,320,322..D..GEN;GRH300,301,320,322..RHD..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73220-26540B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	06/2020 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26540C0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26401C1	GDH300,320,GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73230-26410C0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73230-26351C0	GRH320..LHD..GEN;GDH320..LHD..6F..GEN;GDH300,GRH300..LHD..4D;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26401C1	GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26520C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73230-26520C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	2
73233-60020C1	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1#	02/2019 - 12/2999	2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	2
73233-60020C1	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1#	02/2019 - 12/2999	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26450C0	GDH300,320,GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73230-26360C1	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26360C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26360C1	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26450C0	GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26360C1	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73250 - BELT ASSY, FRONT SEAT, CENTER
73230-26340C1	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73230-26420C0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26340C1	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26420C0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26420C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26420C0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73230-26340C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48080C1	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73373-48080C1	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73373-48080C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73373-48080C1	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73373-48080C1	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73373-48080C1	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73373-48080C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
Common parts
73134-60010
90105-10523
90105-11053
90105-11058
90109-11059
90109-11064
90178-11002
90179-05011
91553-80612
94151-80600

(1902- )GDH300,301,320,322,GRH300,301,320,322..LHD..D

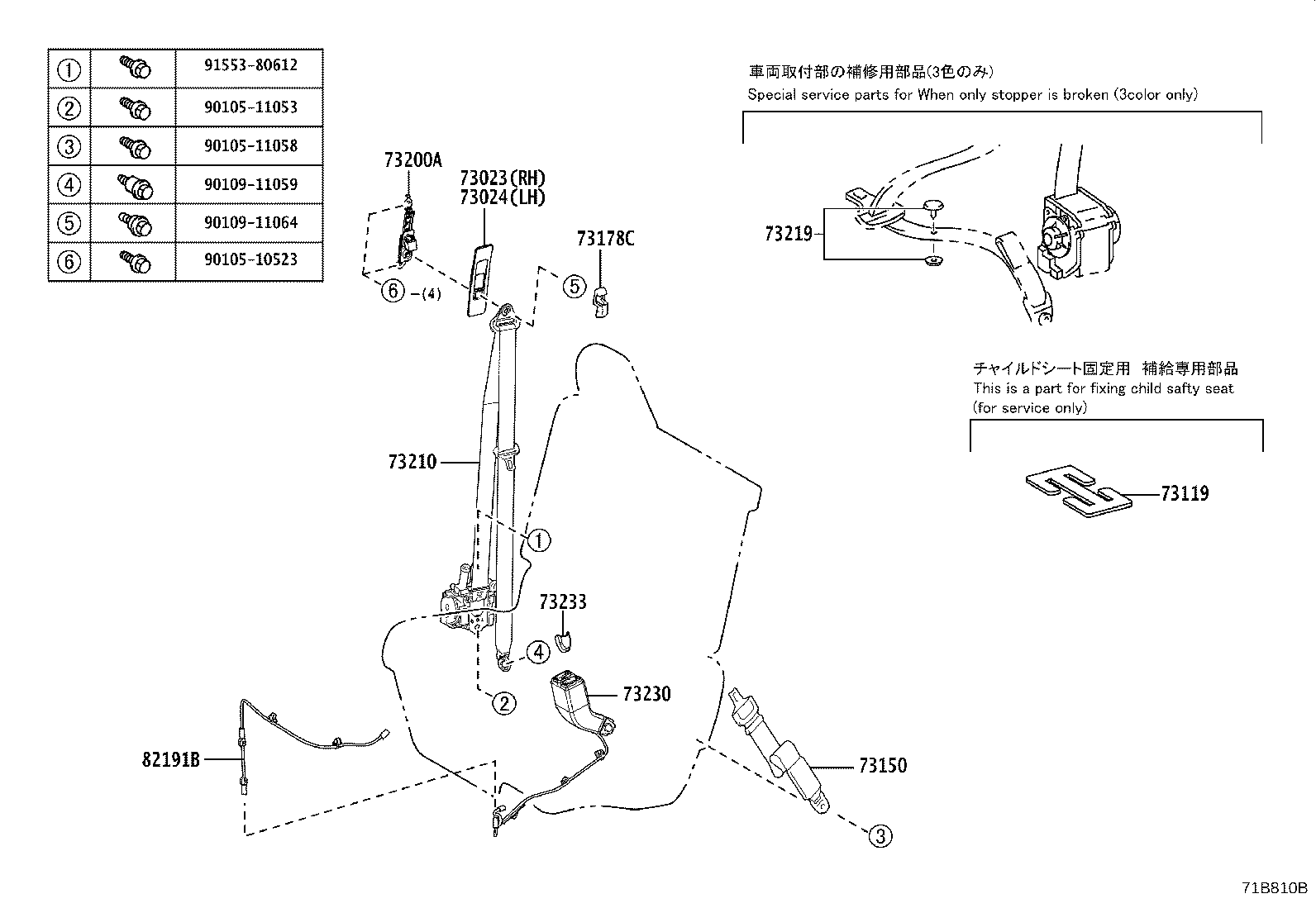

Click highlighted areas on diagram

BENCH SEAT(PASSENGER, FIX TYPE)

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-26040C0	GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH300,301,320,322,GRH301,320,322..D..GEN BLACK,TRIM1#	02/2019 - 12/2999	1
73150-26040C0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73178-26010B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73200-26030A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26790B0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 11/2019	1
73210-26780B0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 06/2020	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..6F..GEN;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26790B0	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	03/2019 - 12/2999	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	06/2020 - 12/2999	1
73219 - STOPPER, TONGUE PLATE
73219-33010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK	02/2019 - 12/2999	1
73219-33030	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE	02/2019 - 12/2999	1
73219-33020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY	02/2019 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26540C0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26401C1	GDH300,320,GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73230-26410C0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73230-26351C0	GRH320..LHD..GEN;GDH320..LHD..6F..GEN;GDH300,GRH300..LHD..4D;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26401C1	GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26520C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73230-26520C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	2
73233-60020C1	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1#	02/2019 - 12/2999	2
82191B - WIRE, FRONT SEAT BELT
82191-26170	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..6F..GEN;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)	02/2019 - 12/2999	1
Common parts
90105-10523
90105-11053
90105-11058
90109-11059
90109-11064
91553-80612

(1902- )GDH300,301,32#,GRH300,301,32#..LHD

Click highlighted areas on diagram

SEPARATE SEAT(DRIVER & PASSENGER)

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	1
73023-12020A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73178-26010B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) LT.GRAY,TRIM11	02/2019 - 12/2999	2
73200-26030A0	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH) FROMAGE,TRIM11	02/2019 - 12/2999	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26790B0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 11/2019	1
73210-26780B0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 06/2020	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH300,GRH320..GEN;GDH320..LHD..6F..GEN;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH300..4D..GEN;GDH320..RHD..GEN;GDH320..LHD..SP..GEN;GDH300,GRH320..(SG,SP)..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26790B0	GRH300..4D..GEN;GDH300,301,320,322,GRH301,320,322..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73210-26780B0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	03/2019 - 12/2999	1
73210-26780B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	06/2020 - 12/2999	1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010	GDH300..GEN,TH;GDH303..RHD..H;GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,304,320,322,GRH301,304,320,322..(D,H)..GEN	02/2019 - 12/2999	1
73219 - STOPPER, TONGUE PLATE
73219-33010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BLACK	02/2019 - 12/2999	1
73219-33030	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) BEIGE	02/2019 - 12/2999	1
73219-33020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) GRAY	02/2019 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26590B0	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 11/2019	1
73220-26540B0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 06/2020	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH320..SG..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26590B0	GRH300,301,320,322..LHD..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..SG..6FC..GEN;GRH300,320..LHD..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK/LT.GRAY,TRIM1#	02/2019 - 07/2021	1
73220-26540B0	GRH320..LHD..SG MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	03/2019 - 07/2021	1
73220-26540B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73220-26590B0	GDH300,301,320,322..D..GEN;GRH300,301,320,322..RHD..D..GEN BLACK/LT.GRAY,TRIM1#	02/2019 - 12/2999	1
73220-26540B0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#	06/2020 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26540C0	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26401C1	GDH300,320,GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73230-26410C0	GDH320..LHD..SG;GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#	02/2019 - 07/2021	1
73230-26351C0	GRH320..LHD..GEN;GDH320..LHD..6F..GEN;GDH300,GRH300..LHD..4D;GDH320..LHD..SP..6FC..GEN FRONT SEAT BELT-CENTER SEAT BELT:2 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26401C1	GRH300..4D..6F..GEN;GDH300,301,320,322,GRH301,320,322..LHD..D..GEN BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26520C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26540C0	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
73230-26520C0	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	06/2020 - 12/2999	1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1	GDH300,320,GRH300,320..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	2
73233-60020C1	GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1#	02/2019 - 12/2999	2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26450C0	GDH300,320,GRH300,320..LHD..GEN LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),BLACK,TRIM1#	02/2019 - 11/2019	1
73230-26360C1	GDH300,320..LHD..6F..GEN COSTA RICA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 06/2020	1
73230-26360C1	GDH300,320..LHD..6F..GEN PANAMA,HONDURAS,NICARAGUA SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26360C1	GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26450C0	GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1#	02/2019 - 12/2999	1
73230-26360C1	GRH320..LHD..SG;GDH320..LHD..SP..6F..GEN MEXICO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE),BLACK,TRIM1#	03/2019 - 12/2999	1
Common parts
90105-10523
90105-11053
90105-T0056
90105-T0064
90105-T0378
90109-11059
90109-11064
90109-T0041
90109-T0056
90178-11002
90178-T0017
91553-80612

GRH320L-EDFDH (2019)

(7702- )

(1902- )LHD

(1902- )GDH300,301,320,322,GRH300,301,320,322..LHD..D

(1902- )GDH300,301,32#,GRH300,301,32#..LHD

Part Price Details
