GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )GDH32#,GRH32#..LHD..GCC,GEN,PH

Click highlighted areas on diagram

FRONT

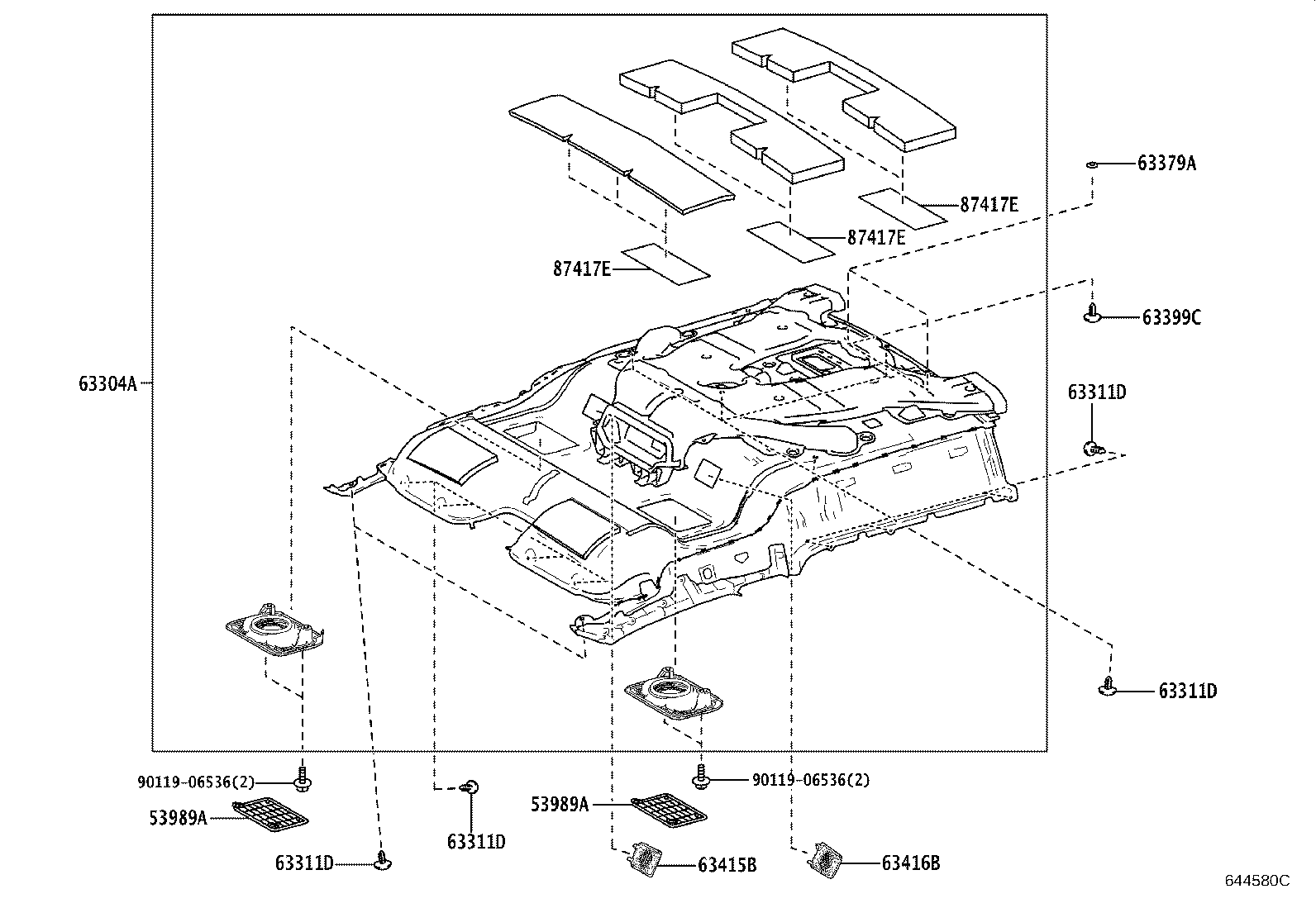

diagram 53989A 53989A 63304A 63311D 63311D 63311D 63311D 63379A 63399C 63415B 63416B 87417E 87417E 87417E 9011906536 9011906536
Part # Description Qty Price
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN)

LT.GRAY,TRIM1#

 14
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN)

LT.GRAY,TRIM1#

 14
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN)

LT.GRAY,TRIM1#

 14
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

GDH321..D..IDN;GDH320..6FC..ARL;GDH322..LHD..6F..P..GEN;GDH320,322,GRH320,322..D..(GCC,GEN)

LT.GRAY,TRIM1#

 14
63379A - WASHER, ROOF HEADLINING SETTING
63379-26010

GDH322..D,N;GDH301..NZ,TH;GRH303..LHD..J;GDH301,GRH301..N;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
63399C - CLIP, ROOF HEADLINING
90467-05021P4

GDH322..D;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,321,328,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ,VN)

LT.GRAY,TRIM1#

 2
Common parts
90119-06536
