GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH30,RH3#,42

Click highlighted areas on diagram

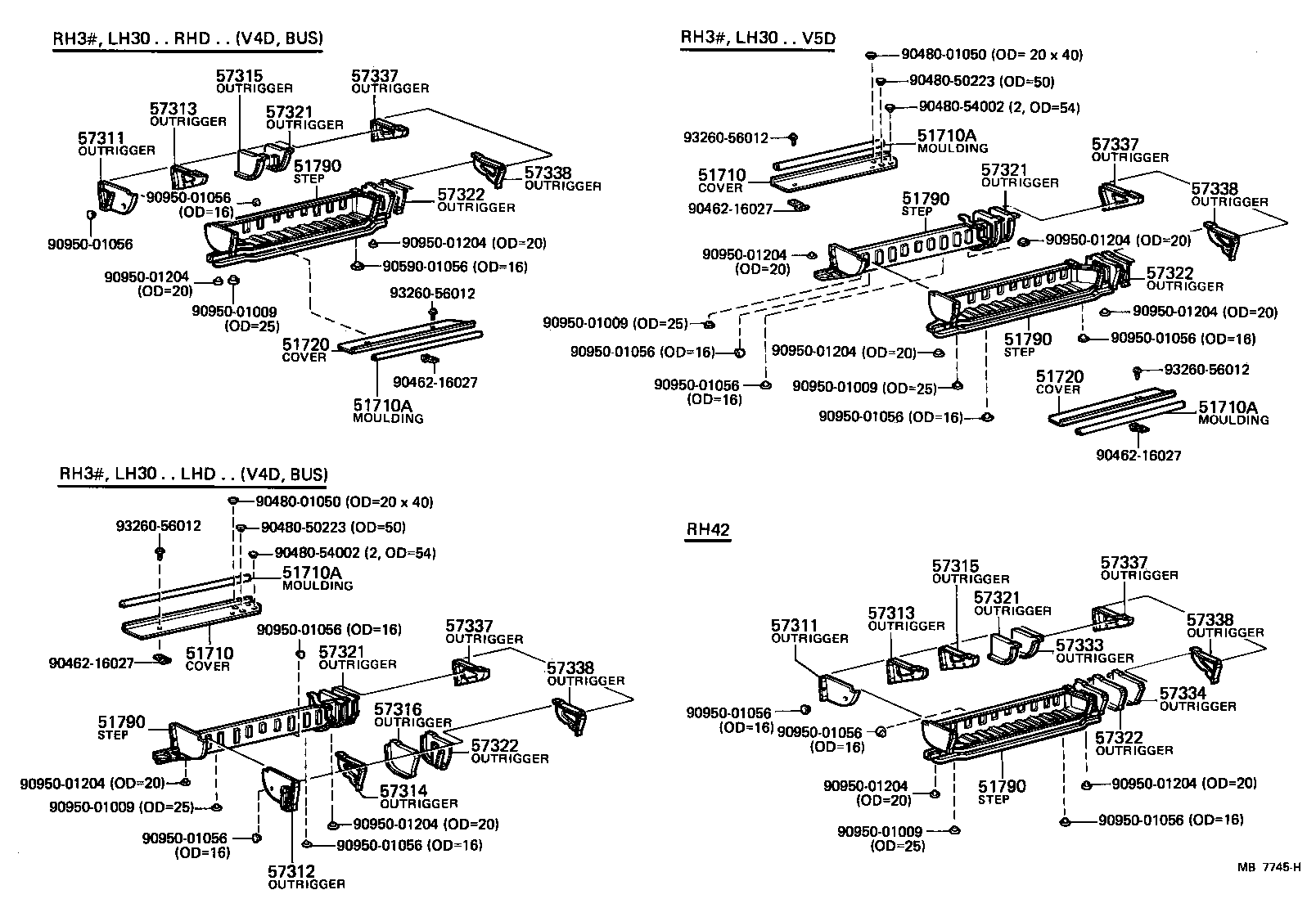

diagram 51710 51710 51710A 51710A 51710A 51710A 51720 51720 51790 51790 51790 51790 51790 57311 57311 57312 57313 57313 57314 57315 57315 57316 57321 57321 57321 57321 57322 57322 57322 57322 57333 57334 57337 57337 57337 57337 57338 57338 57338 57338 9046216027 9046216027 9046216027 9046216027 9048001050 9048001050 9048050223 9048050223 9048054002 9048054002 9059001056 9095001009 9095001009 9095001009 9095001009 9095001009 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9095001204 9326056012 9326056012 9326056012 9326056012
Part # Description Qty Price
Common parts
90462-16027
90480-01050
90480-50223
90480-54002
90590-01056
90950-01009
90950-01056
90950-01204
93260-56012

ILLUST NO. 1 OF 2(1903- )GDH320,GRH320..LHD..SG

Click highlighted areas on diagram

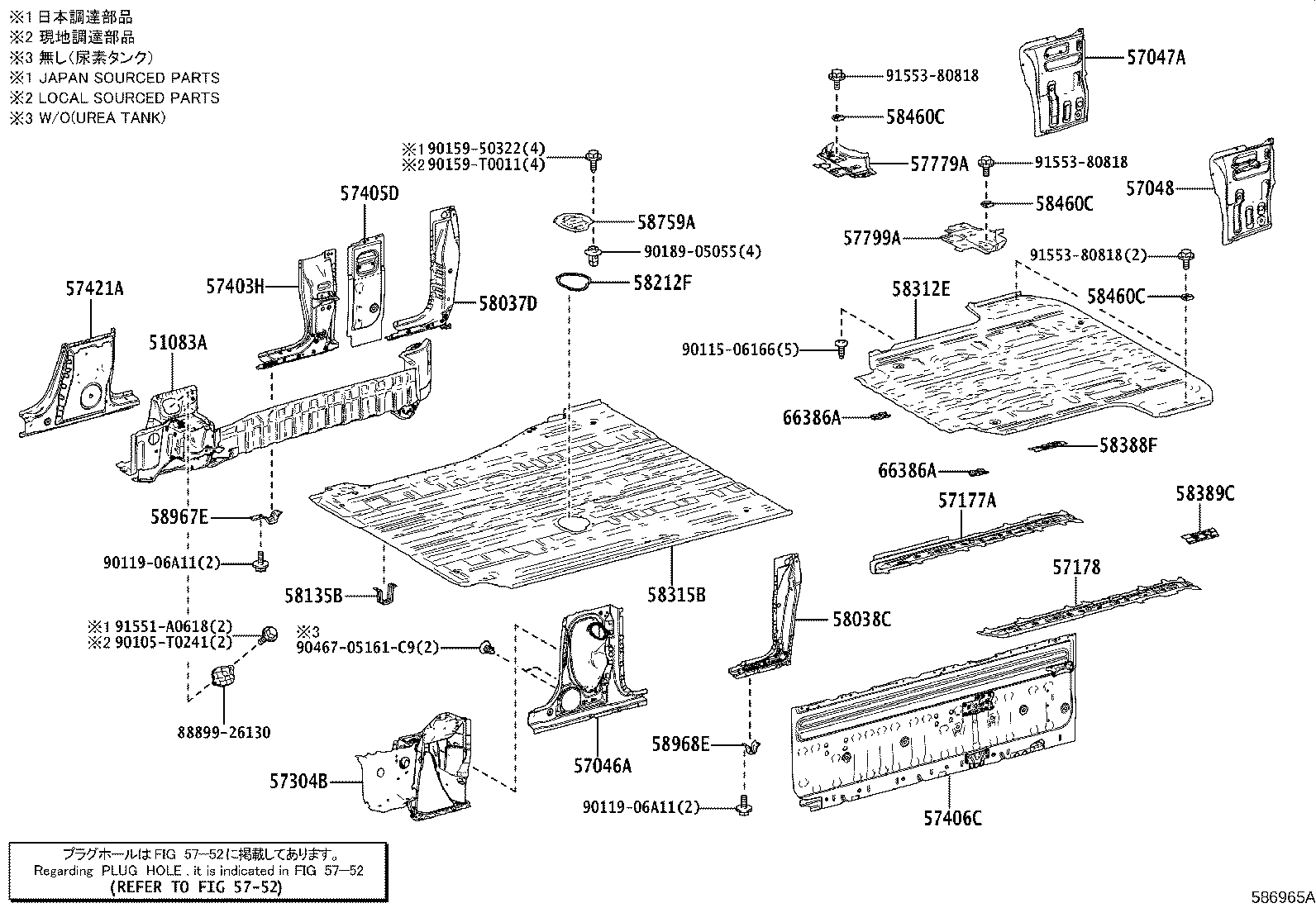

FLOOR PANEL

diagram 51083A 57046A 57047A 57048 57177A 57178 57304B 57403H 57405D 57406C 57421A 5752 57779A 57799A 58037D 58038C 58135B 58212F 58312E 58315B 58388F 58389C 58460C 58460C 58460C 58759A 58967E 58968E 66386A 66386A 8889926130 90105T0241 9011506166 9011906A11 9011906A11 9015950322 90159T0011 9018905055 9046705161C9 91551A0618 9155380818 9155380818 9155380818
Part # Description Qty Price
51083A - STEP SUB-ASSY, RH
51083-26540

GDH320..6F..GCC;GRH320..LHD..6F;GDH320..LHD..GEN;GRH320..SP..6FC..GEN

 1
57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57046-26440

GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH300,301,320,GRH300,301,320,322..LHD..4D..D

 1
57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH
57047-26410

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH)

 1
57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH
57048-26420

GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH)

 1
57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH
57177-26030

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH
57178-26010

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57304B - OUTRIGGER SUB-ASSY, NO.2 LH
57304-26260

GDH322..LHD..6F;GDH322..6FC..GCC;GDH322..LHD..6FC..(D,N);GDH300,301,320,321,328,GRH300,301,32#..LHD..4D

 1
57403H - RAIL SUB-ASSY, FLOOR SIDE, RH
57403-26100

GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN)

 1
57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH
57405-26F80

GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH32#,GRH320,322..LHD..SG..(D,P)

 1
57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH
57406-26830

GDH320,GRH320..LHD..SG

 1
57421A - PLATE, FLOOR SIDE RAIL, RH
57421-26260

GRH303..LHD..J;GDH320..SP..GEN;GDH300..LHD..6F;GRH303..RHD..GEN;GDH300,303..RHD..5D;GDH320..SP..6FC..ARL;GDH320,GRH300..6F..GCC;GRH320..SP..6F..(GCC,GEN);GDH322,GRH300..LHD..4D..6F..(D,P)..GEN;GDH301,303,320,GRH301,320,322..LHD..SG..(D,G,J);GDH300,304,306,322,GRH320..LHD..6FC..(D,G,H,J)..GEN

 1
57779A - GUSSET, REAR FLOOR CROSSMEMBER, B
57779-26110

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57799A - GUSSET, REAR FLOOR CROSSMEMBER, A
57799-26080

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH
58037-26050

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH
58038-26040

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
58135B - BRACKET, FLOOR INSULATOR SUPPORT
58135-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 1
58212F - SEAL, CENTER FLOOR
58212-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58312E - PANEL, REAR FLOOR, REAR
58312-26590

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
58315B - PANEL, REAR FLOOR, FRONT
58315-26J40

GDH320,GRH320..LHD..SG

 1
58388F - PLATE, FLOOR, REAR RH
58388-26040

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
58389C - PLATE, FLOOR, REAR LH
58389-26010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH320,GRH320..GCC,GEN;GDH300,GRH300..4D..(GEN,TH)

 6
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH320,GRH320..GCC,GEN;GDH300,GRH300..4D..(GEN,TH)

 6
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH320,GRH320..GCC,GEN;GDH300,GRH300..4D..(GEN,TH)

 6
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58967E - BRACKET, JACK SUPPORT, NO.1
58967-26110

GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN)

 1
58968E - BRACKET, JACK SUPPORT, NO.2
58967-26090

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG

 1
66386A - PLATE, ROPE HOOK BAR
66386-26010

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 2
66386A - PLATE, ROPE HOOK BAR
66386-26010

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 2
Common parts
88899-26130
90105-T0241
90115-06166
90119-06A11
90159-50322
90159-T0011
90189-05055
90467-05161C9
91551-A0618
91553-80818
Linked diagrams
5752

ILLUST NO. 2 OF 2(1903- )GDH320,GRH320..LHD..SG

Click highlighted areas on diagram

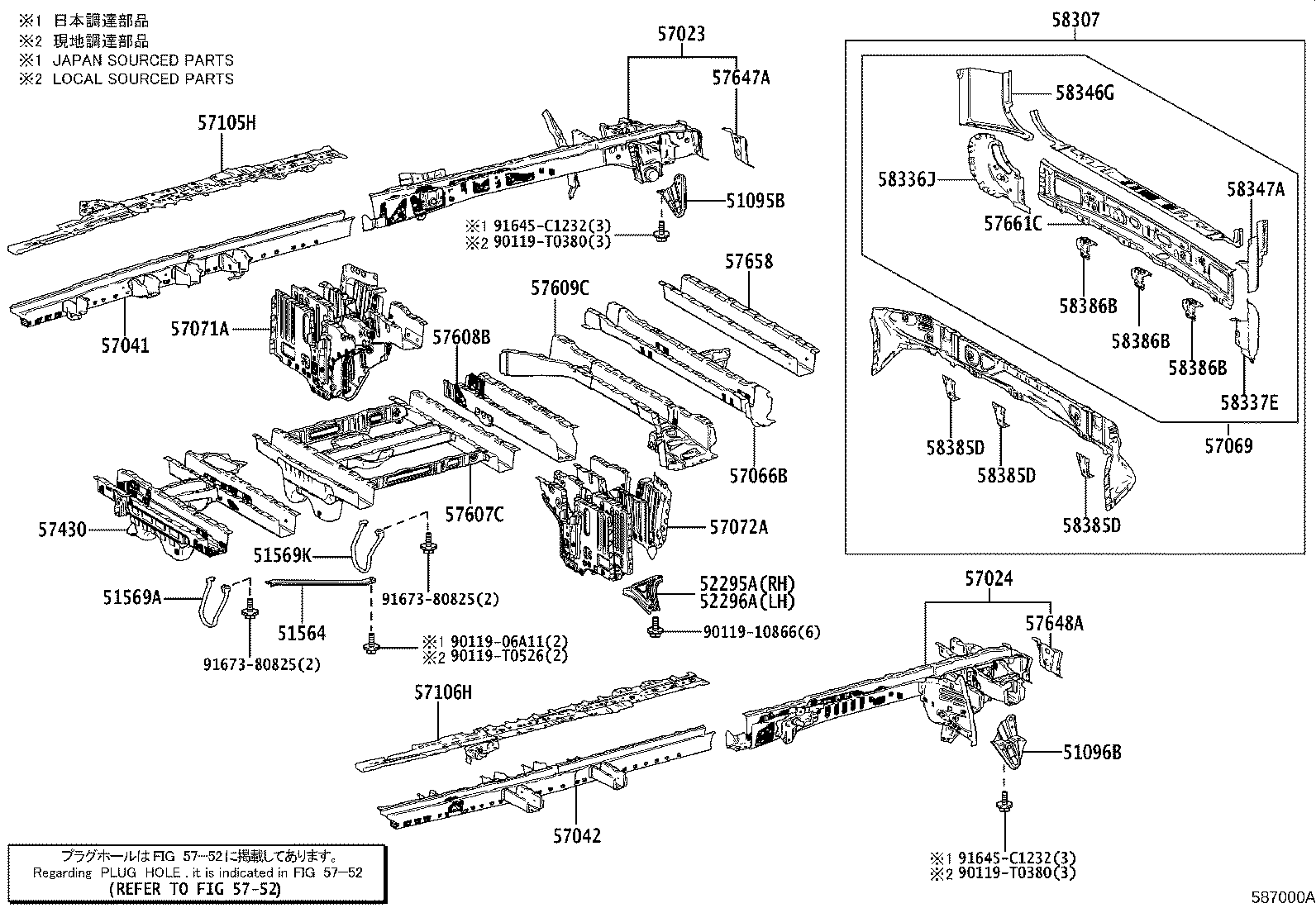

FLOOR MEMBER

diagram 51095B 51096B 51564 51569A 51569K 52295A 52296A 57023 57024 57041 57042 57066B 57069 57071A 57072A 57105H 57106H 57430 5752 57607C 57608B 57609C 57647A 57648A 57658 57661C 58307 58336J 58337E 58346G 58347A 58385D 58385D 58385D 58386B 58386B 58386B 9011906A11 9011910866 90119T0380 90119T0380 90119T0526 91645C1232 91645C1232 9167380825 9167380825
Part # Description Qty Price
51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH
51095-26040

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-26020

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
51564 - BRACKET, CENTER BEARING, REAR
51564-26010

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
51569A - GUARD, PROPELLER SHAFT
51569-26100

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
51569K - GUARD, PROPELLER SHAFT
51569-26110

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
52295A - BRACE, REAR SUSPENSION MEMBER, RH
52295-26030

GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32#

 1
52295-V3010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
52296A - BRACE, REAR SUSPENSION MEMBER, LH
52296-26020

GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32#

 1
52296-V3010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-26710

GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-26720

GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH

 1
57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57041-26240

GRH320..SP..(GCC,GEN);GRH32#..LHD..SG..(D,Q)..GEN

 1
57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57042-26280

GDH320,GRH320..LHD..SG

 1
57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
57066-26390

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-26220

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

 1
57069-26230

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH

 1
57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH
57071-26430

GDH301..RHD..D..GEN;GDH320,GRH320..GCC,GEN;GDH300,GRH300,301..RHD..4D..D..(GEN,TH)

 1
57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH
57072-26490

GDH321..D..IDN;GDH320,GRH320..GCC,GEN

 1
57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-26310

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-26230

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
57430 - MEMBER ASSY, CENTER FLOOR CROSS
57430-26120

GDH301,GRH301..N;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,322,328,GRH300..(SG,SP)..D..(GCC,TH,VN)

 1
57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-26B00

GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH320..6F..GCC

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-26350

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH320,322,GRH320,322..D..(GCC,GEN)

 1
57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-26490

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH
57647-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH
57648-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57658 - MEMBER, REAR FLOOR CROSS, NO.7
57658-26070

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER
57661-26180

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-26020

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

 1
58307-26030

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH

 1
58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH
58336-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH
58337-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58346G - REINFORCE, REAR FLOOR REAR CORNER, RH
58346-26030

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

 1
58347A - REINFORCE, REAR FLOOR REAR CORNER, LH
58347-26040

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

 1
58385D - BRACKET, REAR BUMPER COVER
58385-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
58385D - BRACKET, REAR BUMPER COVER
58385-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
58385D - BRACKET, REAR BUMPER COVER
58385-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 3
Common parts
90119-06A11
90119-10866
90119-T0380
90119-T0526
91645-C1232
91673-80825
Linked diagrams
5752

ILLUST NO. 1 OF 2(1907- )LHD..H

Click highlighted areas on diagram

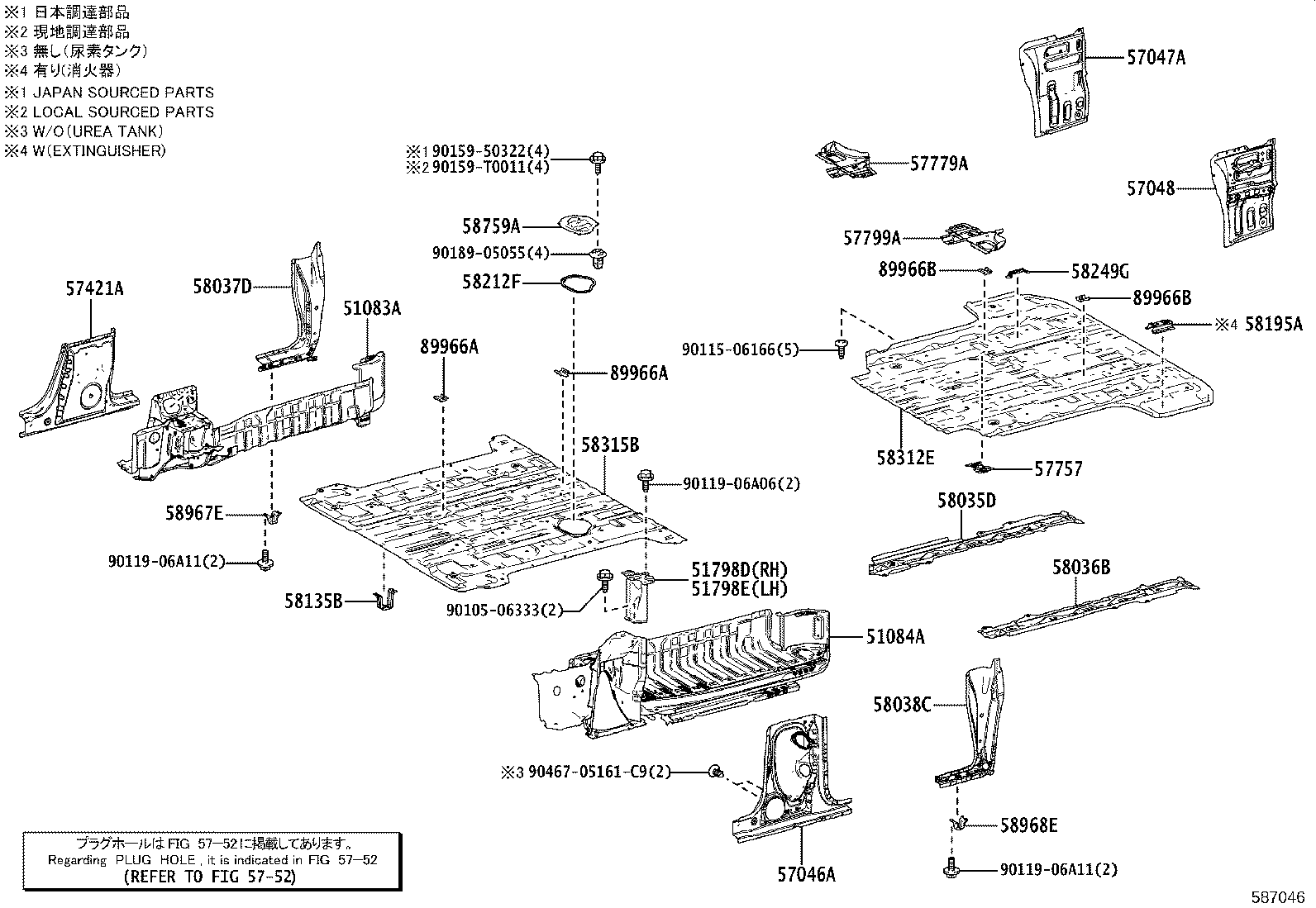

FLOOR PANEL

diagram 51083A 51084A 51798D 51798E 57046A 57047A 57048 57421A 5752 57757 57779A 57799A 58035D 58036B 58037D 58038C 58135B 58195A 58212F 58249G 58312E 58315B 58759A 58967E 58968E 89966A 89966A 89966B 89966B 9010506333 9011506166 9011906A06 9011906A11 9011906A11 9015950322 90159T0011 9018905055 9046705161C9
Part # Description Qty Price
51083A - STEP SUB-ASSY, RH
51083-26540

GDH320..6F..GCC;GRH320..LHD..6F;GDH320..LHD..GEN;GRH320..SP..6FC..GEN

 1
57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57046-26440

GDH322..LHD..6FC..D;GDH322..LHD..6F..(D,P)..GEN;GDH300,301,320,GRH300,301,320,322..LHD..4D..D

 1
57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH
57047-26410

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH)

 1
57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH
57048-26420

GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH)

 1
57421A - PLATE, FLOOR SIDE RAIL, RH
57421-26260

GRH303..LHD..J;GDH320..SP..GEN;GDH300..LHD..6F;GRH303..RHD..GEN;GDH300,303..RHD..5D;GDH320..SP..6FC..ARL;GDH320,GRH300..6F..GCC;GRH320..SP..6F..(GCC,GEN);GDH322,GRH300..LHD..4D..6F..(D,P)..GEN;GDH301,303,320,GRH301,320,322..LHD..SG..(D,G,J);GDH300,304,306,322,GRH320..LHD..6FC..(D,G,H,J)..GEN

 1
57779A - GUSSET, REAR FLOOR CROSSMEMBER, B
57779-26110

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
57799A - GUSSET, REAR FLOOR CROSSMEMBER, A
57799-26080

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH
58037-26050

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH
58038-26040

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN

 1
58135B - BRACKET, FLOOR INSULATOR SUPPORT
58135-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 1
58212F - SEAL, CENTER FLOOR
58212-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58312E - PANEL, REAR FLOOR, REAR
58312-26590

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH)

 1
58315B - PANEL, REAR FLOOR, FRONT
58315-26J40

GDH320,GRH320..LHD..SG

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58967E - BRACKET, JACK SUPPORT, NO.1
58967-26110

GDH320..SP..6FC..ARL;GDH32#,GRH32#..LHD..SG;GDH320,GRH320..SP..(GCC,GEN)

 1
58968E - BRACKET, JACK SUPPORT, NO.2
58967-26090

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG

 1
Common parts
90105-06333
90115-06166
90119-06A06
90119-06A11
90159-50322
90159-T0011
90189-05055
90467-05161C9
Linked diagrams
5752
