Toyota Hiace GRH320 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
HIACE
GRH320L-EDFDH (2019)
4708 - BRAKE TUBE & CLAMP

GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 7GRFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7702- )ARL,EUR,GEN,PHL,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91111-50820
91131-50840
91611-60816
91651-60816
93385-15010
94110-40800
94110-41000
94115-40500
94141-40800
94512-00800
94512-01000
95381-02020

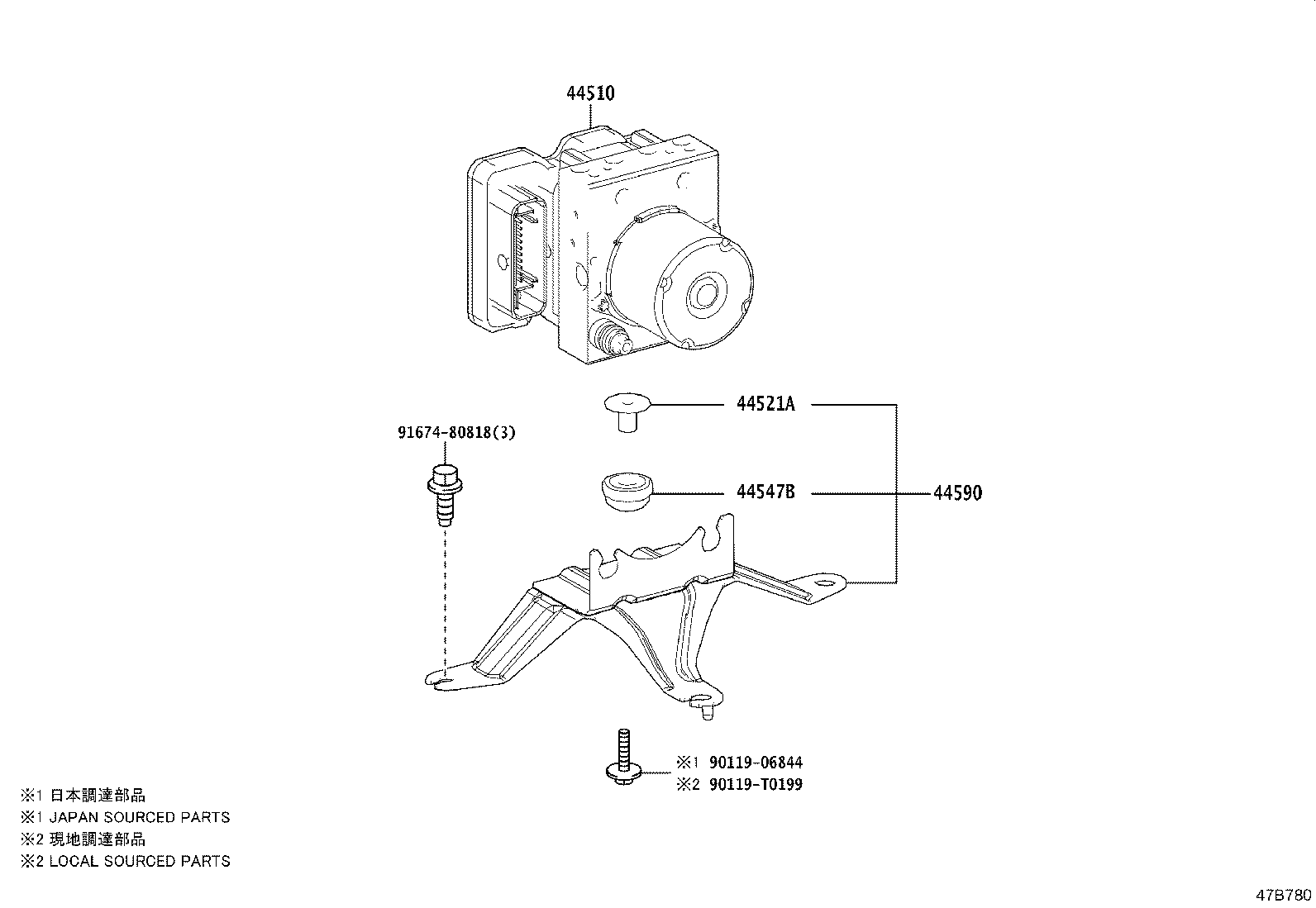

ILLUST NO. 2 OF 2(1902- )

Click highlighted areas on diagram

BRAKE ACTUATOR

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26330	GDH320,GRH320..GEN	03/2019 - 12/2999	1
44050-26330	GDH320,GRH320..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH	03/2019 - 12/2999	1
44050-26330	GDH320,GRH320..GEN VEHICLE STABILITY CONTROL-WITH	03/2019 - 12/2999	1
44050-26340	GDH320,GRH320..GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
44050-26700	GDH320,GRH320..6F..GEN VEHICLE STABILITY CONTROL-WITH	03/2019 - 12/2999	1
44050-26720	GRH320..GEN;GDH320..6F..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH	03/2019 - 12/2999	1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12060	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-10080	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-26060	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
Common parts
90119-06844
90119-T0199
91674-80818

ILLUST NO. 1 OF 2(1903- )GDH320,328,GRH320..LHD..GCC,GEN,PH

Click highlighted areas on diagram

BRAKE TUBE(REAR DRUM BRAKE)

Part #	Description	Period	Qty
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-26B10	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
47311-26B20	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26430	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
47312-26420	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10285	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26420	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H88	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H89	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-26370	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-26840	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26450	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10285	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47323B - TUBE, REAR BRAKE, NO.3
47323-26450	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26600	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26450	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26570	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26420	GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH	02/2019 - 12/2999	1
47327-26410	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26220	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47328-26230	GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH	02/2019 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26240	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00857	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	2
90464-00914	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	2
47371B - CLAMP, BRAKE TUBE, NO.6
90464-00903	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
90464-00903	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	4
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07019	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	6
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E02	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	3
47371M - CLAMP, BRAKE TUBE, NO.13
90461-08639	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	6
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00920	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
90464-00903	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	3
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D08	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D20	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	4
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E47	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
90949-01E48	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
Common parts
90119-T0237
90119-T0342
90468-08040
91671-80816
91671-80820
91673-80616
Linked diagrams
4702
7751

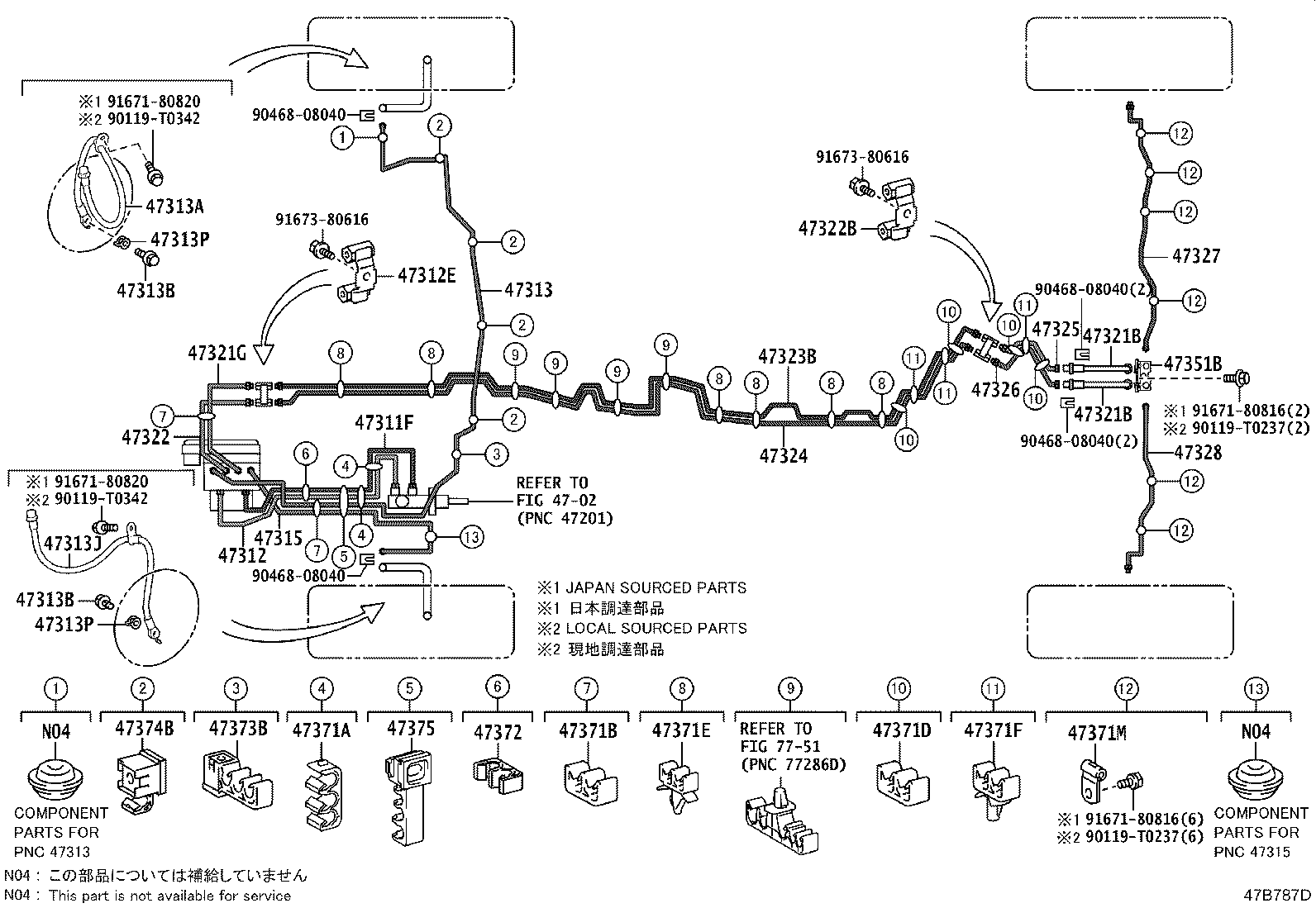

ILLUST NO. 1 OF 2(1903- )GDH32#,GRH32#..LHD

Click highlighted areas on diagram

BRAKE TUBE(REAR DISC BRAKE)

Part #	Description	Period	Qty
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-26B10	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
47311-26B20	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26430	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
47312-26420	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10285	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26420	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H88	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H89	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47315 - TUBE, FRONT BRAKE, NO.5
47315-26370	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H23	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H23	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H90	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	2
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-26840	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26450	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10285	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47323B - TUBE, REAR BRAKE, NO.3
47323-26450	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26600	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26450	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26570	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26420	GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH	02/2019 - 12/2999	1
47327-26410	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26220	GDH320,GRH320..GCC,GEN REAR WHEEL BRAKE-DISC	03/2019 - 12/2999	1
47328-26230	GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH	02/2019 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26240	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00857	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	2
90464-00914	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	2
47371B - CLAMP, BRAKE TUBE, NO.6
90464-00903	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
90464-00903	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	4
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07019	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	6
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E02	GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,328,GRH32#..GCC,GEN,PH,VN	03/2019 - 12/2999	3
47371M - CLAMP, BRAKE TUBE, NO.13
90461-08639	GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	6
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00920	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
90464-00903	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	3
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D08	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D20	GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD	02/2019 - 12/2999	4
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E47	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN) VEHICLE STABILITY CONTROL-WITH	02/2019 - 12/2999	1
90949-01E48	GRH300..4D..6F..GEN;GDH300,301,320,322,328,GRH301,320,322..LHD..(D,N,Q)..(GEN,PH,VN)	02/2019 - 12/2999	1
Common parts
90119-T0237
90119-T0342
90468-08040
91671-80816
91671-80820
91673-80616
Linked diagrams
4702
7751

GRH320L-EDFDH (2019)

(7702- )ARL,EUR,GEN,PHL,SA

ILLUST NO. 2 OF 2(1902- )

ILLUST NO. 1 OF 2(1903- )GDH320,328,GRH320..LHD..GCC,GEN,PH

ILLUST NO. 1 OF 2(1903- )GDH32#,GRH32#..LHD
