GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47128 47131 47133 47264A 9165540825 9165540825 9165540825 9165540825 9411041000 9451201000 9538103020
Part # Description Qty Price
Common parts
91655-40825
94110-41000
94512-01000
95381-03020

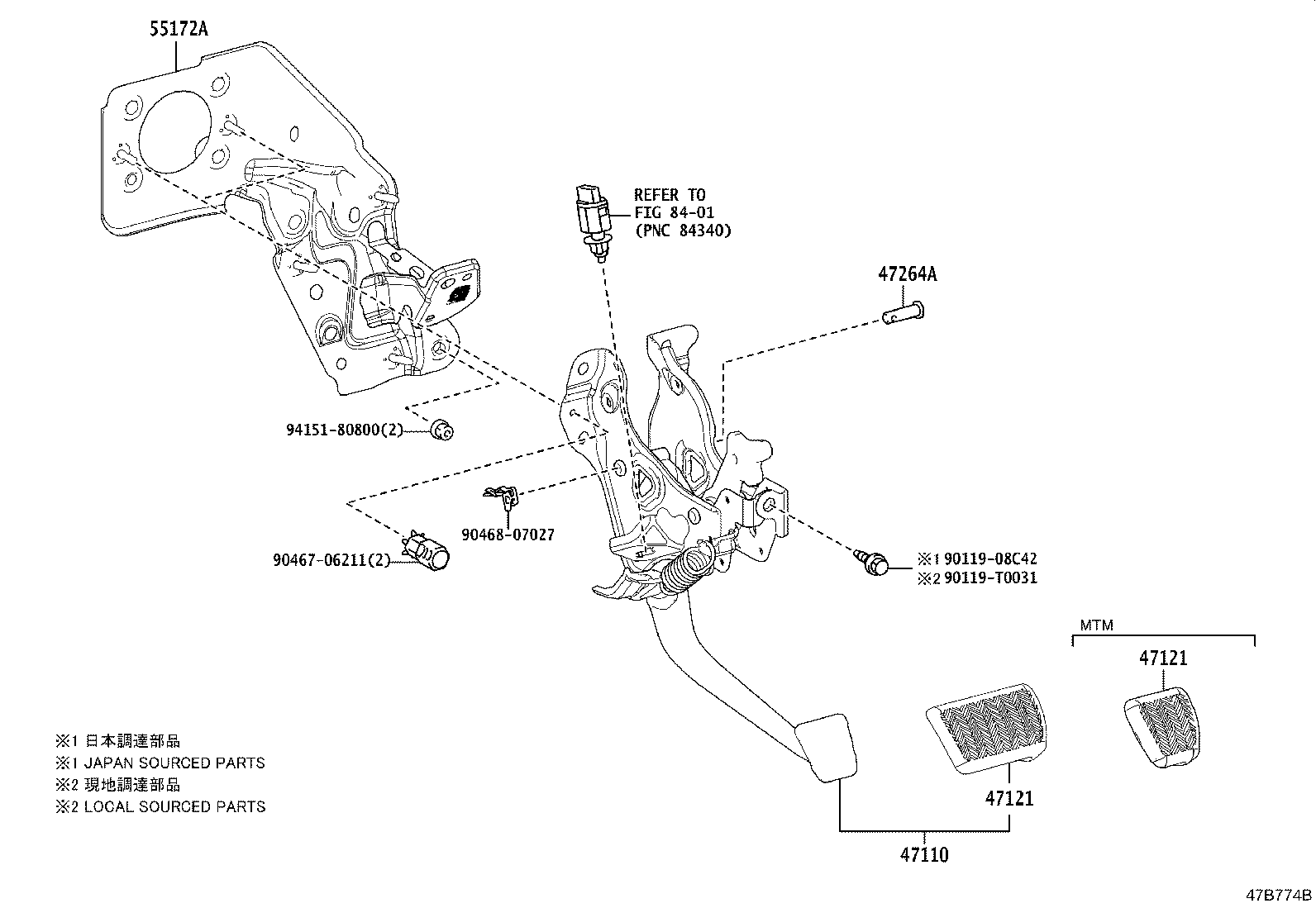

(1902- )LHD..D,H,N,P,Q

Click highlighted areas on diagram

diagram 47110 47121 47121 47264A 55172A 8401 9011908C42 90119T0031 9046706211 9046807027 9415180800
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-26090

GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD..6F

 1
47121 - PAD, BRAKE PEDAL
47121-12040

GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)

 1
47121 - PAD, BRAKE PEDAL
47121-12040

GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,320,328,GRH301,304,32#..(D,H,N,P,Q)..(GCC,GEN,NZ,PH,TH,VN)

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55106-26080

GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD

 1
Common parts
90119-08C42
90119-T0031
90467-06211
90468-07027
94151-80800
Linked diagrams
8401

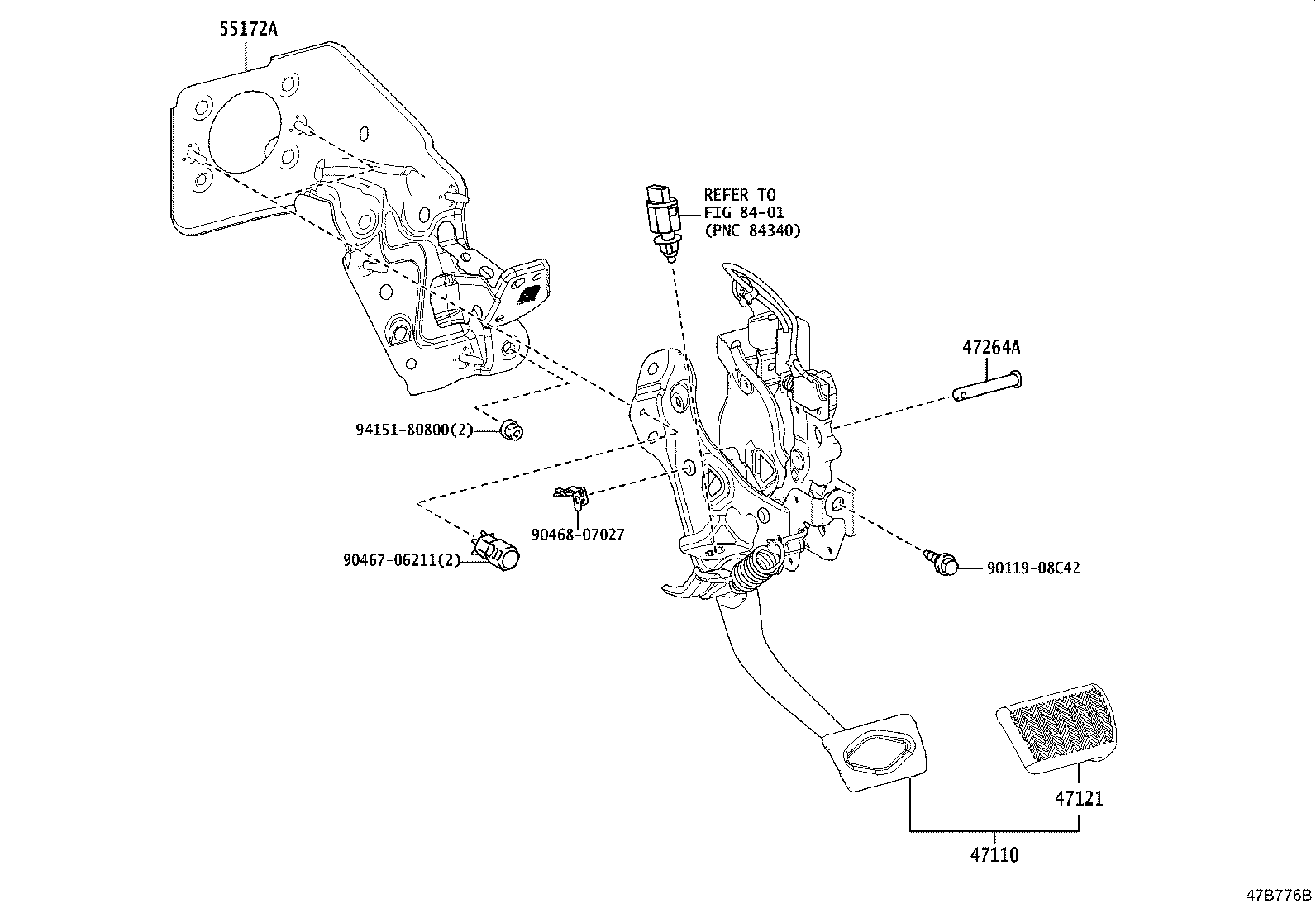

(1902- )LHD..G,J

Click highlighted areas on diagram

diagram 47110 47121 47264A 55172A 8401 9011908C42 9046706211 9046807027 9415180800
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-26090

GRH300..GCC;GRH300..4D..6F..GEN;GDH300,301,32#,GRH301,32#..LHD..6F

 1
47121 - PAD, BRAKE PEDAL
47121-12040

GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,303,304,320,328,GRH301,304,32#..(D,H,N,P,Q)..(GCC,GEN,NZ,PH,TH,VN)

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55106-26080

GRH300..GCC;GRH303..LHD..J;GRH300..4D..6F..GEN;GDH30#,32#,GRH301,32#..LHD

 1
Common parts
90119-08C42
90467-06211
90468-07027
94151-80800
Linked diagrams
8401
