GRH320L-EDFDH (2019)
Toyota Hiace
(7702- )RH11,20,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06028 | ||||
| 91111-51014 | ||||
| 91611-61032 | ||||

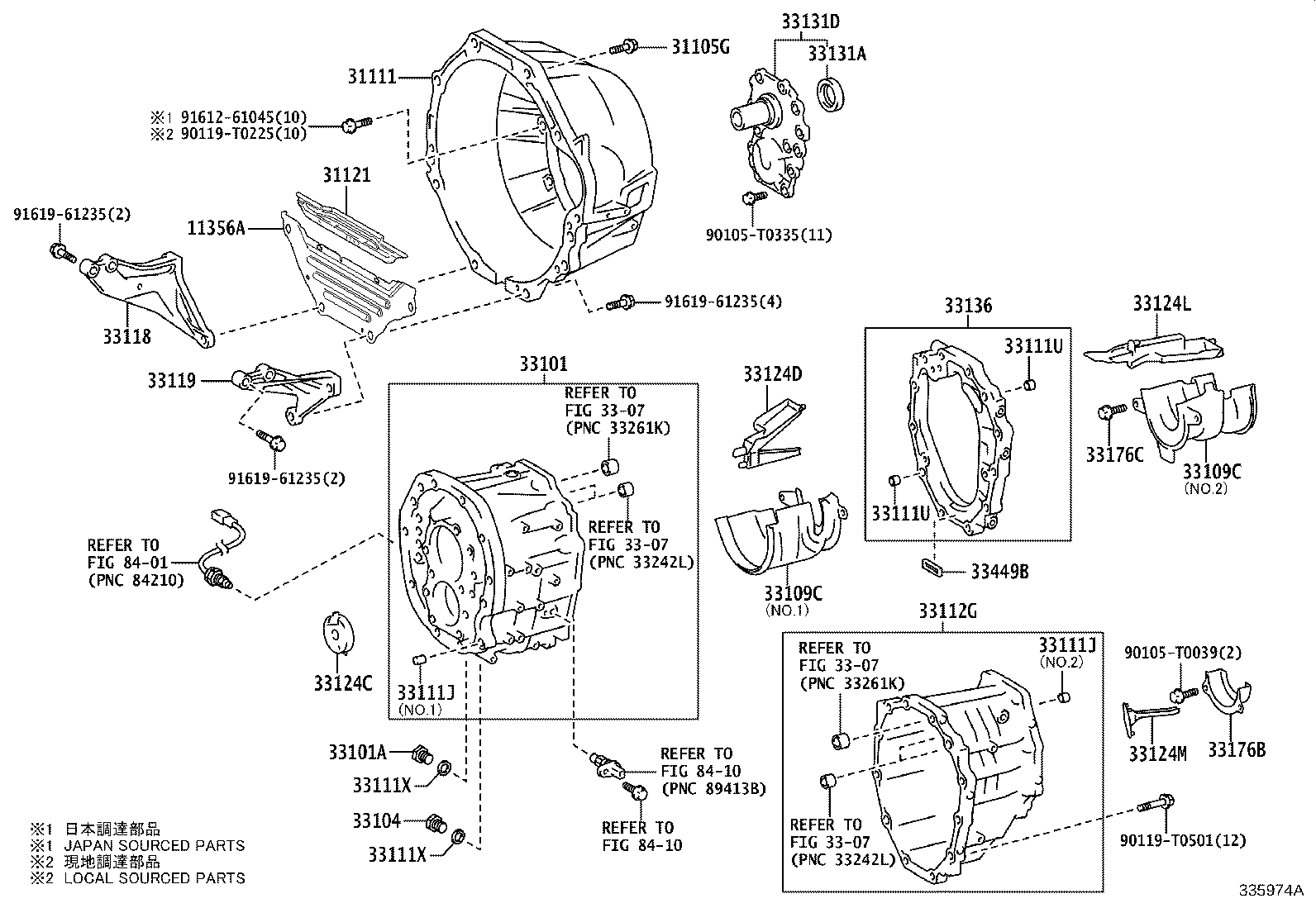

(1902- )GDH300,301,32#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91619-61250 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-26140 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-26040 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-26090 |
GDH300..5D..6F;GDH322..LHD..6F..P;GDH321,GRH300..D..(GCC,IDN);GDH320,GRH320,322..6F..(D,P)..(GCC,GEN);GDH300,301,322,328,GRH300,301..4D..6F..D..(GEN,TH,VN) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18034 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1 |
1 | ||
| 33109-0K040 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1 |
1 | ||
| 33109-0K040 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=16,OD=12,NO.1 |
2 | ||
| 90250-11003 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=11,OD=11,NO.2 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=16,OD=12,NO.1 |
2 | ||
| 90250-11003 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=11,OD=11,NO.2 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-26030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0K070 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-0K080 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-0K090 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124M - PIPE, OIL RECEIVER, N0.4(MTM) | ||||
| 33124-0K100 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0066 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33108-26040 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33106-0K020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-26010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-T0334 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| Common parts | ||||
| 90105-T0039 | ||||
| 90105-T0335 | ||||
| 90119-T0225 | ||||
| 90119-T0501 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
| 8410 | ||||

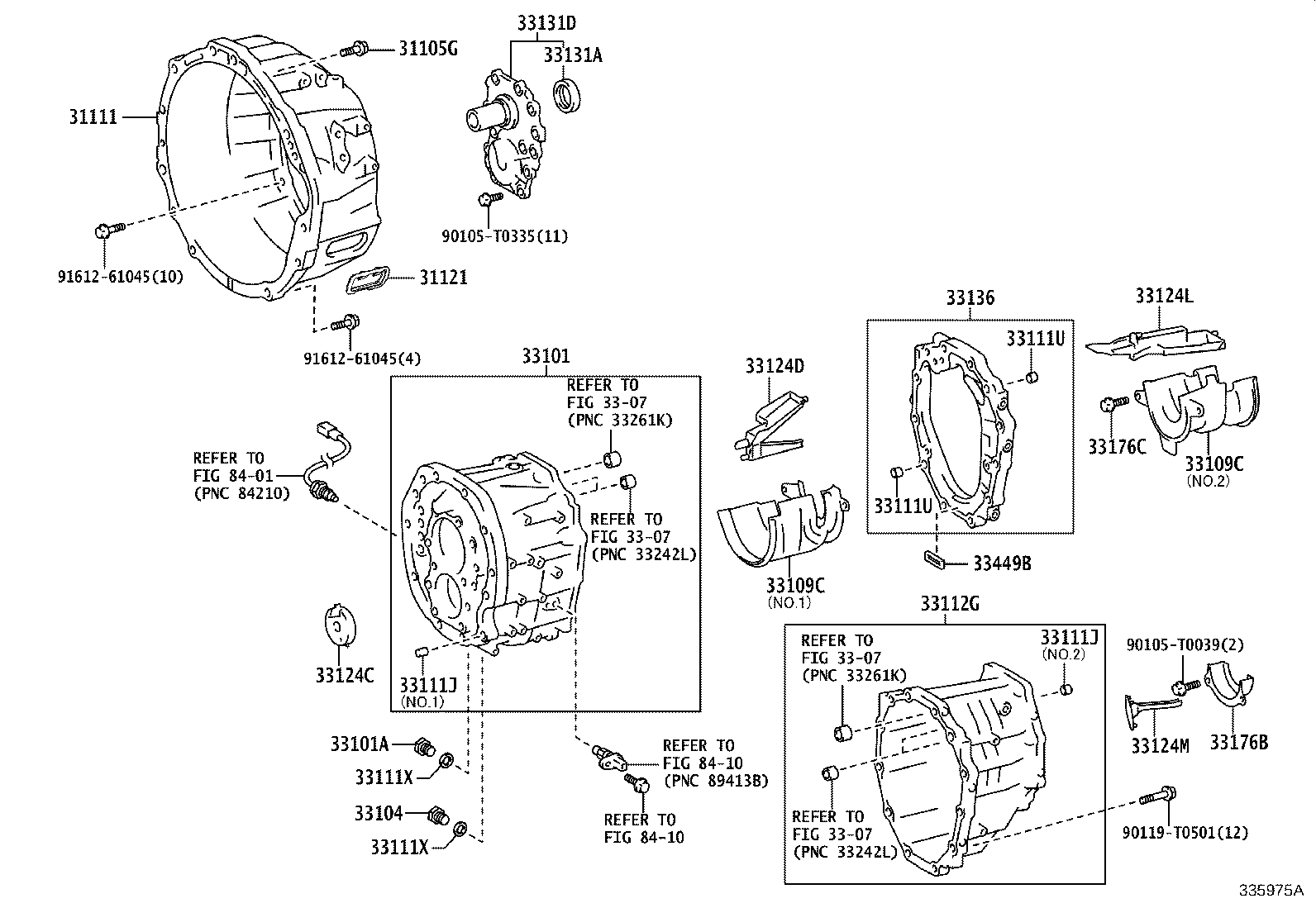

(1902- )GRH300,301,32#..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91619-61250 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-26140 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-26040 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-26090 |
GDH300..5D..6F;GDH322..LHD..6F..P;GDH321,GRH300..D..(GCC,IDN);GDH320,GRH320,322..6F..(D,P)..(GCC,GEN);GDH300,301,322,328,GRH300,301..4D..6F..D..(GEN,TH,VN) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18034 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1 |
1 | ||
| 33109-0K040 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.1 |
1 | ||
| 33109-0K040 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) NO.2 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=16,OD=12,NO.1 |
2 | ||
| 90250-11003 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=11,OD=11,NO.2 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=16,OD=12,NO.1 |
2 | ||
| 90250-11003 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=11,OD=11,NO.2 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-26030 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0K070 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-0K080 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-0K090 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33124M - PIPE, OIL RECEIVER, N0.4(MTM) | ||||
| 33124-0K100 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0066 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33108-26040 |
GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN) |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33106-0K020 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-26010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-T0334 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
2 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN) |
1 | ||
| Common parts | ||||
| 90105-T0039 | ||||
| 90105-T0335 | ||||
| 90119-T0501 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
| 8410 | ||||
