GRH320L-EDFDH (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )7GRFKS

Click highlighted areas on diagram

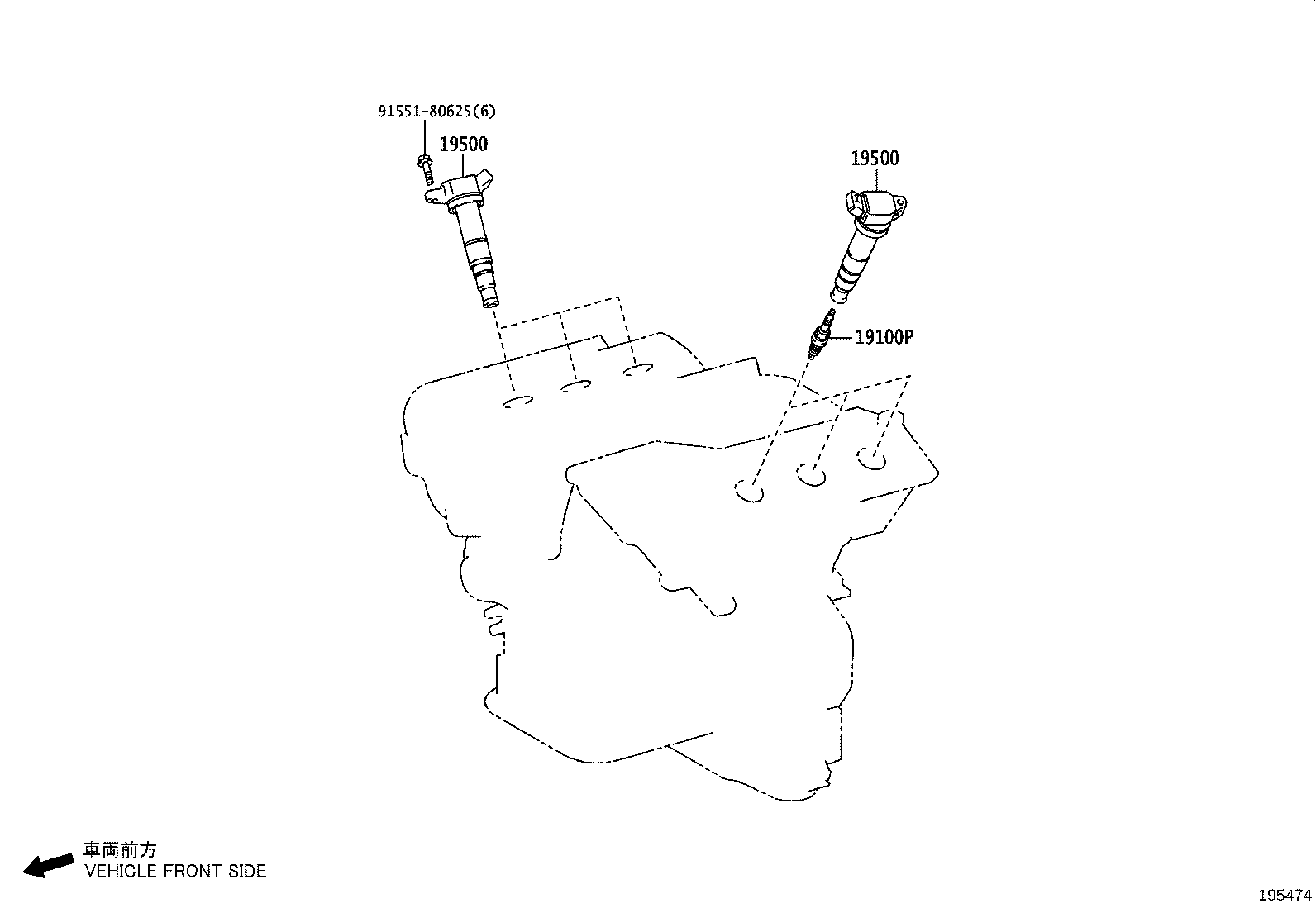

diagram 19100P 19500 19500 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01263

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

FK20HBR8

 6
19500 - COIL ASSY, IGNITION
90919-02273

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 6
19500 - COIL ASSY, IGNITION
90919-02273

7GRFKS..GRH320..GEN;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303..RHD..GEN;7GRFKS..GRH300,320..6F..GCC;7GRFKS..GRH301,304,321,322..GCC,GEN

 6
Common parts
91551-80625
