8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GRH303R-RDTJHQ (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999

Engine 7GRFKS

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1907- )GDH303,304,306,GRH303,304..RHD

Click highlighted areas on diagram

FRONT AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-26030	GDH306..RHD;GRH303..ARL	07/2019 - 06/2021	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-26550	GDH306..RHD;GRH303..ARL	07/2019 - 06/2021	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-58060	GDH306..RHD;GRH303..ARL	07/2019 - 06/2021	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-26330	GDH320..6F..ARL;GDH306,GRH321..RHD;GDH300..4D..6F..ARL;GRH300,303,320..ARL	02/2019 - 06/2021	1
87121K - BRACKET, HEATER
87121-26210	GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)	02/2019 - 12/2999	1
87121-26210	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
87124B - CLAMP, HEATER
87124-33070	GRH303..LHD..G;GDH320..6F..ARL;GDH306,GRH321..RHD;GRH300,303,320..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
87128 - GROMMET, HEATER
87128-28020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	1
87128-28020	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
87130D - BLOWER ASSY
87130-26310	GDH306..RHD;GRH303..ARL	07/2019 - 06/2021	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-28240	GDH306..RHD;GRH303..ARL	07/2019 - 06/2021	1
87139C - FILTER, CLEAN AIR
87139-28020	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) POLLEN FILTER	02/2019 - 06/2021	1
87139-58010	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) DEODORANT FILTER	02/2019 - 06/2021	1
87139-58010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) DEODORANT FILTER	02/2019 - 12/2999	1
87139-28020	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) POLLEN FILTER	02/2019 - 12/2999	1
87710G - QUICK HEATER ASSY
87710-48020	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320,321..ARL	02/2019 - 06/2021	1
87710-48020	GDH300..5D..ARL;GDH304,GRH321..GEN;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..(ARL,GEN,NZ);GDH301,303,320,321..6FC..(ARL,NZ)	02/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10170	GRH303..ARL;GRH303..LHD..G;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88501-26350	GDH301,303,321,322..ARL,NZ	02/2019 - 12/2999	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	1
90099-14120	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) ID=10.8,OD=15.6	02/2019 - 06/2021	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	1
90099-14121	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) ID=13.4,OD=18.2	02/2019 - 06/2021	1
88515 - VALVE, COOLER EXPANSION
88515-48120	GRH303..LHD..G;GDH320..6F..ARL;GRH300,303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88515-26140	GDH301,303,321,322..ARL,NZ	02/2019 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
90099-04542	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26680	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88539-26680	GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)	02/2019 - 12/2999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-26820	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88539-26820	GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)	02/2019 - 12/2999	1
88539D - PIPE, COOLER UNIT DRAIN
88899-26190	GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)	02/2019 - 12/2999	1
88899-26190	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88625 - THERMISTOR, COOLER, NO.1
88620-28050	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88620-28060	GDH301,303,321,322..ARL,NZ	02/2019 - 12/2999	1
88649 - WIRING, COOLER, NO.2
88649-26040	GDH300..5D..ARL;GDH300..4D..6FC..ARL;GDH301,303,320,321,322..6FC..(ARL,NZ)	02/2019 - 12/2999	1
88649-26040	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320,321..ARL	02/2019 - 06/2021	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-26820	GRH303..ARL PREMIUM PACKAGE&SPEAKER-12SPEAKER	07/2019 - 06/2021	1
88650-26720	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88897M - GROMMET (FOR HEATER PIPE)
87128-28010	GRH303..LHD..G;GDH320..6F..ARL;GDH306,GRH321..RHD;GRH300,303,320..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
88899K - PLATE, COVER
88899-52160	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88899-52160	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH	02/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-58040	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
88899-58040	GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)	02/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47120	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
88899-47120	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
Common parts
88718-26C40
88718-26C50
90099-00968
90105-T0241
90119-06951
90159-60383
90159-60431
90159-T0014
91551-A0618

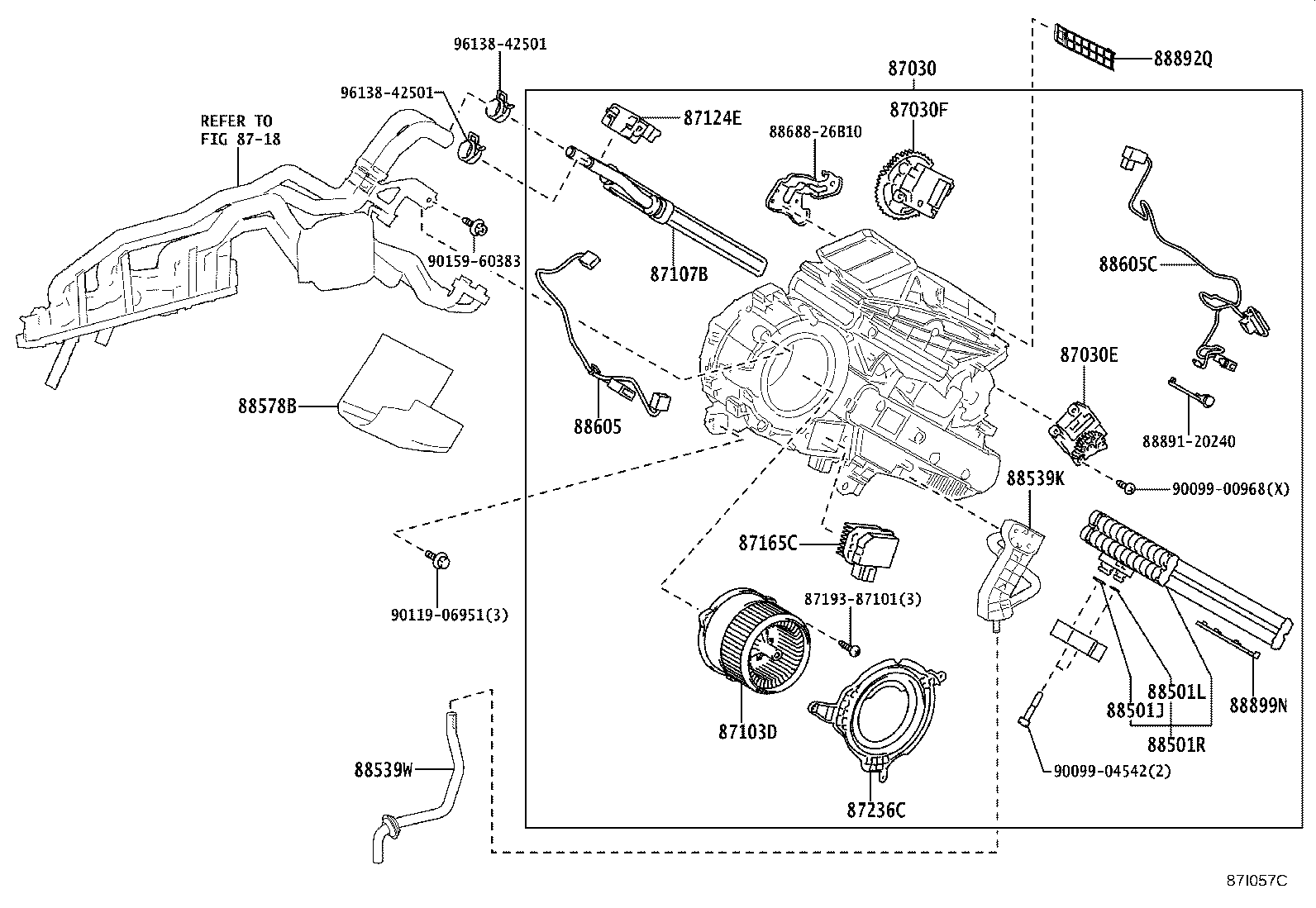

ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303..ARL,GCC,GEN

Click highlighted areas on diagram

REAR AIR CONDITIONER

Part #	Description	Period	Qty
87030 - BLOWER ASSY, AIR CONDITIONER
87030-26040	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-26140	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-26150	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-26210	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-28300	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87124E - CLAMP, HEATER
87124-28540	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87165C - CONTROL, BLOWER MOTOR
87165-26030	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
87236C - COVER, HEATER BLOWER
87236-26020	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90099-14121	GRH303..ARL;GRH303..LHD..G;GDH306,321,GRH321..RHD..(G,J,N,P,Q) ID=13.4,OD=18.2	02/2019 - 06/2021	1
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=13.4,OD=18.2	02/2019 - 12/2999	1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90099-14120	GRH303..ARL;GRH303..LHD..G;GDH306,321,GRH321..RHD..(G,J,N,P,Q) ID=10.8,OD=15.6	02/2019 - 06/2021	1
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=10.8,OD=15.6	02/2019 - 12/2999	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28360	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88539K - HOSE, DRAIN COOLER
88539-26840	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88539W - HOSE, DRAIN COOLER, NO.2
88539-26720	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88578B - PACKING, COOLING UNIT, NO.1
88578-28490	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
82212-26060	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
82212-26070	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88892Q - PLATE, COOLER
88892-28020	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	07/2019 - 06/2021	1
88899N - PLATE, COVER
88899-60520	GDH306..RHD;GRH303..ARL;GRH303..LHD..G	12/2020 - 06/2021	1
88899-60450	GDH303..RHD;GDH303..LHD..(G,J);GDH304,306,GRH303..ARL,GCC,GEN	07/2019 - 12/2020	1
Common parts
87193-87101
88688-26B10
88891-20240
90099-00968
90099-04542
90119-06951
90159-60383
96138-42501
