GRH303R-RDTGH (2019)
Toyota Hiace

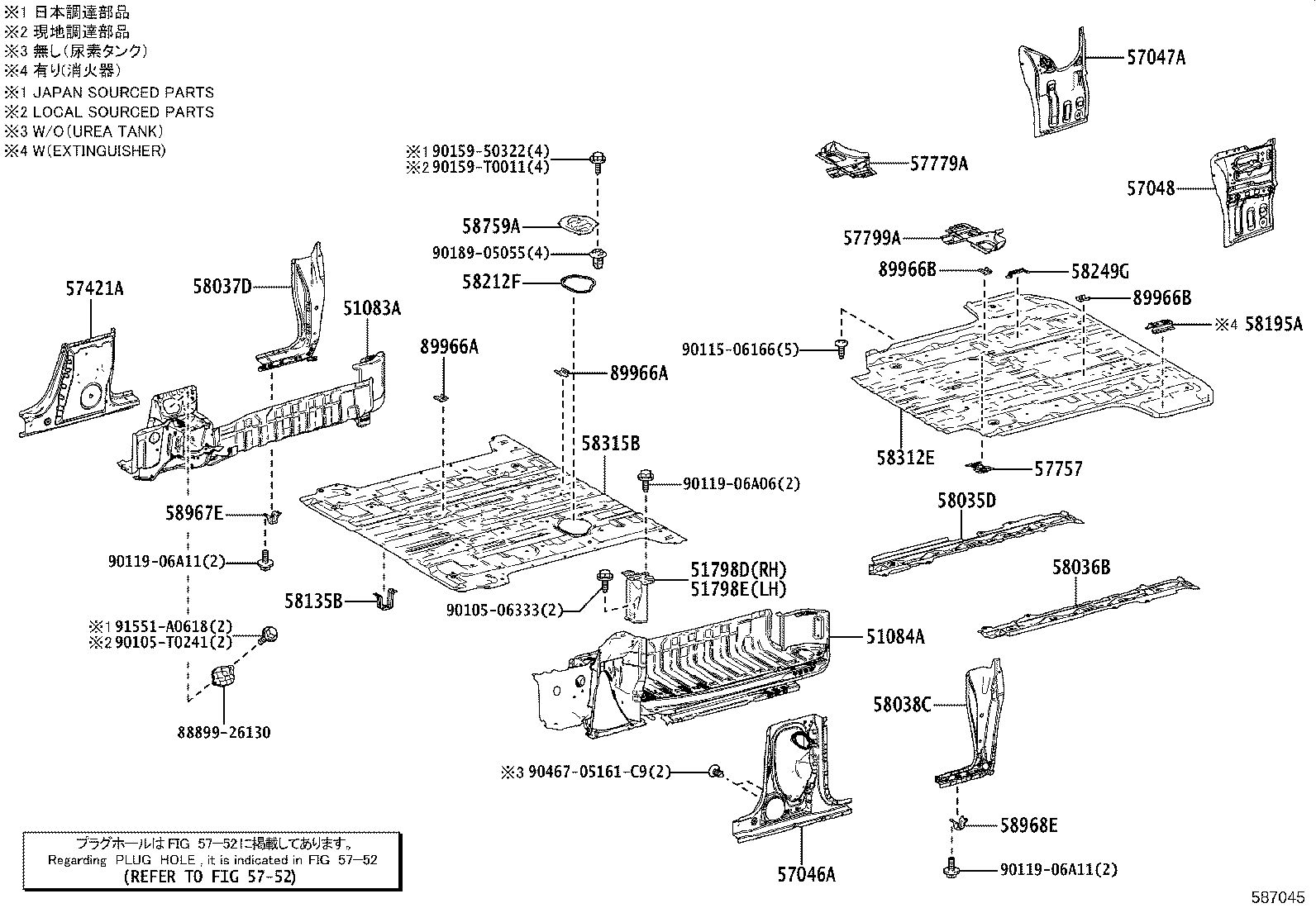

ILLUST NO. 1 OF 2(1907- )GDH303,GRH303..G..GEN
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083A - STEP SUB-ASSY, RH | ||||
| 51083-26470 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 51083-26610 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26340 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 51084-26350 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 51798D - BRACKET, STEP PANEL, RH | ||||
| 51798-26040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 51798E - BRACKET, STEP PANEL, LH | ||||
| 51798-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26400 |
GRH303..LHD..J;GDH320..6FC..ARL;GDH303..LHD..(G,J);GDH300,303..RHD..5D;GRH320..LHD..SP..6F;GDH300..RHD..4D..6FC;GRH320..SP..6FC..GEN;GDH300..RHD..4D..6F..GEN;GDH304,306,320..LHD..5D..GEN;GDH300,320,321,GRH300..6F..D..(GCC,IDN,TH);GDH301,320,322,GRH300,301,303,320,322..RHD..(D,G,J)..GEN |
1 | ||
| 57046-26480 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26380 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26380 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GRH303..LHD..J;GDH320..SP..GEN;GDH300..LHD..6F;GRH303..RHD..GEN;GDH300,303..RHD..5D;GDH320..SP..6FC..ARL;GDH320,GRH300..6F..GCC;GRH320..SP..6F..(GCC,GEN);GDH322,GRH300..LHD..4D..6F..(D,P)..GEN;GDH301,303,320,GRH301,320,322..LHD..SG..(D,G,J);GDH300,304,306,322,GRH320..LHD..6FC..(D,G,H,J)..GEN |
1 | ||
| 57421-26300 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57757 - PLATE, REAR FLOOR CROSSMEMBER | ||||
| 57757-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26120 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26090 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58035D - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH | ||||
| 58035-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58036B - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH | ||||
| 58036-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 58195A - BRACKET, EXTINGUISHER, NO.1 | ||||
| 58195-26050 |
GDH303..G..GEN;GRH303..RHD..GEN;GDH301..RHD..6F..N;GDH303,GRH303..LHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58195-26050 |
GRH303..RHD..GEN;GDH303..(G,J)..GEN;GDH301..RHD..6F..N;GRH303..LHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58195-26050 |
GDH303..G..GEN;GRH303..RHD..GEN;GDH303,GRH303..LHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58195-26050 |
GRH303..RHD..GEN;GDH303..(G,J)..GEN;GRH303..LHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58195-26050 |
GDH303..G..GEN;GRH303..RHD..GEN;GDH303,GRH303..LHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58249G - BRACKET, CABLE CLAMP, NO.2 | ||||
| 58249-26120 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26680 |
GDH303..G..GEN;GRH303..RHD..G..GEN LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58312-26680 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58312-26680 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58312-26680 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58312-26680 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 58312-26690 |
GDH303,306..LHD..G;GDH303,GRH303..RHD..(G,H)..GEN |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26N50 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GDH300..5D;GDH306..LHD;GRH303..LHD..J;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH);GDH321,GRH300..D..(GCC,IDN,NZ);GDH300,320,322..4D..6FC..(ARL,NZ);GDH320,322,GRH303,320,322..RHD..SG..(D,G,J,N)..(GEN,TH) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG |
1 | ||
| 89966A - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 89966A - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 89966B - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 89966B - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-06333 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A06 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
