GRH301R-GDTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )RHD

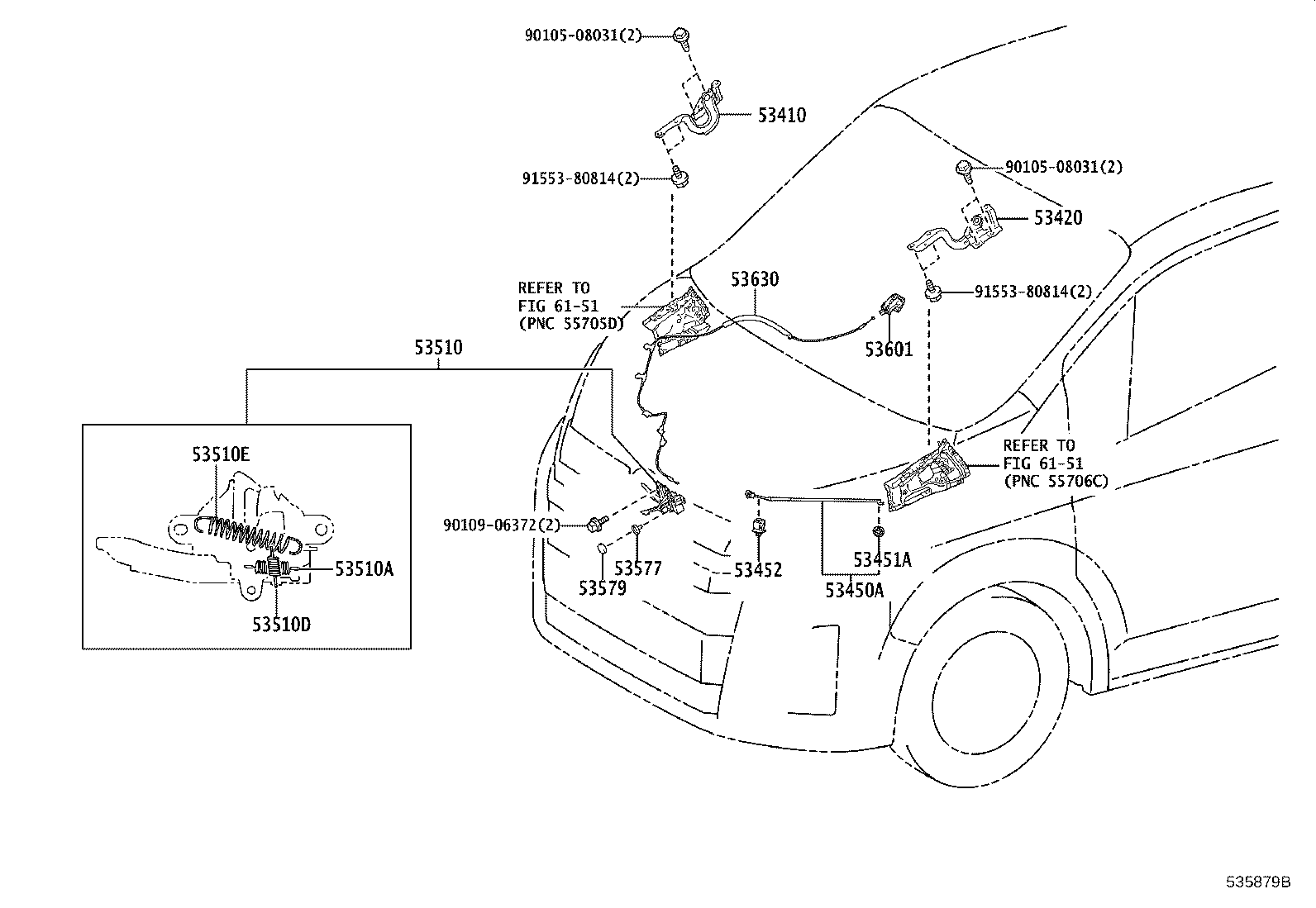

Click highlighted areas on diagram

diagram 53410 53420 53450A 53451A 53452 53510 53510A 53510D 53510E 53577 53579 53601 53630 6151 6151 9010508031 9010508031 9010906372 9155380814 9155380814
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53420 - HINGE ASSY, HOOD, LH
53420-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-26030

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53452 - HOLDER, HOOD STAY
53452-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53510 - LOCK ASSY, HOOD
53510-26100

GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..ARL,NZ,TH;GDH300,301..4D..6FC..(ARL,NZ);GDH303,304,321,GRH304..RHD..6FC;GDH301,322,GRH301,303,322..RHD..(G,J,N)..GEN

 1
53510-26090

GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH)

 1
53510-26100

GDH322..RHD..D..GEN;GDH300,301,320,321,GRH300,301,320,322..RHD..D..(GEN,IDN,TH)

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

WD=1.8,CW=13

 1
53577 - BOLT, HOOD LOCK
53577-33010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
53601-30100A0

GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH)

FROMAGE,TRIM0#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-26090

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
Common parts
90105-08031
90109-06372
91553-80814
Linked diagrams
6151
