GRH301R-GDTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )RHD

Click highlighted areas on diagram

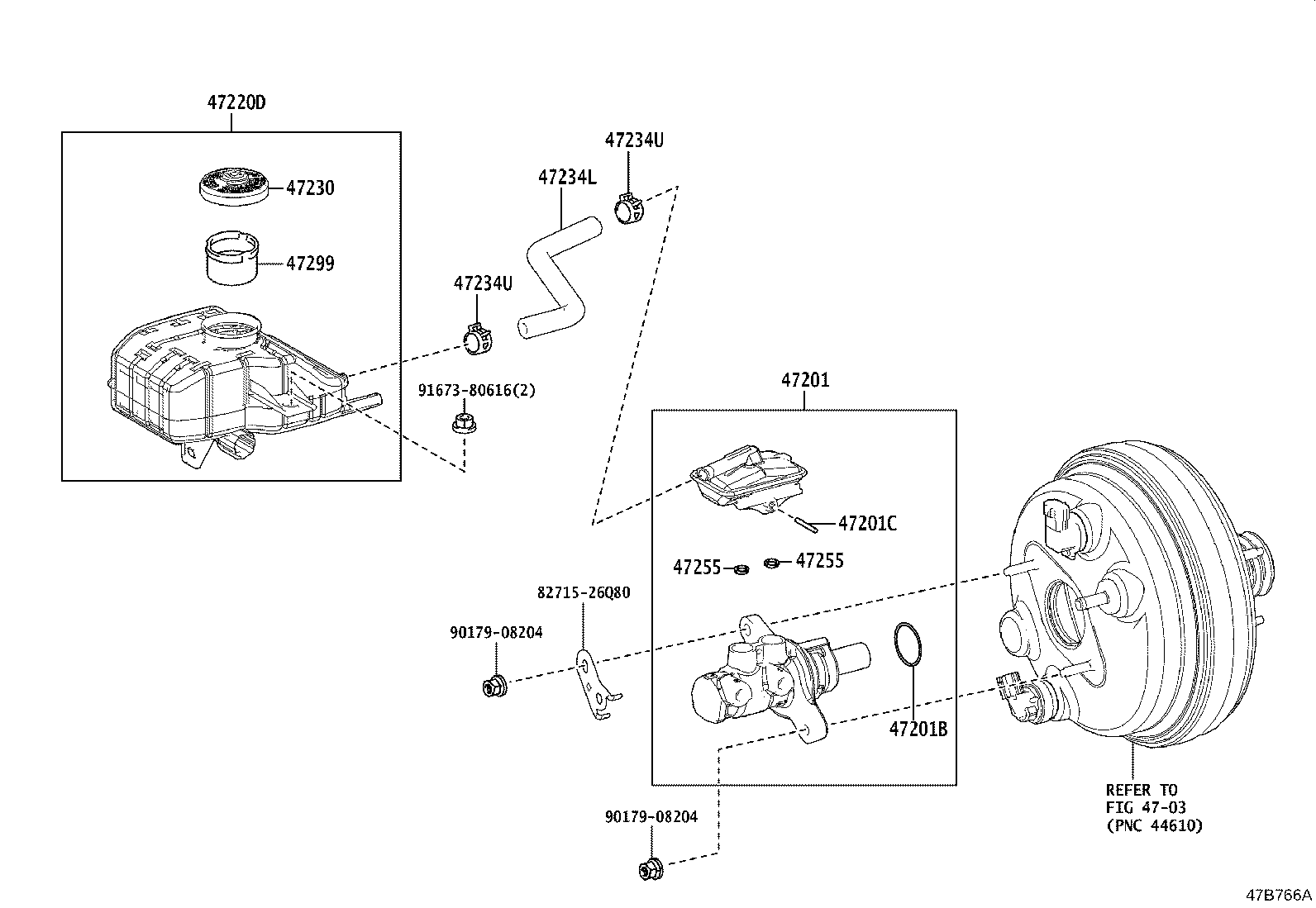

diagram 4703 47201 47201B 47201C 47220D 47230 47234L 47234U 47234U 47255 47255 47299 8271526Q80 9017908204 9017908204 9167380616
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-26870

GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN

VEHICLE STABILITY CONTROL-WITH

 1
47201-26850

GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90015-AE401

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-26330

GDH306..LHD;GRH303..LHD..J;GRH320..6FC..GEN;GRH300,303..RHD..GEN;GDH300,301,303,304,320,321,322,GRH301,304,322..6FC

 1
47220-26320

GRH300..GCC;GDH321..N..GEN;GDH300..5D..6F;GDH322..6F..(D,N);GDH322..LHD..6F..(P,Q);GDH320,321,GRH320..6F..D..(GCC,GEN,IDN);GDH300,301,328,GRH300,301,321,322..4D..6F..(GCC,GEN,PH,TH,VN)

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58021

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
47234L - HOSE, RESERVOIR, NO.1
47234-26240

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96136-41801

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96136-41801

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-58021

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
Common parts
82715-26Q80
90179-08204
91673-80616
Linked diagrams
4703
