GRH301L-GDFNH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH300,301,GRH300,301

Click highlighted areas on diagram

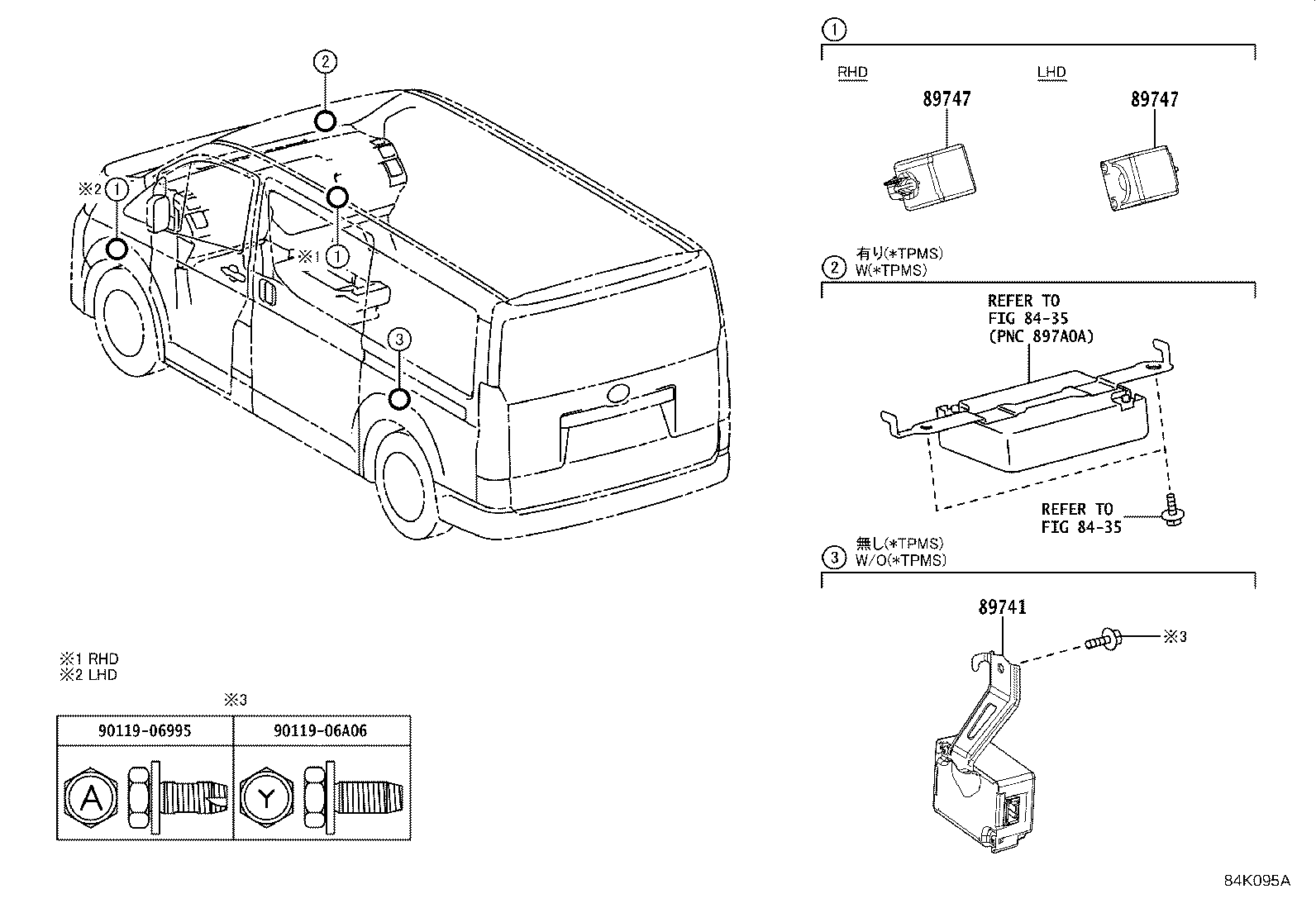

diagram 8435 8435 89741 89747 89747 9011906995 9011906A06
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-26270

GDH322..LHD..P..GEN;GDH322,328..PH,TH,VN;GDH301,322,GRH301,322..(N,Q)..GEN

 1
89741-26260

GDH301,322,GRH301,322..N

OCEANIA(GENERAL)SPEC

 1
89741-26260

GDH301,322,GRH301,322..N

OCEANIA(GENERAL)SPEC&*POSD & *ECS(*SD)

 1
89741-V3010

GDH322..LHD..P..GEN;GDH322,328..PH,TH,VN;GDH301,322,GRH301,322..N

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,328,GRH321..LHD;GDH322..LHD..(P,Q)..GEN;GDH322..(D,Q)..(ARL,GCC,TH);GDH301,303,304,321,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,TH)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,328,GRH321..LHD;GDH322..LHD..(P,Q)..GEN;GDH322..(D,Q)..(ARL,GCC,TH);GDH301,303,304,321,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,TH)

 1
Common parts
90119-06995
90119-06A06
Linked diagrams
8435
