GRH301L-GDFNH (2019)
Toyota Hiace
ILLUST NO. 1 OF 4(1902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-09245 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 90467-09240 |
GDH30#,32#,GRH30#,32# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-09245 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 90467-09240 |
GDH30#,32#,GRH30#,32# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-26040C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 62111-26040E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-26040C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
1 | ||
| 62112-26040E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26070A0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 62210-26140B0 |
GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10167 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26070A0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) FROMAGE,TRIM0# |
1 | ||
| 62220-26140B0 |
GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-26100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 62311-26110 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-26110 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH) |
1 | ||
| 62312-26100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
1 | ||
| 67923G - CLAMP, COWL SIDE TRIM BOARD | ||||
| 67923-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67923G - CLAMP, COWL SIDE TRIM BOARD | ||||
| 67923-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
ILLUST NO. 3 OF 4(1902- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51794D - PLATE, STEP BRACKET | ||||
| 51794-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) LH |
1 | ||
| 51794-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) RH |
1 | ||
| 51794D - PLATE, STEP BRACKET | ||||
| 51794-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) LH |
1 | ||
| 51794-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) RH |
1 | ||
| 51794D - PLATE, STEP BRACKET | ||||
| 51794-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) LH |
1 | ||
| 51794-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) RH |
1 | ||
| 51798C - BRACKET, STEP PANEL | ||||
| 51798-26020 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ) |
4 | ||
| 51798C - BRACKET, STEP PANEL | ||||
| 51798-26020 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ) |
4 | ||
| 51798C - BRACKET, STEP PANEL | ||||
| 51798-26020 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ) |
4 | ||
| 58445K - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ) |
2 | ||
| 58445K - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ) |
2 | ||
| 58458H - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-26030E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 58458-26030C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 58458H - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-26030E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 58458-26030C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-26010C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67911-26010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-26010C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67911-26010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-26010C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67911-26010E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-26020E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67911-26020C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-26020E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67911-26020C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-26020E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
2 | ||
| 67911-26020C0 |
GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH) BLACK,TRIM1# |
2 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-26120C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67910-26180E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-26120C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67910-26180E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-26060C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67920-26090E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-26060C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67920-26090E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67925D - COVER, DOOR SCUFF PLATE | ||||
| 67925-26150E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 67925-26080C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67925D - COVER, DOOR SCUFF PLATE | ||||
| 67925-26080C0 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) BLACK,TRIM1# |
1 | ||
| 67925-26150E0 |
GDH322..N;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90119-T0262 | ||||
| 90183-06030 | ||||
| 91673-A0620 | ||||
| 93540-54008 | ||||
| 93540-55010 | ||||

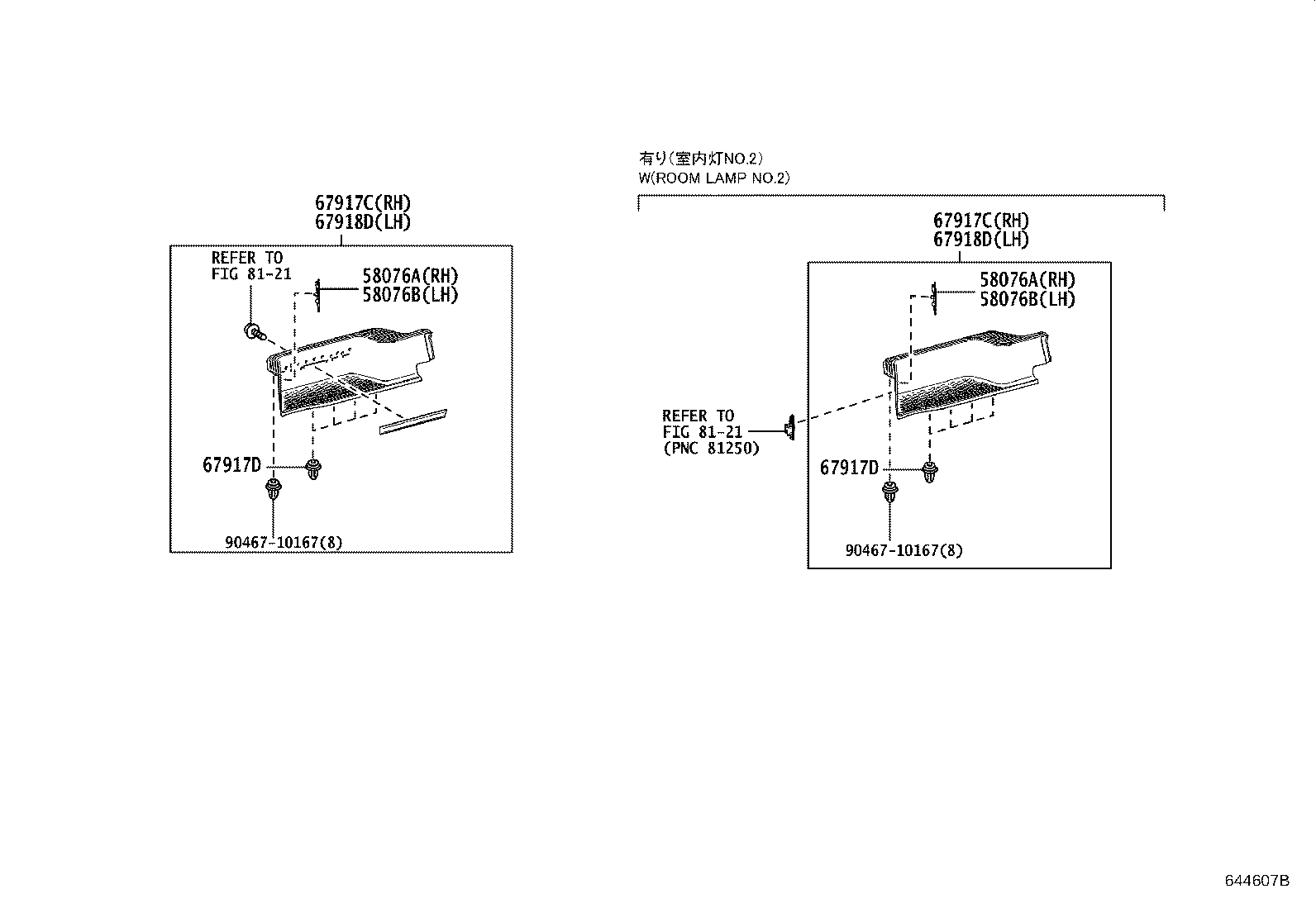

ILLUST NO. 4 OF 4(1902- )SHP ; (1902- )GDH301,GRH301..GEN
REAR(WITHOUT POWER SLIDE DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26030C0 |
GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P) BLACK,TRIM1# |
1 | ||
| 58076-26030E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26030C0 |
GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P) BLACK,TRIM1# |
1 | ||
| 58076-26030E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8121 | ||||

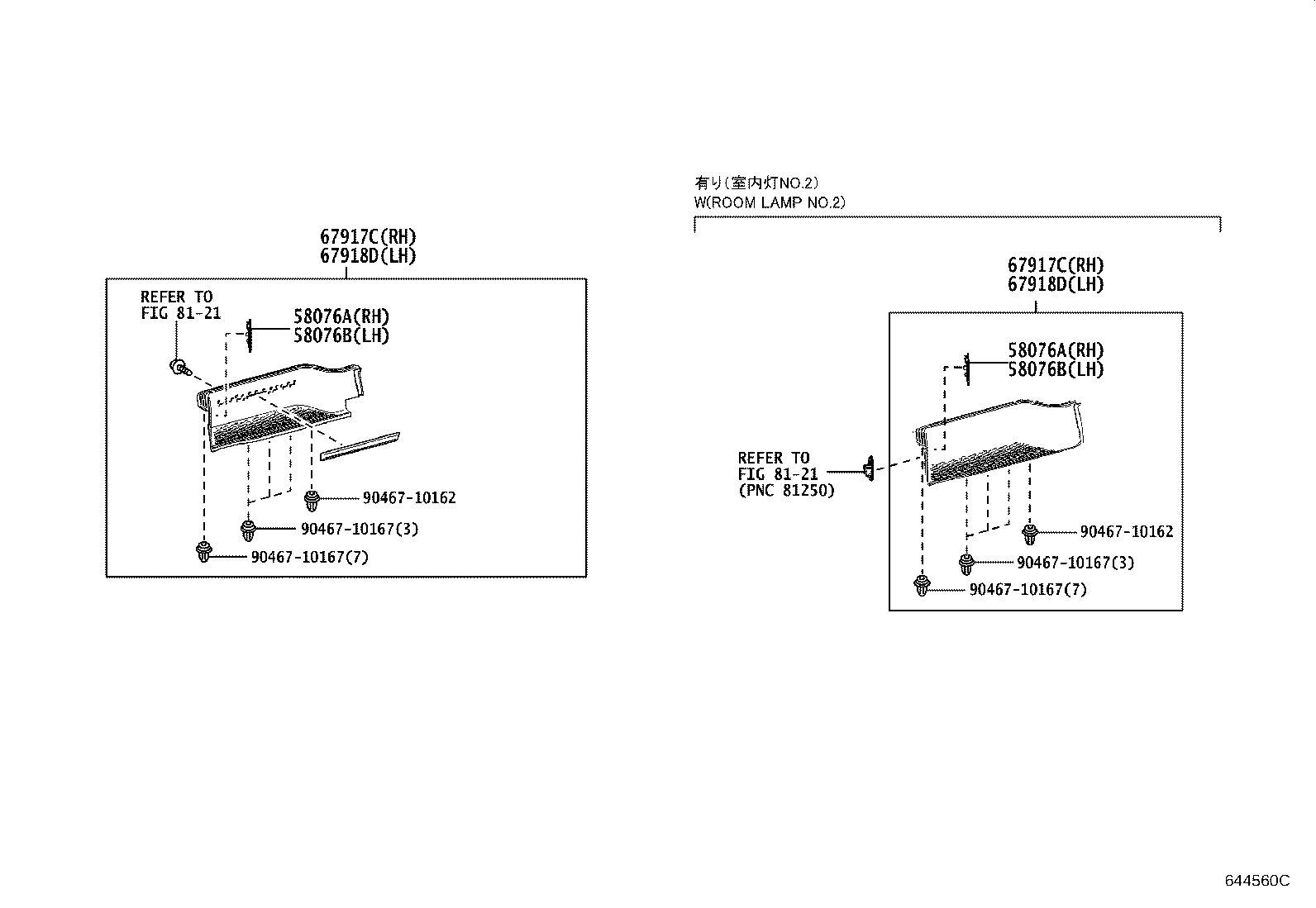

ILLUST NO. 4 OF 4(1902- )GDH301,GRH300,301..D..ARL,GCC,GEN ; (1902- )GDH300,320,328,GRH320..SG
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-06057 | ||||
| 90467-09182 | ||||
| 93560-56012 | ||||
ILLUST NO. 2 OF 4(1902- )GDH300,301,GRH300,301..LHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26160A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62410-26160B0 |
GDH300..5D;GRH300..GCC;GDH300,301,GRH300,301..LHD..4D..D LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26170A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62420-26160B0 |
GDH300,301,GRH300,301..LHD..4D..D LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26170A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62420-26160B0 |
GDH300,301,GRH300,301..LHD..4D..D LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26330C0 |
GDH301,GRH301..LHD..6F..D REAR SEAT-3-ROW(FOR 10 PERSONS), W(*RRS),BLACK,TRIM1# |
1 | ||
| 62413-26340C0 |
GDH300..5D;GRH300..GCC;GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH300,301,320,GRH300,301,320..LHD..4D..D BLACK,TRIM1# |
1 | ||
| 62413-26350A0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) FROMAGE,TRIM0# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GRH303,322..LHD..(J,N);GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,306,322,GRH301,321..LHD..(G,J,N,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P,Q)..(GCC,GEN,IDN,NZ,TH) |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26490C0 |
GDH300,301,320,321,322,GRH300,301,320,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26490C0 |
GDH300,301,320,321,322,GRH300,301,320,322..LHD..4D..(D,P)..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 62414B - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH322..RHD..N;GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..RHD..(D,N)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH300,322..4D..6FC..(ARL,NZ);GDH301,GRH301,303..RHD..(GEN,NZ,TH);GDH303,304,321,GRH304,322..D,G,H,J,P;GDH301,306,322,GRH301..LHD..(D,G,J,P) |
4 | ||
| 62414B - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH322..RHD..N;GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..RHD..(D,N)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH300,322..4D..6FC..(ARL,NZ);GDH301,GRH301,303..RHD..(GEN,NZ,TH);GDH303,304,321,GRH304,322..D,G,H,J,P;GDH301,306,322,GRH301..LHD..(D,G,J,P) |
4 | ||
| 62440D - GARNISH ASSY, ROOF SIDE RAIL, FRONT LH | ||||
| 62440-26070A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62450A - GARNISH ASSY, ROOF SIDE RAIL, REAR RH | ||||
| 62450-26090A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62460A - GARNISH ASSY, ROOF SIDE RAIL, REAR LH | ||||
| 62460-26080A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-26370A0 |
GDH301,GRH301..N FROMAGE,TRIM0# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-26330A0 |
GDH301,GRH301..N FROMAGE,TRIM0# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10161 |
GDH301,GRH301..N |
12 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-26250B0 |
GDH301,GRH301..D NEUTRAL WARM GRAY,TRIM1# |
16 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-26250B1 |
GDH301,GRH301..LHD..D NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 62520B - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62520-26350A1 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62520-26351A1 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62630L - BOARD ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26F40A1 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26A90B1 |
GDH301,GRH301..LHD..D NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-26B80B1 |
GDH301,GRH301..LHD..D NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26180A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62638-26170A0 |
GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62640M - BOARD ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26G10A1 |
GDH322,328,GRH322..N;GDH301,GRH301..LHD..N FROMAGE,TRIM0# |
1 | ||
| 62821B - GLILLE, ROOM VENTILATION | ||||
| 62821-26010E0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 62822 - GRILLE, ROOM VENTILATION, LH | ||||
| 62822-26010E0 |
GDH322..N;GDH322..Q..(ARL,GCC);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) ORCHID BROWN,TRIM0# |
1 | ||
| 64726C - RETAINER, DECK TRIM REAR COVER | ||||
| 67771-26250B0 |
GDH301,GRH301..D NEUTRAL WARM GRAY,TRIM1# |
15 | ||
| 64726E - RETAINER, DECK TRIM REAR COVER | ||||
| 67771-26250B0 |
GDH301,GRH301..D NEUTRAL WARM GRAY,TRIM1# |
15 | ||
| Common parts | ||||
| 67771-28150 | ||||
| 90467-05171 | ||||
| 90467-09212 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10188 | ||||
| 90467-10216 | ||||
ILLUST NO. 4 OF 4(1902- )SHP ; (1902- )GDH301..NZ,TH ; (1902- )GDH301,GRH301..N
REAR(WITH POWER SLIDE DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26030C0 |
GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P) BLACK,TRIM1# |
1 | ||
| 58076-26030E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26030C0 |
GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P) BLACK,TRIM1# |
1 | ||
| 58076-26030E0 |
GDH301,321,322,328,GRH301,321,322..LHD..(N,Q) ORCHID BROWN,TRIM0# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26170E0 |
GDH301,GRH301..LHD..N ORCHID BROWN,TRIM0# |
1 | ||
| 67930-26020C0 |
GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN) BLACK,TRIM1# |
1 | ||
| 67930-26110E0 |
GDH301,GRH301..LHD..N *POSD & *ECS(*SD),ORCHID BROWN,TRIM0# |
1 | ||
| 67917-26100C0 |
GDH301,GRH301..LHD..D AMBULANCE&REAR SEAT-WITHOUT,BLACK,TRIM1# |
1 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
GDH301..NZ,TH;GDH301,GRH301..N *POSD & *ECS(*SD) |
4 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
GDH301..NZ,TH;GDH301,GRH301..N *POSD & *ECS(*SD) |
4 | ||
| Common parts | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
