GRH300L-RCFDHV (2019)
Toyota Hiace

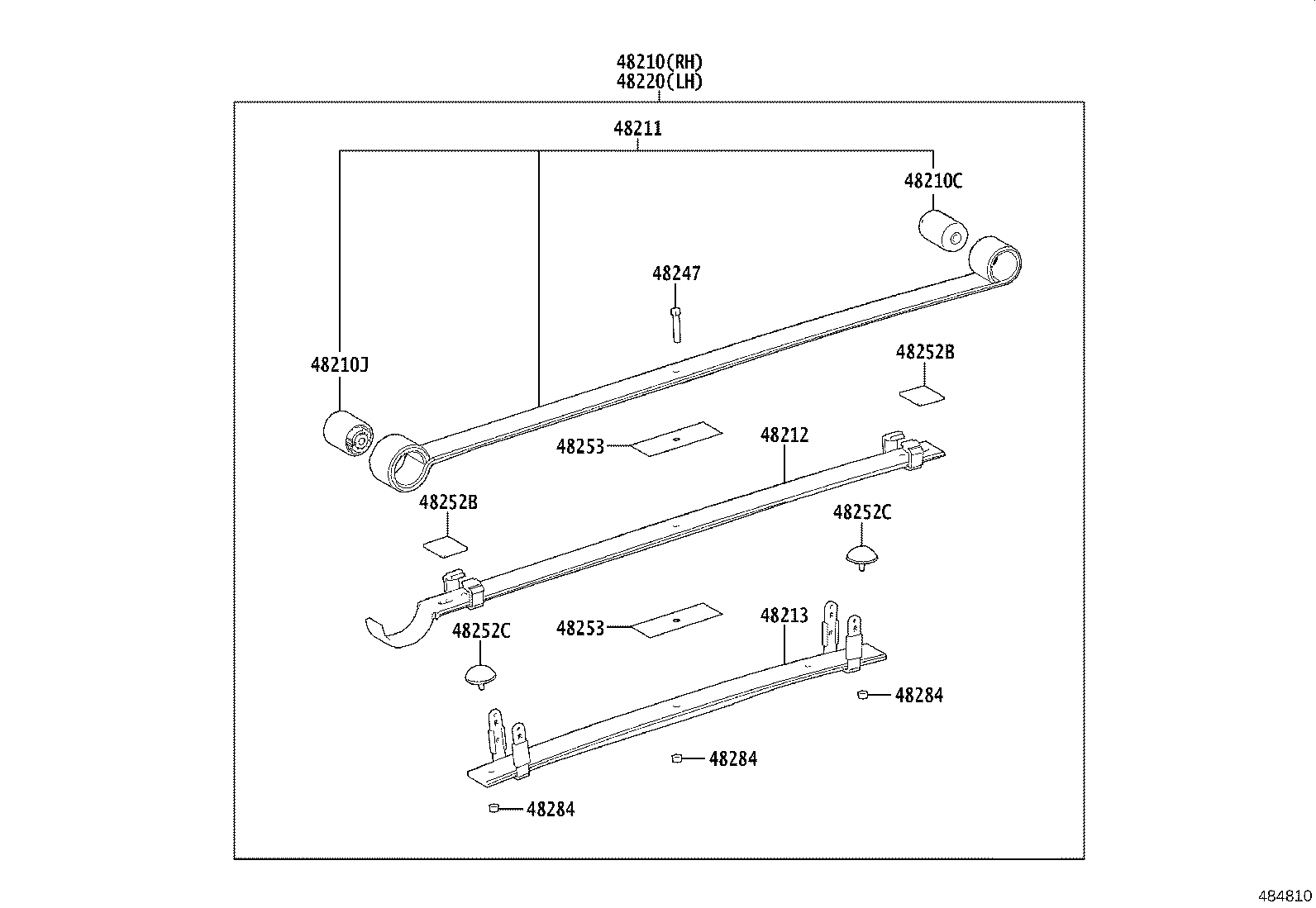

ILLUST NO. 2 OF 2(1902- )GDH300,GRH300
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26F60 |
GDH300,GRH300..SHP 3-LEAF |
1 | ||
| 48210-26F61 |
GDH300,GRH300..SHP 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48288-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
2 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 48287-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26F60 |
GDH300,GRH300..SHP |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26F60 |
GDH300,GRH300..SHP |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26F60 |
GDH300,GRH300..SHP |
2 | ||
| 48203-26F61 |
GDH300,GRH300..SHP |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26F60 |
GDH300,GRH300..SHP 3-LEAF |
1 | ||
| 48210-26F61 |
GDH300,GRH300..SHP 3-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36060 |
GDH322..D..GEN;GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,GRH301,322..(D,P)..(GCC,GEN,TH) |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-26F80 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-26F80 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-28170 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-28170 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26F80 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26F80 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,320,321,328,GRH301,32#..GCC,GEN,NZ,PH,TH |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
6 | ||
ILLUST NO. 1 OF 2(1902- )GDH300,301,32#,GRH300,301,32#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26140 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 48046D - BOLT, U(FOR REAR SPRING RH) | ||||
| 90117-14078 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN L=195 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-26090 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 48047A - BOLT, U(FOR REAR SPRING LH) | ||||
| 90117-14078 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN L=195 |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 48457-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 48457-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
4 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-26290 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-26290 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
4 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48442-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80819 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) MARK 48531-26A30 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
GDH322..N;GDH300..5D;GRH300..GCC;GDH322..6FC..Q..GEN;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH300,GRH300..4D..(GEN,TH);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
GDH322..N;GDH300..5D;GRH300..GCC;GDH322..6FC..Q..GEN;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH300,GRH300..4D..(GEN,TH);GDH301,321,328,GRH301,321,322..(N,Q)..(GCC,GEN,PH) |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19013 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19013 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19013 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19013 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80819 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GRH300..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) MARK 48531-26A30 |
1 | ||
| Common parts | ||||
| 90105-14207 | ||||
| 90105-14208 | ||||
| 90105-16098 | ||||
| 90119-12088 | ||||
| 90178-T0061 | ||||
| 90178-T0101 | ||||
| 90201-17010 | ||||
| 90387-14050 | ||||
| 91673-80820 | ||||
| 94151-21401 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-51400 | ||||
