7156 - FRONT SEAT & SEAT TRACK

GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999

Engine 1GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1907- )RHD..H

Click highlighted areas on diagram

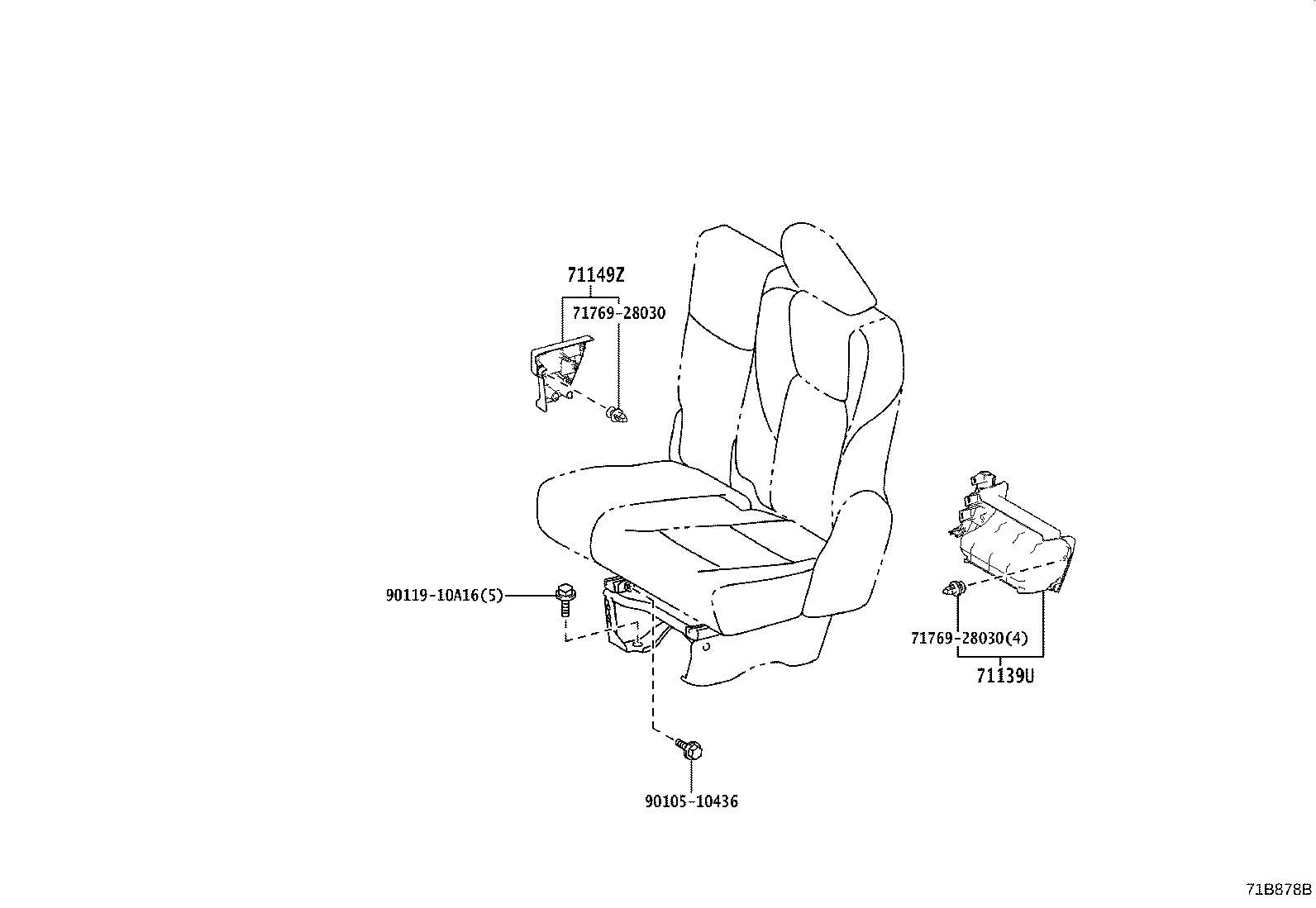

FITTIN PARTS(*PAS:SLIDE TYPE) LH

Part #	Description	Period	Qty
71139U - COVER, FRONT SEAT LEG, REAR LH
71139-26140B0	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
Common parts
71769-28030
90105-10436
90119-10A16

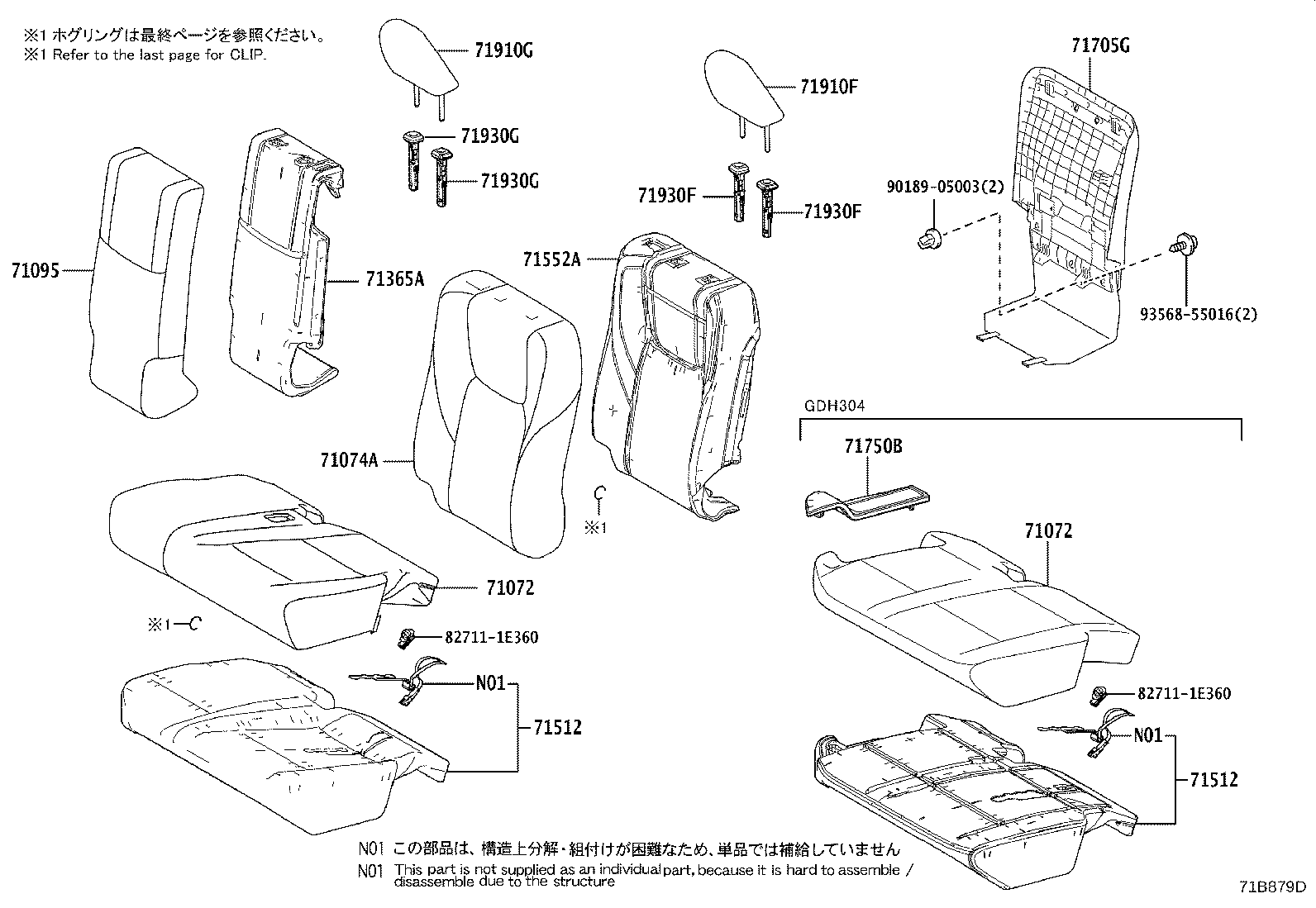

ILLUST NO. 1 OF 3(1907- )RHD..H

Click highlighted areas on diagram

LH:BENCH TYPE(COVER & PAD)

Part #	Description	Period	Qty
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-26C40B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL GRAY,TRIM1#	02/2019 - 06/2021	1
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-26C40B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL GRAY,TRIM1#	02/2019 - 06/2021	1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-26A80B3	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL GRAY,TRIM1#	02/2019 - 06/2021	1
71512 - PAD, FRONT SEAT CUSHION, LH
71502-26180	GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71512 - PAD, FRONT SEAT CUSHION, LH
71502-26180	GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71552A - PAD, FRONT SEAT BACK, LH
71552-26150	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-26610B2	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MEDIUM GRAY,TRIM1#	02/2019 - 06/2021	1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-47050C5	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71931-47030C4	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W/O(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-47050C5	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71931-47030C4	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W/O(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
Common parts
82711-1E360
90189-05003
93568-55016

ILLUST NO. 1 OF 2(1907- )RHD..G,J

Click highlighted areas on diagram

LH:SEPARATE TYPE

Part #	Description	Period	Qty
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-26C40B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL GRAY,TRIM1#	02/2019 - 06/2021	1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-26A80B3	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL GRAY,TRIM1#	02/2019 - 06/2021	1
71512 - PAD, FRONT SEAT CUSHION, LH
71502-26180	GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71552A - PAD, FRONT SEAT BACK, LH
71552-26150	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-26610B2	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MEDIUM GRAY,TRIM1#	02/2019 - 06/2021	1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-47050C5	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71931-47030C4	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W/O(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-47050C5	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
71931-47030C4	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL W/O(LOCK),BLACK,TRIM1#	02/2019 - 06/2021	1
Common parts
82711-1E360
90189-05003
90467-07220
93568-55016

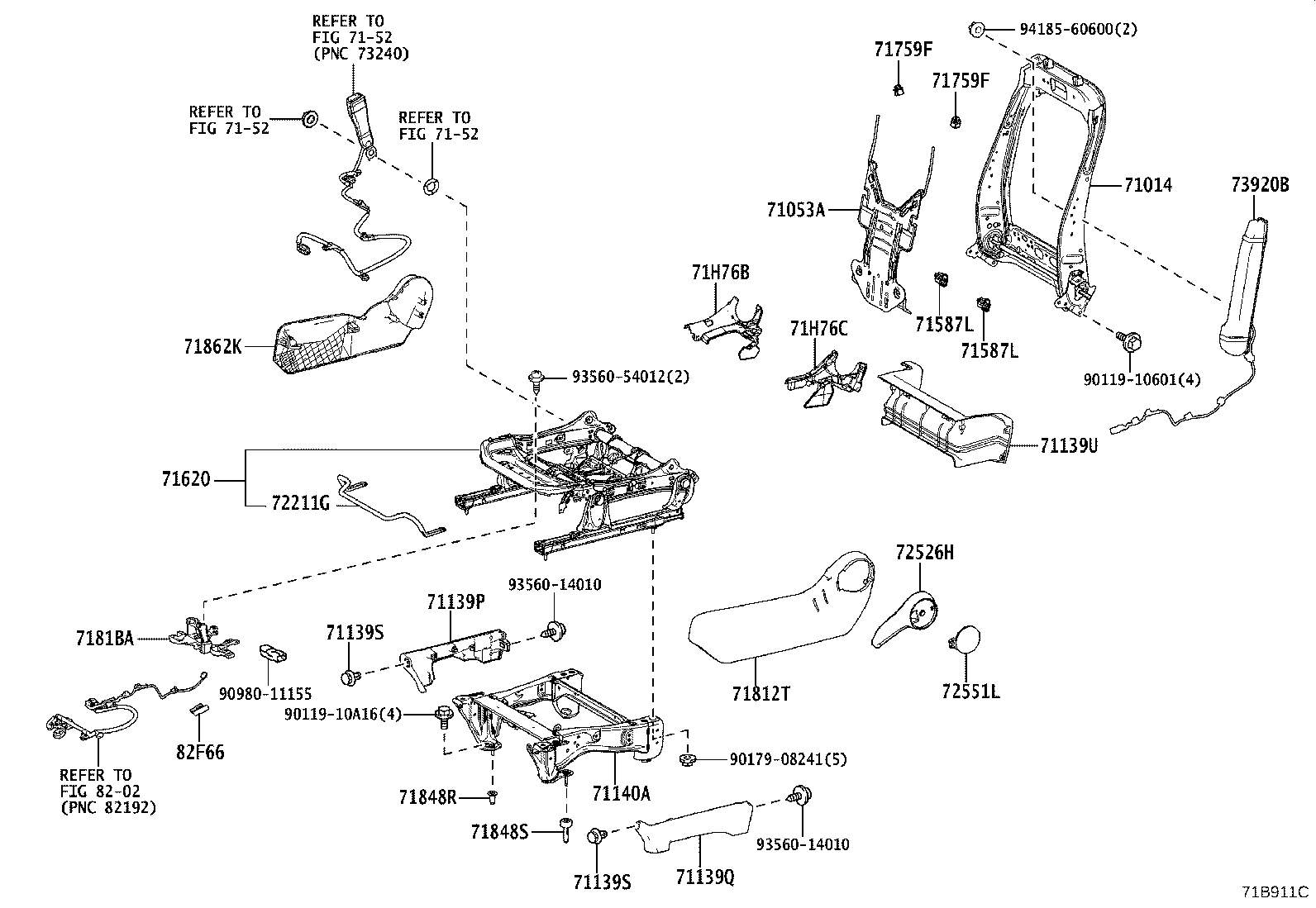

ILLUST NO. 2 OF 2(1907- )RHD..G,J

Click highlighted areas on diagram

LH:SEPARATE TYPE

Part #	Description	Period	Qty
71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26240	GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL	02/2019 - 06/2021	1
71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-47050	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71139-26180B0	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-26230B0	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
71139S - CLIP, FRONT SEAT LEG COVER, LH
90467-07220	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
71139S - CLIP, FRONT SEAT LEG COVER, LH
90467-07220	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
71139U - COVER, FRONT SEAT LEG, REAR LH
71139-26140B0	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
71140A - LEG ASSY, FRONT SEAT, LH
71140-26130	GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL	02/2019 - 06/2021	1
71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH
71587-47010	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH
71587-47010	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	2
71620 - SPRING ASSY, FRONT SEAT CUSHION, LH
71620-26070	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL	02/2019 - 06/2021	1
71759F - HOOK, FRONT SEAT BACK, LH
71759-52050	GDH301..NZ,TH;GDH300,320,GRH300,320..ARL,GCC;GDH301,321,322,328,GRH301,321,322..N,P,Q;GDH30#,320,322,GRH30#,320,322..LHD..D..GEN	02/2019 - 06/2019	2
71759-50040	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	06/2019 - 06/2021	2
71759F - HOOK, FRONT SEAT BACK, LH
71759-52050	GDH301..NZ,TH;GDH300,320,GRH300,320..ARL,GCC;GDH301,321,322,328,GRH301,321,322..N,P,Q;GDH30#,320,322,GRH30#,320,322..LHD..D..GEN	02/2019 - 06/2019	2
71759-50040	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	06/2019 - 06/2021	2
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-26500B0	GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
7181BA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-47010	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1
71848-26030	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
71848S - CAP, FRONT SEAT ADJUSTER COVER, LH NO.2
71848-33010	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26060B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
71H76B - COVER, RECLINING ADJUSTER INSIDE, LH INNER(FOR LH SEAT)
71876-42070B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-42060B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
72211G - HANDLE, SEAT TRACK ADJUSTING, LH
72211-26120	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26100B0	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
72551L - COVER, RECLINING HINGE, LH
72551-47030B1	GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL MD.GRAY,TRIM1#	02/2019 - 06/2021	1
73920B - AIR BAG ASSY, FRONT SEAT, LH
73920-26020	GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL	02/2019 - 06/2021	1
82F66 - HOLDER, CONNECTOR
82666-47630	GRH303..LHD..G;GDH320..6F..ARL;GRH300,303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)	02/2019 - 06/2021	1
Common parts
90119-10601
90119-10A16
90179-08241
90980-11155
93560-14010
93560-54012
94185-60600
Linked diagrams
7152
8202
