GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )GDH300,301,320,321,322,GRH300,301,32#..RHD..SG,SP

Click highlighted areas on diagram

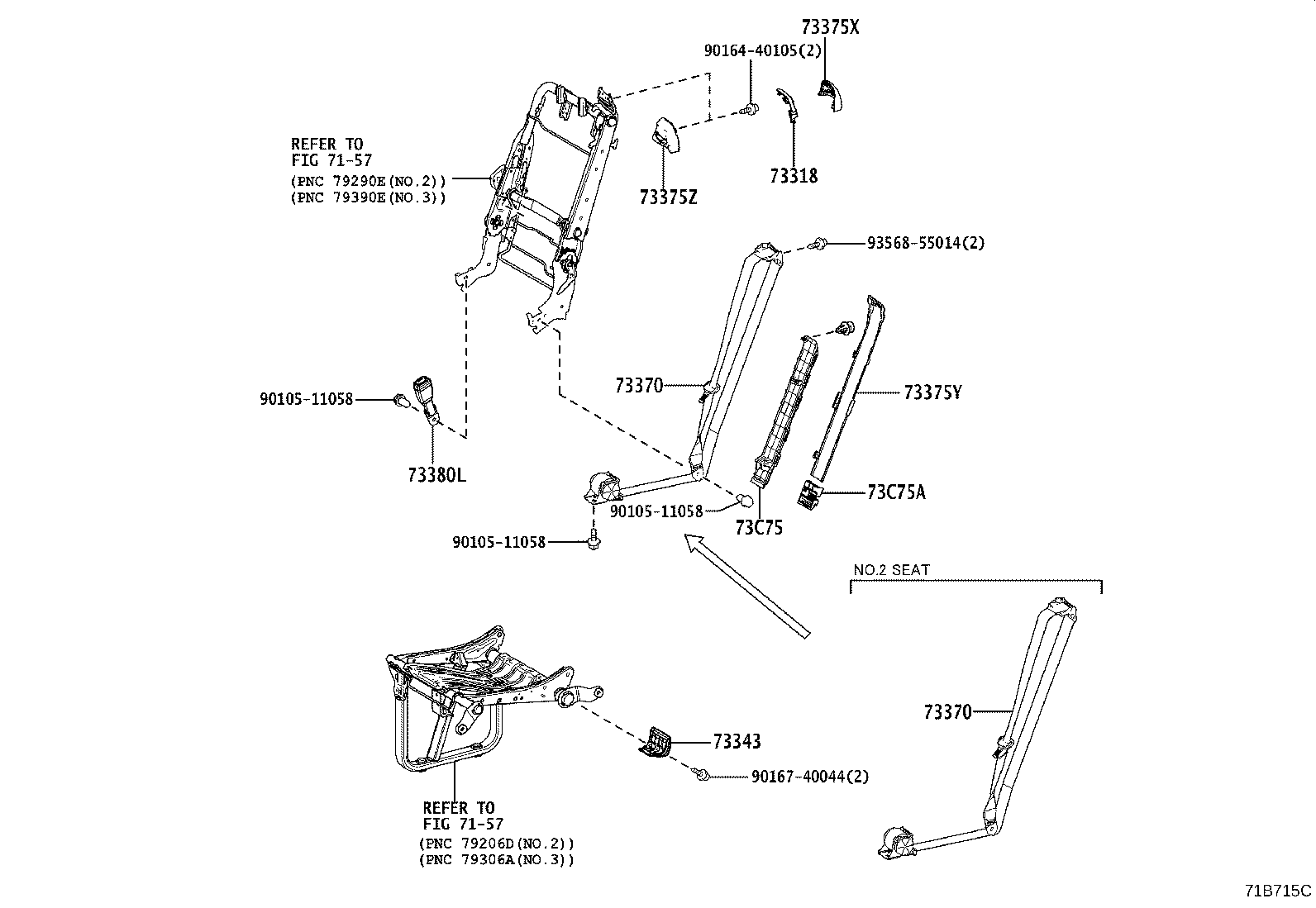

NO.2-NO.3 SEAT:FOR 1 PERSONS W(*45)

diagram 7157 7157 73318 73343 73370 73370 73375X 73375Y 73375Z 73380L 73C75 73C75A 9010511058 9010511058 9010511058 9016440105 9016740044 9356855014
Part # Description Qty Price
Common parts
90105-11058
90164-40105
90167-40044
93568-55014
Linked diagrams
7157

(1903- )GDH300,301,320,322,GRH300,301,32#..RHD..SG,SP

Click highlighted areas on diagram

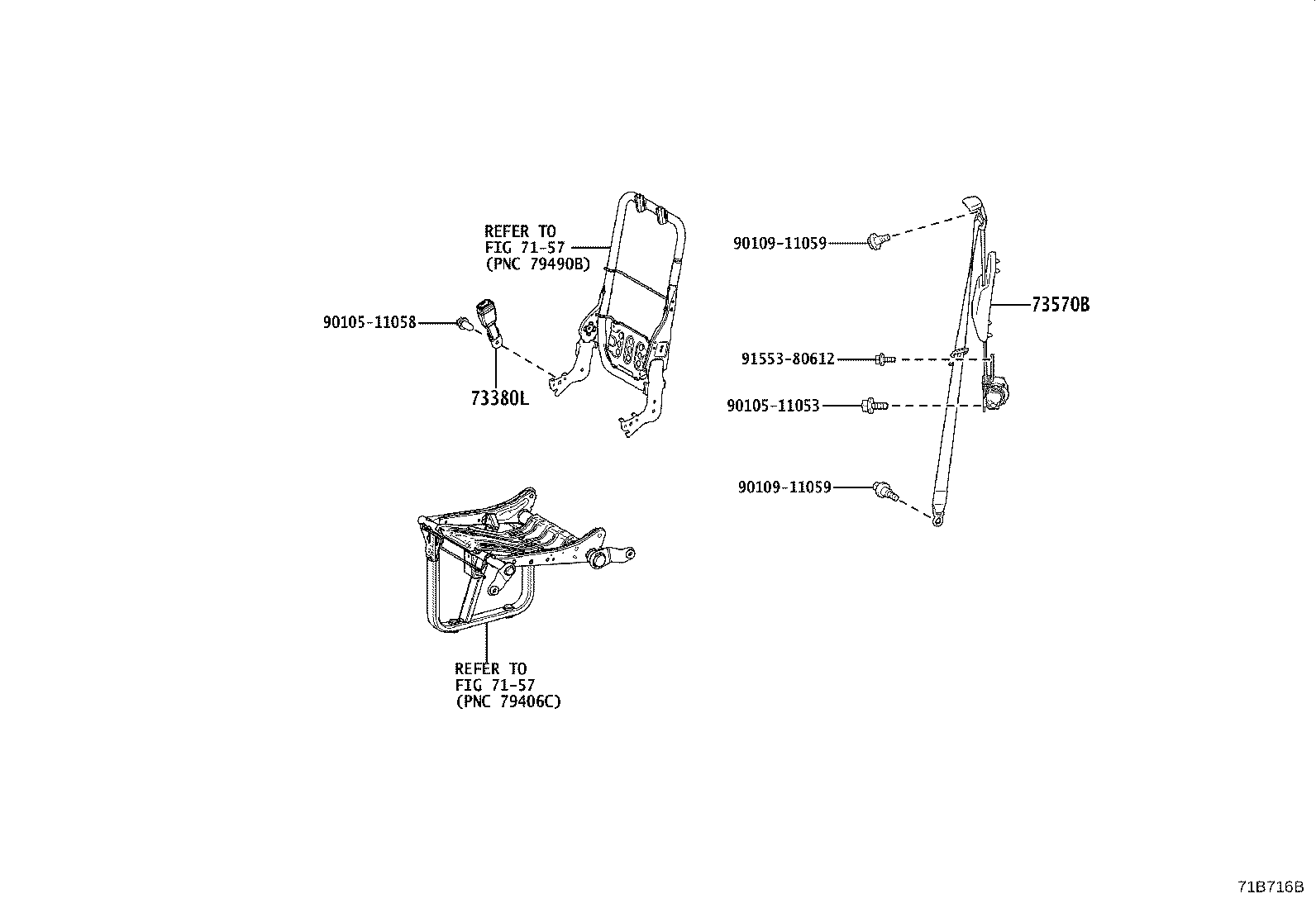

NO.4 LAST-ROW SEAT:1 PERSONS W(*45)

diagram 7157 7157 73380L 73570B 9010511053 9010511058 9010911059 9010911059 9155380612
Part # Description Qty Price
Common parts
90105-11053
90105-11058
90109-11059
91553-80612
Linked diagrams
7157

(1903- )GDH300,301,320,321,322,GRH300,301,32#..RHD..SG,SP

Click highlighted areas on diagram

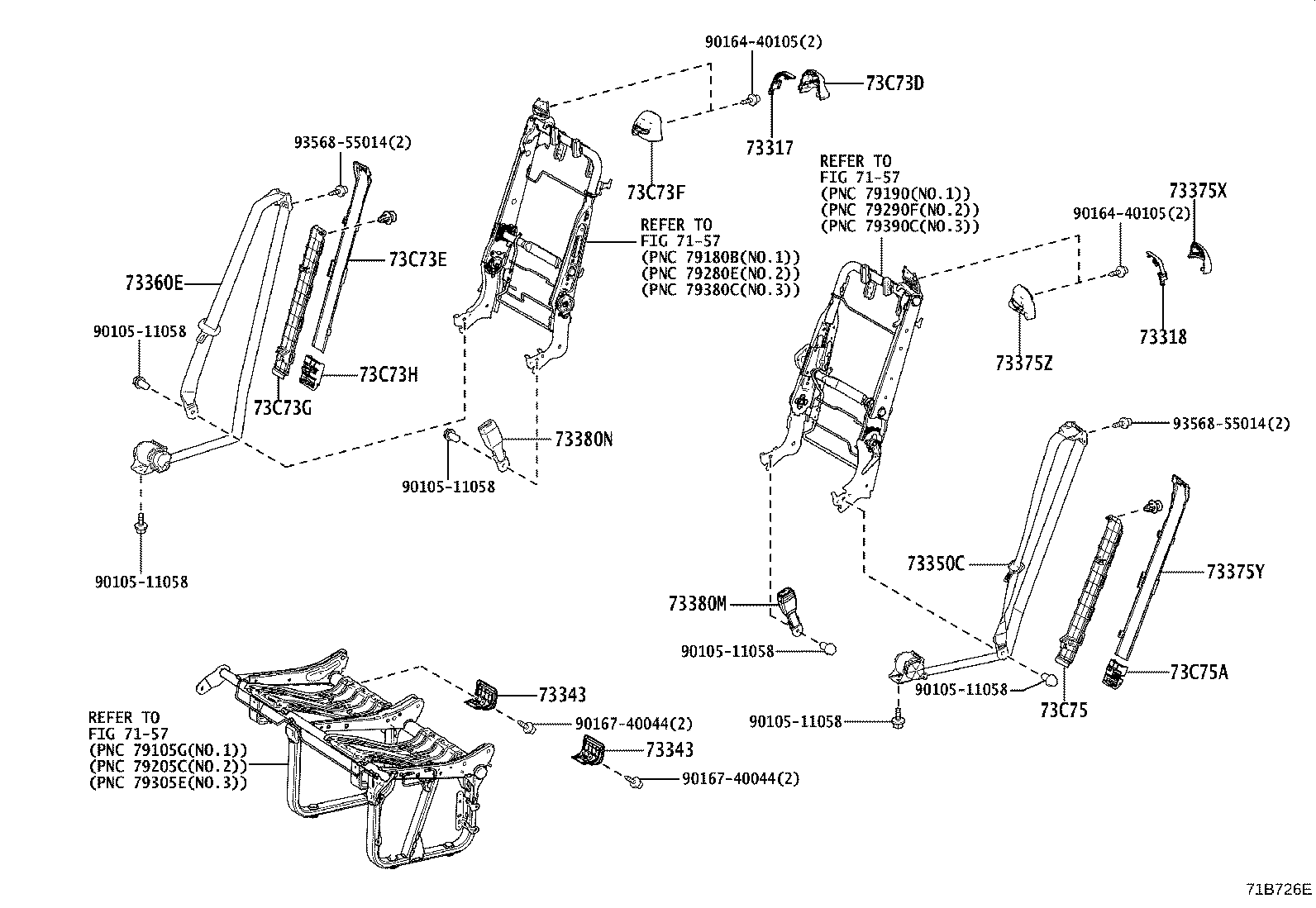

NO.1-NO.3 SEAT:FOR 2 PERSONS W(*45)

diagram 7157 7157 7157 73317 73318 73343 73343 73350C 73360E 73375X 73375Y 73375Z 73380M 73380N 73C73D 73C73E 73C73F 73C73G 73C73H 73C75 73C75A 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9016440105 9016440105 9016740044 9016740044 9356855014 9356855014
Part # Description Qty Price
Common parts
90105-11058
90164-40105
90167-40044
93568-55014
Linked diagrams
7157

(1907- )RHD..H

Click highlighted areas on diagram

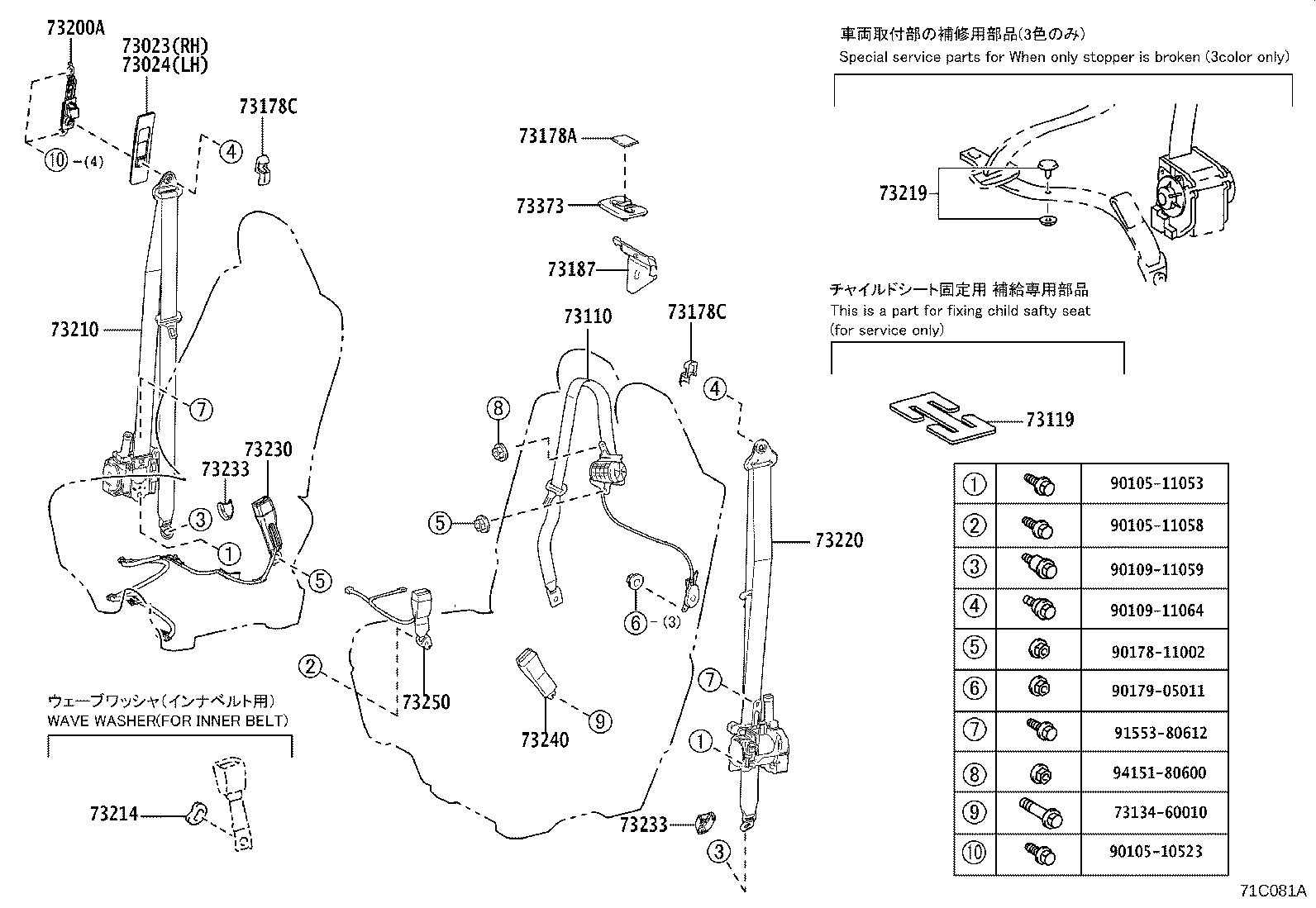

FRONT SEAT(BENCH SEAT TYPE)

diagram 73023 73024 73110 73119 7313460010 73178A 73178C 73178C 73187 73200A 73210 73214 73219 73220 73230 73233 73233 73240 73250 73373 9010510523 9010511053 9010511058 9010911059 9010911064 9017811002 9017905011 9155380612 9415180600
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020B0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

LT.GRAY,TRIM11

 1
73023-12020A0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

FROMAGE,TRIM11

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

FROMAGE,TRIM11

 1
73023-12020B0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

LT.GRAY,TRIM11

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

FROMAGE,TRIM11

 2
73178-26010B0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

LT.GRAY,TRIM11

 2
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

FROMAGE,TRIM11

 2
73178-26010B0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

LT.GRAY,TRIM11

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030A0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

FROMAGE,TRIM11

 2
73200-26030B0

GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

LT.GRAY,TRIM11

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26780B0

GDH300,320,GRH300,320..ARL

BLACK/LT.GRAY,TRIM1#

 1
73210-26780B0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK/LT.GRAY,TRIM11

 1
73210-26780A0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK/FROMAGE,TRIM11

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

GRH303..LHD..G;GDH320..6F..ARL;GRH300,303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
73219 - STOPPER, TONGUE PLATE
73219-33020

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

GRAY

 1
73219-33010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

BLACK

 1
73219-33030

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26540B0

GDH300,320,GRH300,320..ARL

BLACK/LT.GRAY,TRIM1#

 1
73220-26540A0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK/FROMAGE,TRIM11

 1
73220-26540B0

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK/LT.GRAY,TRIM11

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26360C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26380C1

GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
Common parts
73134-60010
90105-10523
90105-11053
90105-11058
90109-11059
90109-11064
90178-11002
90179-05011
91553-80612
94151-80600
