GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

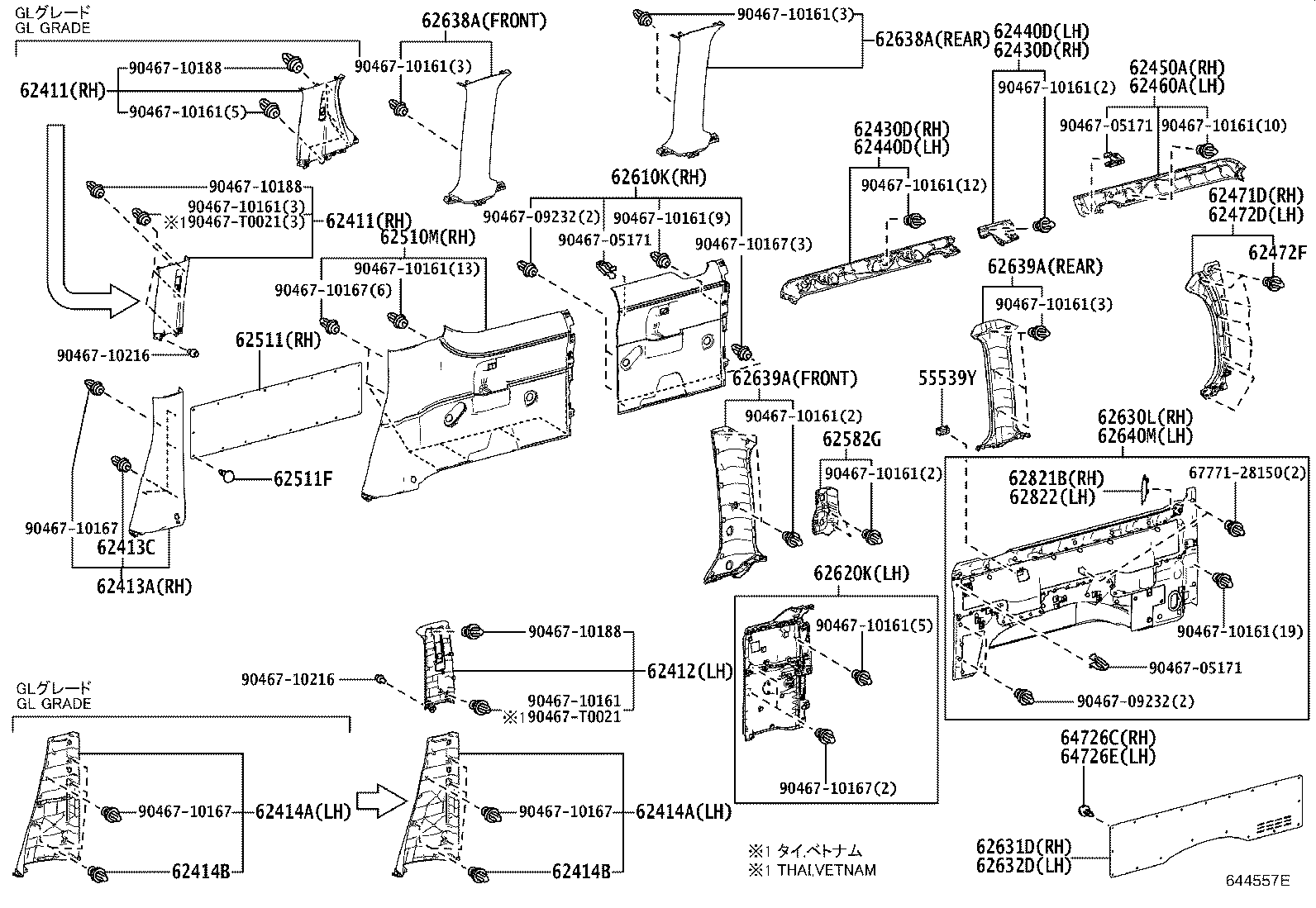

ILLUST NO. 2 OF 4(1903- )GDH321..D..GEN ; (1903- )GDH320,321,322,GRH32#..RHD..SG

Click highlighted areas on diagram

diagram 55539Y 62411 62411 62412 62413A 62413C 62414A 62414A 62414B 62414B 62430D 62430D 62440D 62440D 62450A 62460A 62471D 62472D 62472F 62510M 62511 62511F 62582G 62610K 62620K 62630L 62631D 62632D 62638A 62638A 62639A 62639A 62640M 62821B 62822 64726C 64726E 6777128150 9046705171 9046705171 9046705171 9046709232 9046709232 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710167 9046710167 9046710167 9046710167 9046710167 9046710167 9046710188 9046710188 9046710188 9046710216 9046710216 90467T0021 90467T0021
Part # Description Qty Price
62411 - GARNISH, CENTER PILLAR, RH
62410-26180B0

GRH321..P;GDH320..SG..6F..ARL;GDH322..RHD..P..GEN

LT.GRAY,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26180B0

GRH321..P;GDH320..SG..6F..ARL;GDH322..RHD..P..GEN

LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26180B0

GDH320..6F..ARL;GDH322..RHD..P..GEN;GRH320,321..(D,P)..ARL

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26320C0

GDH322..RHD..P..GEN;GDH300,320..4D..6F..ARL;GRH300,321..4D..(D,P)..ARL

BLACK,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..P..GEN;GDH306,GRH321..RHD..(G,J,P);GRH300,303..LHD..5D..(D,G)..GEN

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26480C0

GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26480C0

GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL

BLACK,TRIM1#

 1
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..(P,Q)..GEN;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 4
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..(P,Q)..GEN;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 4
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-26470

GDH320..SG..6F..ARL

 1
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-26250E1

GDH320..SG..6F..ARL

OCHER,TRIM1#

 18
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26A80

GRH320..ARL;GDH320..6F..ARL

 1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26B70

GRH320..ARL;GDH320..6F..ARL

 1
64726C - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GRH320..ARL;GDH320..6F..ARL

OCHER,TRIM1#

 19
64726E - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GRH320..ARL;GDH320..6F..ARL

OCHER,TRIM1#

 19
Common parts
67771-28150
90467-05171
90467-09232
90467-10161
90467-10167
90467-10188
90467-10216
90467-T0021
