GDH320R-EDFDYQ (2019)
Toyota Hiace

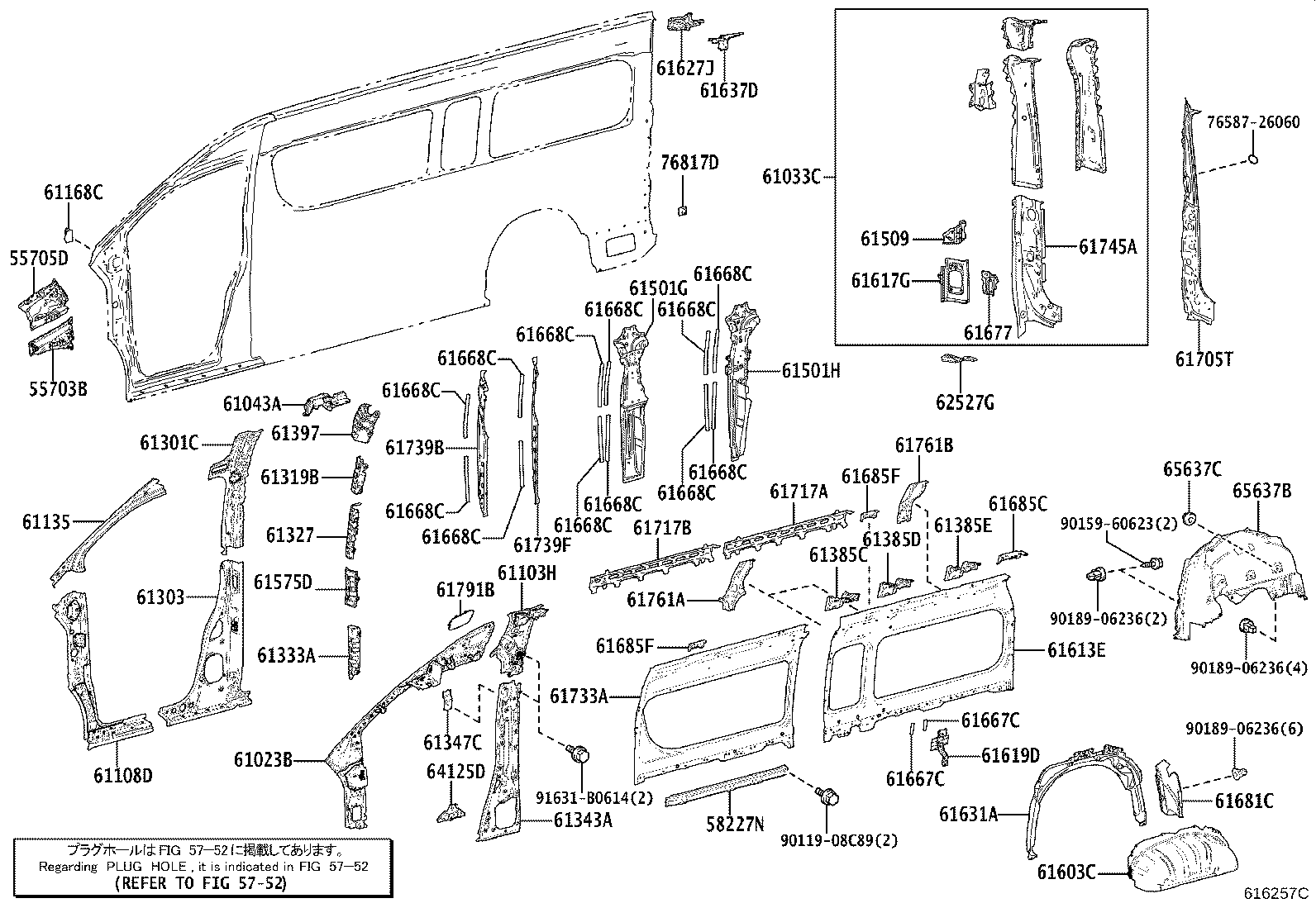

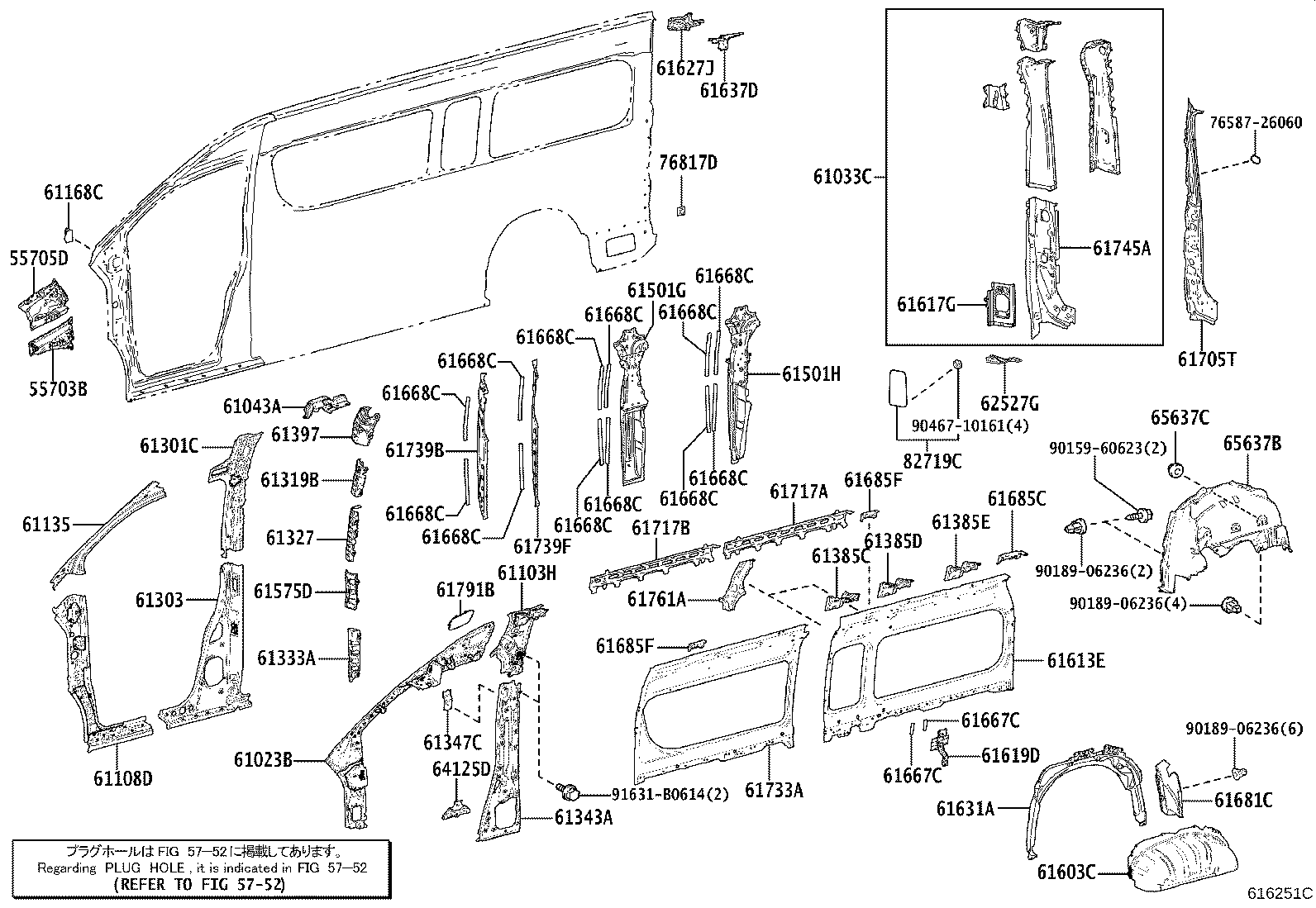

ILLUST NO. 2 OF 3(1903- )GDH320,GRH320..RHD..SG
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26220 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26620 |
GDH320..SG..6F..ARL |
1 | ||
| 61043A - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH | ||||
| 61043-26020 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26130 |
GDH320..SG..6F..ARL |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-26530 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GDH306..RHD;GRH303..LHD..G;GRH303,320..ARL;GDH320..SP..6F..ARL;GRH300..5D..(ARL,GEN) |
1 | ||
| 61303-26080 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-26020 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61327-26060 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61333A - BASE, CENTER BODY PILLAR COVER, RH | ||||
| 61333-26010 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26560 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..SG..6F..ARL |
1 | ||
| 61385D - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61385E - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-26080 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26280 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 61501H - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26380 |
GDH320..SG..6F..ARL |
1 | ||
| 61575D - PLATE, NO.4 PILLAR, OUTER RH | ||||
| 61575-26010 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26L10 |
GDH320..SG..6F..ARL |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26040 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26171 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26100 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26071 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61685F - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26050 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61685F - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26050 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26340 |
GRH320,321..ARL;GDH320..6F..ARL |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26120 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61717B - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26100 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-26240 |
GDH320..SG..6F..ARL |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26050 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61739F - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26060 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26130 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,Q) BLACK |
11 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||

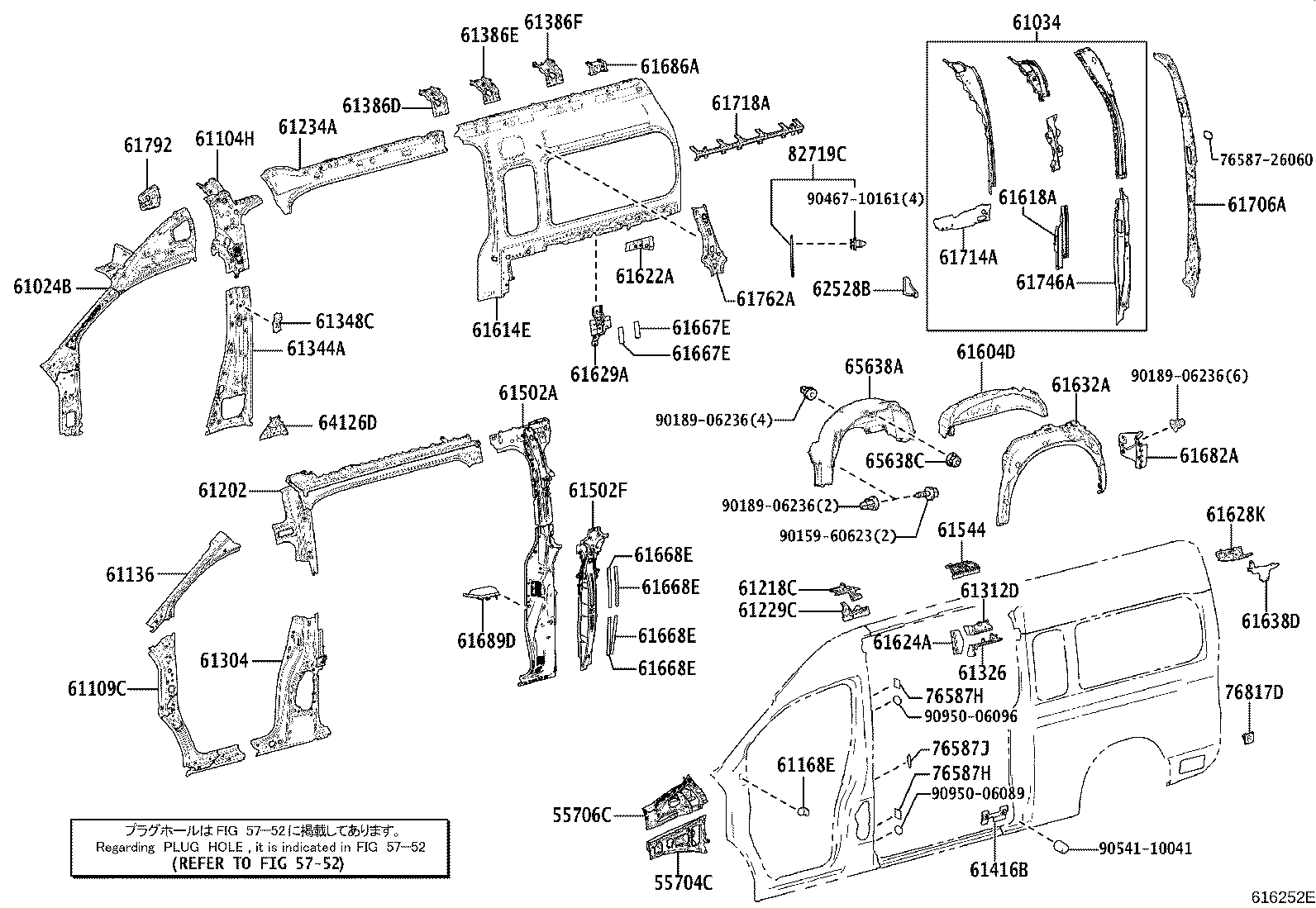

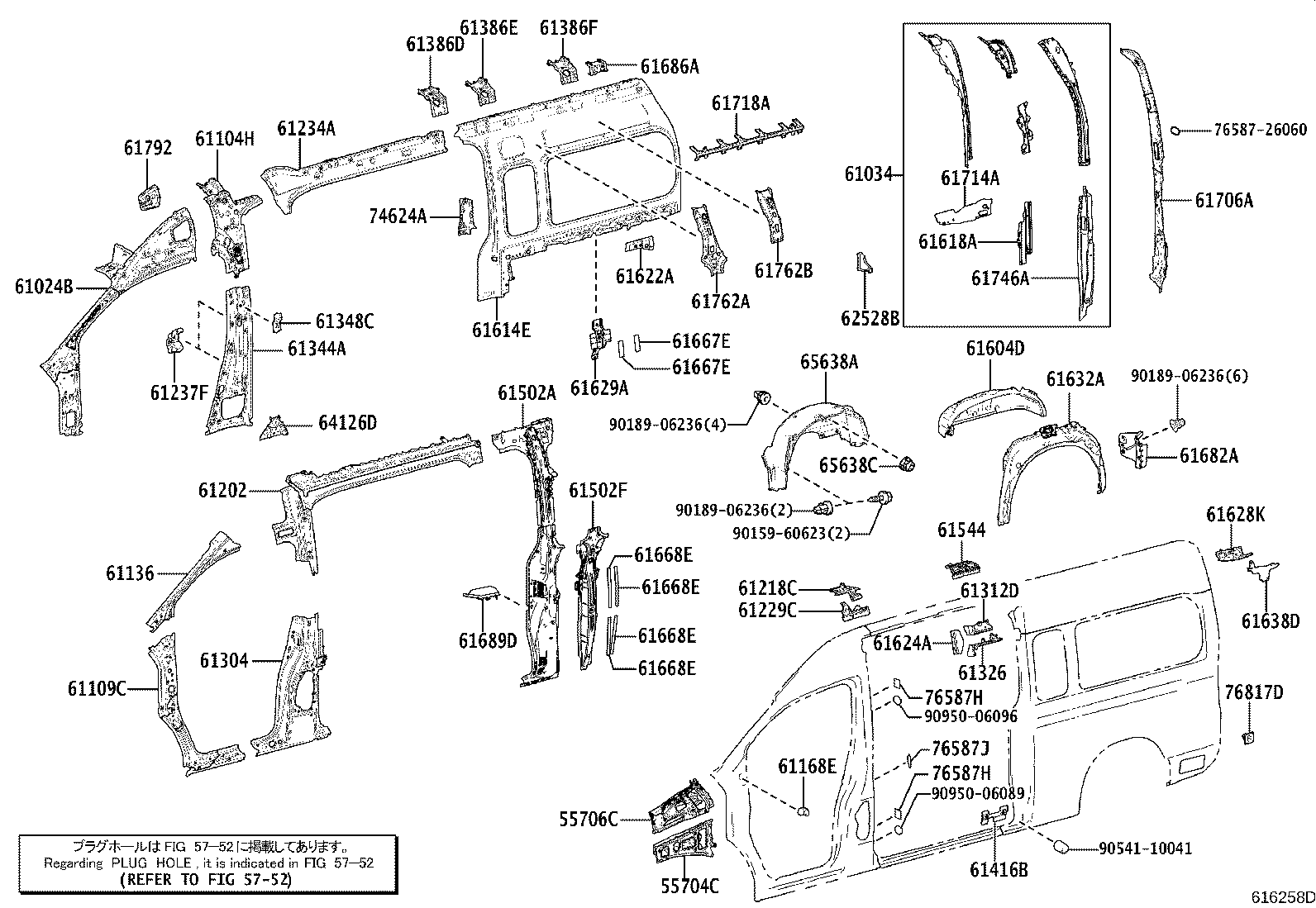

ILLUST NO. 2 OF 3(1903- )GDH320,GRH320..RHD..SG
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26210 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26660 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26130 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26110 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26440 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61312D - PANEL, REAR BODY, FRONT OUTSIDE LH | ||||
| 61312-26160 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61326 - REINFORCEMENT, CENTER BODY PILLER, CENTER LH | ||||
| 61326-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26490 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61386E - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61386F - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26340 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61502F - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26360 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61544 - PANEL, REAR UPPER SIDE INNER CORNER, LH | ||||
| 61544-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26160 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K20 |
GDH320..SG..6F..ARL |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26070 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 61622A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61622-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26131 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26100 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26061 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26330 |
GRH320,321..ARL;GDH320..6F..ARL |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26130 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH320..6F..ARL;GDH306,GRH321..RHD;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,Q) BLACK |
11 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1903- )N,Q..ARL,IDN
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26220 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26620 |
GDH320..SG..6F..ARL |
1 | ||
| 61043A - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH | ||||
| 61043-26020 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26130 |
GDH320..SG..6F..ARL |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-26530 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26060 |
GDH306..RHD;GRH303..LHD..G;GRH303,320..ARL;GDH320..SP..6F..ARL;GRH300..5D..(ARL,GEN) |
1 | ||
| 61303-26080 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-26020 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61327-26060 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61333A - BASE, CENTER BODY PILLAR COVER, RH | ||||
| 61333-26010 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26560 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..SG..6F..ARL |
1 | ||
| 61385D - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61385E - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-26080 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26280 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 61501H - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26380 |
GDH320..SG..6F..ARL |
1 | ||
| 61575D - PLATE, NO.4 PILLAR, OUTER RH | ||||
| 61575-26010 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26L10 |
GDH320..SG..6F..ARL |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26040 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26171 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26100 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26071 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH320,322,GRH32#..RHD..SG |
10 | ||
| 61667-26360 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
4 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61685F - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26050 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61685F - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26050 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26340 |
GRH320,321..ARL;GDH320..6F..ARL |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26120 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61717B - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26100 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-26240 |
GDH320..SG..6F..ARL |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26050 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61739F - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26060 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26130 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
2 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,Q) BLACK |
11 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90119-08C89 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1903- )Q..ARL
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26210 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26660 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26130 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26110 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26440 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61312D - PANEL, REAR BODY, FRONT OUTSIDE LH | ||||
| 61312-26160 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61326 - REINFORCEMENT, CENTER BODY PILLER, CENTER LH | ||||
| 61326-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26490 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61386E - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61386F - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61385-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26340 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61502F - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26360 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 61544 - PANEL, REAR UPPER SIDE INNER CORNER, LH | ||||
| 61544-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26160 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K20 |
GDH320..SG..6F..ARL |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26070 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 61622A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61622-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26131 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26100 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321..RHD..(G,J,N) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26061 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61668E - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
2 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26330 |
GRH320,321..ARL;GDH320..6F..ARL |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26130 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61792-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH320..6F..ARL;GDH306,GRH321..RHD;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,321,GRH321..RHD..(G,J,N,Q) BLACK |
11 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
2 | ||
| Common parts | ||||
| 76587-26060 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 3 OF 3(1903- )GDH32#,GRH32#..SG..D,P
SILENCER SHEET & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62621B - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26110 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 62622B - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62623-26010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 62939E - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 67813F - SHEET, QUARTER PANEL SILENCER | ||||
| 67813-26100 |
GDH300,320..4D..6F..ARL;GRH300,321..4D..(D,P)..ARL |
1 | ||

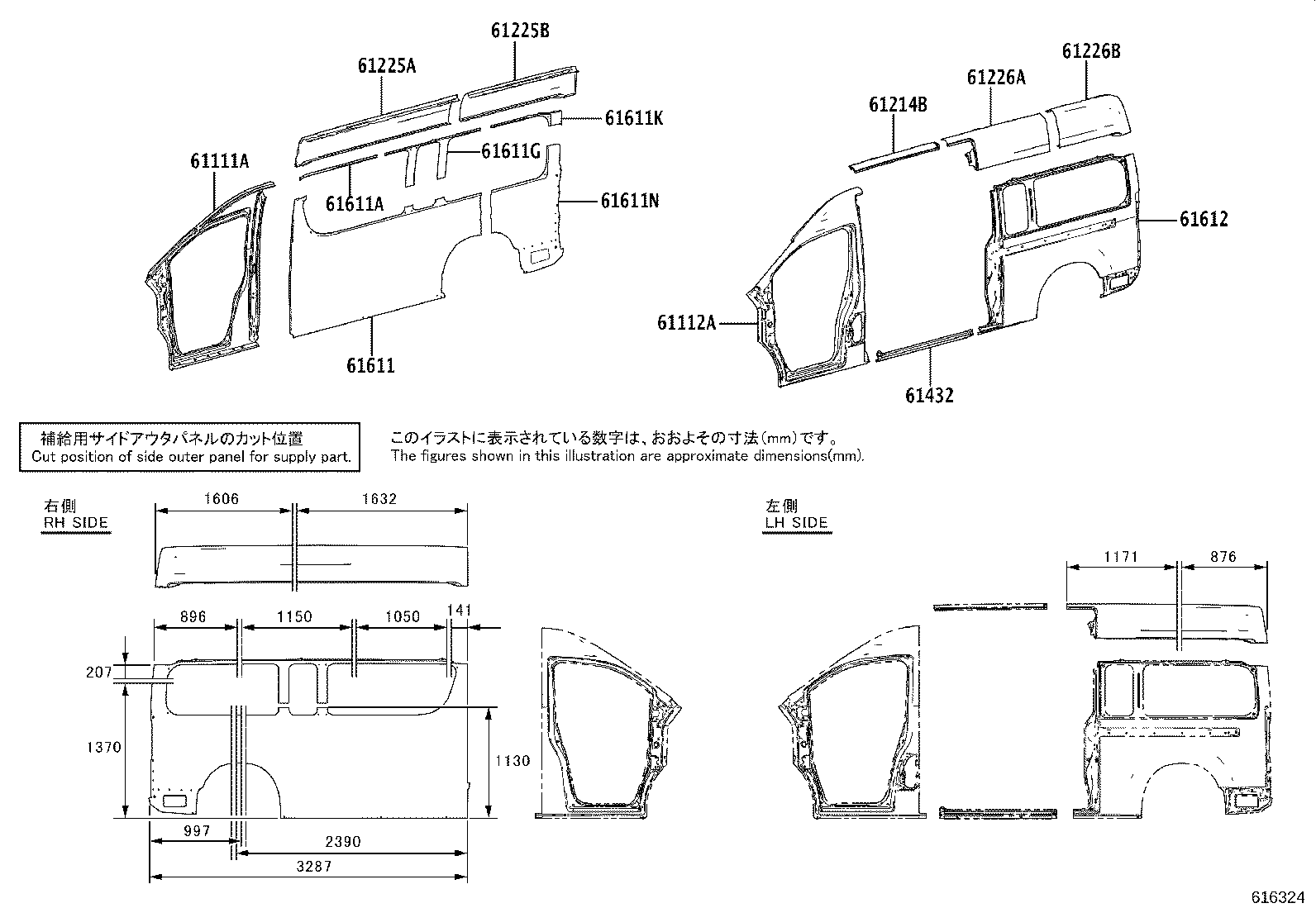

ILLUST NO. 1 OF 3(1903- )GDH320,321,322,GRH32#..RHD..SG
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26480 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-26510 |
GDH320..6F..ARL;GRH320,321..(D,P)..ARL |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-26070 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-26100 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61225B - RAIL, ROOF SIDE OUTER UPPER NO.2, RH | ||||
| 61225-26110 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26120 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61226B - RAIL, ROOF SIDE OUTER UPPER NO.2, LH | ||||
| 61226-26130 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-26030 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26700 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61611A - PANEL, QUARTER, NO.2 RH | ||||
| 61611-26710 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61611G - PANEL, QUARTER, NO.3 RH | ||||
| 61611-26720 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61611K - PANEL, QUARTER, NO.4 RH | ||||
| 61611-26730 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61611N - PANEL, QUARTER, NO.5 RH | ||||
| 61611-26740 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26710 |
GDH320..SG..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
