GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

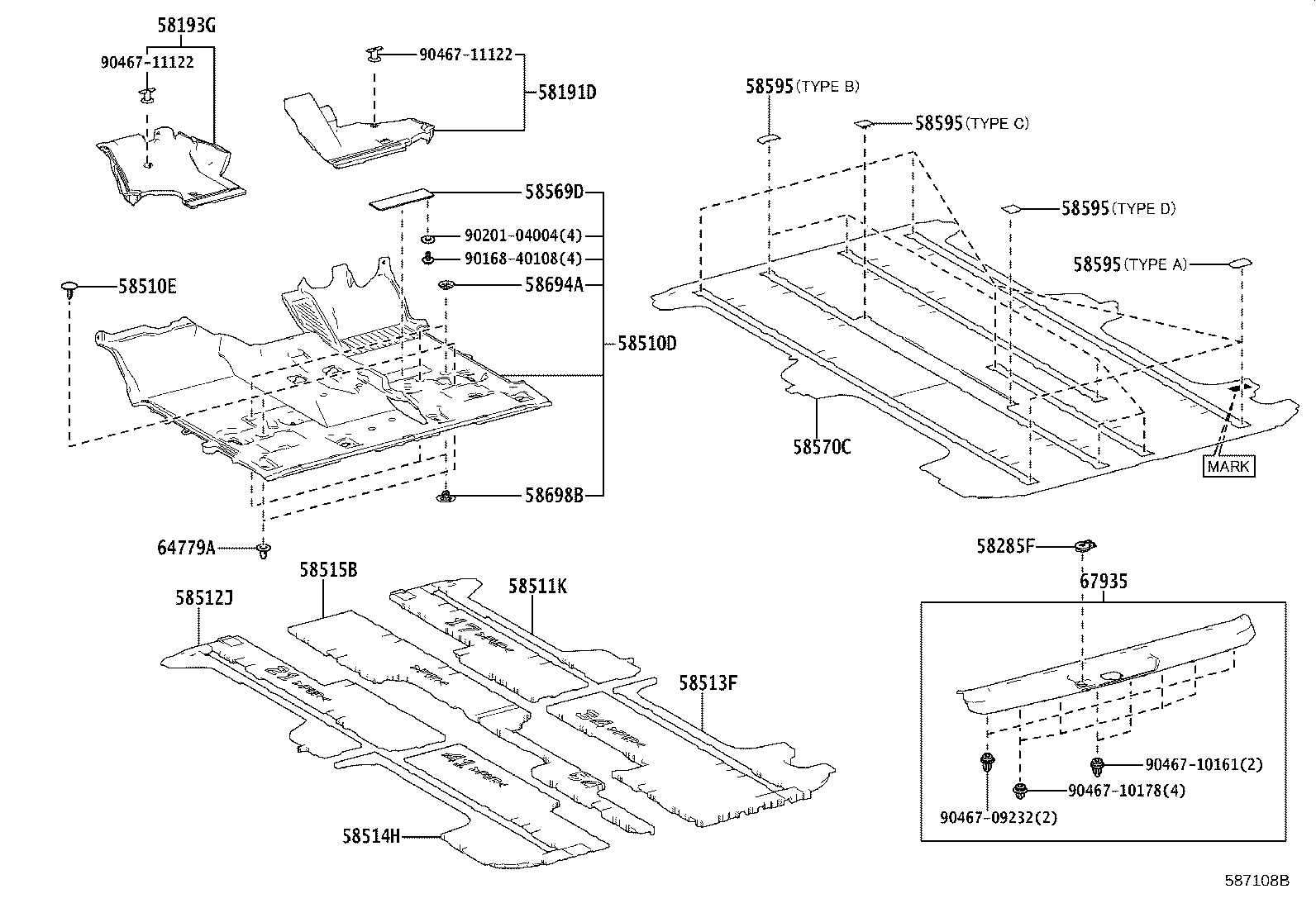

(1907- )RHD..G

Click highlighted areas on diagram

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH320..6F..ARL;GRH300..5D..GEN;GDH322..RHD..P..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH322..RHD..P..GEN;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..(P,Q)..GEN;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122

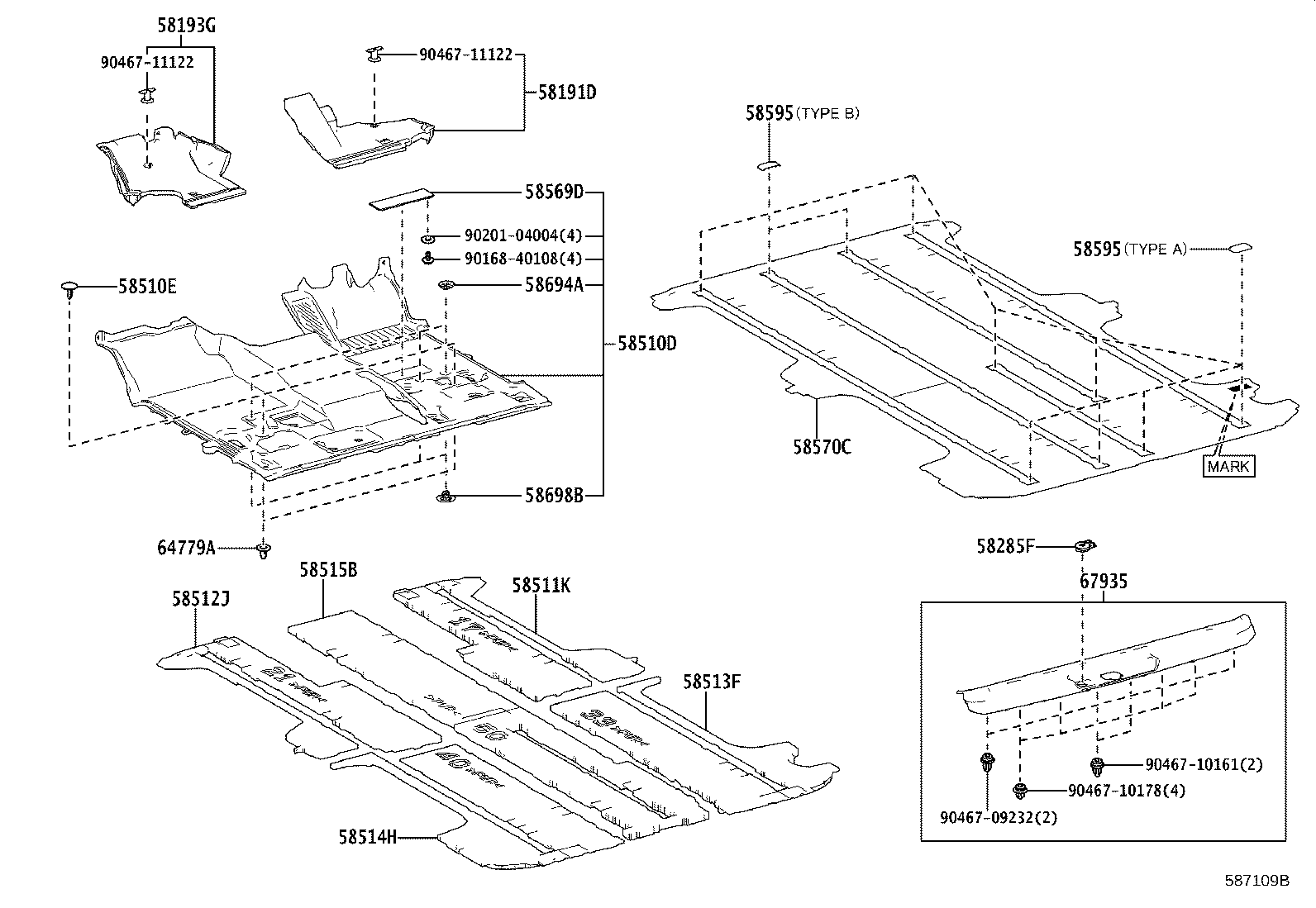

(1907- )RHD..H

Click highlighted areas on diagram

W(TIP UP SEAT)

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH320..6F..ARL;GRH300..5D..GEN;GDH322..RHD..P..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH322..RHD..P..GEN;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..(P,Q)..GEN;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122

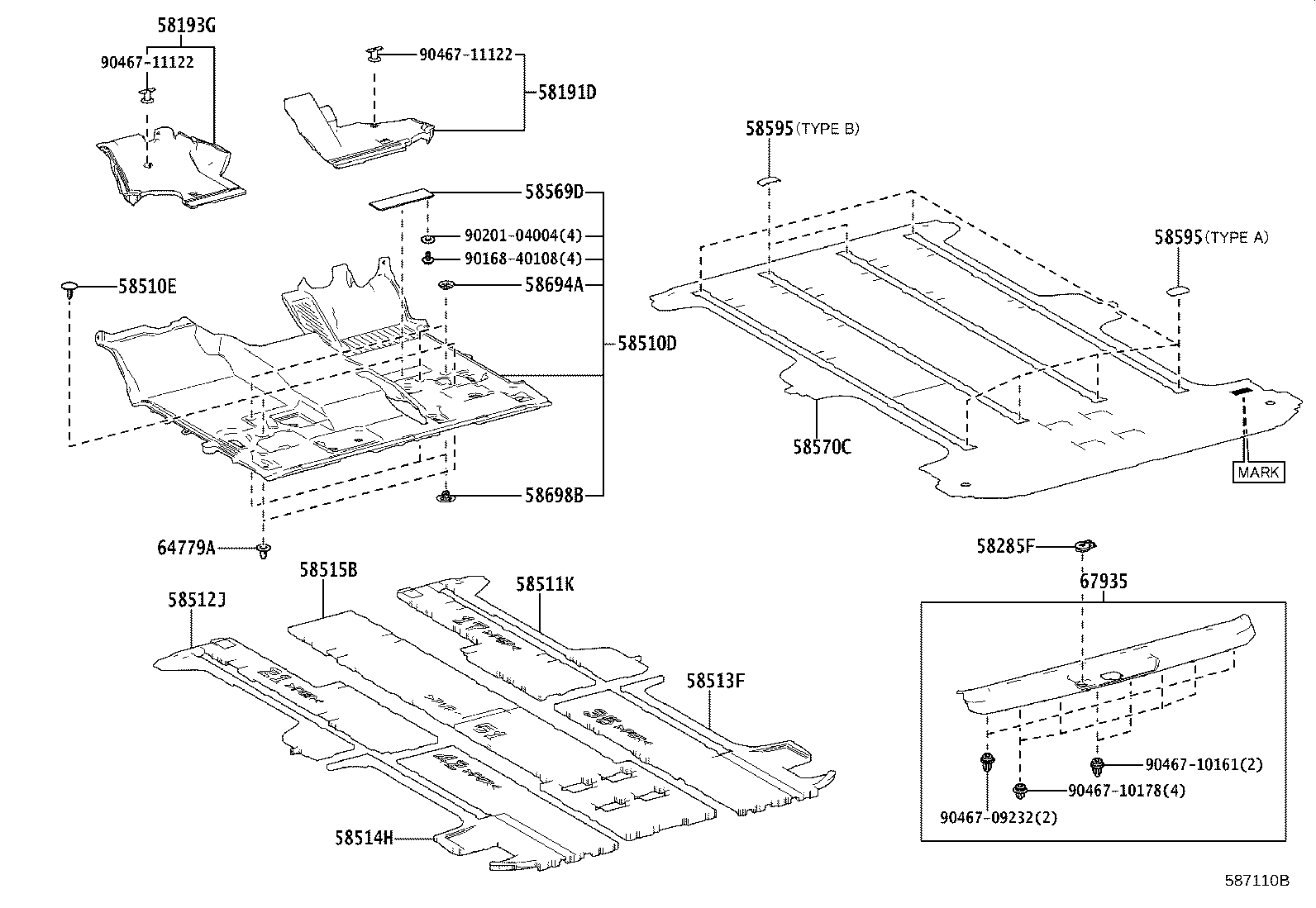

(1907- )RHD..H

Click highlighted areas on diagram

W(SPACE UP SEAT)

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..N..IDN;GDH320..6F..ARL;GRH300,320,321..ARL;GDH300..4D..6F..ARL

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH320..6F..ARL;GRH300..5D..GEN;GDH322..RHD..P..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH322..RHD..P..GEN;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH322..RHD..(P,Q)..GEN;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122
