GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )GDH32#

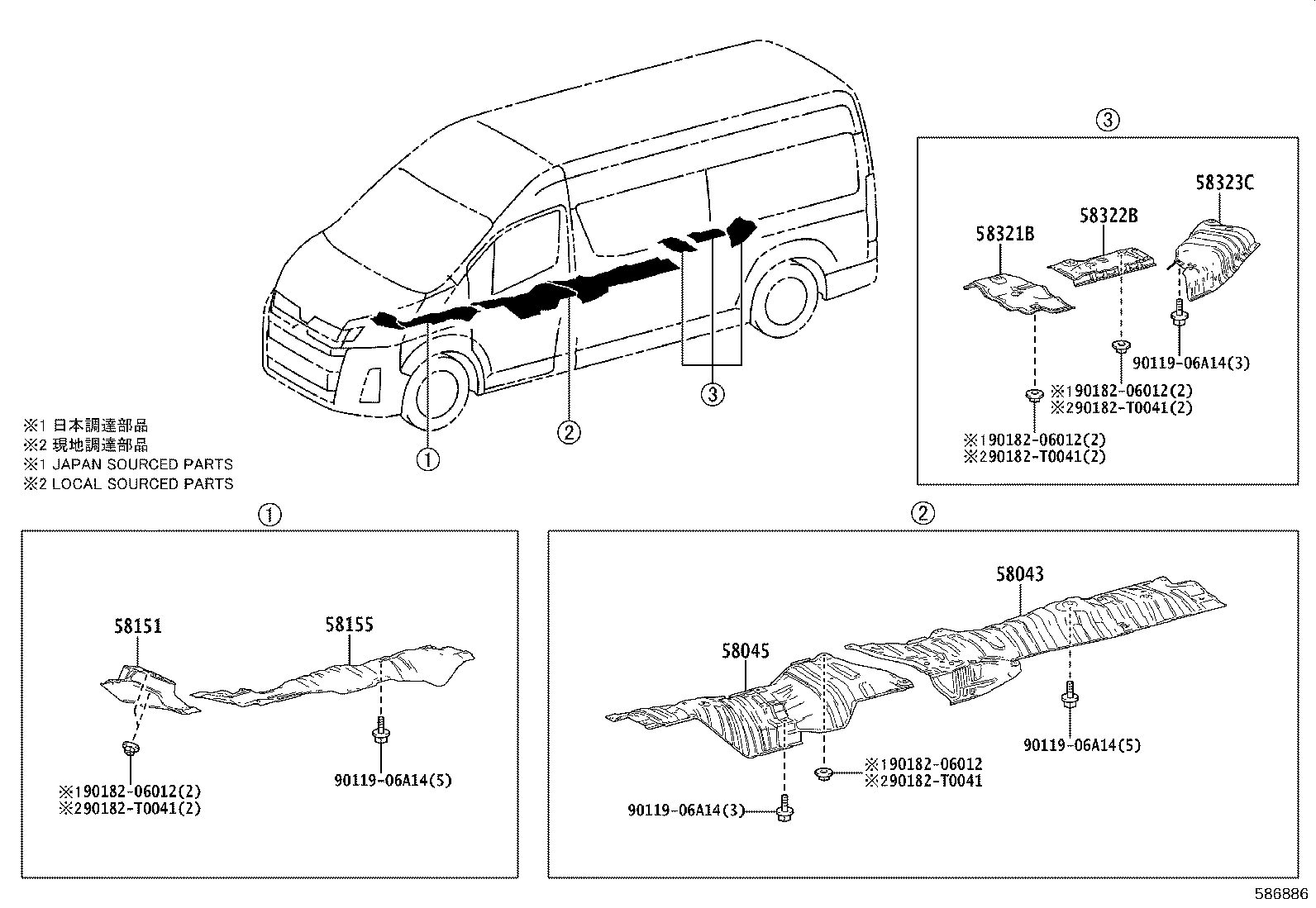

Click highlighted areas on diagram

diagram 58043 58045 58151 58155 58321B 58322B 58323C 9011906A14 9011906A14 9011906A14 9011906A14 9018206012 9018206012 9018206012 9018206012 90182T0041 90182T0041 90182T0041 90182T0041
Part # Description Qty Price
58043 - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR
58043-26020

GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL

 1
58045 - INSULATOR SUB-ASSY, REAR FLOOR HEAT
58045-26040

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-26110

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-26010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-26010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58322B - INSULATOR, REAR FLOOR HEAT, NO.2
58322-26090

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
58323C - INSULATOR, REAR FLOOR HEAT, NO.3
58323-26030

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
Common parts
90119-06A14
90182-06012
90182-T0041
