GDH320R-EDFDYQ (2019)
Toyota Hiace

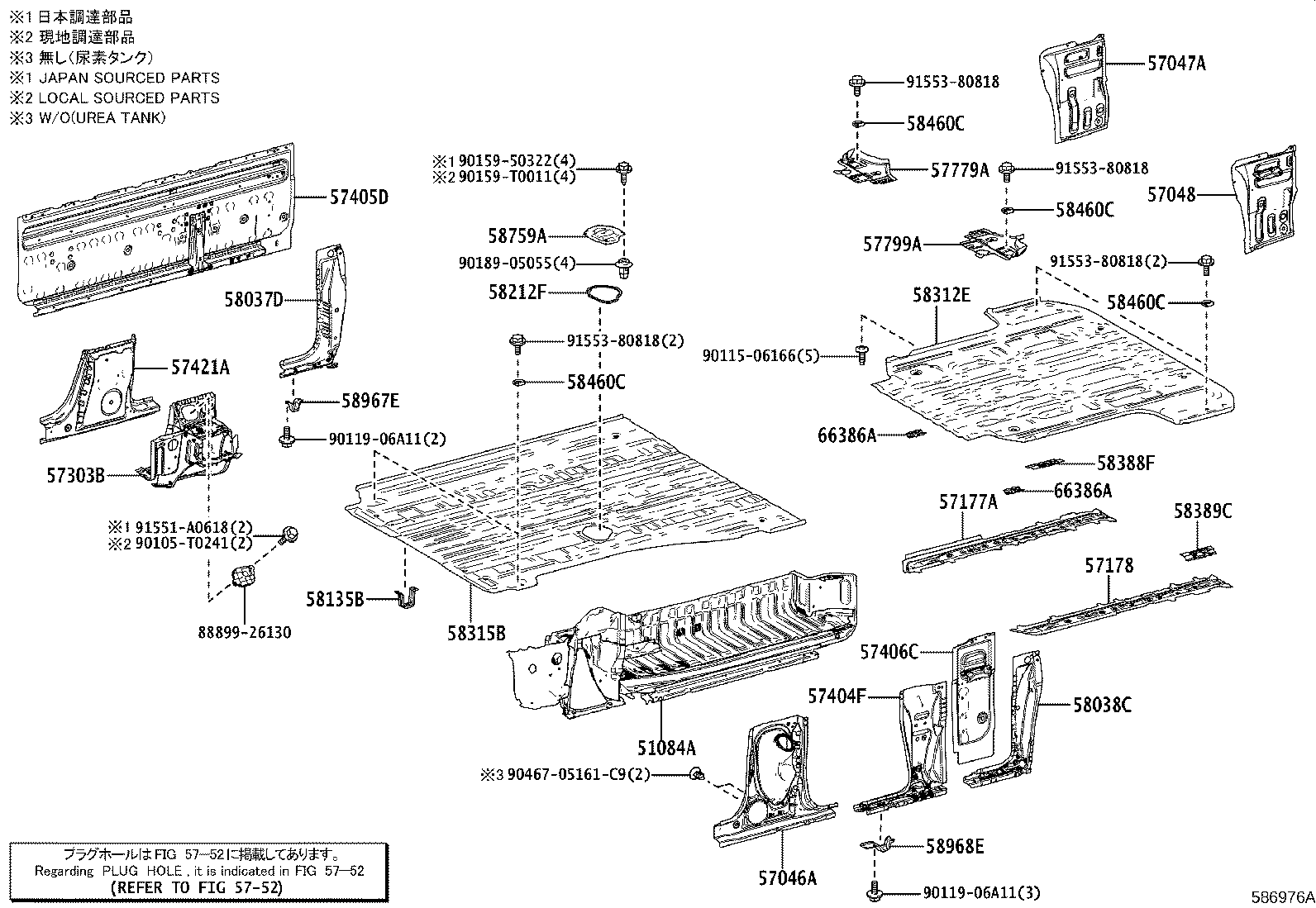

ILLUST NO. 1 OF 2(1903- )GDH320..SG..ARL
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26280 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51084-26270 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26400 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26310 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57048-26420 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-26030 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57303B - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-26260 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 57404F - RAIL SUB-ASSY, FLOOR SIDE, LH | ||||
| 57404-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-26F50 |
GDH320..SG..6F..ARL |
1 | ||
| 57405-26F10 |
GDH320..SG..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-26860 |
GDH320..6F..ARL;GRH320,321..(D,P)..ARL |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GDH306..RHD;GRH303..LHD..G;GRH303,320..ARL;GDH320..SP..6F..ARL;GRH300..5D..(ARL,GEN) |
1 | ||
| 57421-26280 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26110 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26080 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26050 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26590 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26J60 |
GDH320..SG..6F..ARL |
1 | ||
| 58388F - PLATE, FLOOR, REAR RH | ||||
| 58388-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58389C - PLATE, FLOOR, REAR LH | ||||
| 58389-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
6 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
6 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
6 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
6 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GRH300,303..ARL;GDH300,320..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58968-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 66386A - PLATE, ROPE HOOK BAR | ||||
| 66386-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
2 | ||
| 66386A - PLATE, ROPE HOOK BAR | ||||
| 66386-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
2 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| 91551-A0618 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||

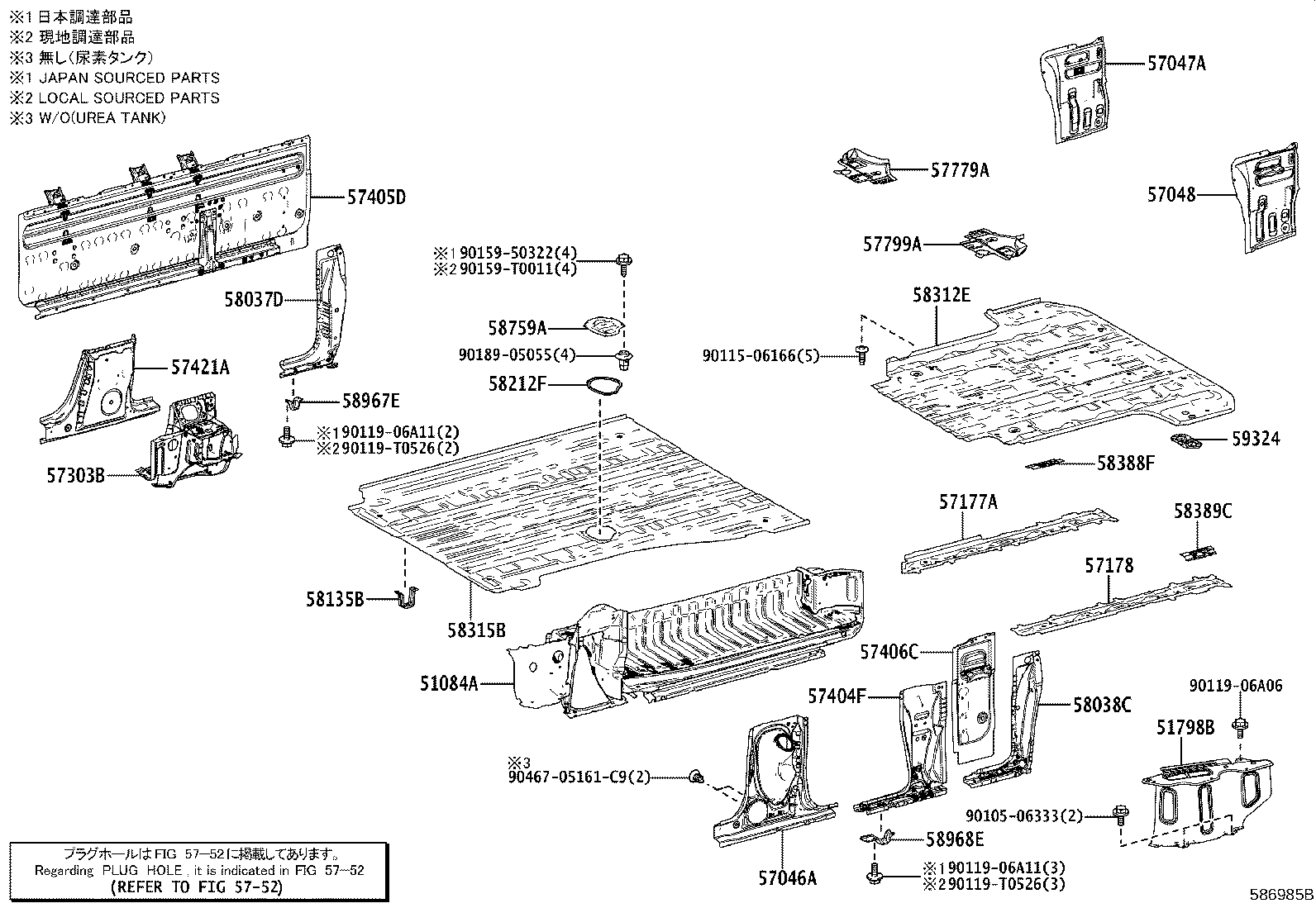

ILLUST NO. 1 OF 2(1903- )Q..ARL
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26280 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51084-26270 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26400 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26310 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57048-26420 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-26030 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57303B - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-26260 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL;GDH321,GRH321..RHD..(N,P,Q) |
1 | ||
| 57404F - RAIL SUB-ASSY, FLOOR SIDE, LH | ||||
| 57404-26100 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-26F50 |
GDH320..SG..6F..ARL |
1 | ||
| 57405-26F10 |
GDH320..SG..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-26860 |
GDH320..6F..ARL;GRH320,321..(D,P)..ARL |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GDH306..RHD;GRH303..LHD..G;GRH303,320..ARL;GDH320..SP..6F..ARL;GRH300..5D..(ARL,GEN) |
1 | ||
| 57421-26280 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26110 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26080 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26050 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26590 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26J60 |
GDH320..SG..6F..ARL |
1 | ||
| 58388F - PLATE, FLOOR, REAR RH | ||||
| 58388-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58389C - PLATE, FLOOR, REAR LH | ||||
| 58389-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GRH300,303..ARL;GDH300,320..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58968-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90115-06166 | ||||
| 90119-06A06 | ||||
| 90119-06A11 | ||||
| 90119-T0526 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| Linked diagrams | ||||
| 5752 | ||||

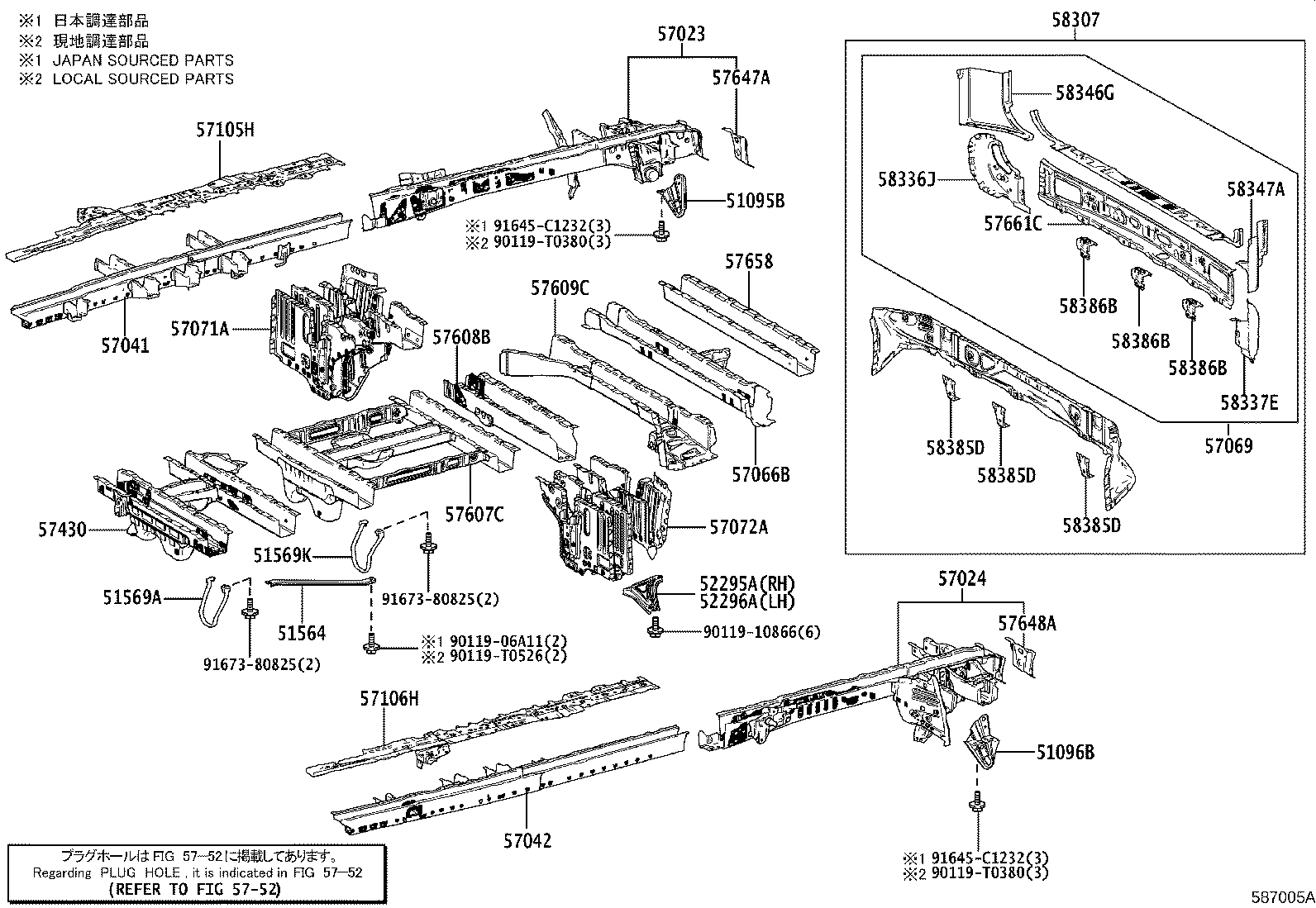

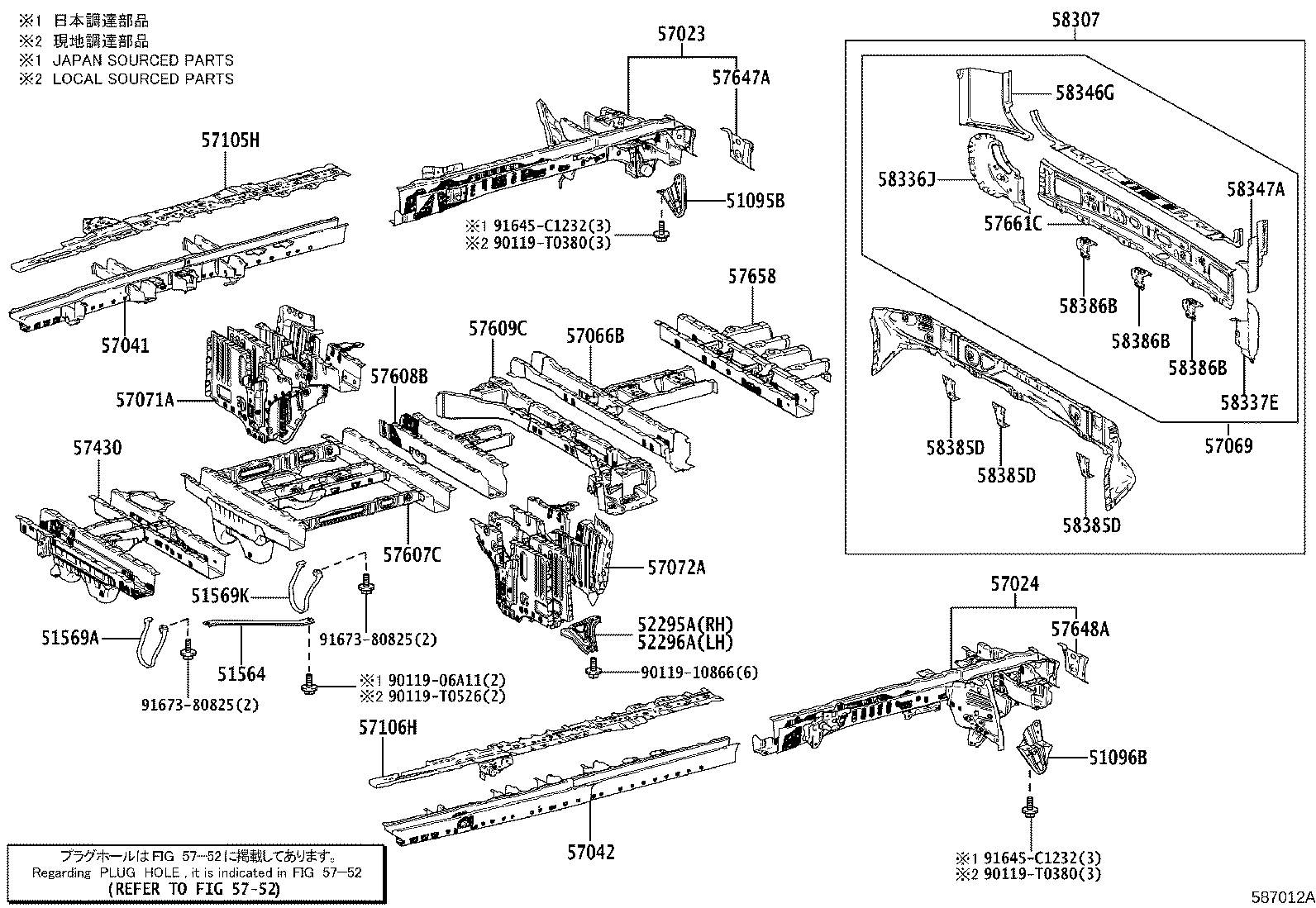

ILLUST NO. 2 OF 2(1903- )GDH320..RHD..SG
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 51564 - BRACKET, CENTER BEARING, REAR | ||||
| 51564-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 51569K - GUARD, PROPELLER SHAFT | ||||
| 51569-26110 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-V3010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN |
1 | ||
| 52295-26030 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26020 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296-V3010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26800 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26810 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26350 |
GDH320..SG..6F..ARL |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26210 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26390 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26230 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-26630 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26460 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26310 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26230 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26120 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26B00 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26350 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26490 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-26070 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26180 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26040 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 58307-26030 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26030 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26040 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-10866 | ||||
| 90119-T0380 | ||||
| 90119-T0526 | ||||
| 91645-C1232 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1903- )N,Q..ARL,IDN
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-26020 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 51564 - BRACKET, CENTER BEARING, REAR | ||||
| 51564-26010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 51569K - GUARD, PROPELLER SHAFT | ||||
| 51569-26110 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-V3010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN |
1 | ||
| 52295-26030 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26020 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296-V3010 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL;GDH322..RHD..(P,Q)..GEN |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26800 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26810 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26350 |
GDH320..SG..6F..ARL |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26210 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26390 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26230 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-26630 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26460 |
GRH320..ARL;GDH321..N..IDN;GDH320..6F..ARL |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26310 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26230 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26120 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26B00 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26350 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26490 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-26070 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26180 |
GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26040 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 58307-26030 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26030 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26040 |
GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
3 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-10866 | ||||
| 90119-T0380 | ||||
| 90119-T0526 | ||||
| 91645-C1232 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||

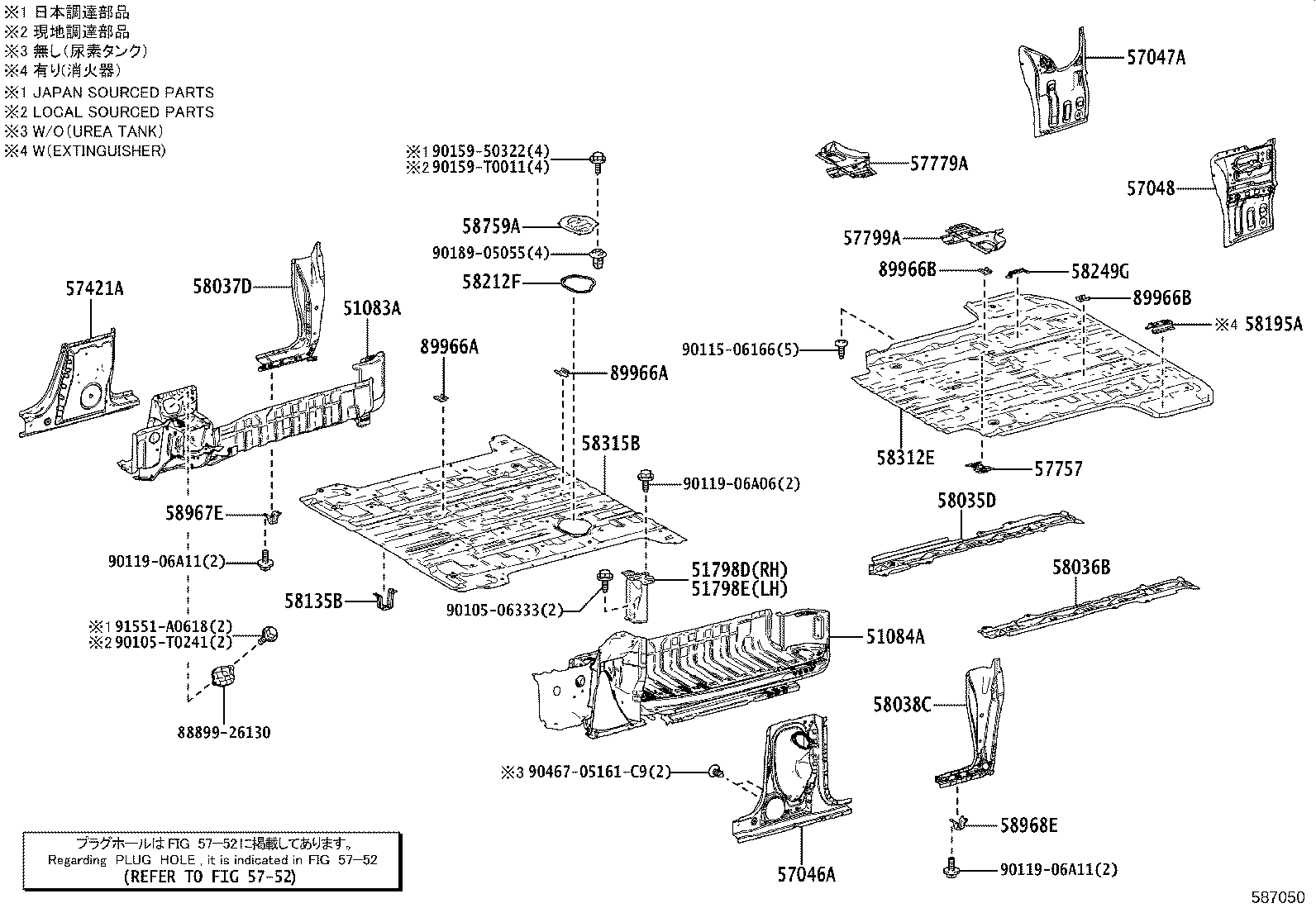

ILLUST NO. 1 OF 2(1907- )G..ARL
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26280 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51084-26270 |
GRH320..ARL;GDH320..6F..ARL |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26400 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26310 |
GRH320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 57048-26420 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GDH306..RHD;GRH303..LHD..G;GRH303,320..ARL;GDH320..SP..6F..ARL;GRH300..5D..(ARL,GEN) |
1 | ||
| 57421-26280 |
GRH300..4D..ARL;GDH300,320..4D..6F..ARL |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26110 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26080 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26050 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26040 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26590 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26J60 |
GDH320..SG..6F..ARL |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GRH300,303..ARL;GDH300,320..4D..6F..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58968-26080 |
GDH321..N..IDN;GDH320..6F..ARL;GRH320,321..ARL |
1 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-06333 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A06 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
