GDH320R-EDFDYQ (2019)
Toyota Hiace

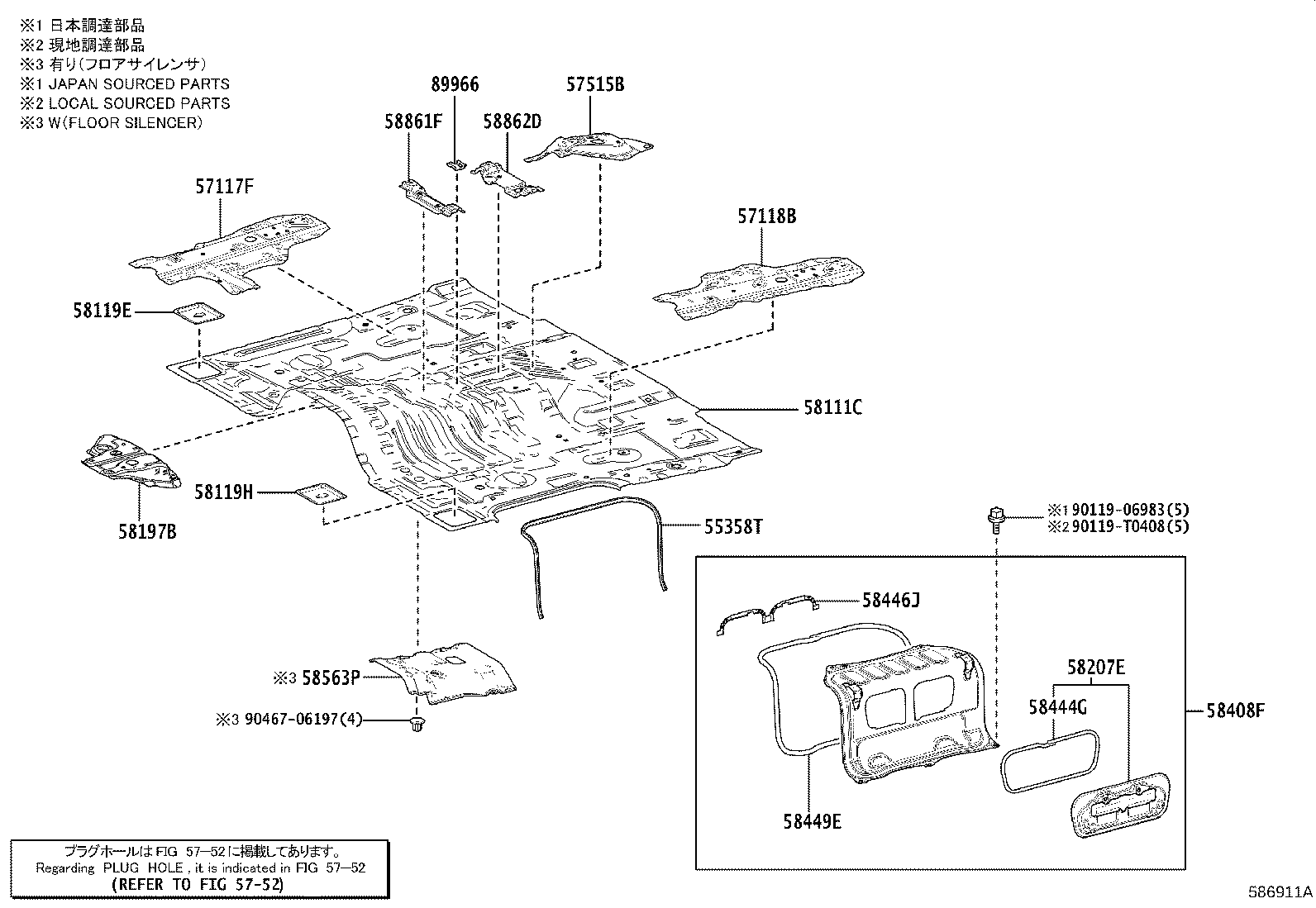

ILLUST NO. 1 OF 2(1907- )RHD..G,J
FLOOR PANEL(FRONT SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55358T - PROTECTOR, EDGE | ||||
| 55358-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57117-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57118-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57515B - BRACKET, PARKING BRAKE, RH | ||||
| 57515-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58111C - PAN, FRONT FLOOR | ||||
| 58111-26G80 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 58111-26D00 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL REAR CONSOLE BOX-WITH(TRAY TYPE) |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH | ||||
| 58207-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 58408-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58444G - PACKING, BATTERY SERVICE OPENING LID | ||||
| 58444-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58446J - PROTECTOR, BATTERY SERVICE OPENING LID | ||||
| 58446-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58449E - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58861F - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58861-26030 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL REAR CONSOLE BOX-WITH(TRAY TYPE) |
1 | ||
| 58862D - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58862-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL REAR CONSOLE BOX-WITH(TRAY TYPE) |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-T0408 | ||||
| 90467-06197 | ||||
| Linked diagrams | ||||
| 5752 | ||||

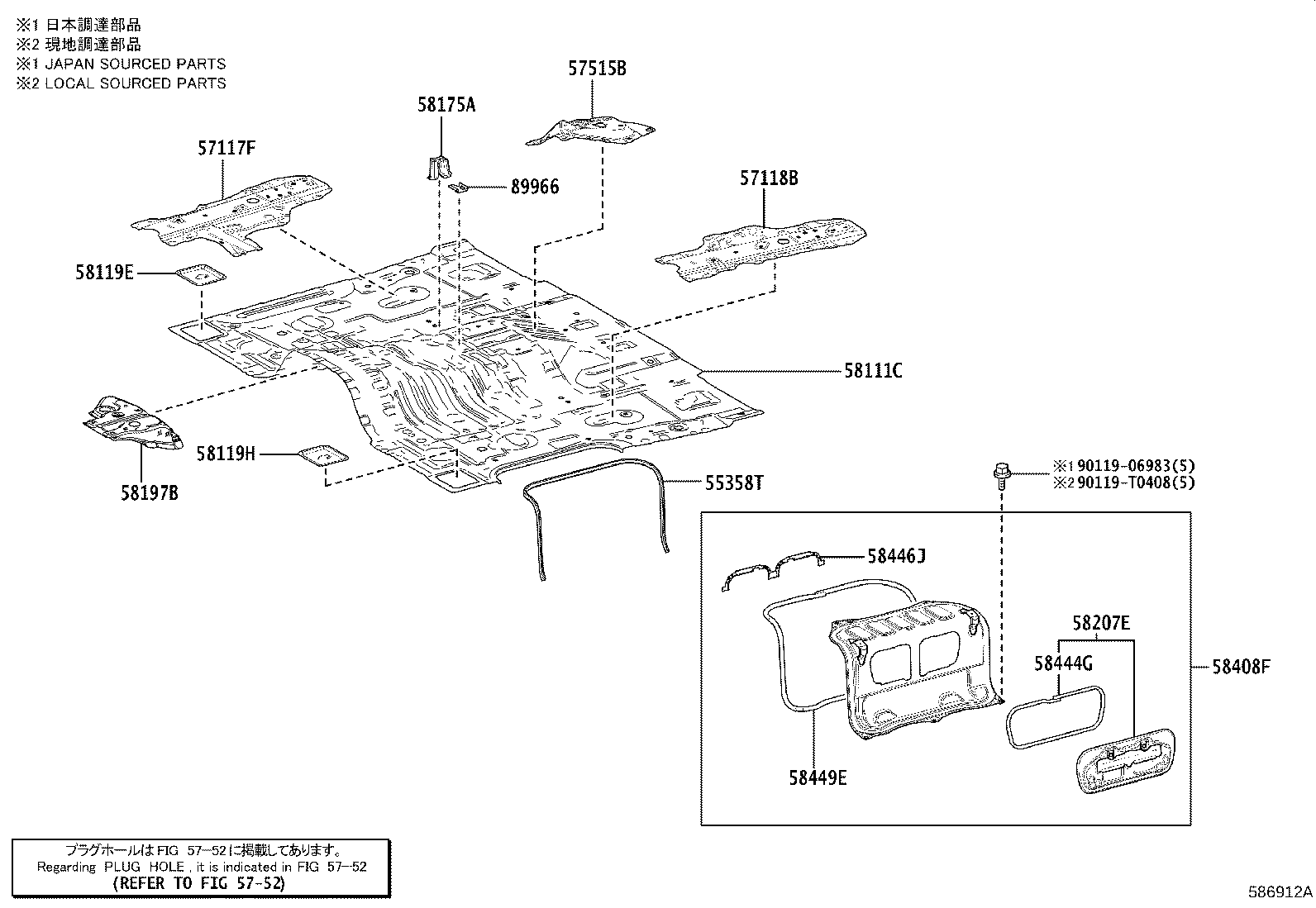

ILLUST NO. 1 OF 2(1907- )RHD..H
FLOOR PANEL(FRONT BENCH SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55358T - PROTECTOR, EDGE | ||||
| 55358-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57117-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57118-26050 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 57515B - BRACKET, PARKING BRAKE, RH | ||||
| 57515-26110 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58111C - PAN, FRONT FLOOR | ||||
| 58111-26G80 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 58111-26D00 |
GRH300,320..ARL;GDH320..6F..ARL;GDH300..4D..6F..ARL REAR CONSOLE BOX-WITH(TRAY TYPE) |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-26010 |
GRH300,320..ARL;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH | ||||
| 58207-26080 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 58408-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58444G - PACKING, BATTERY SERVICE OPENING LID | ||||
| 58444-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58446J - PROTECTOR, BATTERY SERVICE OPENING LID | ||||
| 58446-26020 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 58449E - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26030 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-T0408 | ||||
| Linked diagrams | ||||
| 5752 | ||||
