GDH320R-EDFDYQ (2019)

Toyota Hiace

Production Mar 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )Q..ARL

Click highlighted areas on diagram

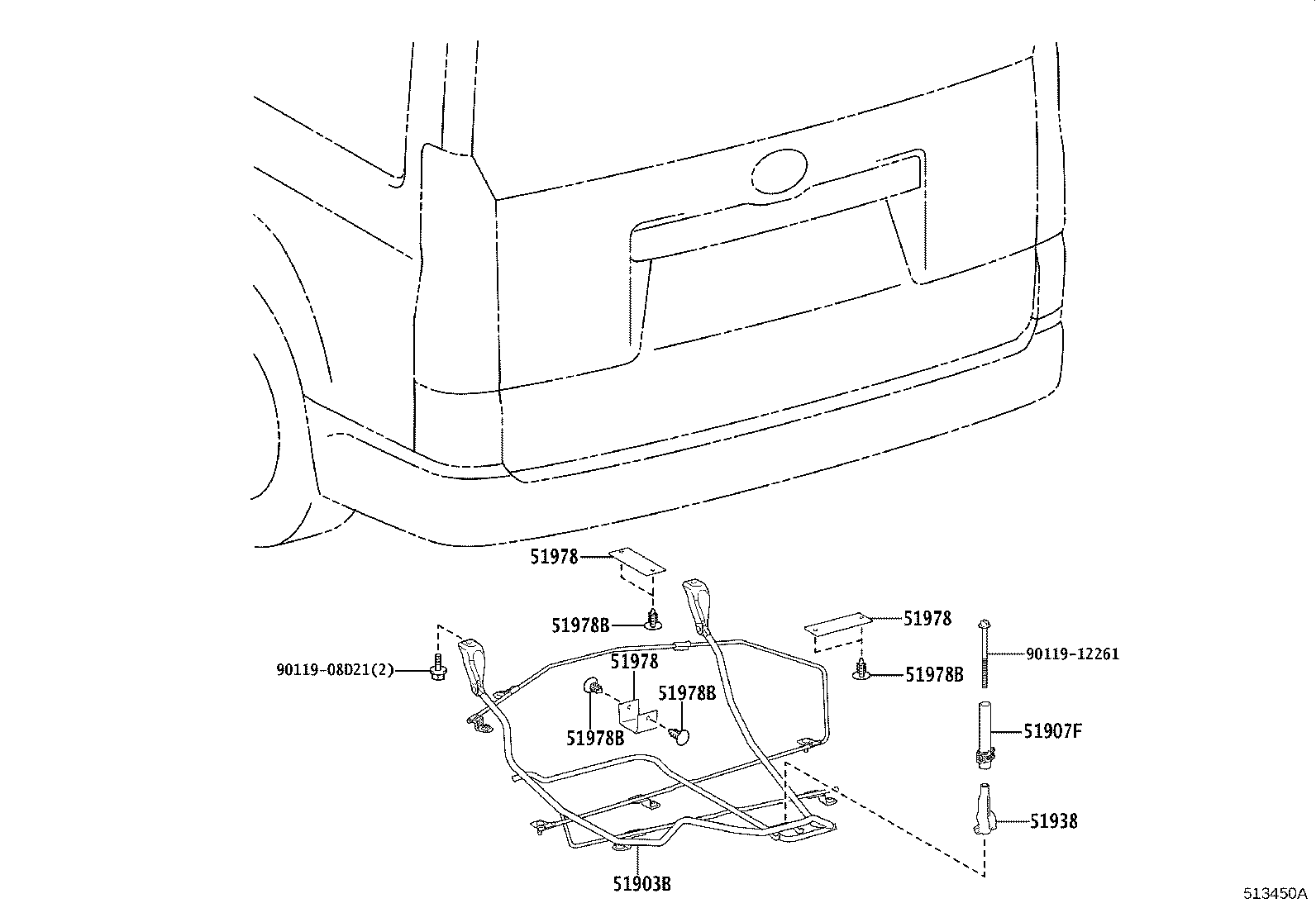

diagram 51903B 51907F 51938 51978 51978 51978 51978B 51978B 51978B 51978B 9011908D21 9011912261
Part # Description Qty Price
51903B - CARRIER SUB-ASSY, SPARE WHEEL
51903-26710

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH320,321..(D,Q)..ARL

 1
51903-26690

GDH320..6F..ARL

NEW ZEALAND SPEC

 1
51907F - STOPPER SUB-ASSY, SPARE WHEEL CARRIER
51907-26030

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-44010

GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q)

 1
51978 - PROTECTOR, SPARE WHEEL CARRIER
51978-26010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

 3
51978 - PROTECTOR, SPARE WHEEL CARRIER
51978-26010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

 3
51978 - PROTECTOR, SPARE WHEEL CARRIER
51978-26010

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

 3
51978B - CLIP, SPARE WHEEL CARRIER PROTECTOR
90467-06020C0

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

BLACK

 6
51978B - CLIP, SPARE WHEEL CARRIER PROTECTOR
90467-06020C0

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

BLACK

 6
51978B - CLIP, SPARE WHEEL CARRIER PROTECTOR
90467-06020C0

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

BLACK

 6
51978B - CLIP, SPARE WHEEL CARRIER PROTECTOR
90467-06020C0

GDH321..N..IDN;GDH320..6F..ARL;GRH300..5D..GEN;GDH300..4D..6F..ARL;GRH300,320,321..ARL

BLACK

 6
Common parts
90119-08D21
90119-12261
