GDH320R-EDFDYQ (2019)
Toyota Hiace

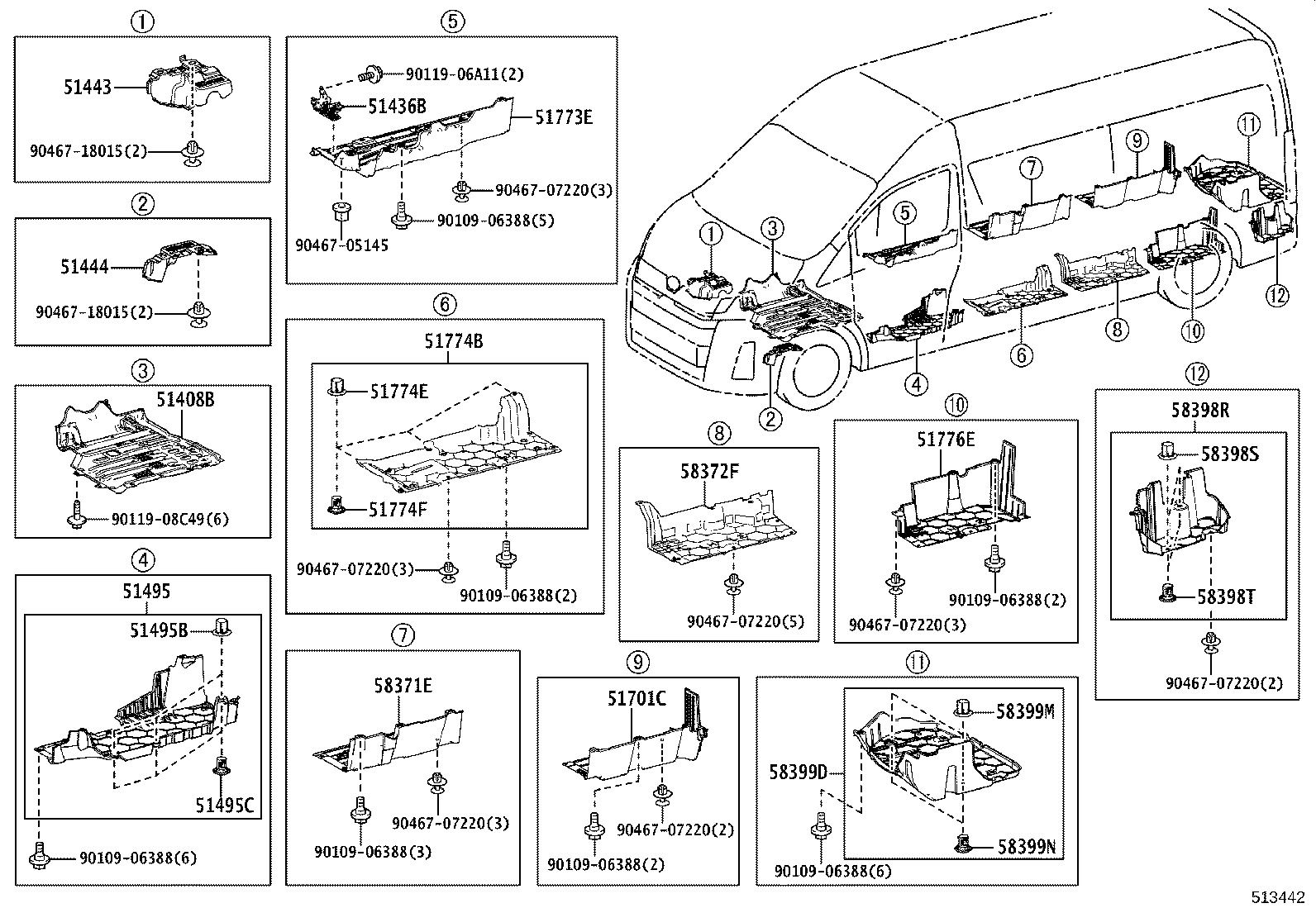

ILLUST NO. 2 OF 2(1903- )GDH320,322..D,Q..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-26090 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51408-26090 |
GDH306..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-26090 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51436-26090 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-26140 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-26100 |
GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,303,320..ARL;GRH300,303..LHD..5D..(D,G)..GEN;GDH306,321,GRH321..RHD..(G,J,N,P,Q) |
1 | ||
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 51495-26010 |
GDH306..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 51495-26010 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51495B - CLIP, TRANSMISSION UNDER COVER | ||||
| 90467-17026A0 |
GDH320..6F..ARL NEW ZEALAND SPEC,SUPER WHITE 2 |
3 | ||
| 90467-17026A0 |
GDH306..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL SUPER WHITE 2 |
3 | ||
| 51495C - CLIP, TRANSMISSION UNDER COVER | ||||
| 90467-17027C0 |
GDH306..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL BLACK |
3 | ||
| 90467-17027C0 |
GDH320..6F..ARL NEW ZEALAND SPEC,BLACK |
3 | ||
| 51701C - COVER SUB-ASSY, STEP PLATE, RH | ||||
| 51701-26130 |
GDH320..SG..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51701-26130 |
GRH321..Q..ARL;GDH320..SG..6F..ARL |
1 | ||
| 51773E - COVER, STEP PLATE, RH | ||||
| 51773-26060 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51773-26060 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) |
1 | ||
| 51774B - COVER, STEP PLATE, LH | ||||
| 51774-26090 |
GDH306..RHD;GDH320..6F..ARL;GDH300..4D..6F..ARL |
1 | ||
| 51774-26080 |
GRH303..LHD..G;GRH303,320,321..(D,G,J,Q)..ARL |
1 | ||
| 51774-26090 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51774E - CLIP, STEP PLATE COVER | ||||
| 90467-17026A0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) SUPER WHITE 2 |
3 | ||
| 90467-17026A0 |
GDH320..6F..ARL NEW ZEALAND SPEC,SUPER WHITE 2 |
3 | ||
| 51774F - CLIP, STEP PLATE COVER | ||||
| 90467-17027C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) BLACK |
3 | ||
| 90467-17027C0 |
GDH320..6F..ARL NEW ZEALAND SPEC,BLACK |
3 | ||
| 51776E - COVER, REAR STEP, NO.2 | ||||
| 51776-26020 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 51776-26020 |
GDH320..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 58371E - COVER, REAR FLOOR STEP, NO.1 | ||||
| 58371-26070 |
GDH320..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 58371-26070 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58372F - COVER, REAR FLOOR STEP, NO.2 | ||||
| 58372-26050 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58372-26050 |
GDH320..6F..ARL;GRH320,321..(D,Q)..ARL |
1 | ||
| 58398R - COVER, BODY LOWER BACK, LH | ||||
| 58398-26020 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58398-26020 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) |
1 | ||
| 58398S - CLIP, BODY LOWER BACK COVER | ||||
| 90467-17026A0 |
GDH320..6F..ARL NEW ZEALAND SPEC,SUPER WHITE 2 |
2 | ||
| 90467-17026A0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) SUPER WHITE 2 |
2 | ||
| 58398T - CLIP, BODY LOWER BACK COVER | ||||
| 90467-17027C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) BLACK |
2 | ||
| 90467-17027C0 |
GDH320..6F..ARL NEW ZEALAND SPEC,BLACK |
2 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-26010 |
GDH320..6F..ARL NEW ZEALAND SPEC |
1 | ||
| 58399-26010 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) SUPER WHITE 2 |
2 | ||
| 90467-17026A0 |
GDH320..6F..ARL NEW ZEALAND SPEC,SUPER WHITE 2 |
2 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
GRH303..LHD..G;GDH320..6F..ARL;GRH303,320..ARL;GDH300..4D..6F..ARL;GDH306,GRH321..RHD..(G,J,Q) BLACK |
2 | ||
| 90467-17027C0 |
GDH320..6F..ARL NEW ZEALAND SPEC,BLACK |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06A11 | ||||
| 90119-08C49 | ||||
| 90467-05145 | ||||
| 90467-07220 | ||||
| 90467-18015 | ||||
